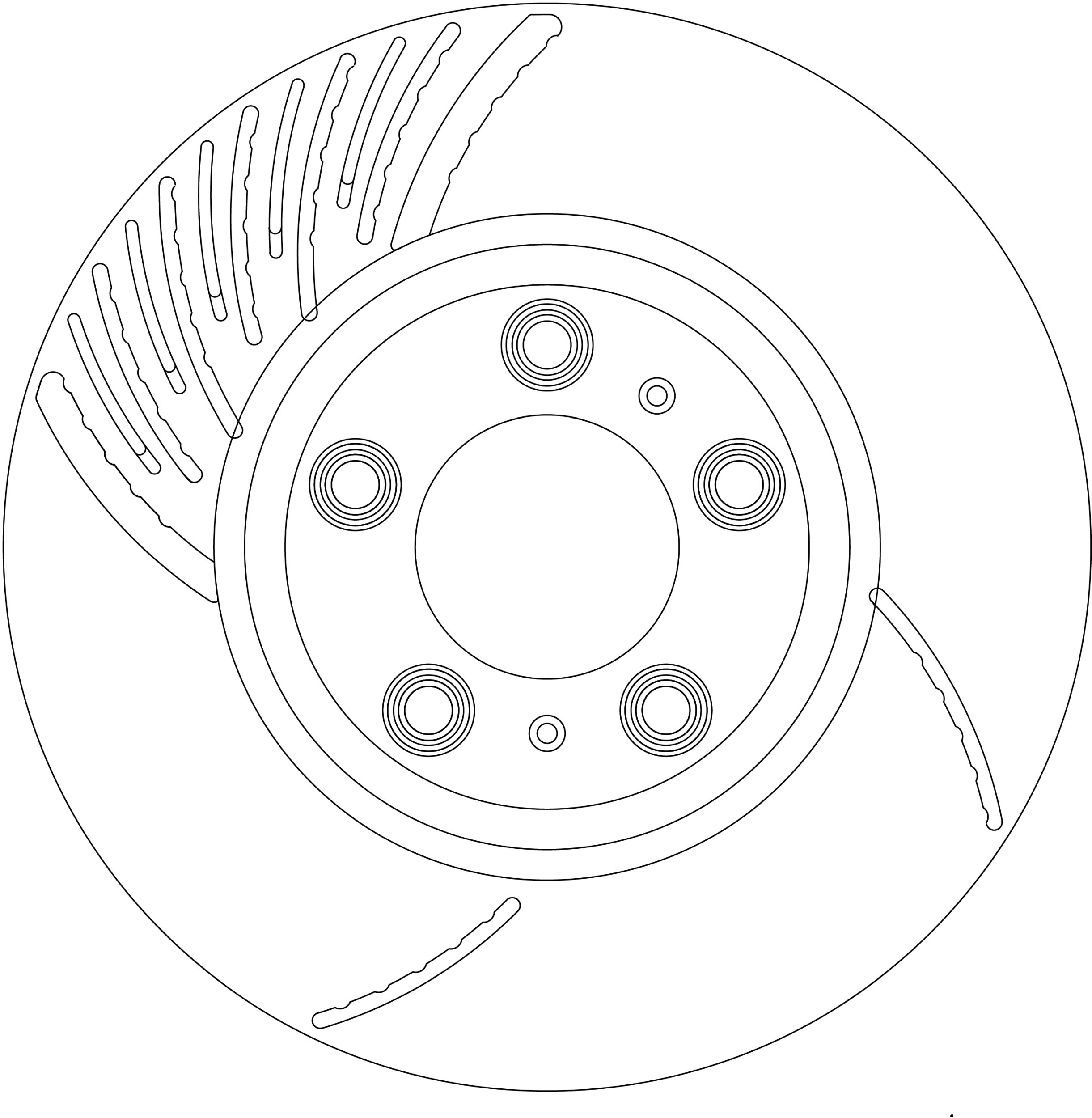

Specifications
| Bolt Hole Circle Ø (mm) | 130 |
| Brake Disc Thickness (mm) | 34 |
| Brake Disc Type Vented | |
| Centering Diameter (mm) | 98 |
| Height (mm) | 68.5 |
| Minimum thickness (mm) | 32 |
| Number of Holes 5 | |
| Outer Diameter (mm) | 350 |
| Thread Size 15.4 | |
Bolt Hole Circle Ø [mm] 130, Brake Disc Thickness [mm] 34, Brake Disc Type Vented, Centering Diameter [mm] 98, Height [mm] 68,5, Minimum thickness [mm] 32, Number of Holes 5, Outer Diameter [mm] 350, Thread Size 15.4
Fits: PORSCHE
Fits: PORSCHE
Supplier Cross-References
Interchangeable Part Numbers
OE Numbers — PORSCHE 971 615
OE Numbers — PORSCHE
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| PORSCHE | CAYENNE (9YA) | 3.0 E-Hybrid AWD (9YAAV1) | 2017 – present | 2995 | 346 | 470 |
| PORSCHE | CAYENNE (9YA) | 3.0 AWD (9YAAI1) | 2017 – present | 2995 | 260 | 354 |
| PORSCHE | CAYENNE (9YA) | 3.0 E-Hybrid AWD (9YAAE1) | 2017 – present | 2995 | 340 | 462 |
| PORSCHE | CAYENNE (9YA) | 4.0 GTS (9YABG1) | 2017 – present | 3996 | 338 | 460 |
| PORSCHE | CAYENNE (9YA) | 4.0 Turbo AWD (9YACF1) | 2017 – present | 3996 | 404 | 550 |
| PORSCHE | CAYENNE (9YA) | 2.9 S AWD (9YABB1) | 2017 – present | 2894 | 324 | 440 |
| PORSCHE | CAYENNE (9YA) | 3.0 AWD (9YAAA1) | 2017 – present | 2995 | 250 | 340 |
| PORSCHE | CAYENNE (9YA) | 2.0 E-Hybrid AWD (9YAAR1) | 2017 – present | 1984 | 293 | 398 |
| PORSCHE | CAYENNE (9YA) | 4.0 S AWD (9YABJ1) | 2017 – present | 3996 | 349 | 475 |
| PORSCHE | CAYENNE (9YA) | 3.0 AWD | 2017 – present | 2995 | 255 | 347 |
| PORSCHE | CAYENNE (9YA) | Turbo E-Hybrid AWD (9YACT1) | 2017 – present | 3996 | 544 | 740 |
| PORSCHE | CAYENNE (9YA) | 4.0 Turbo S E-Hybrid AWD (9YACH1) | 2017 – present | 3996 | 500 | 680 |
| PORSCHE | CAYENNE (9YA) | S E-Hybrid AWD (9YABN1) | 2017 – present | 2995 | 382 | 519 |
| PORSCHE | CAYENNE (9YA) | 2.0 E-Hybrid AWD (9YAAM1) | 2017 – present | 1984 | 284 | 386 |
| PORSCHE | CAYENNE (9YA) | 4.0 GTS | 2017 – present | 3996 | 368 | 500 |
| PORSCHE | CAYENNE Coupe (9YB) | 4.0 Turbo AWD (9YBCF1) | 2019 – present | 3996 | 404 | 550 |
| PORSCHE | CAYENNE Coupe (9YB) | 3.0 E-Hybrid AWD | 2019 – present | 2995 | 339 | 461 |
| PORSCHE | CAYENNE Coupe (9YB) | 4.0 Turbo S E-Hybrid AWD (9YBCH1) | 2019 – present | 3996 | 500 | 680 |
| PORSCHE | CAYENNE Coupe (9YB) | 4.0 GTS | 2019 – present | 3996 | 368 | 500 |
| PORSCHE | CAYENNE Coupe (9YB) | 4.0 GTS AWD (9YBBG1) | 2019 – present | 3996 | 338 | 460 |
| PORSCHE | CAYENNE Coupe (9YB) | 2.0 E-Hybrid AWD | 2019 – present | 1984 | 284 | 386 |
| PORSCHE | CAYENNE Coupe (9YB) | 4.0 Turbo GT AWD (9YBCQ1) | 2019 – present | 3996 | 471 | 640 |
| PORSCHE | CAYENNE Coupe (9YB) | 2.9 S AWD (9YBBB1) | 2019 – present | 2894 | 324 | 440 |
| PORSCHE | CAYENNE Coupe (9YB) | 3.0 AWD (9YBAA1) | 2019 – present | 2995 | 250 | 340 |
| PORSCHE | CAYENNE Coupe (9YB) | 3.0 AWD | 2019 – present | 2995 | 255 | 347 |
| PORSCHE | CAYENNE Coupe (9YB) | Turbo GT AWD (9YBCP1) | 2019 – present | 3996 | 485 | 660 |
| PORSCHE | CAYENNE Coupe (9YB) | 3.0 AWD (9YBAI1) | 2019 – present | 2995 | 260 | 354 |
| PORSCHE | CAYENNE Coupe (9YB) | 4.0 S AWD (9YBBJ1) | 2019 – present | 3996 | 349 | 475 |
| PORSCHE | CAYENNE Coupe (9YB) | 3.0 E-Hybrid AWD (9YBAV1) | 2019 – present | 2995 | 346 | 470 |
| PORSCHE | CAYENNE Coupe (9YB) | Turbo E-Hybrid AWD (9YBCT1, 9YBCZ1) | 2019 – present | 3996 | 544 | 740 |
| PORSCHE | CAYENNE Coupe (9YB) | S E-Hybrid AWD (9YBBN1) | 2019 – present | 2995 | 382 | 519 |
| PORSCHE | CAYENNE Coupe (9YB) | 2.0 E-Hybrid AWD (9YBAR1) | 2019 – present | 1984 | 293 | 398 |
| PORSCHE | PANAMERA (971) | 4.0 Turbo S E-Hybrid (97AFT1) | 2016 – 2023 | 3996 | 515 | 700 |
| PORSCHE | PANAMERA (971) | 4.0 GTS (97ADS1) | 2016 – 2023 | 3996 | 353 | 480 |
| PORSCHE | PANAMERA (971) | 2.9 4S E-Hybrid | 2016 – 2023 | 2894 | 412 | 560 |
| PORSCHE | PANAMERA (971) | 4.0 Turbo (97AFF1, 97BFF1) | 2016 – 2023 | 3996 | 404 | 550 |
| PORSCHE | PANAMERA (971) | 4.0 S 4 Diesel (97ADD1) | 2016 – 2023 | 3956 | 310 | 422 |
| PORSCHE | PANAMERA (971) | 4.0 Turbo S (97BFR1) | 2016 – 2023 | 3996 | 463 | 630 |
| PORSCHE | PANAMERA (971) | 2.9 4S (97ADB1, 97BDB1, 97ADN1) | 2016 – 2023 | 2894 | 324 | 440 |
| PORSCHE | PANAMERA (971) | 2.9 4 E-Hybrid (97ABE1, 97BBE1, 97ABX1) | 2016 – 2023 | 2894 | 340 | 462 |
| PORSCHE | PANAMERA (971) | 2.9 (97AAY1, 97BAY1, 97AGY1, 97AAI1, 97BAI1, 97BAM1) | 2016 – 2023 | 2894 | 243 | 330 |
| PORSCHE | PANAMERA (971) | 3.0 (97AAA1, 97BAA1) | 2016 – 2023 | 2995 | 243 | 330 |
| PORSCHE | PANAMERA (971) | 2.9 4 (97ABY1, 97BBY1, 97BBI1, 97BBM1, 97ABI1) | 2016 – 2023 | 2894 | 243 | 330 |
| PORSCHE | PANAMERA (971) | 3.0 4 (97ABA1, 97BBA1) | 2016 – 2023 | 2995 | 243 | 330 |
| PORSCHE | PANAMERA (971) | 4.0 GTS (97ADG1) | 2016 – 2023 | 3996 | 338 | 460 |
| PORSCHE | PANAMERA (971) | 4.0 Turbo S E-Hybrid (97AFH1, 97BFH1) | 2016 – 2023 | 3996 | 500 | 680 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 Turbo S E-Hybrid (97CFH1) | 2017 – 2023 | 3996 | 500 | 680 |
| PORSCHE | PANAMERA Sport Turismo (971) | 3.0 4 (97CBA1) | 2017 – 2023 | 2995 | 243 | 330 |
| PORSCHE | PANAMERA Sport Turismo (971) | 2.9 4 E-Hybrid (97CBE1) | 2017 – 2023 | 2894 | 340 | 462 |
| PORSCHE | PANAMERA Sport Turismo (971) | 2.9 4S (97CDB1) | 2017 – 2023 | 2894 | 324 | 440 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 Turbo (97CFF1) | 2017 – 2023 | 3996 | 404 | 550 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 S 4 Diesel (97CDD1) | 2017 – 2023 | 3956 | 310 | 422 |
| PORSCHE | PANAMERA Sport Turismo (971) | 2.9 4S E-Hybrid (97CDZ1, 97ADZ1) | 2017 – 2023 | 2894 | 412 | 560 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 GTS (97CDG1) | 2017 – 2023 | 3996 | 338 | 460 |
| PORSCHE | PANAMERA Sport Turismo (971) | 2.9 4 (97CBY1, 97CBI1, 97CNI1) | 2017 – 2023 | 2894 | 243 | 330 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 Turbo S E-Hybrid (97CFT1) | 2017 – 2023 | 3996 | 515 | 700 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 GTS (97CDG1) | 2017 – 2023 | 3996 | 353 | 480 |
| PORSCHE | PANAMERA Sport Turismo (971) | 4.0 Turbo S | 2017 – 2023 | 3996 | 463 | 630 |
