Brake Disc
Braking System

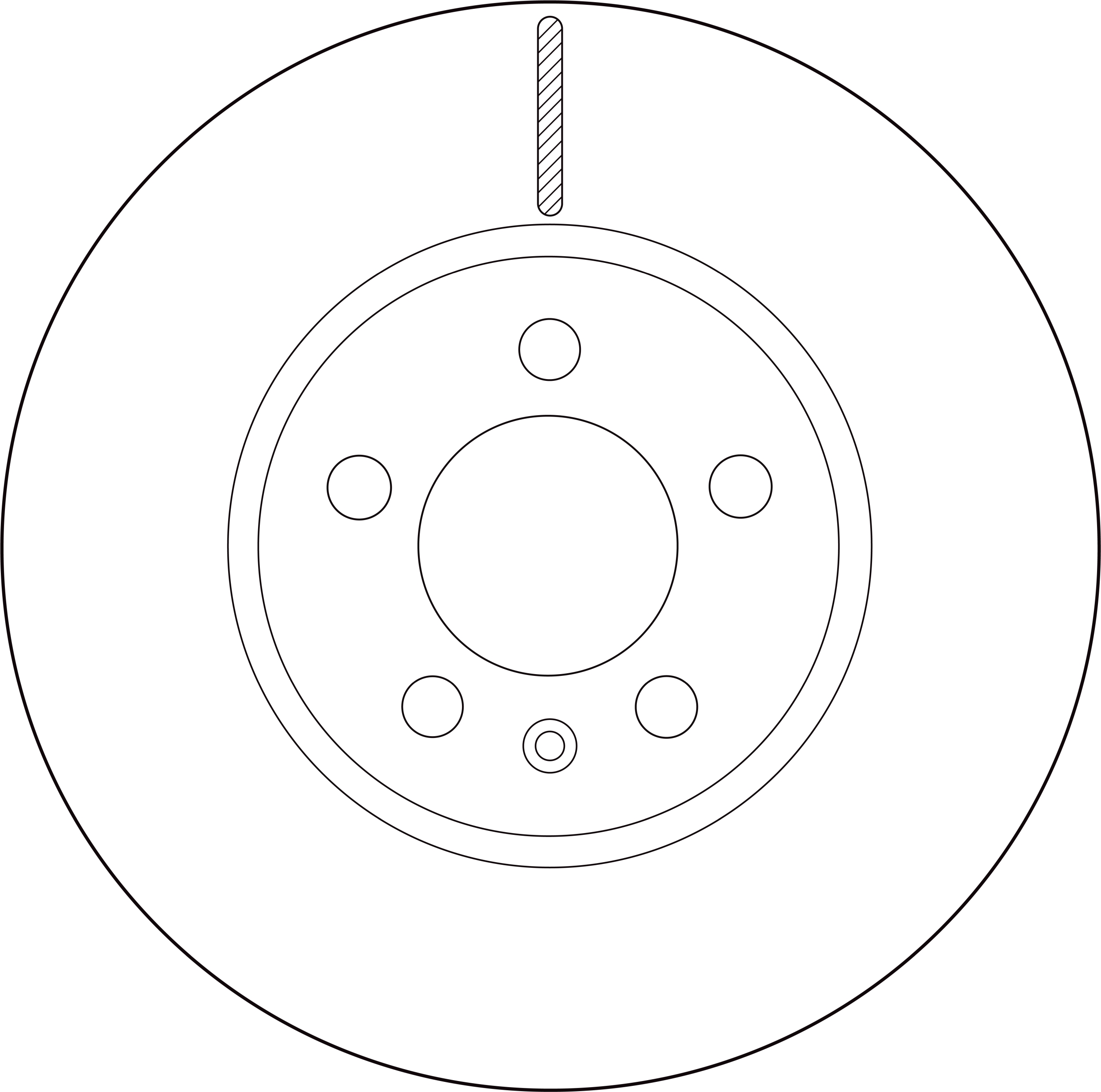

Brake Disc

Part No. DF8659S · SKU DF8659S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)100
Brake Disc Thickness (mm)24
Brake Disc Type Vented
Centering Diameter (mm)65
Height (mm)44.4
Minimum thickness (mm)21
Number of Holes 5
Outer Diameter (mm)276
Thread Size 15,3
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 24, Brake Disc Type Vented, Centering Diameter [mm] 65, Height [mm] 44,4, Minimum thickness [mm] 21, Number of Holes 5, Outer Diameter [mm] 276, Thread Size 15,3
Fits: AUDI, SEAT, SKODA, VW, VW (FAW), VW (SVW)

Interchangeable Part Numbers

ATE24.0124-0263.1 BOSCH 0 986 479H71 BOSCH0986479H71 DELPHIBG4965C FEBI BILSTEIN175496 MEYLE 115 5210070/PD MEYLE1155210070PD NK3147177 OPTIMALBS-0272HC REMSA62118.10 SWAG 33 106928 SWAG33106928

OE Numbers — AUDI 2Q0 615 301

H

OE Numbers — AUDI

2Q0615301H

OE Numbers — VW (FAW) 2QD 615 301

A

OE Numbers — VW (FAW)

2QD615301A
MakeModelType / Engine YearsCCkWHP
AUDI A1 City Carver (GBH) 25 TFSI 2019 – 2022 999 70 95
AUDI A1 City Carver (GBH) 30 TFSI 2019 – 2022 999 85 116
AUDI A1 City Carver (GBH) 35 TFSI 2019 – 2022 1498 110 150
AUDI A1 City Carver (GBH) 30 TFSI 2019 – 2022 999 81 110
