Braking System

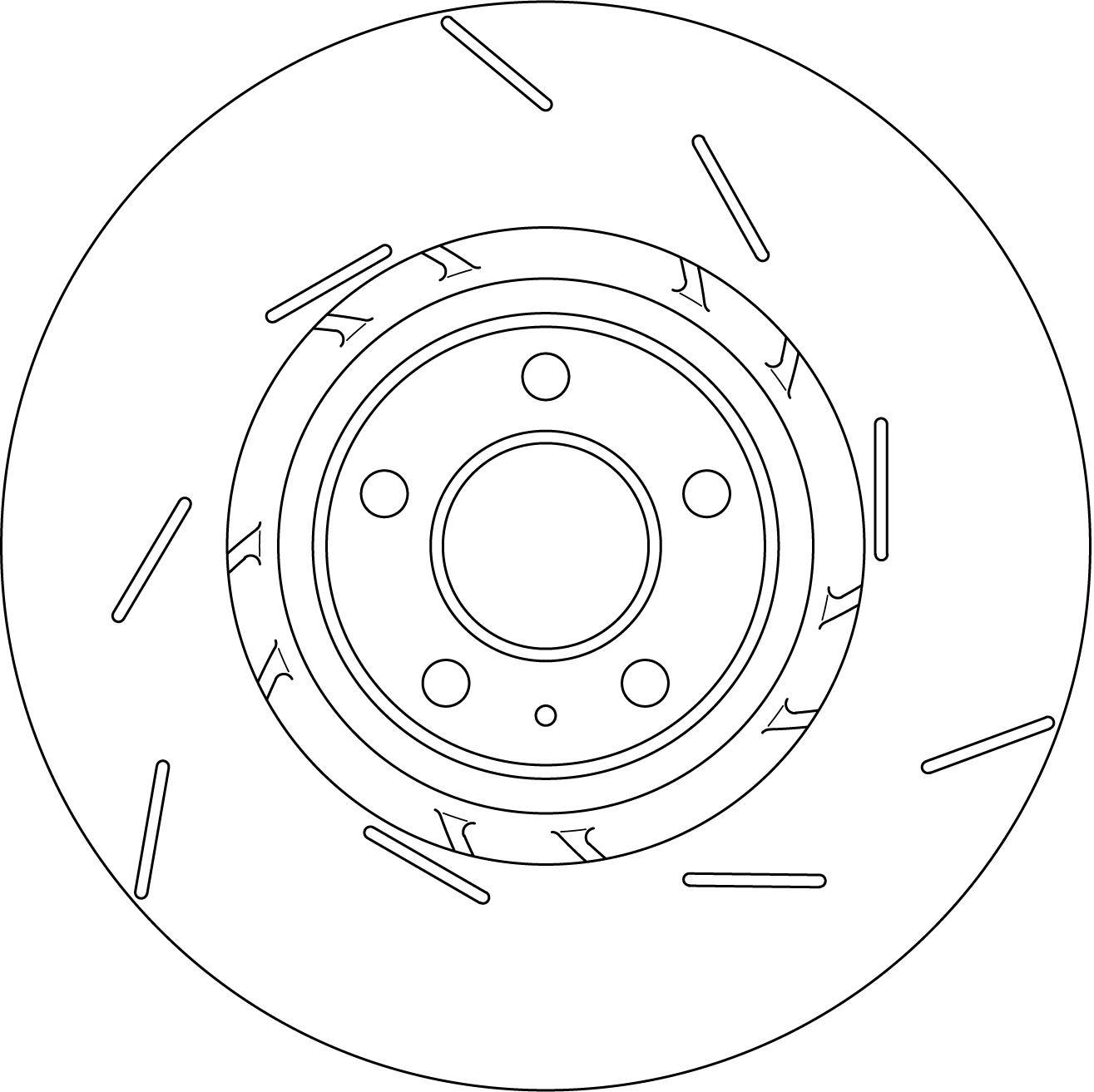

Brake Disc

Name: Brake Disc
Brand: TRW
SKU: DF8676S-TRW
Availability: OutOfStock

Part No. DF8676S · SKU DF8676S-TRW

Front Axle Left

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)	112
Brake Disc Thickness (mm)	36
Brake Disc Type Vented
Centering Diameter (mm)	68
Height (mm)	52.2
Minimum thickness (mm)	32
Number of Holes 5
Outer Diameter (mm)	360
Thread Size 15.3

Bolt Hole Circle Ø [mm] 112, Brake Disc Thickness [mm] 36, Brake Disc Type Vented, Centering Diameter [mm] 68, Height [mm] 52,2, Minimum thickness [mm] 32, Number of Holes 5, Outer Diameter [mm] 360, Thread Size 15.3
Fits: PORSCHE

Interchangeable Part Numbers

ATE24.0136-0131.1 BOSCH 0 986 479D27 BOSCH0986479D27 BREMBO09.D938.11 DELPHIBG9333C FEBI BILSTEIN171595 FERODODDF2774LC-1 HELLA 8DD 355134-701 HELLA8DD355134701 LPRP2028VR SWAG 33 100962 SWAG33100962 TEXTAR92334205

OE Numbers — PORSCHE 95B 615 301

E G J

OE Numbers — PORSCHE

95B615301E 95B615301G 95B615301J

Make	Model	Type / Engine	Years	CC	kW	HP
PORSCHE	MACAN (95B)	2.0	2014 – present	1984	185	252
PORSCHE	MACAN (95B)	2.9 GTS AWD (95BBW1)	2014 – present	2894	324	440
PORSCHE	MACAN (95B)	2.9 S (95BBV1)	2014 – present	2894	280	380
PORSCHE	MACAN (95B)	2.0 (95BAU1)	2014 – present	1984	195	265
PORSCHE	MACAN (95B)	2.9 GTS (95BBL1)	2014 – present	2894	280	380
PORSCHE	MACAN (95B)	2.9 Turbo AWD (95BCI1)	2014 – present	2894	324	440
PORSCHE	MACAN (95B)	3.0 S	2014 – present	2995	260	354
PORSCHE	MACAN (95B)	2.0	2014 – present	1984	180	245
PORSCHE	MACAN (95B)	3.6 Turbo	2014 – present	3604	324	440
PORSCHE	MACAN (95B)	3.0 S	2014 – present	2997	250	340
PORSCHE	MACAN (95B)	3.0 GTS	2014 – present	2997	265	360
PORSCHE	MACAN (95B)	3.0 S Diesel	2014 – present	2967	180	245
PORSCHE	MACAN (95B)	2.0	2014 – present	1984	174	237
PORSCHE	MACAN (95B)	3.0 S Diesel	2014 – present	2967	184	250
PORSCHE	MACAN (95B)	3.0 S Diesel	2014 – present	2967	155	211
PORSCHE	MACAN (95B)	3.0 S Diesel	2014 – present	2967	190	258
PORSCHE	MACAN (95B)	3.6 Turbo	2014 – present	3604	294	400
