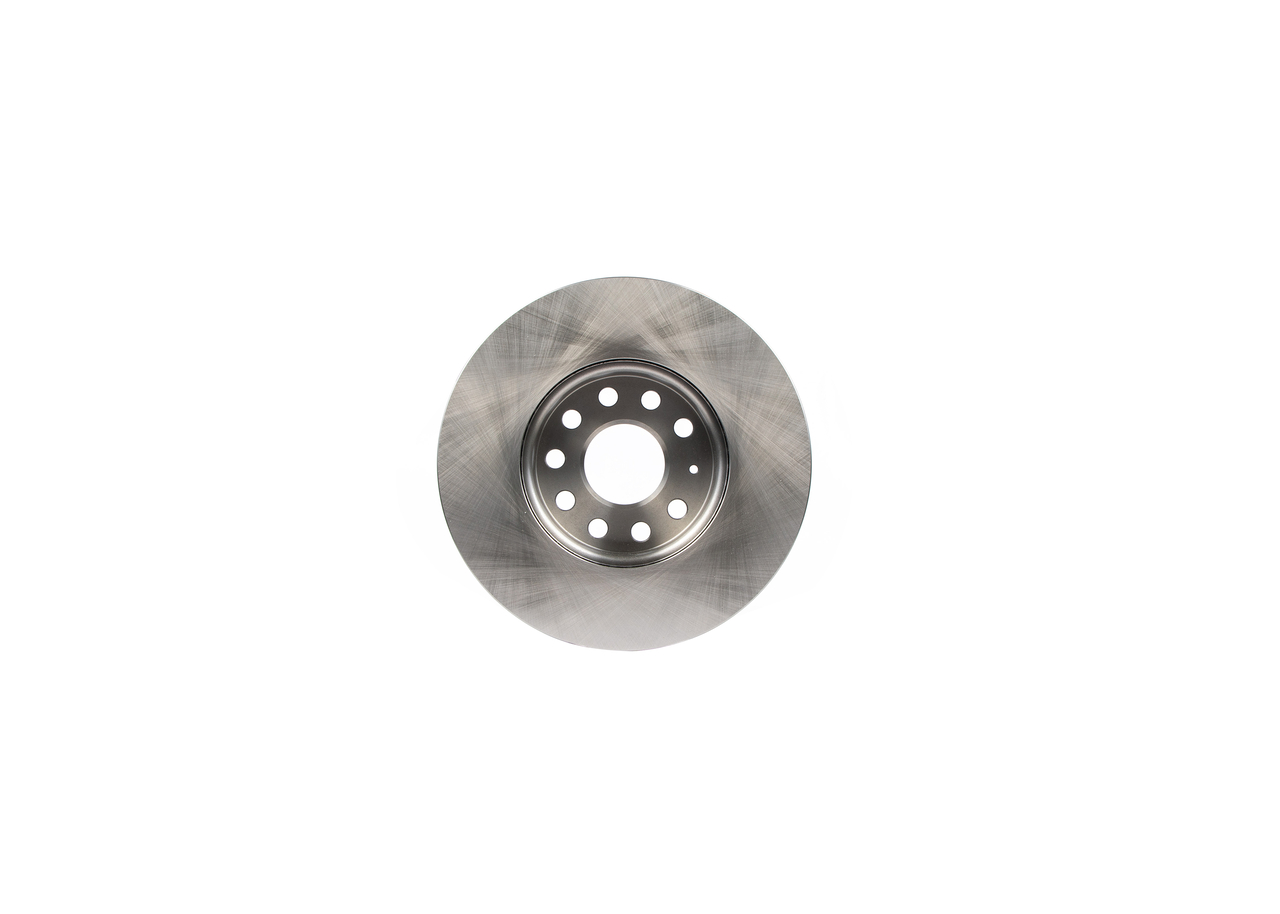

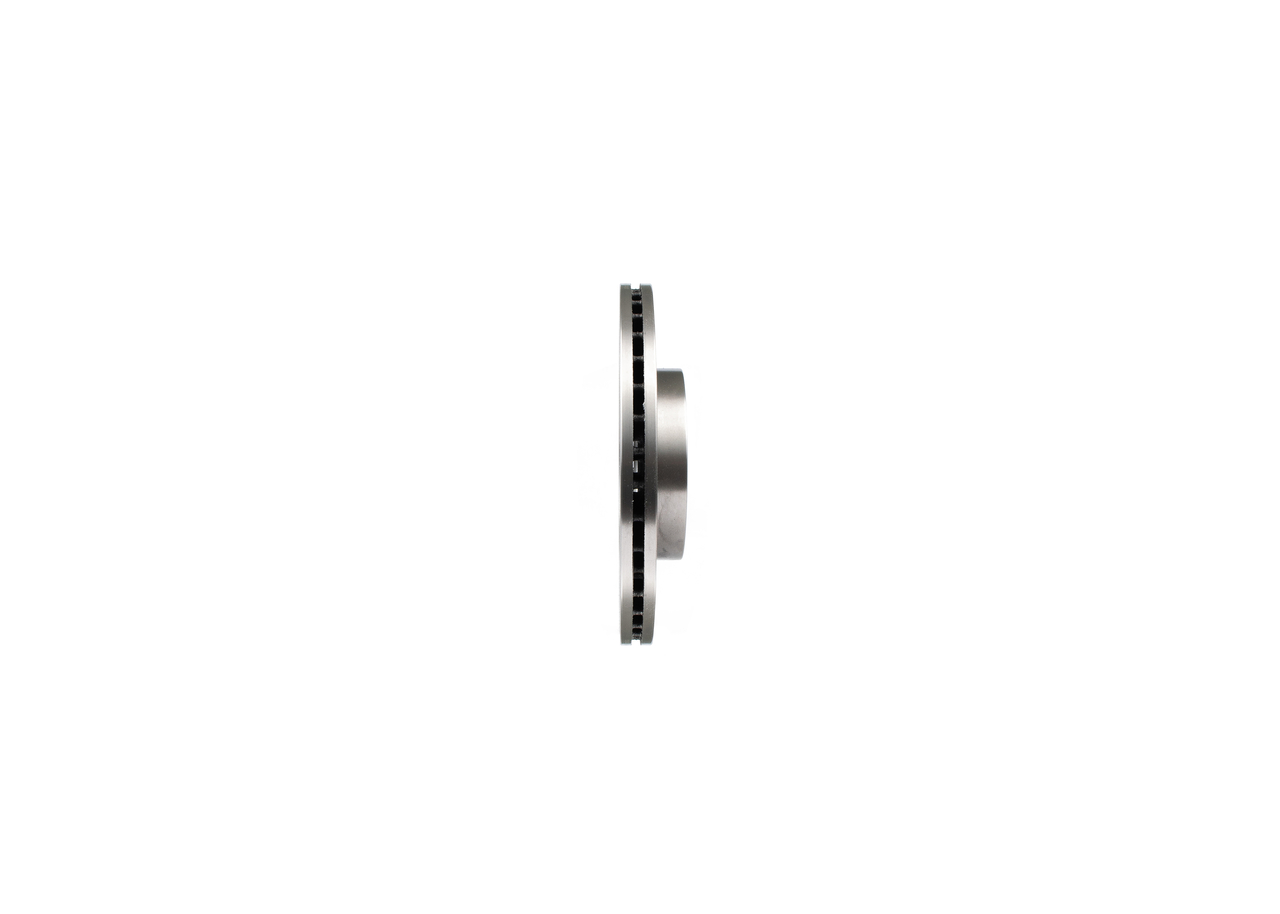

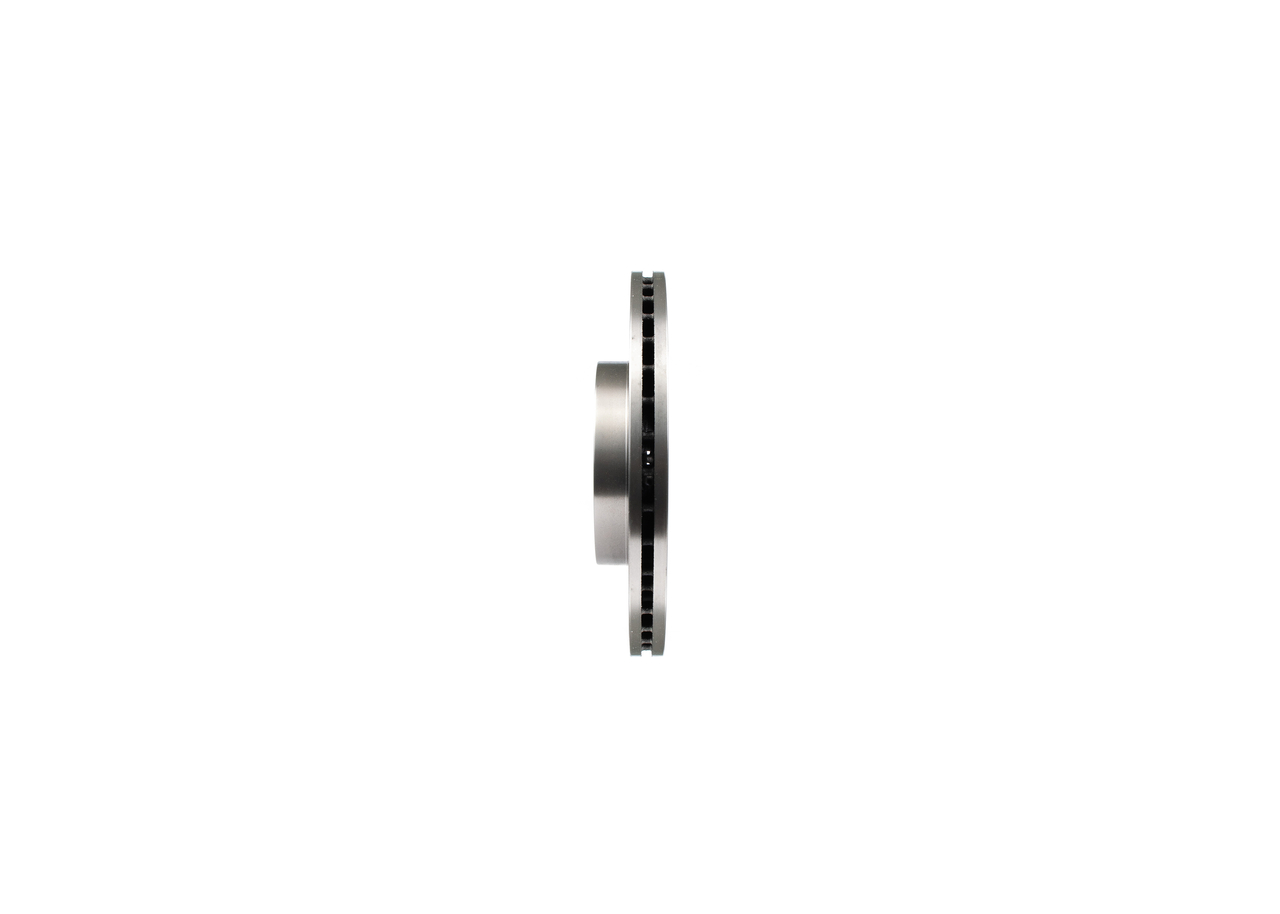

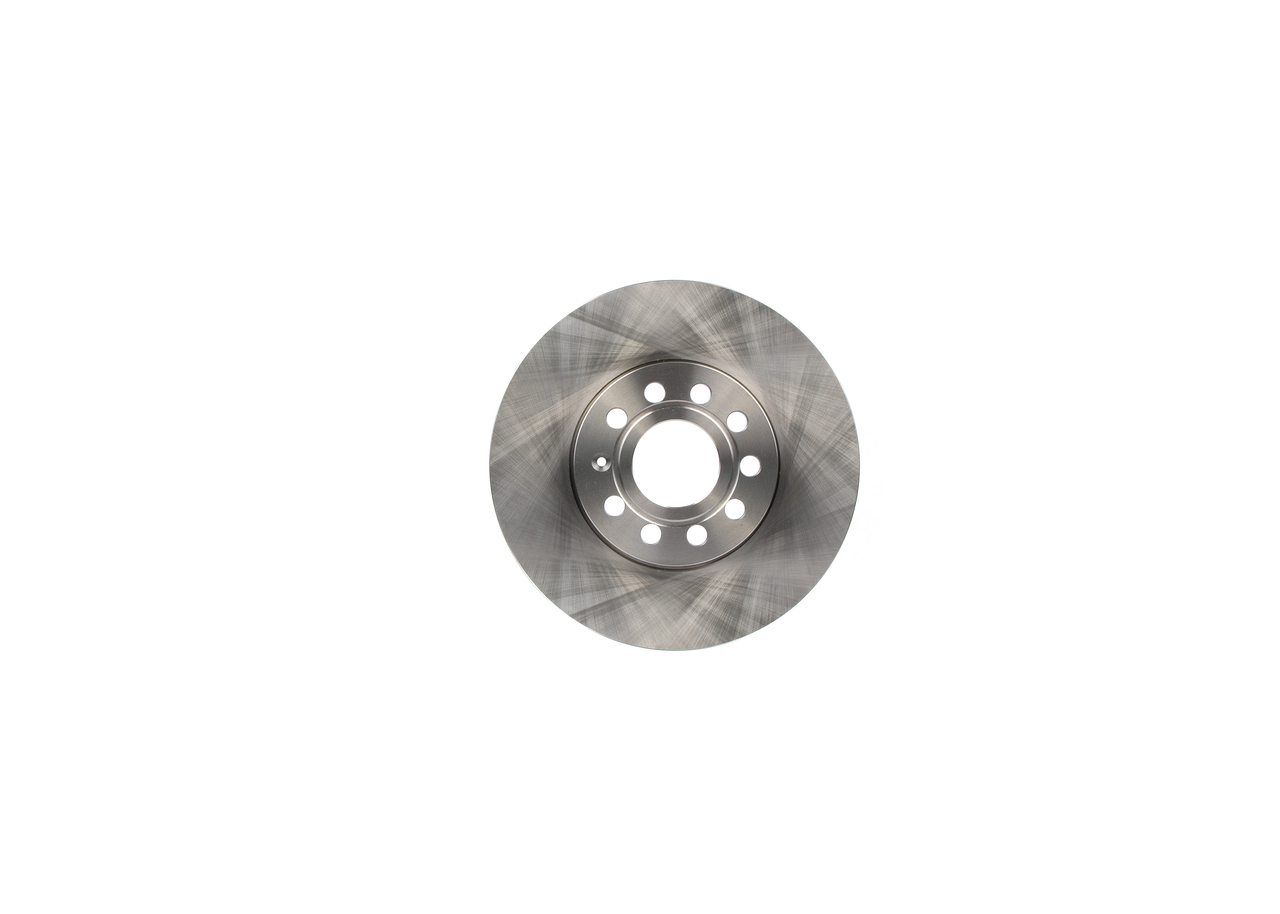

Brake Disc
Brake Disc 1 Brake Disc 2 Brake Disc 3 Brake Disc 4 Brake Disc 5
Braking System

Brake Disc

Part No. F 005 X14 058 · SKU F 005 X14 058-BOSCH
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)112
Bore Diameter up to (mm)15.3
Brake Disc Thickness (mm)24.9
Brake Disc Type Vented
Centering Diameter (mm)65
Height (mm)49.7
Minimum thickness (mm)22
Number of Holes 9
Outer Diameter (mm)287.8
Bolt Hole Circle Ø [mm] 112, Bore Diameter up to [mm] 15,3, Brake Disc Thickness [mm] 24,9, Brake Disc Type Vented, Centering Diameter [mm] 65, Height [mm] 49,7, Minimum thickness [mm] 22, Number of Holes 9, Outer Diameter [mm] 287,8
Fits: AUDI, SKODA, VW

Interchangeable Part Numbers

BOSCH0 986 AB6 821 BOSCH F026 A06 782 BOSCHF026A06782

OE Numbers — AUDI

1K0 615 301 T 5Q0 615 301 H

OE Numbers — VW

1K0 615 301 K 5C0 615 301 D JZW615301J

OE Numbers — VW JZW

615 301 J
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8P1) 1.6 E-Power 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 FSI 2003 – 2013 1984 110 150
AUDI A3 (8P1) 1.6 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 TDI 16V 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.9 TDI 2003 – 2013 1896 77 105
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 100 136
AUDI A3 (8P1) 3.2 V6 quattro 2003 – 2013 3189 184 250
AUDI A3 (8P1) 1.6 FSI 2003 – 2013 1598 85 115
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 100 136
AUDI A3 (8P1) 2.0 TFSI 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TFSI quattro 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TDI 16V quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 125 170
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 125 170
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 195 265
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.8 TFSI 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.8 T 2003 – 2013 1781 110 150
AUDI A3 (8P1) 1.4 TFSI 2003 – 2013 1390 92 125
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 188 256
AUDI A3 (8P1) 1.8 TFSI quattro 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 66 90
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 77 105
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 120 163
AUDI A3 (8P1) 1.2 TSI 2003 – 2013 1197 77 105
AUDI A3 Convertible (8P7) 1.4 TFSI 2008 – 2013 1390 92 125
AUDI A3 Convertible (8P7) 1.8 TFSI 2008 – 2013 1798 118 160
AUDI A3 Convertible (8P7) 2.0 TFSI 2008 – 2013 1984 147 200
AUDI A3 Convertible (8P7) 1.9 TDI 2008 – 2013 1896 77 105
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 103 140
AUDI A3 Convertible (8P7) 1.6 2008 – 2013 1595 75 102
AUDI A3 Convertible (8P7) 1.6 TDI 2008 – 2013 1598 77 105
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 100 136
AUDI A3 Convertible (8P7) 1.2 TFSI 2008 – 2013 1197 77 105
AUDI A3 Sportback (8PA) 1.6 E-Power 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) RS3 quattro 2004 – 2015 2480 250 340
AUDI A3 Sportback (8PA) 1.6 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) 1.9 TDI 2004 – 2015 1896 77 105
AUDI A3 Sportback (8PA) 1.6 FSI 2004 – 2015 1598 85 115
AUDI A3 Sportback (8PA) 2.0 FSI 2004 – 2015 1984 110 150
AUDI A3 Sportback (8PA) 3.2 V6 quattro 2004 – 2015 3189 184 250
AUDI A3 Sportback (8PA) 2.0 TDI 16V 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TFSI 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TFSI quattro 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 100 136
AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 1.8 TFSI 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 1.4 TFSI 2004 – 2015 1390 92 125
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 195 265
AUDI A3 Sportback (8PA) 1.8 TFSI quattro 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 66 90
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 77 105
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 120 163
AUDI A3 Sportback (8PA) 1.2 TSI 2004 – 2015 1197 77 105
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 188 256
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 104 141
AUDI A3 Sportback (8PA) 1.8 FSI 2004 – 2015 1781 110 150
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 90 122
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 105 143
AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 77 105
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 103 140
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 221 300
AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI quattro 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 1.2 TFSI 2012 – 2021 1197 77 105
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 100 136
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 206 280
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI g-tron 2012 – 2021 1395 81 110
AUDI A3 Sportback (8VA, 8VF) 1.2 TFSI 2012 – 2021 1197 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 92 125
AUDI A3 Sportback (8VA, 8VF) 1.4 TSI 2012 – 2021 1395 110 150
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 210 286
AUDI A3 Sportback (8VA, 8VF) 2.0 45 TFSI 2012 – 2021 1984 162 220
AUDI A3 Sportback (8VA, 8VF) RS3 quattro 2012 – 2021 2480 270 367
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI quattro 2012 – 2021 1598 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI e-tron 2012 – 2021 1395 150 204
AUDI A3 Sportback (8VA, 8VF) 1.0 TFSI 2012 – 2021 999 85 115
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 228 310
AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI quattro 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 213 290
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 85 115
AUDI A3 Sportback (8VA, 8VF) RS3 quattro 2012 – 2021 2480 294 400
AUDI A3 Sportback (8VA, 8VF) 1.5 TFSI 2012 – 2021 1498 110 150
AUDI A3 Sportback (8VA, 8VF) 30 TFSI 2012 – 2021 999 85 116
AUDI A3 Sportback (8VA, 8VF) 35 TFSI 2012 – 2021 1498 110 150
AUDI A3 Sportback (8VA, 8VF) 30 TDI 2012 – 2021 1598 85 115
AUDI A3 Sportback (8VA, 8VF) 30 g-tron 2012 – 2021 1498 96 131
AUDI A3 Sportback (8VA, 8VF) 40 TFSI 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 35 TDI 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) 40 TFSI quattro 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 40 TDI quattro 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 40 e-tron 2012 – 2021 1395 150 204
AUDI A3 Sportback (8VA, 8VF) 1.8 40 TFSI 2012 – 2021 1798 132 180
