Brake Pad Set, disc brake
Brake Pad Set, disc brake 1 Brake Pad Set, disc brake 2
Braking System

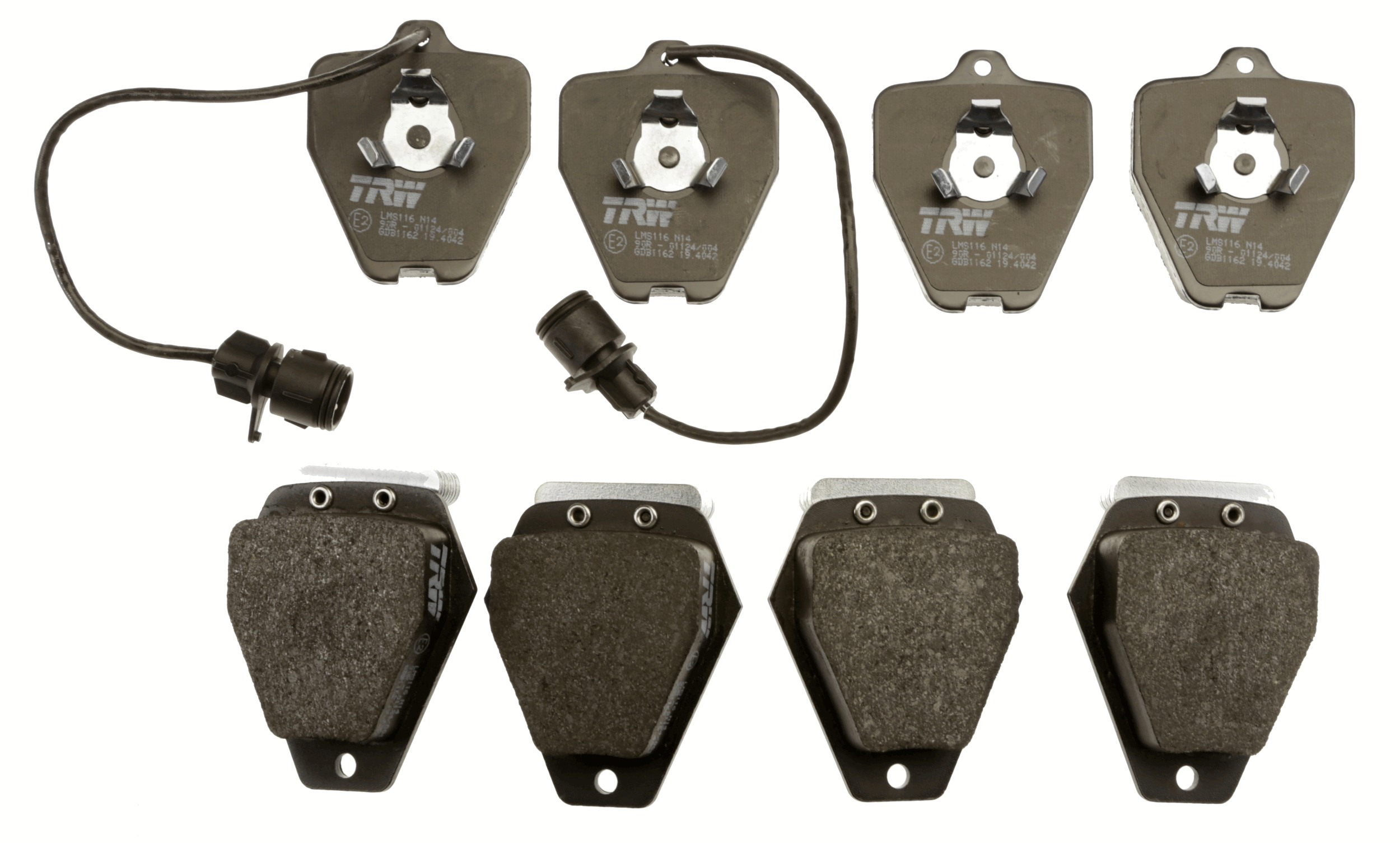

Brake Pad Set, disc brake

Part No. GDB1162 · SKU GDB1162-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs

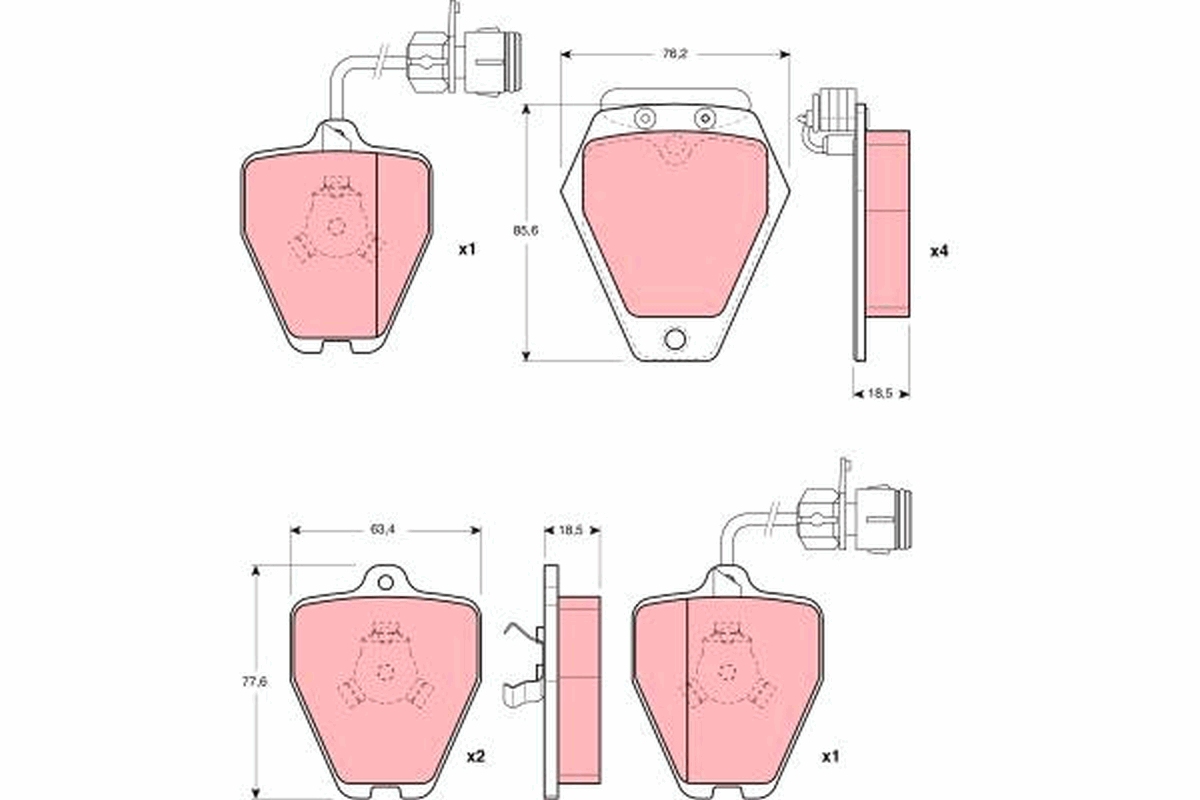

Height 1 (mm)85.6
Height 2 (mm)77.6
Length 1 (mm)76.2
Length 2 (mm)63.4
Manufacturer Restriction TRW
Number of wear indicators (per axle)2
Test Mark E2 90R 01124/004
Thickness (mm)18.5
Warning Contact Length (mm)168
Wear Warning Contact incl. wear warning contact
Width 1 (mm)76.4
Width 2 (mm)63.5
Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height 1 [mm] 85,6, Height 2 [mm] 77,6, Length 1 [mm] 76,2, Length 2 [mm] 63,4, Manufacturer Restriction TRW, Number of wear indicators [per axle] 2, Test Mark E2 90R 01124/004, Thickness [mm] 18,5, Warning Contact Length [mm] 168, Wear Warning Contact incl. wear warning contact, Width 1 [mm] 76,4, Width 2 [mm] 63,5
Fits: AUDI

Interchangeable Part Numbers

A.B.S.37005OE APECPAD940 ASIMCOKD7773 ATE13046027002 BENDIX571871B BENDIX571983B BENDIX573208B BORG & BECKBBP1392 BORG & BECKBBP1577 BORG & BECKBBP1647 BOSCH 0 986 494436 BOSCH0986494436 BOSCH 0 986 TB2718 BOSCH0986TB2718 BREMBOP85038 BREMBOP85054 DELPHILP1024 DELPHILP1633 DELPHILP908 E.T.F.121118 E.T.F.121122 E.T.F.121149 FEBI BILSTEIN16762 FERODOFDB1710 FERODOFDB985 FTEBL1552A2 FTEBL1768A2 GIRLING6111621 HELLA 8DB 355008-781 HELLA8DB355008781 HERZOG GERMANY887162 ICER181565 ICER181691 JURID571871J JURID571983J JURID571983JC JURID573208J KAWE81097 LPR05P1118 LPR05P981 MAGNETI MARELLI363702161061 MAGNETI MARELLI363702161062 MAGNETI MARELLI363702161080 MAGNETI MARELLI363702161093 MAPCO6476 METZGER050802 MEYLE 025 2145218/PD MEYLE0252145218PD MEYLE 025 2145218/W MEYLE0252145218W MGA498 MINTEXMDB1751 MINTEXMDB2037 NECTOFD6787A NECTOFD7140A NK224744 PAGIDT1182 PEX7858 PEX7858S QH Benelux2925 QH Benelux7337 QUINTON HAZELLBLF1037 QUINTON HAZELLBP899 RAMEDERT0610691 REMSA075212 REMSA50802 REMSA75212 SPIDAN32733 SWAG32916762 TEXTAR2145201 TEXTAR2145218715 TEXTAR2311901 TEXTAR2311905 TRISCAN811029032 TRISCAN811029046 WAGNERWBP21452A WOKINGP408302 WOKINGP652312

OE Numbers — AUDI 441 615 105

AA

OE Numbers — AUDI

441615105AA 441615106AA 4D0615105D 4D0615106D 4D0698151AD 4D0698151C 4D0698151E 4D0698151

OE Numbers — AUDI 4D0 615 105

D

OE Numbers — AUDI 4D0 698 151

AD C E

OE Numbers — AUDI 4D0 698

151
MakeModelType / Engine YearsCCkWHP
AUDI A6 C4 (4A2) 2.3 quattro 1994 – 1998 2309 98 133
AUDI A6 C4 (4A2) 1.8 quattro 1994 – 1998 1781 92 125
AUDI A6 C4 (4A2) 1.8 1994 – 1998 1781 92 125
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 142 193
AUDI A6 C4 (4A2) 2.5 TDI quattro 1994 – 1998 2461 103 140
AUDI A6 C4 (4A2) 2.8 quattro 1994 – 1998 2771 142 193
AUDI A6 C4 (4A2) S6 Plus quattro 1994 – 1998 4172 240 326
AUDI A6 C4 (4A2) 2.3 1994 – 1998 2309 98 133
AUDI A6 C4 (4A2) S6 4.2 quattro 1994 – 1998 4172 213 290
AUDI A6 C4 (4A2) S6 Turbo quattro 1994 – 1998 2226 169 230
AUDI A6 C4 (4A2) 2.8 quattro 1994 – 1998 2771 128 174
AUDI A6 C4 (4A2) 2.6 quattro 1994 – 1998 2598 110 150
AUDI A6 C4 (4A2) 2.0 16V quattro 1994 – 1998 1984 103 140
AUDI A6 C4 (4A2) 2.6 1994 – 1998 2598 102 139
AUDI A6 C4 (4A2) 2.5 TDI 1994 – 1998 2461 85 116
AUDI A6 C4 (4A2) 1.9 TDI 1994 – 1998 1896 66 90
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 120 163
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 79 107
AUDI A6 C4 (4A2) 2.5 TDI 1994 – 1998 2461 103 140
AUDI A6 C4 (4A2) 2.4 1994 – 1998 2393 110 150
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 74 100
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 85 115
AUDI A6 C4 (4A2) 2.0 16V 1994 – 1998 1984 103 140
AUDI A6 C4 (4A2) 2.6 1994 – 1998 2598 110 150
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) 2.3 1994 – 1998 2309 98 133
AUDI A6 C4 Avant (4A5) S6 Plus quattro 1994 – 1998 4172 240 326
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 120 163
AUDI A6 C4 Avant (4A5) 2.8 quattro 1994 – 1998 2771 142 193
AUDI A6 C4 Avant (4A5) 2.4 1994 – 1998 2393 110 150
AUDI A6 C4 Avant (4A5) 2.3 quattro 1994 – 1998 2309 98 133
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 142 193
AUDI A6 C4 Avant (4A5) 2.6 quattro 1994 – 1998 2598 110 150
AUDI A6 C4 Avant (4A5) 2.6 1994 – 1998 2598 102 139
AUDI A6 C4 Avant (4A5) 1.8 quattro 1994 – 1998 1781 92 125
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 79 107
AUDI A6 C4 Avant (4A5) 1.8 1994 – 1998 1781 92 125
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 74 100
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 85 115
AUDI A6 C4 Avant (4A5) 2.5 TDI 1994 – 1998 2461 103 140
AUDI A6 C4 Avant (4A5) 1.9 TDI 1994 – 1998 1896 66 90
AUDI A6 C4 Avant (4A5) 2.0 16V 1994 – 1998 1984 103 140
AUDI A6 C4 Avant (4A5) 2.6 1994 – 1998 2598 110 150
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) 2.5 TDI 1994 – 1998 2461 85 116
AUDI A6 C4 Avant (4A5) 2.0 16V quattro 1994 – 1998 1984 103 140
AUDI A6 C4 Avant (4A5) S6 4.2 quattro 1994 – 1998 4172 213 290
AUDI A6 C4 Avant (4A5) 2.8 quattro 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) S6 Turbo quattro 1994 – 1998 2226 169 230
AUDI A6 C4 Avant (4A5) 2.5 TDI quattro 1994 – 1998 2461 103 140
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 210 286
AUDI A8 D2 (4D2, 4D8) 4.2 40V quattro 1994 – 2005 4172 224 305
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 231 314
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 128 174
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 180 245
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 128 174
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 220 299
AUDI A8 D2 (4D2, 4D8) 2.5 TDI 1994 – 2005 2496 132 180
AUDI A8 D2 (4D2, 4D8) 2.5 TDI quattro 1994 – 2005 2496 132 180
AUDI A8 D2 (4D2, 4D8) 6.0 W12 quattro 1994 – 2005 5998 309 420
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 175 238
AUDI A8 D2 (4D2, 4D8) S8 quattro 1994 – 2005 4172 265 360
AUDI A8 D2 (4D2, 4D8) 3.3 TDI quattro 1994 – 2005 3328 165 224
AUDI A8 D2 (4D2, 4D8) 3.7 1994 – 2005 3697 191 260
AUDI A8 D2 (4D2, 4D8) 3.7 quattro 1994 – 2005 3697 191 260
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 228 310
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 120 163
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 120 163
AUDI A8 D2 (4D2, 4D8) 2.5 TDI quattro 1994 – 2005 2496 110 150
AUDI A8 D2 (4D2, 4D8) 2.5 TDI 1994 – 2005 2496 110 150
AUDI A8 D2 (4D2, 4D8) S8 quattro 1994 – 2005 4172 250 340
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 142 193
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 142 193
AUDI A8 D2 (4D2, 4D8) 3.7 1994 – 2005 3697 169 230
AUDI A8 D2 (4D2, 4D8) 3.7 quattro 1994 – 2005 3697 169 230
