Brake Pad Set, disc brake
Braking System

Brake Pad Set, disc brake

Part No. GDB1329 · SKU GDB1329-TRW
Front Axle
₱9,000.00
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

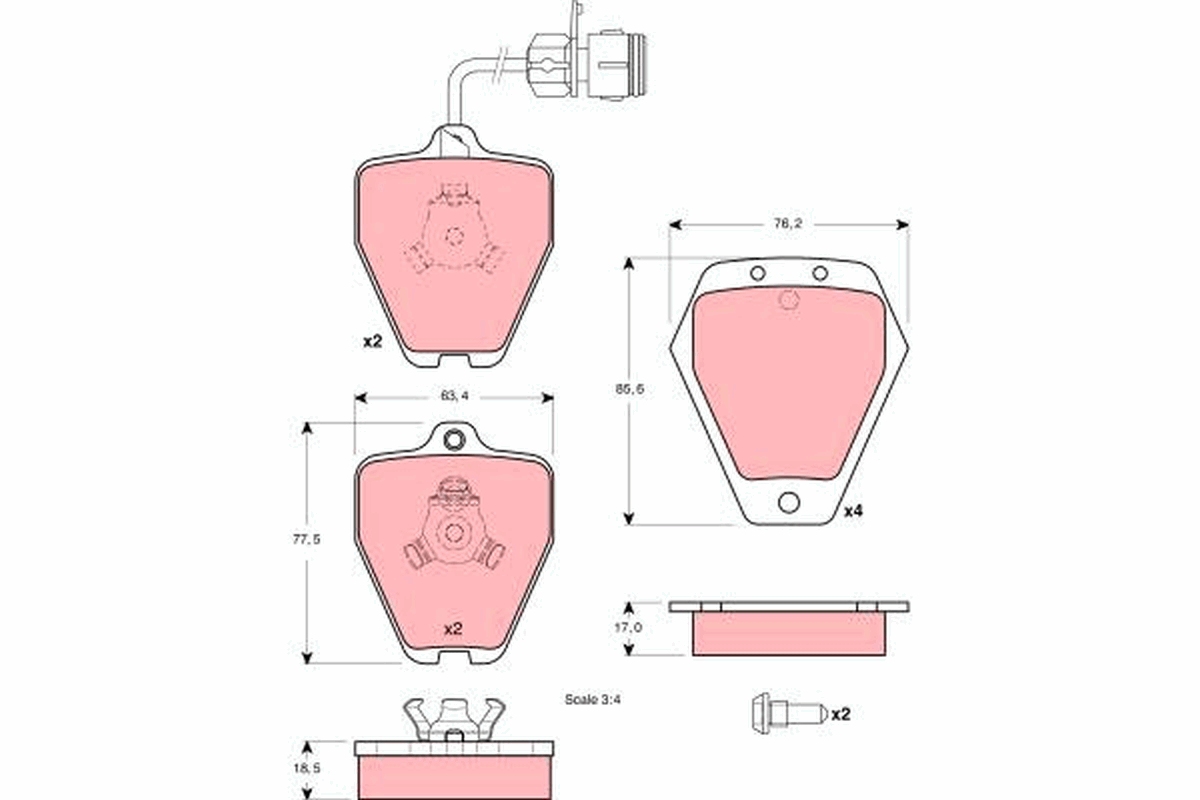

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs
Height 1 (mm)85.6
Height 2 (mm)77.5
Length 1 (mm)76.2
Length 2 (mm)63.4
Manufacturer Restriction TRW
Number of wear indicators (per axle)2
Test Mark E2 90R 01124/005
Thickness 1 (mm)17
Thickness 2 (mm)18.5
Warning Contact Length (mm)280
Wear Warning Contact incl. wear warning contact
Width 1 (mm)76.4
Width 2 (mm)63.5
Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height 1 [mm] 85,6, Height 2 [mm] 77,5, Length 1 [mm] 76,2, Length 2 [mm] 63,4, Manufacturer Restriction TRW, Number of wear indicators [per axle] 2, Test Mark E2 90R 01124/005, Thickness 1 [mm] 17, Thickness 2 [mm] 18,5, Warning Contact Length [mm] 280, Wear Warning Contact incl. wear warning contact, Width 1 [mm] 76,4, Width 2 [mm] 63,5
Fits: AUDI

Supplier Cross-References

TEXTAR2145201 FERODOFDB1709 TRWGDB1329 BOSCH986424689 GALFER21314

Interchangeable Part Numbers

A.B.S.36891OE APECPAD1078 ATE13046027172 BENDIX571871B BORG & BECKBBP1392 BORG & BECKBBP1577 BORG & BECKBBP1647 BOSCH 0 986 TB2718 BOSCH0986TB2718 BOSCH 0 986 TB2720 BOSCH0986TB2720 Brake ENGINEERINGPA1229 BREMBOP85038 E.T.F.121118 FEBI BILSTEIN16999 FTE9010253 FTEBL1618A2 GIRLING6113291 HELLA 8DB 355008-781 HELLA8DB355008781 HELLA 8DB 355008-791 HELLA8DB355008791 ICER181693 JURID571871J JURID571983J JURID571983JC KAWE81396 LPR05P1118 MAGNETI MARELLI363702161061 MAGNETI MARELLI363702161080 MAPCO6476 MEYLE 025 2145218/W MEYLE0252145218W MINTEXMDB1751 MINTEXMDB2037 NK224744 NK224790 PAGIDT1182 PEX7858 PEX7858S QH Benelux7286 QUINTON HAZELLBLF899 QUINTON HAZELLBP1037 REMSA039002 REMSA050802 REMSA050812 REMSA075212 REMSA39002 REMSA50802 REMSA50812 REMSA75212 ROULUNDS RUBBER605681 SPIDAN32009 SWAG30916999 TEXTAR2311901 TEXTAR2311905 TRISCAN811029018 VALEO540402 VALEO598230 WAGNERWBP21452A WOKINGP408312

OE Numbers — AUDI 441 615 105

AA

OE Numbers — AUDI

441615105AA 441615106AA 441698151G 4A0698151B 4D0698151B 4D0698151D

OE Numbers — AUDI 441 698 151

G

OE Numbers — AUDI 4A0 698 151

B

OE Numbers — AUDI 4D0 698 151

D
MakeModelType / Engine YearsCCkWHP
AUDI 100 C4 Avant (4A5) 2.5 TDI 1990 – 1994 2461 85 115
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 74 100
AUDI 100 C4 Avant (4A5) 2.0 E 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) S4 Turbo quattro 1990 – 1994 2226 169 230
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) 2.3 E 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.8 E 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) 2.3 E quattro 1990 – 1994 2309 98 133
AUDI 100 C4 Avant (4A5) 2.6 quattro 1990 – 1994 2598 110 150
AUDI 100 C4 Avant (4A5) 2.8 E quattro 1990 – 1994 2771 128 174
AUDI 100 C4 Avant (4A5) S4 V8 quattro 1990 – 1994 4172 206 280
AUDI 100 C4 Avant (4A5) 2.0 E quattro 1990 – 1994 1984 85 115
AUDI 100 C4 Avant (4A5) 2.4 D 1990 – 1994 2370 60 82
AUDI 100 C4 Avant (4A5) 2.6 1990 – 1994 2598 102 139
AUDI 100 C4 Avant (4A5) 2.0 E 16V 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.0 E 16V quattro 1990 – 1994 1984 103 140
AUDI 100 C4 Avant (4A5) 2.6 E quattro 1990 – 1994 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.4 D 1990 – 1996 2370 60 82
AUDI 100 C4 Saloon (4A2) 2.5 TDI 1990 – 1996 2461 85 115
AUDI 100 C4 Saloon (4A2) 2.0 1990 – 1996 1984 74 100
AUDI 100 C4 Saloon (4A2) 2.0 E 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.3 E 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.8 E 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) S4 Turbo quattro 1990 – 1996 2226 169 230
AUDI 100 C4 Saloon (4A2) 2.3 E quattro 1990 – 1996 2309 98 133
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 110 150
AUDI 100 C4 Saloon (4A2) 2.8 E quattro 1990 – 1996 2771 128 174
AUDI 100 C4 Saloon (4A2) S4 V8 quattro 1990 – 1996 4172 206 280
AUDI 100 C4 Saloon (4A2) 2.0 E quattro 1990 – 1996 1984 85 115
AUDI 100 C4 Saloon (4A2) 2.6 1990 – 1996 2598 102 139
AUDI 100 C4 Saloon (4A2) 2.0 E 16V 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) 2.0 E 16V quattro 1990 – 1996 1984 103 140
AUDI 100 C4 Saloon (4A2) 2.6 quattro 1990 – 1996 2598 102 139
AUDI A6 C4 (4A2) 1.9 TDI 1994 – 1998 1896 66 90
AUDI A6 C4 (4A2) 2.5 TDI 1994 – 1998 2461 103 140
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 74 100
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 85 115
AUDI A6 C4 (4A2) 2.0 16V 1994 – 1998 1984 103 140
AUDI A6 C4 (4A2) 2.6 1994 – 1998 2598 110 150
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 128 174
AUDI A6 C4 (4A2) 2.5 TDI 1994 – 1998 2461 85 116
AUDI A6 C4 (4A2) 2.0 16V quattro 1994 – 1998 1984 103 140
AUDI A6 C4 (4A2) 2.6 quattro 1994 – 1998 2598 110 150
AUDI A6 C4 (4A2) 2.8 quattro 1994 – 1998 2771 128 174
AUDI A6 C4 (4A2) S6 Turbo quattro 1994 – 1998 2226 169 230
AUDI A6 C4 (4A2) S6 4.2 quattro 1994 – 1998 4172 213 290
AUDI A6 C4 (4A2) 2.5 TDI quattro 1994 – 1998 2461 103 140
AUDI A6 C4 (4A2) 1.8 1994 – 1998 1781 92 125
AUDI A6 C4 (4A2) 1.8 quattro 1994 – 1998 1781 92 125
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 142 193
AUDI A6 C4 (4A2) 2.8 quattro 1994 – 1998 2771 142 193
AUDI A6 C4 (4A2) S6 Plus quattro 1994 – 1998 4172 240 326
AUDI A6 C4 (4A2) 2.3 1994 – 1998 2309 98 133
AUDI A6 C4 (4A2) 2.3 quattro 1994 – 1998 2309 98 133
AUDI A6 C4 (4A2) 2.6 1994 – 1998 2598 102 139
AUDI A6 C4 (4A2) 2.4 1994 – 1998 2393 110 150
AUDI A6 C4 (4A2) 2.0 1994 – 1998 1984 79 107
AUDI A6 C4 (4A2) 2.8 1994 – 1998 2771 120 163
AUDI A6 C4 Avant (4A5) 1.9 TDI 1994 – 1998 1896 66 90
AUDI A6 C4 Avant (4A5) 2.5 TDI 1994 – 1998 2461 103 140
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 74 100
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 85 115
AUDI A6 C4 Avant (4A5) 2.0 16V 1994 – 1998 1984 103 140
AUDI A6 C4 Avant (4A5) 2.6 1994 – 1998 2598 110 150
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) 2.5 TDI 1994 – 1998 2461 85 116
AUDI A6 C4 Avant (4A5) 2.0 16V quattro 1994 – 1998 1984 103 140
AUDI A6 C4 Avant (4A5) S6 4.2 quattro 1994 – 1998 4172 213 290
AUDI A6 C4 Avant (4A5) 2.8 quattro 1994 – 1998 2771 128 174
AUDI A6 C4 Avant (4A5) S6 Turbo quattro 1994 – 1998 2226 169 230
AUDI A6 C4 Avant (4A5) 2.5 TDI quattro 1994 – 1998 2461 103 140
AUDI A6 C4 Avant (4A5) 1.8 1994 – 1998 1781 92 125
AUDI A6 C4 Avant (4A5) 1.8 quattro 1994 – 1998 1781 92 125
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 142 193
AUDI A6 C4 Avant (4A5) 2.8 quattro 1994 – 1998 2771 142 193
AUDI A6 C4 Avant (4A5) S6 Plus quattro 1994 – 1998 4172 240 326
AUDI A6 C4 Avant (4A5) 2.3 1994 – 1998 2309 98 133
AUDI A6 C4 Avant (4A5) 2.3 quattro 1994 – 1998 2309 98 133
AUDI A6 C4 Avant (4A5) 2.6 quattro 1994 – 1998 2598 110 150
AUDI A6 C4 Avant (4A5) 2.6 1994 – 1998 2598 102 139
AUDI A6 C4 Avant (4A5) 2.4 1994 – 1998 2393 110 150
AUDI A6 C4 Avant (4A5) 2.0 1994 – 1998 1984 79 107
AUDI A6 C4 Avant (4A5) 2.8 1994 – 1998 2771 120 163
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 231 314
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 220 299
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 128 174
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 128 174
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 180 245
AUDI A8 D2 (4D2, 4D8) 3.7 1994 – 2005 3697 169 230
AUDI A8 D2 (4D2, 4D8) 3.7 quattro 1994 – 2005 3697 169 230
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 142 193
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 142 193
AUDI A8 D2 (4D2, 4D8) S8 quattro 1994 – 2005 4172 250 340
AUDI A8 D2 (4D2, 4D8) 2.5 TDI 1994 – 2005 2496 110 150
AUDI A8 D2 (4D2, 4D8) 2.5 TDI quattro 1994 – 2005 2496 110 150
AUDI A8 D2 (4D2, 4D8) 2.8 1994 – 2005 2771 120 163
AUDI A8 D2 (4D2, 4D8) 2.8 quattro 1994 – 2005 2771 120 163
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 228 310
AUDI A8 D2 (4D2, 4D8) 3.7 quattro 1994 – 2005 3697 191 260
AUDI A8 D2 (4D2, 4D8) 3.7 1994 – 2005 3697 191 260
AUDI A8 D2 (4D2, 4D8) 3.3 TDI quattro 1994 – 2005 3328 165 224
AUDI A8 D2 (4D2, 4D8) S8 quattro 1994 – 2005 4172 265 360
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 175 238
AUDI A8 D2 (4D2, 4D8) 6.0 W12 quattro 1994 – 2005 5998 309 420
AUDI A8 D2 (4D2, 4D8) 2.5 TDI quattro 1994 – 2005 2496 132 180
AUDI A8 D2 (4D2, 4D8) 2.5 TDI 1994 – 2005 2496 132 180
AUDI A8 D2 (4D2, 4D8) 4.2 quattro 1994 – 2005 4172 210 286
AUDI A8 D2 (4D2, 4D8) 4.2 40V quattro 1994 – 2005 4172 224 305
