Braking System

Brake Pad Set, disc brake

Name: Brake Pad Set, disc brake
Brand: TRW
SKU: GDB1506-TRW
Price: 10900.00 PHP
Availability: InStock

Part No. GDB1506 · SKU GDB1506-TRW

Front Axle

₱10,900.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

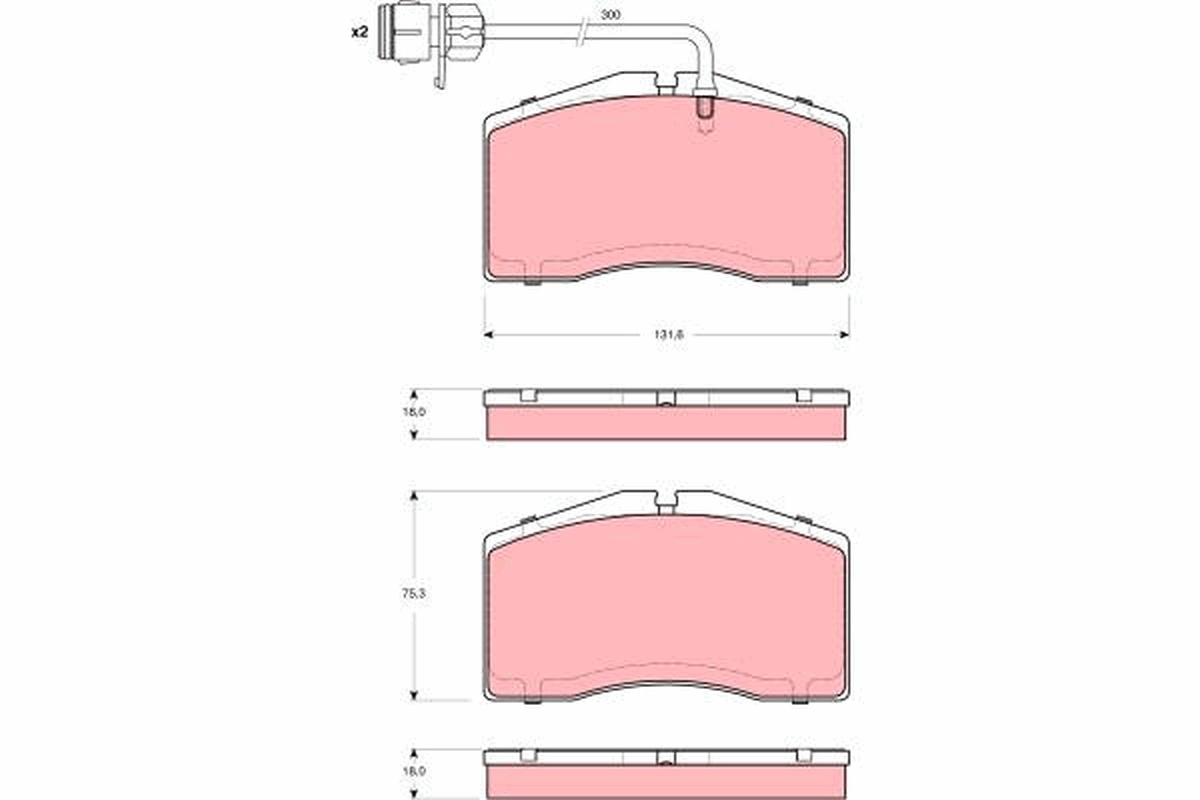

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs
Height (mm)	75.3
Manufacturer Restriction BREMBO
Number of wear indicators (per axle)	2
Test Mark E9 90R 01107/568
Thickness (mm)	18
Warning Contact Length (mm)	300
Wear Warning Contact incl. wear warning contact
Width (mm)	131.6

Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height [mm] 75,3, Manufacturer Restriction BREMBO, Number of wear indicators [per axle] 2, Test Mark E9 90R 01107/568, Thickness [mm] 18, Warning Contact Length [mm] 300, Wear Warning Contact incl. wear warning contact, Width [mm] 131,6
Fits: AUDI

Supplier Cross-References

DELPHILP1945 FERODOFDB1509 ATE13046048022 HELLA PAGID355018491 BREMBOP85053 TRWGDB1506

Interchangeable Part Numbers

A.B.S.37266 A.B.S.37266OE APECPAD1365 BENDIX573054 BENDIX573054B BOSCH 0 986 424664 BOSCH0986424664 BOSCH 0 986 TB2701 BOSCH0986TB2701 BREMBOP85053N E.T.F.121152 FEBI BILSTEIN173743 FTE9001677 GIRLING6115069 HELLA 8DB 355018-491 HELLA8DB355018491 KAWE 044802 KAWE044802 KAWE81571 LPR05P1675 METELLI2208901 MINTEXMDB2356 OPTIMAL12736 OPTIMALBP-12736 PAGIDT5126 REMSA44802 ROADHOUSE2448.02 SWAG 33 105134 SWAG33105134 TEXTAR2377301 TRISCAN811029047 WOKINGP548302

OE Numbers — AUDI 4D0 698 151

OE Numbers — AUDI

4D0698151Q

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A8 D2 (4D2, 4D8)	2.8 quattro	1994 – 2005	2771	120	163
AUDI	A8 D2 (4D2, 4D8)	4.2 quattro	1994 – 2005	4172	231	314
AUDI	A8 D2 (4D2, 4D8)	4.2 40V quattro	1994 – 2005	4172	224	305
AUDI	A8 D2 (4D2, 4D8)	4.2 quattro	1994 – 2005	4172	210	286
AUDI	A8 D2 (4D2, 4D8)	2.5 TDI	1994 – 2005	2496	132	180
AUDI	A8 D2 (4D2, 4D8)	2.5 TDI quattro	1994 – 2005	2496	132	180
AUDI	A8 D2 (4D2, 4D8)	6.0 W12 quattro	1994 – 2005	5998	309	420
AUDI	A8 D2 (4D2, 4D8)	4.2 quattro	1994 – 2005	4172	175	238
AUDI	A8 D2 (4D2, 4D8)	S8 quattro	1994 – 2005	4172	265	360
AUDI	A8 D2 (4D2, 4D8)	3.3 TDI quattro	1994 – 2005	3328	165	224
AUDI	A8 D2 (4D2, 4D8)	3.7	1994 – 2005	3697	191	260
AUDI	A8 D2 (4D2, 4D8)	3.7 quattro	1994 – 2005	3697	191	260
AUDI	A8 D2 (4D2, 4D8)	4.2 quattro	1994 – 2005	4172	228	310
AUDI	A8 D2 (4D2, 4D8)	4.2 quattro	1994 – 2005	4172	220	299
AUDI	A8 D2 (4D2, 4D8)	2.8	1994 – 2005	2771	120	163
AUDI	A8 D2 (4D2, 4D8)	2.5 TDI quattro	1994 – 2005	2496	110	150
AUDI	A8 D2 (4D2, 4D8)	2.5 TDI	1994 – 2005	2496	110	150
AUDI	A8 D2 (4D2, 4D8)	S8 quattro	1994 – 2005	4172	250	340
AUDI	A8 D2 (4D2, 4D8)	2.8 quattro	1994 – 2005	2771	142	193
AUDI	A8 D2 (4D2, 4D8)	2.8	1994 – 2005	2771	142	193
AUDI	A8 D2 (4D2, 4D8)	3.7 quattro	1994 – 2005	3697	169	230
AUDI	A8 D2 (4D2, 4D8)	3.7	1994 – 2005	3697	169	230
AUDI	A8 D2 (4D2, 4D8)	4.2 quattro	1994 – 2005	4172	180	245
AUDI	A8 D2 (4D2, 4D8)	2.8 quattro	1994 – 2005	2771	128	174
AUDI	A8 D2 (4D2, 4D8)	2.8	1994 – 2005	2771	128	174
