Braking System

Brake Pad Set, disc brake

Name: Brake Pad Set, disc brake
Brand: TRW
SKU: GDB1523-TRW
Price: 7100.00 PHP
Availability: InStock

Part No. GDB1523 · SKU GDB1523-TRW

Front Axle

₱7,100.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs

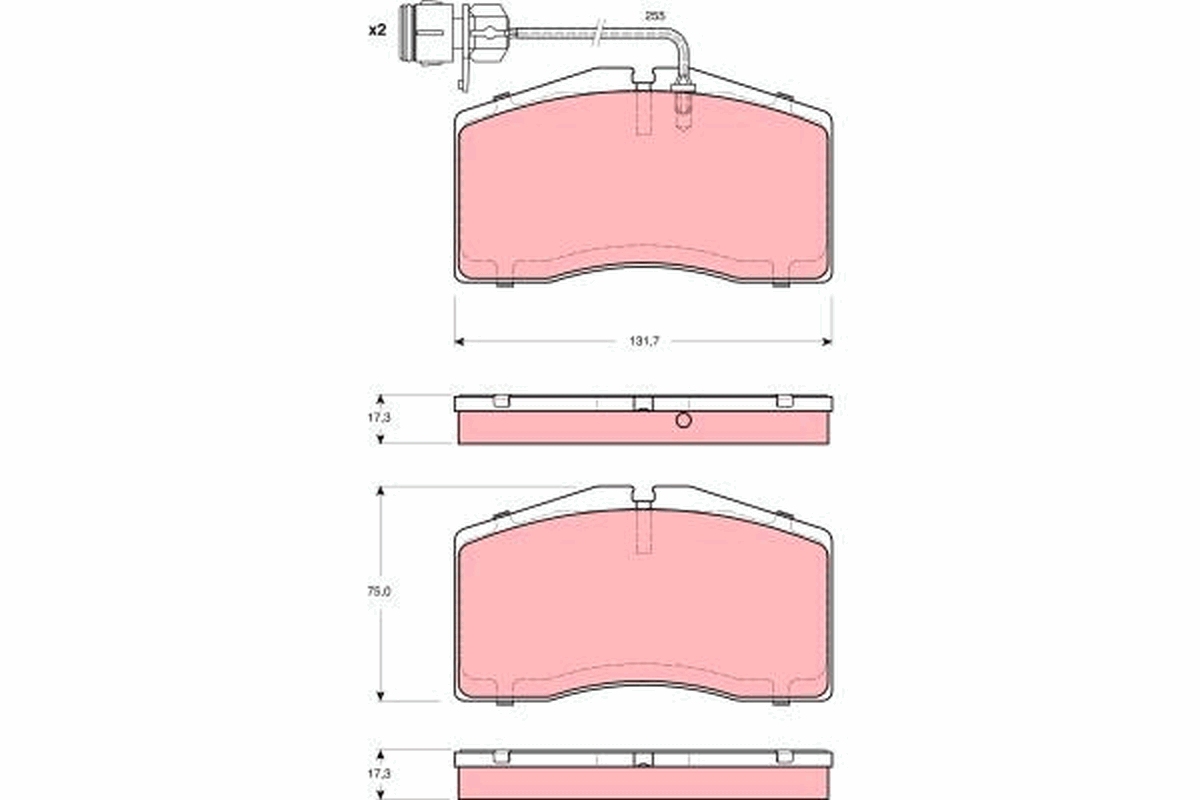

Height (mm)	75
Manufacturer Restriction BREMBO
Number of wear indicators (per axle)	2
Test Mark E9 90R - 01107/568
Thickness (mm)	17.3
Warning Contact Length (mm)	255
Wear Warning Contact incl. wear warning contact
Width (mm)	131.7

Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height [mm] 75, Manufacturer Restriction BREMBO, Number of wear indicators [per axle] 2, Test Mark E9 90R - 01107/568, Thickness [mm] 17,3, Warning Contact Length [mm] 255, Wear Warning Contact incl. wear warning contact, Width [mm] 131,7
Fits: AUDI

Supplier Cross-References

TEXTAR2377301 FERODOFDB1509 ATE13046048022 HELLA PAGID8DB355018491 BREMBOP85053 TRWGDB1523

Interchangeable Part Numbers

A.B.S.37266 APECPAD1296 AUTOMEGA3069801514D0L BOSCH 0 986 424664 BOSCH0986424664 BOSCH 0 986 TB2249 BOSCH0986TB2249 BREMBOP85053N DELPHILP1633 DELPHILP1945 E.T.F.121160 FEBI BILSTEIN16528 FTE9001677 FTEBL1897A2 HELLA 8DB 355018-491 KAWE 044812 KAWE044812 KAWE81654 LPR05P1675 METELLI2208901 MINTEXMDB2142 MINTEXMDB2356 NECTOFD6927A OPTIMAL12736 OPTIMALBP-12736 PAGIDT5126 RAMEDERT0610220 REMSA44812 ROADHOUSE2448.12 SWAG30916528 TEXTAR2377317505 TRISCAN811029054 WOKINGP5483.12

OE Numbers — AUDI 4D0 698 151

OE Numbers — AUDI

4D0698151L

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A8 D2 (4D2, 4D8)	2.8 quattro	1994 – 2005	2771	120	163
AUDI	A8 D2 (4D2, 4D8)	4.2 quattro	1994 – 2005	4172	231	314
AUDI	A8 D2 (4D2, 4D8)	4.2 40V quattro	1994 – 2005	4172	224	305
AUDI	A8 D2 (4D2, 4D8)	4.2 quattro	1994 – 2005	4172	210	286
AUDI	A8 D2 (4D2, 4D8)	2.5 TDI	1994 – 2005	2496	132	180
AUDI	A8 D2 (4D2, 4D8)	2.5 TDI quattro	1994 – 2005	2496	132	180
AUDI	A8 D2 (4D2, 4D8)	6.0 W12 quattro	1994 – 2005	5998	309	420
AUDI	A8 D2 (4D2, 4D8)	4.2 quattro	1994 – 2005	4172	175	238
AUDI	A8 D2 (4D2, 4D8)	S8 quattro	1994 – 2005	4172	265	360
AUDI	A8 D2 (4D2, 4D8)	3.3 TDI quattro	1994 – 2005	3328	165	224
AUDI	A8 D2 (4D2, 4D8)	3.7	1994 – 2005	3697	191	260
AUDI	A8 D2 (4D2, 4D8)	3.7 quattro	1994 – 2005	3697	191	260
AUDI	A8 D2 (4D2, 4D8)	4.2 quattro	1994 – 2005	4172	228	310
AUDI	A8 D2 (4D2, 4D8)	4.2 quattro	1994 – 2005	4172	220	299
AUDI	A8 D2 (4D2, 4D8)	2.8	1994 – 2005	2771	120	163
AUDI	A8 D2 (4D2, 4D8)	2.5 TDI quattro	1994 – 2005	2496	110	150
AUDI	A8 D2 (4D2, 4D8)	2.5 TDI	1994 – 2005	2496	110	150
AUDI	A8 D2 (4D2, 4D8)	S8 quattro	1994 – 2005	4172	250	340
AUDI	A8 D2 (4D2, 4D8)	2.8 quattro	1994 – 2005	2771	142	193
AUDI	A8 D2 (4D2, 4D8)	2.8	1994 – 2005	2771	142	193
AUDI	A8 D2 (4D2, 4D8)	3.7 quattro	1994 – 2005	3697	169	230
AUDI	A8 D2 (4D2, 4D8)	3.7	1994 – 2005	3697	169	230
AUDI	A8 D2 (4D2, 4D8)	4.2 quattro	1994 – 2005	4172	180	245
AUDI	A8 D2 (4D2, 4D8)	2.8 quattro	1994 – 2005	2771	128	174
AUDI	A8 D2 (4D2, 4D8)	2.8	1994 – 2005	2771	128	174
