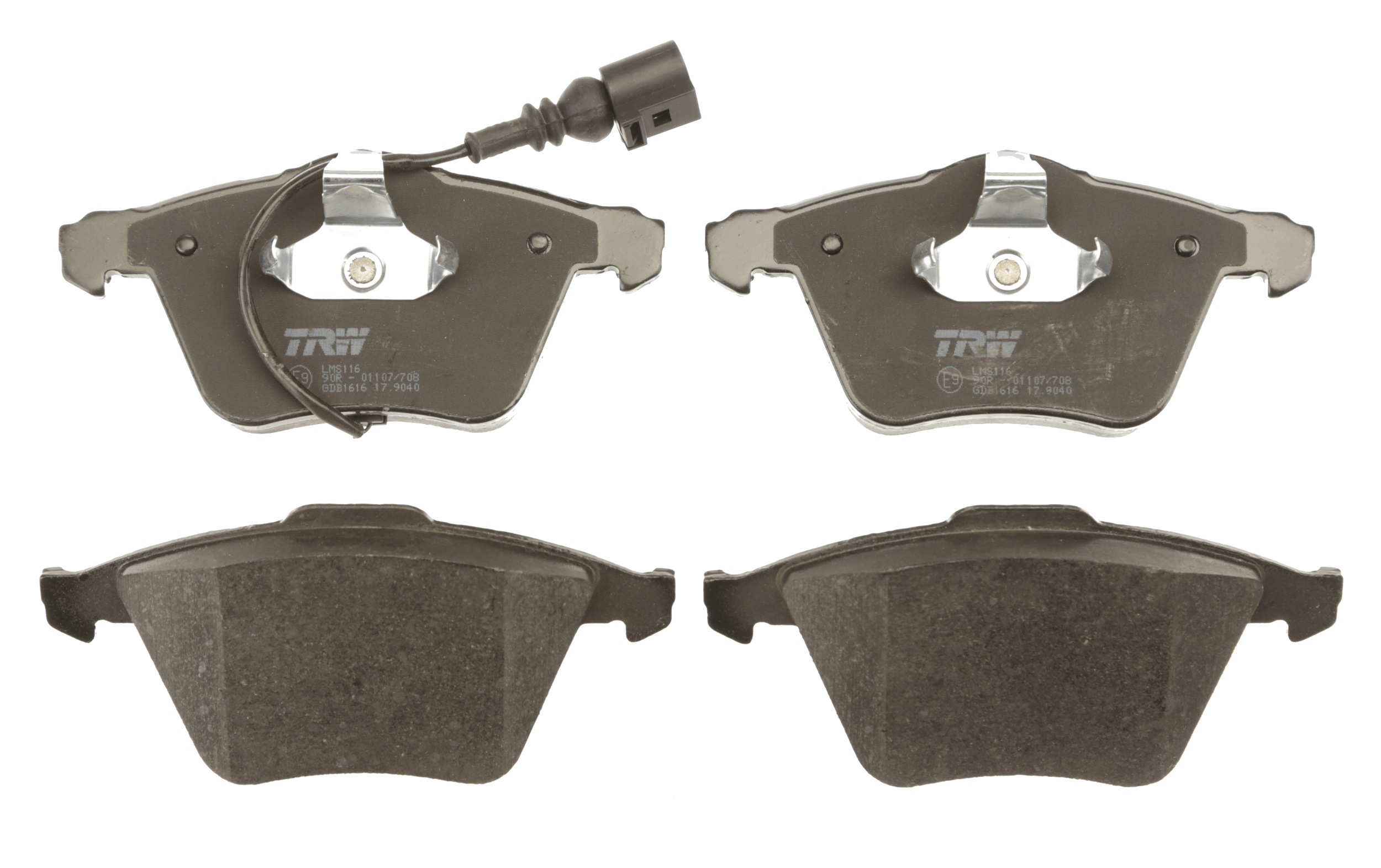

Braking System

Brake Pad Set, disc brake

Name: Brake Pad Set, disc brake
Brand: TRW
SKU: GDB1616-TRW
Price: 7500.00 PHP
Availability: InStock

Part No. GDB1616 · SKU GDB1616-TRW

Front Axle

₱7,500.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

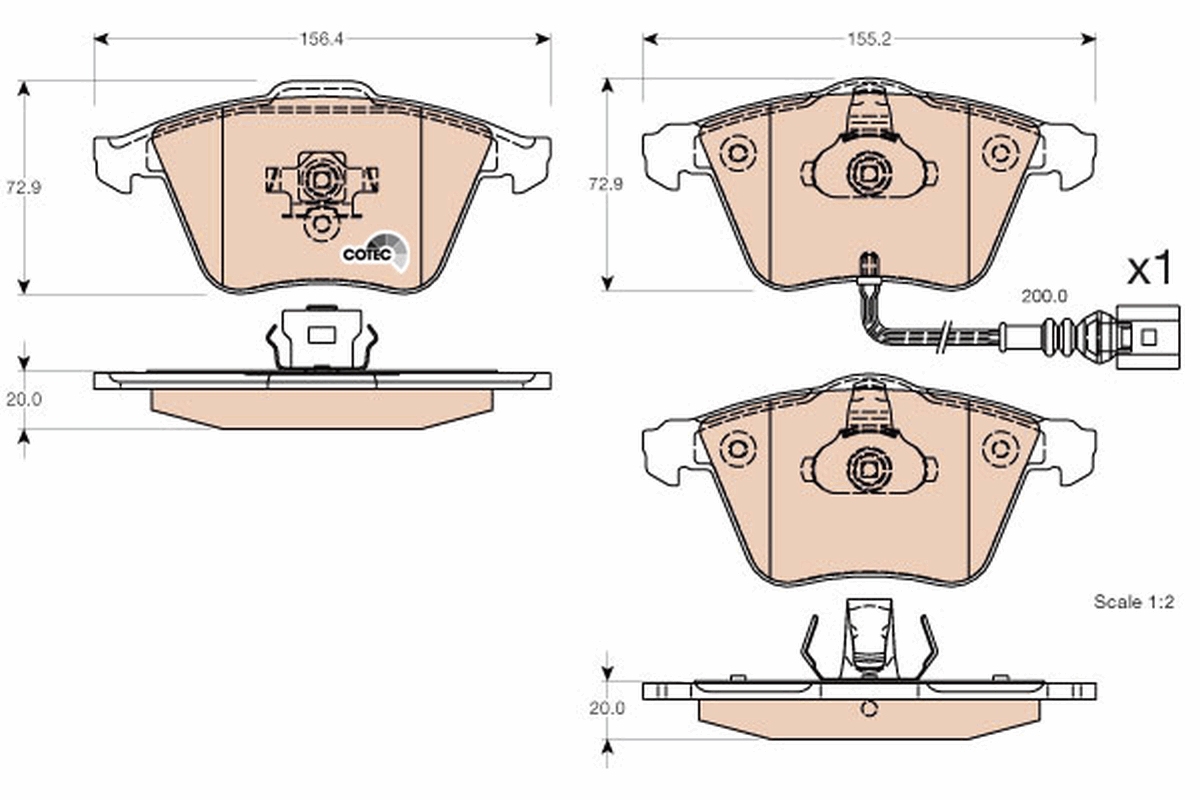

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs
Height 2 (mm)	72.9
Height (mm)	72.9
Length 2 (mm)	155.2
Manufacturer Restriction ATE
Observe technical data
Test Mark E9 90R - 01107/708
Thickness (mm)	20
Wear Warning Contact incl. wear warning contact
Width (mm)	156.4

Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height 2 [mm] 72,9, Height [mm] 72,9, Length 2 [mm] 155,2, Manufacturer Restriction ATE, Observe technical data , Test Mark E9 90R - 01107/708, Thickness [mm] 20, Wear Warning Contact incl. wear warning contact, Width [mm] 156,4
Fits: AUDI, SEAT, SKODA, VW

Supplier Cross-References

TEXTAR2380120305T645 FERODOFDB1765 BREMBO07B31455 TRWGDB1616 VW1K0698151B BOSCH986494103

Interchangeable Part Numbers

A.B.S.37426 A.B.S.37426OE APECPAD1452 ASIMCOKD7422 ATE13046072002 ATE13047072002 BENDIX573197B BendixDB1849 BENDIXDB2210 BLUE PRINTADV184207 BORG & BECKBBP2012 BOSCH 0 986 494103 BOSCH0986494103 BOSCH 0 986 495261 BOSCH0986495261 BOSCH 0 986 TB3196 BOSCH0986TB3196 Brake ENGINEERINGPA1681 BREMBOP85079 BREMBOP85079N DELPHILP1921 FEBI BILSTEIN16538 FIRST LINEFBP3655 fri.tech.5652 FTEBL1993A2 GIRLING6116162 HELLA 8DB 355010-351 HELLA8DB355010351 HELLA 8DB 355023-731 HELLA8DB355023731 HELLA 8DB 355031-321 HELLA8DB355031321 ICER181653 JURID573197J JURID573197JC KAWE81736 LPR05P1270 LUCASLBP1711 MAGNETI MARELLI363702161453 METELLI2205492 MEYLE 025 2380120/W MEYLE0252380120W MINTEXMDB2677 NECTOFD7175A NK2247110 PAGIDT1350 PEX7775 PEX7775S QH Benelux7686 QUINTON HAZELLBP1533 REMSA096432 REMSA96432 ROULUNDS RUBBER845881 SPIDAN32945 SWAG30916538 TEXTAR2380101 TEXTAR2380102 TEXTAR2380120305 TEXTAR2380120405 TEXTAR2380181 TRISCAN811029061 VAICOV108183 VALEO301863 VALEO598863 WAGNERWBP23801A ZIMMERMANN238012001

OE Numbers — AUDI 1K0 615 105

OE Numbers — AUDI

1K0615105DF 1K0615106DF 1K0698151P

OE Numbers — AUDI 1K0 698 151

B P

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A3 (8P1)	1.8 TFSI quattro	2003 – 2013	1798	118	160
AUDI	A3 (8P1)	1.6 TDI	2003 – 2013	1598	77	105
AUDI	A3 (8P1)	1.6 TDI	2003 – 2013	1598	66	90
AUDI	A3 (8P1)	2.0 TFSI	2003 – 2013	1984	147	200
AUDI	A3 (8P1)	2.0 TFSI quattro	2003 – 2013	1984	147	200
AUDI	A3 (8P1)	2.0 TDI 16V quattro	2003 – 2013	1968	103	140
AUDI	A3 (8P1)	2.0 TDI	2003 – 2013	1968	125	170
AUDI	A3 (8P1)	2.0 TDI quattro	2003 – 2013	1968	125	170
AUDI	A3 (8P1)	1.6 E-Power	2003 – 2013	1595	75	102
AUDI	A3 (8P1)	2.0 TDI quattro	2003 – 2013	1968	100	136
AUDI	A3 (8P1)	S3 quattro	2003 – 2013	1984	195	265
AUDI	A3 (8P1)	2.0 TDI	2003 – 2013	1968	103	140
AUDI	A3 (8P1)	2.0 TDI quattro	2003 – 2013	1968	103	140
AUDI	A3 (8P1)	S3 quattro	2003 – 2013	1984	188	256
AUDI	A3 (8P1)	1.8 TFSI	2003 – 2013	1798	118	160
AUDI	A3 (8P1)	1.8 T	2003 – 2013	1781	110	150
AUDI	A3 (8P1)	1.4 TFSI	2003 – 2013	1390	92	125
AUDI	A3 (8P1)	2.0 TDI	2003 – 2013	1968	120	163
AUDI	A3 (8P1)	1.2 TSI	2003 – 2013	1197	77	105
AUDI	A3 (8P1)	2.0 FSI	2003 – 2013	1984	110	150
AUDI	A3 (8P1)	1.6	2003 – 2013	1595	75	102
AUDI	A3 (8P1)	1.6 FSI	2003 – 2013	1598	85	115
AUDI	A3 (8P1)	3.2 V6 quattro	2003 – 2013	3189	184	250
AUDI	A3 (8P1)	2.0 TDI	2003 – 2013	1968	100	136
AUDI	A3 (8P1)	1.9 TDI	2003 – 2013	1896	77	105
AUDI	A3 (8P1)	2.0 TDI 16V	2003 – 2013	1968	103	140
AUDI	A3 Sportback (8PA)	1.8 FSI	2004 – 2015	1781	110	150
AUDI	A3 Sportback (8PA)	1.6 TDI	2004 – 2015	1598	66	90
AUDI	A3 Sportback (8PA)	2.0 TDI	2004 – 2015	1968	104	141
AUDI	A3 Sportback (8PA)	1.4 TFSI	2004 – 2015	1390	92	125
AUDI	A3 Sportback (8PA)	S3 quattro	2004 – 2015	1984	195	265
AUDI	A3 Sportback (8PA)	S3 quattro	2004 – 2015	1984	188	256
AUDI	A3 Sportback (8PA)	1.2 TSI	2004 – 2015	1197	77	105
AUDI	A3 Sportback (8PA)	1.8 TFSI quattro	2004 – 2015	1798	118	160
AUDI	A3 Sportback (8PA)	2.0 TDI	2004 – 2015	1968	120	163
AUDI	A3 Sportback (8PA)	1.6 TDI	2004 – 2015	1598	77	105
AUDI	A3 Sportback (8PA)	2.0 TDI	2004 – 2015	1968	125	170
AUDI	A3 Sportback (8PA)	1.8 TFSI	2004 – 2015	1798	118	160
AUDI	A3 Sportback (8PA)	2.0 TDI quattro	2004 – 2015	1968	103	140
AUDI	A3 Sportback (8PA)	2.0 TDI	2004 – 2015	1968	103	140
AUDI	A3 Sportback (8PA)	2.0 TDI quattro	2004 – 2015	1968	125	170
AUDI	A3 Sportback (8PA)	2.0 TDI 16V quattro	2004 – 2015	1968	103	140
AUDI	A3 Sportback (8PA)	2.0 TDI	2004 – 2015	1968	100	136
AUDI	A3 Sportback (8PA)	2.0 TFSI quattro	2004 – 2015	1984	147	200
AUDI	A3 Sportback (8PA)	2.0 TFSI	2004 – 2015	1984	147	200
AUDI	A3 Sportback (8PA)	2.0 TDI 16V	2004 – 2015	1968	103	140
AUDI	A3 Sportback (8PA)	3.2 V6 quattro	2004 – 2015	3189	184	250
AUDI	A3 Sportback (8PA)	2.0 FSI	2004 – 2015	1984	110	150
AUDI	A3 Sportback (8PA)	1.6 FSI	2004 – 2015	1598	85	115
AUDI	A3 Sportback (8PA)	1.9 TDI	2004 – 2015	1896	77	105
AUDI	A3 Sportback (8PA)	1.6	2004 – 2015	1595	75	102
AUDI	A3 Sportback (8PA)	RS3 quattro	2004 – 2015	2480	250	340
AUDI	A3 Sportback (8PA)	1.6 E-Power	2004 – 2015	1595	75	102
