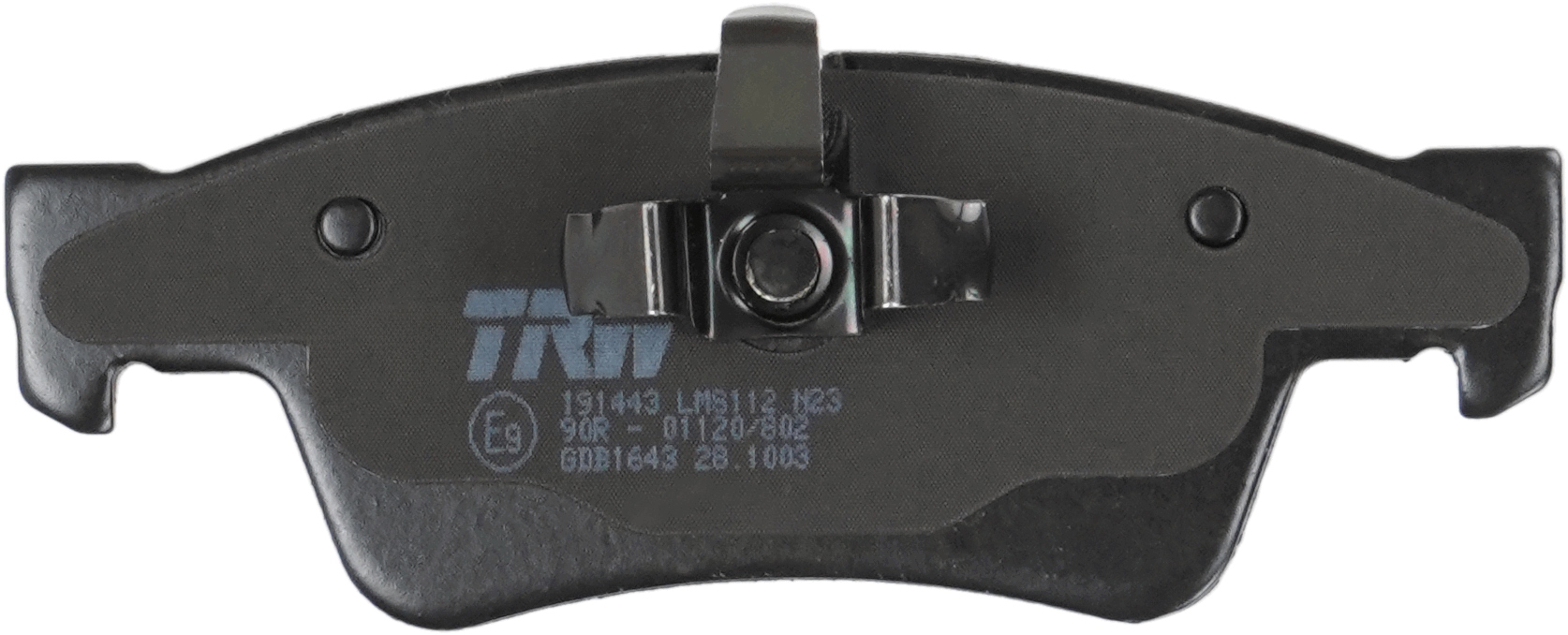

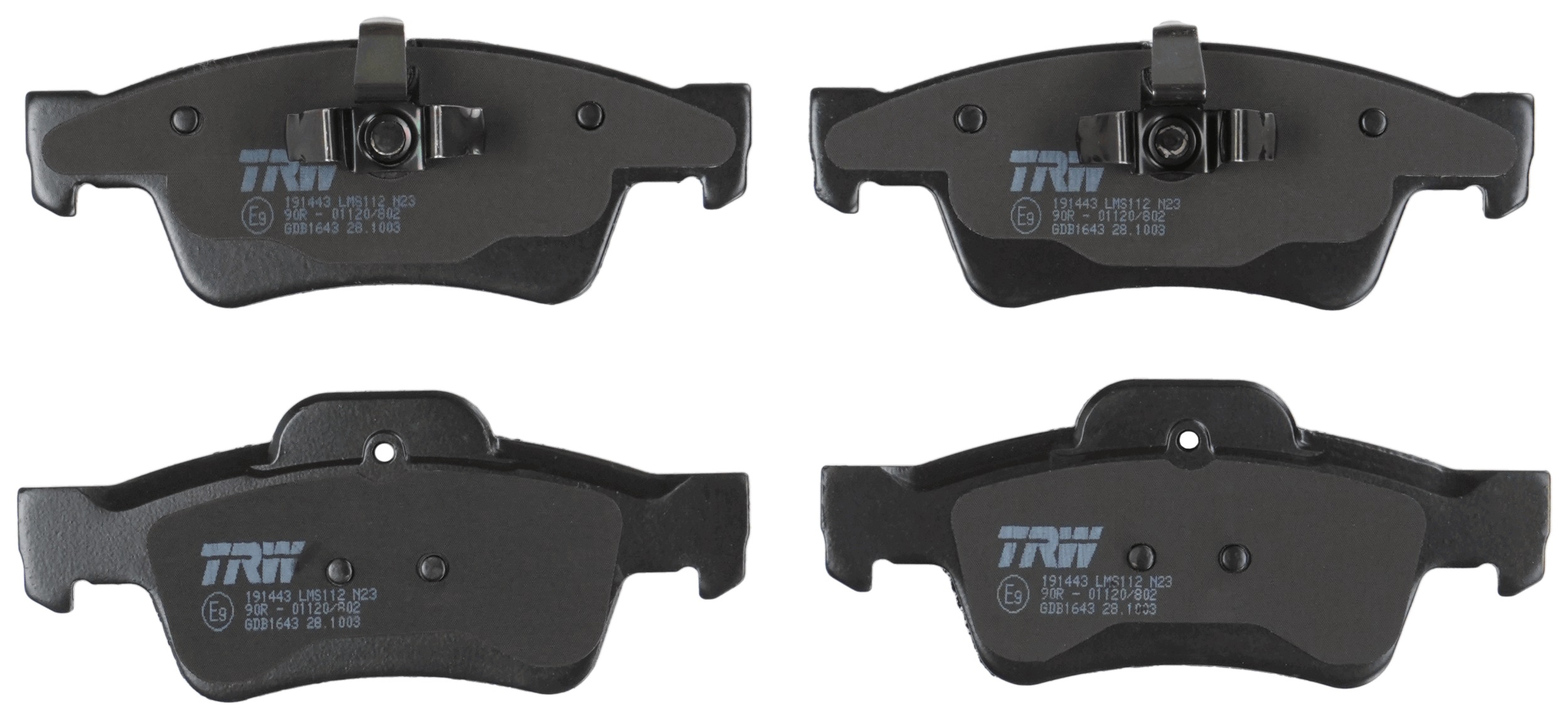

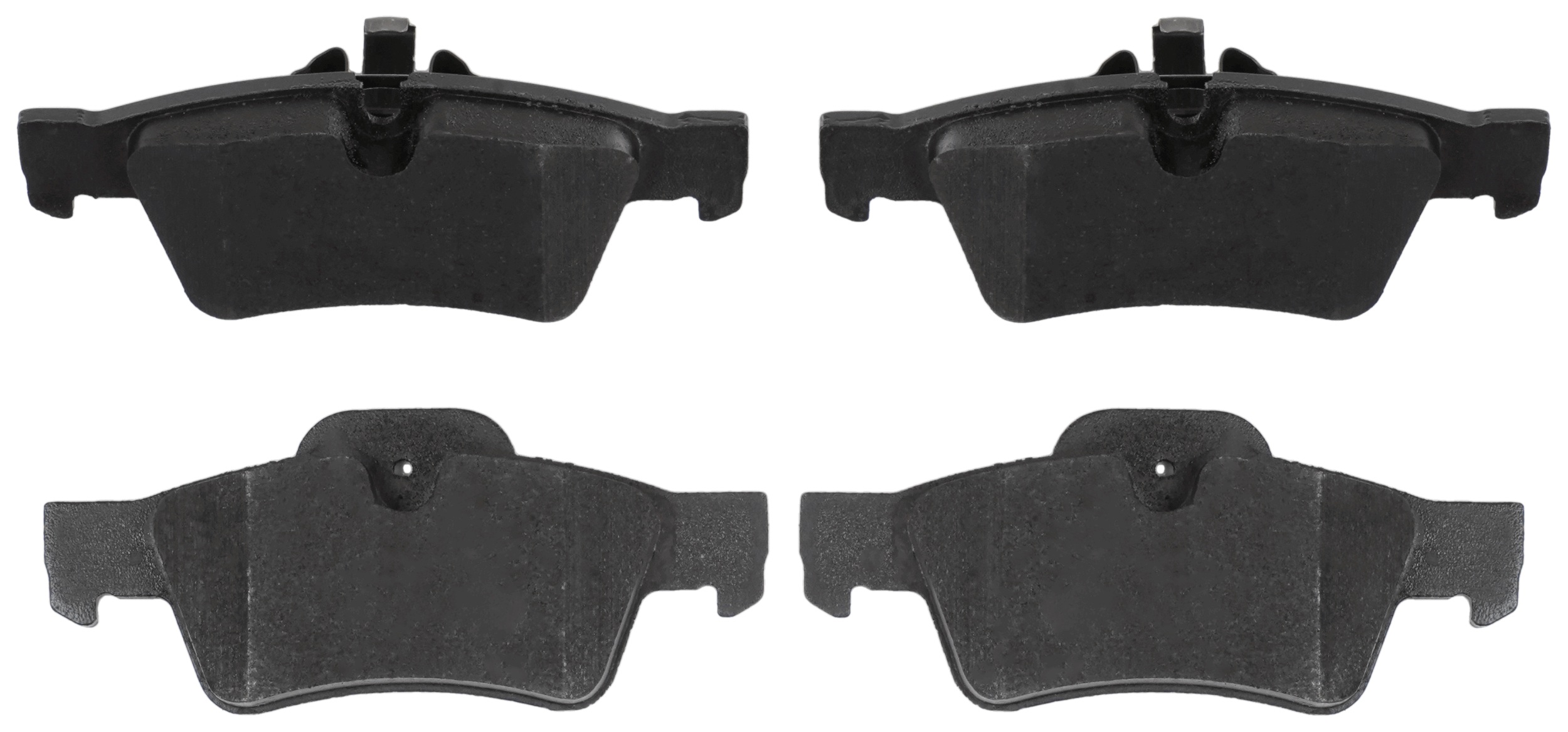

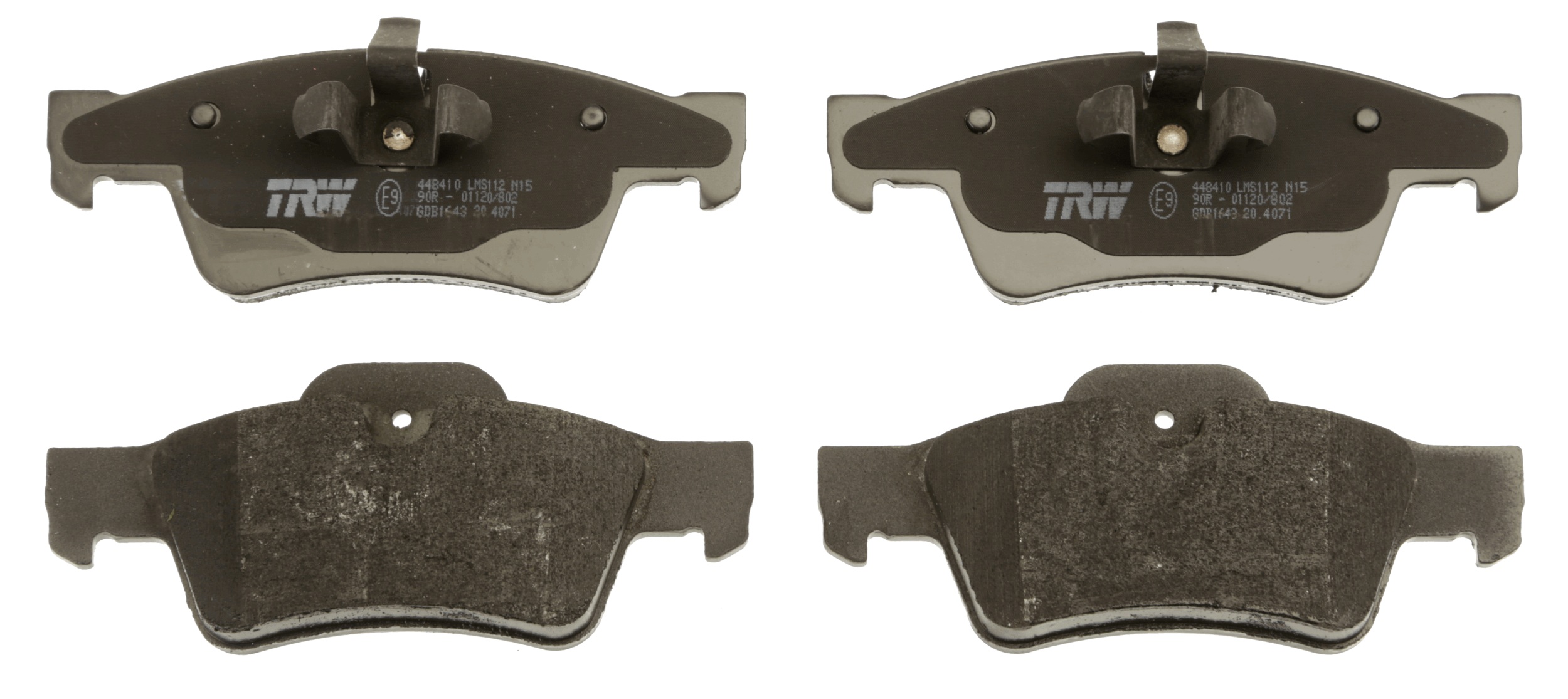

Brake Pad Set, disc brake
Brake Pad Set, disc brake 1 Brake Pad Set, disc brake 2 Brake Pad Set, disc brake 3 Brake Pad Set, disc brake 4 Brake Pad Set, disc brake 5
Braking System

Brake Pad Set, disc brake

Part No. GDB1643 · SKU GDB1643-TRW
Rear Axle
₱5,300.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

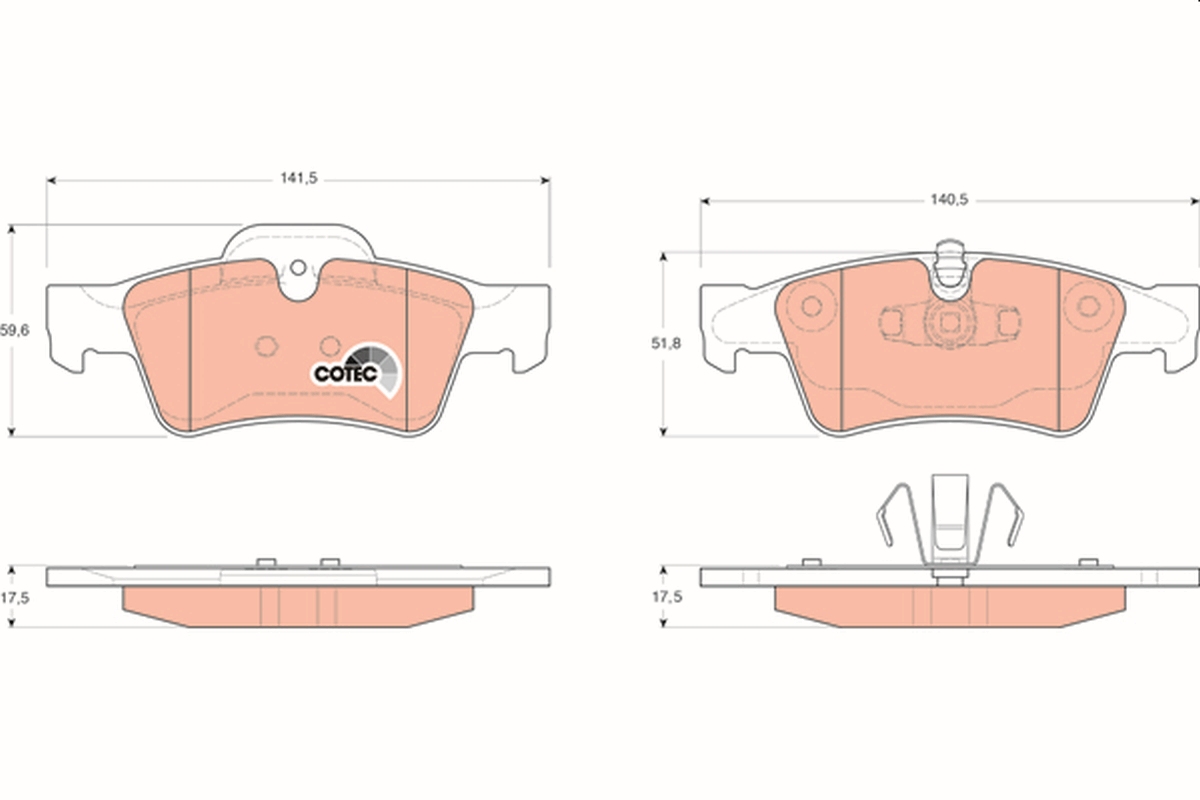

Specifications

Height 1 (mm)59.6
Height 2 (mm)51.8
Length 1 (mm)141.5
Length 2 (mm)140.5
Manufacturer Restriction ATE
Test Mark E9-90R-01120/802
Thickness (mm)17.5
Wear Warning Contact prepared for wear warning indicator
Height 1 [mm] 59,6, Height 2 [mm] 51,8, Length 1 [mm] 141,5, Length 2 [mm] 140,5, Manufacturer Restriction ATE, Test Mark E9-90R-01120/802, Thickness [mm] 17,5, Wear Warning Contact prepared for wear warning indicator
Fits: MERCEDES-BENZ

Supplier Cross-References

TEXTAR2392301 ZIMMERMANN239249801 FERODOFDB1831 BREMBO07B31563 TRWGDB1643 BOSCH986463300

Interchangeable Part Numbers

A.B.S.37509 AISINBPMB-2013 APECPAD1440 ATE13046072192 ATE13047072192 BENDIX573202B BendixDB2049 BORG & BECKBBP2031 BOSCH0 986 494 256 BOSCH0 986 495 438 BREMBOP50064 BREMBOP50064N BREMBOP50076 DELPHILP2124 DELPHILP2124-17B1 DELPHILP2124N.D-19B1 E.T.F.121280 FEBI BILSTEIN16615 FERODOFSL1831 FTEBL1988A2 HELLA8DB 355 011-421 HELLA8DB 355 026-091 Hi-QSP2190 ICER181770 JURID573202J JURID573202JC KAWE81754 LPR05P1254 LPR05P1254A LUCASLBP1738 METELLI2205681 METZGER099110 MEYLE025 239 2318/PD MEYLE025 239 2318 MINTEXMDB2726 NK223361 OPTIMAL12501 OPTIMALBP-12501 PAGIDT1455 PAGIDT1455EP QH Benelux7712 QUINTON HAZELLBP1525 REMSA99110 SPIDAN32993 SWAG10 91 6615 TEXTAR2392302 TEXTAR2392303 TEXTAR2392307 TEXTAR2392317905 TEXTAR2392381 TEXTAR2392391 TRISCAN811023054 TRUCKTEC AUTOMOTIVE0235199 TRWGDB1643DTE VALEO598802 VALEO604153 WAGNERWBP23923A ZIMMERMANN239241801

OE Numbers — DAIMLER A

910 420 74 00

OE Numbers — DAIMLER

A9104207400

OE Numbers — MERCEDES-BENZ

004 420 52 20 008 420 53 20 164 420 15 20 164 420 19 20 A0044205220 A0084205320 A1644201520 A1644201920
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ G-CLASS (W463) G 55 AMG (463.270, 463.271) 1989 – 2018 5439 350 476
MERCEDES-BENZ G-CLASS (W463) G 300 Diesel (463.327, 463.328) 1989 – 2018 2996 83 113
MERCEDES-BENZ G-CLASS (W463) 350 Turbo GD (463.320, 463.321) 1989 – 2018 3449 100 136
MERCEDES-BENZ G-CLASS (W463) 300 GE (463.227, 463.228) 1989 – 2018 2960 128 174
MERCEDES-BENZ G-CLASS (W463) 300 GD (463.327, 463.328) 1989 – 2018 2996 83 113
MERCEDES-BENZ G-CLASS (W463) 230 GE (463.224, 463.225) 1989 – 2018 2298 93 126
MERCEDES-BENZ G-CLASS (W463) 300 GE (463.227, 463.228) 1989 – 2018 2960 125 170
MERCEDES-BENZ G-CLASS (W463) G 320 (463.230, 463.231) 1989 – 2018 3199 155 211
MERCEDES-BENZ G-CLASS (W463) G 55 AMG (463.270, 463.271) 1989 – 2018 5439 373 507
MERCEDES-BENZ G-CLASS (W463) G 300 TD (463.330, 463.331) 1989 – 2018 2996 130 177
MERCEDES-BENZ G-CLASS (W463) 250 GD (463.324, 463.325) 1989 – 2018 2497 69 94
MERCEDES-BENZ G-CLASS (W463) G 320 (463.232, 463.233, 463.244, 463.245) 1989 – 2018 3199 158 215
MERCEDES-BENZ G-CLASS (W463) G 500 (463.247, 463.248, 463.249, 463.240, 463.241,... 1989 – 2018 4966 218 296
MERCEDES-BENZ G-CLASS (W463) 500 GE (463.228) 1989 – 2018 4973 177 241
MERCEDES-BENZ G-CLASS (W463) G 55 AMG (463.243, 463.246) 1989 – 2018 5439 260 354
MERCEDES-BENZ G-CLASS (W463) G 350 CDI (463.346) 1989 – 2018 2987 155 211
MERCEDES-BENZ G-CLASS (W463) G 36 AMG (463.230) 1989 – 2018 3606 200 272
MERCEDES-BENZ G-CLASS (W463) G 400 CDI (463.332, 463.333) 1989 – 2018 3996 184 250
MERCEDES-BENZ G-CLASS (W463) G 270 CDI (463.322, 463.323) 1989 – 2018 2685 115 156
MERCEDES-BENZ G-CLASS (W463) G 55 AMG (463.270, 463.271) 1989 – 2018 5439 350 476
MERCEDES-BENZ G-CLASS (W463) G 320 CDI (463.343) 1989 – 2018 2987 165 224
MERCEDES-BENZ G-CLASS (W463) G 55 AMG (463.270, 463.271) 1989 – 2018 5439 368 500
MERCEDES-BENZ G-CLASS (W463) G 500 (463.249) 1989 – 2018 4966 215 292
MERCEDES-BENZ G-CLASS (W463) G 63 AMG (463.273) 1989 – 2018 5461 400 544
MERCEDES-BENZ G-CLASS (W463) 200 GE (463.220) 1989 – 2018 1996 85 116
MERCEDES-BENZ G-CLASS (W463) G 500 (463.222, 463.236, 463.237, 463.242) 1989 – 2018 5461 285 388
MERCEDES-BENZ G-CLASS (W463) G 65 AMG 1989 – 2018 5980 450 612
MERCEDES-BENZ G-CLASS (W463) G 63 AMG 6x6 1989 – 2018 5461 400 544
MERCEDES-BENZ G-CLASS (W463) G 350 d (463.348) 1989 – 2018 2987 180 245
MERCEDES-BENZ G-CLASS (W463) G 500 (463.234, 463.239) 1989 – 2018 3982 310 422
MERCEDES-BENZ G-CLASS (W463) AMG G 63 (463.272) 1989 – 2018 5461 420 571
MERCEDES-BENZ G-CLASS (W463) AMG G 65 (463.274, 463.275) 1989 – 2018 5980 463 630
MERCEDES-BENZ G-CLASS (W463) G 350 CDI (463.306, 463.340, 463.341, 463.346) 1989 – 2018 2987 165 224
MERCEDES-BENZ G-CLASS (W463) G 320 CDI (463.321) 1989 – 2018 3449 100 136
MERCEDES-BENZ G-CLASS (W463) G 300 (463.228, 463.227) 1989 – 2018 2960 125 170
MERCEDES-BENZ G-CLASS (W463) G 500 (463.260, 463.261) 2018 – present 3982 310 422
MERCEDES-BENZ G-CLASS (W463) AMG G 63 (463.276, 463.277) 2018 – present 3982 430 585
MERCEDES-BENZ G-CLASS (W463) G 350 d 4-matic (463.349) 2018 – present 2925 210 286
MERCEDES-BENZ G-CLASS (W463) G 400 d 4-matic (463.350) 2018 – present 2925 243 330
MERCEDES-BENZ G-CLASS (W463) G 350 (463.210) 2018 – present 1991 190 258
MERCEDES-BENZ G-CLASS (W463) G 350 d 4-matic (463.349) 2018 – present 2925 183 249
MERCEDES-BENZ G-CLASS (W463) AMG G 63 4x4² (463.280) 2018 – present 3982 430 585
MERCEDES-BENZ GL-CLASS (X164) GL 350 CDI 4-matic (164.823) 2006 – 2012 2987 195 265
MERCEDES-BENZ GL-CLASS (X164) GL 450 4-matic (164.871) 2006 – 2012 4663 250 340
MERCEDES-BENZ GL-CLASS (X164) GL 500 4-matic (164.886) 2006 – 2012 5461 285 388
MERCEDES-BENZ GL-CLASS (X164) GL 420 CDI 4-matic (164.828) 2006 – 2012 3996 225 306
MERCEDES-BENZ GL-CLASS (X164) GL 320 CDI 4-matic (164.822) 2006 – 2012 2987 165 224
MERCEDES-BENZ GL-CLASS (X164) GL 350 CDI 4-matic (164.822) 2006 – 2012 2987 165 224
MERCEDES-BENZ GL-CLASS (X164) GL 450 CDI 4-matic (164.828) 2006 – 2012 3996 225 306
MERCEDES-BENZ GL-CLASS (X164) GL 320 CDI / 350 BlueTEC 4-matic (164.824, 164.825) 2006 – 2012 2987 155 211
MERCEDES-BENZ GL-CLASS (X164) GL 320 CDI 4-matic 2006 – 2012 2987 160 218
MERCEDES-BENZ GL-CLASS (X164) GL 350 CDI 4-matic 2006 – 2012 2987 170 231
MERCEDES-BENZ M-CLASS (W164) ML 350 4-matic (164.186) 2005 – 2012 3498 200 272
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.175) 2005 – 2012 4966 225 306
MERCEDES-BENZ M-CLASS (W164) ML 280 CDI 4-matic (164.120) 2005 – 2012 2987 140 190
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic (164.122) 2005 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 63 AMG 4-matic (164.177) 2005 – 2012 6208 375 510
MERCEDES-BENZ M-CLASS (W164) ML 420 CDI 4-matic (164.128) 2005 – 2012 3996 225 306
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.172) 2005 – 2012 5461 285 388
MERCEDES-BENZ M-CLASS (W164) ML 300 CDI 4-matic (164.120) 2005 – 2012 2987 140 190
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.122) 2005 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124) 2005 – 2012 2987 155 211
MERCEDES-BENZ M-CLASS (W164) ML 450 CDI 4-matic (164.128) 2005 – 2012 3996 225 306
MERCEDES-BENZ M-CLASS (W164) ML 300 CDI 4-matic (164.121) 2005 – 2012 2987 150 204
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124) 2005 – 2012 2987 170 231
MERCEDES-BENZ M-CLASS (W164) ML 450 Hybrid 4-matic (164.195) 2005 – 2012 3498 250 340
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.175) 2005 – 2012 4966 218 296
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic 2005 – 2012 2987 160 218
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic 2005 – 2012 2987 190 258
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic 2005 – 2012 2987 157 214
MERCEDES-BENZ M-CLASS (W164) ML 300 4-matic (164.182) 2005 – 2012 2996 170 231
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic (164.124, 164.125, 164.122) 2005 – 2012 2987 155 211
MERCEDES-BENZ M-CLASS (W164) ML 350 (164.156) 2005 – 2012 3498 200 272
MERCEDES-BENZ M-CLASS (W164) ML 63 AMG 4-matic (164.177) 2005 – 2012 6208 375 510
MERCEDES-BENZ M-CLASS (W166) ML 500 4-matic (166.073) 2011 – 2015 4663 300 408
MERCEDES-BENZ M-CLASS (W166) ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) 2011 – 2015 2143 150 204
MERCEDES-BENZ M-CLASS (W166) ML 350 BlueTEC 4-matic (166.024, 166.023) 2011 – 2015 2987 190 258
MERCEDES-BENZ M-CLASS (W166) ML 350 4-matic (166.057) 2011 – 2015 3498 225 306
MERCEDES-BENZ M-CLASS (W166) ML 63 AMG 4-matic (166.074) 2011 – 2015 5461 410 558
MERCEDES-BENZ M-CLASS (W166) ML 63 AMG 4-matic (166.074) 2011 – 2015 5461 386 525
MERCEDES-BENZ M-CLASS (W166) ML 400 4-matic (166.056) 2011 – 2015 2996 245 333
MERCEDES-BENZ M-CLASS (W166) ML 350 (166.058) 2011 – 2015 3498 225 306
MERCEDES-BENZ M-CLASS (W166) ML 350 CDI 4-matic 2011 – 2015 2987 179 243
MERCEDES-BENZ M-CLASS (W166) ML 320 4-matic (166.062) 2011 – 2015 2996 200 272
MERCEDES-BENZ M-CLASS (W166) ML 300 4-matic (166.055) 2011 – 2015 3498 185 252
MERCEDES-BENZ M-CLASS (W166) ML 300 4-matic (166.055) 2011 – 2015 3498 183 249
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.023, 251.123) 2005 – 2017 2987 195 265
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CGI 4-matic (251.057, 251.157) 2005 – 2017 3498 225 306
MERCEDES-BENZ R-CLASS (W251, V251) R 350 4-matic (251.065, 251.165) 2005 – 2017 3498 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic (251.075, 251.175) 2005 – 2017 4966 225 306
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic (251.022, 251.122) 2005 – 2017 2987 165 224
MERCEDES-BENZ R-CLASS (W251, V251) R 280 CDI 4-matic (251.020) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 63 AMG 4-matic (251.077, 251.177) 2005 – 2017 6208 375 510
MERCEDES-BENZ R-CLASS (W251, V251) R 280 (251.054, 251.154) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 350 (251.056, 251.156) 2005 – 2017 3498 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic (251.072, 251.172) 2005 – 2017 5461 285 388
MERCEDES-BENZ R-CLASS (W251, V251) R 280 CDI (251.121, 251.026, 251.126) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 280 4-matic (251.062) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 300 CDI (251.021, 251.121, 251.026, 251.126) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 300 CDI 4-matic (251.020) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.022, 251.122) 2005 – 2017 2987 165 224
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.124, 251.125) 2005 – 2017 2987 155 211
MERCEDES-BENZ R-CLASS (W251, V251) R 300 (251.054, 251.154) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic 2005 – 2017 4966 218 296
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic 2005 – 2017 2987 157 214
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic 2005 – 2017 2987 160 218
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic 2005 – 2017 2987 157 214
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic (251.125) 2005 – 2017 2987 155 211
MERCEDES-BENZ R-CLASS (W251, V251) R 400 4-matic (251.166) 2005 – 2017 2996 245 333
MERCEDES-BENZ R-CLASS (W251, V251) R 320 4-matic (251.163) 2005 – 2017 2996 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 300 (251.154) 2005 – 2017 2996 180 245
MERCEDES-BENZ R-CLASS (W251, V251) R 300 4-matic (251.062) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 63 AMG 4-matic (251.077, 251.177) 2005 – 2017 6208 375 510
