Brake Pad Set, disc brake
Brake Pad Set, disc brake 1 Brake Pad Set, disc brake 2
Braking System

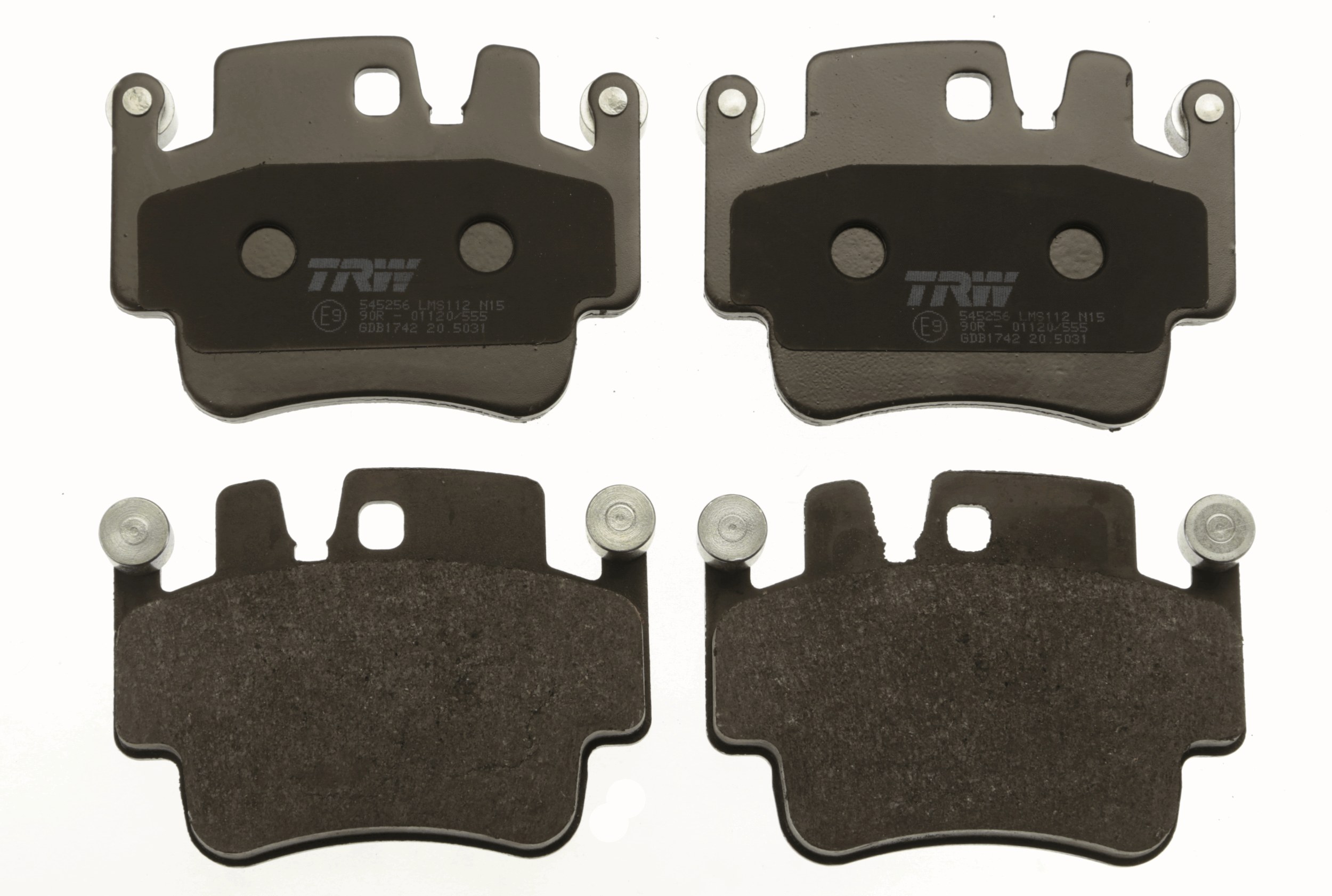

Brake Pad Set, disc brake

Part No. GDB1742 · SKU GDB1742-TRW
Front Axle
₱6,800.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs
Height (mm)90.1
Manufacturer Restriction BREMBO
Supplementary Article/Supplementary Info with counterweights
Test Mark E9 90R - 01120/555
Thickness (mm)17
Wear Warning Contact prepared for wear warning indicator
Width (mm)121
Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height [mm] 90,1, Manufacturer Restriction BREMBO, Supplementary Article/Supplementary Info with counterweights, Test Mark E9 90R - 01120/555, Thickness [mm] 17, Wear Warning Contact prepared for wear warning indicator, Width [mm] 121
Fits: PORSCHE

Supplier Cross-References

TEXTAR2332917004 FERODOFDB1742 BREMBO07B31415 TRWGDB1742 BOSCH986424681 VALEO598767

Interchangeable Part Numbers

APECPAD1409 ATE13046049872 ATE13046349872 BENDIX573043B BORG & BECKBBP2202 BOSCH 0 986 424570 BOSCH0986424570 BOSCH 0 986 424615 BOSCH0986424615 BOSCH 0 986 424681 BOSCH0986424681 BOSCH 0 986 494281 BOSCH0986494281 BOSCH 0 986 TB2764 BOSCH0986TB2764 BOSCH 0 986 TB2818 BOSCH0986TB2818 BOSCH 0 986 TB2854 BOSCH0986TB2854 BOSCH 0 986 TB2855 BOSCH0986TB2855 BREMBOP65009 BREMBOP65009N DELPHILP1813 DELPHILP1996 FEBI BILSTEIN16522 FERODOFDB1307 FERODOFDS1307 FERODOFSL1742 FTE9009020 FTE9010397 FTEBL1819A2 HELLA 8DB 355009-281 HELLA8DB355009281 HELLA 8DB 355018-461 HELLA8DB355018461 HELLA 8DB 355043-141 HELLA8DB355043141 ICER181627 JURID573043J JURID573043JC LEMFÖRDER26370 LPR05P1371 LPR05P722 LUCASLBP1837 MAGNETI MARELLI363702160380 METELLI2206570 METZGER098200 MEYLE 025 2332917/PD MEYLE0252332917PD MINTEXMDB2038 MINTEXMDB2417 NK225613 OPTIMAL12198 OPTIMALBP-12198 PAGIDT1231 PEX7587 PEX7660 QH Benelux7572 REMSA065300 REMSA077300 REMSA098210 REMSA65300 REMSA77300 REMSA98200 REMSA98210 REMYRAP1419 ROADHOUSE2098200 ROADHOUSE2982.00 SWAG38916522 TEXTAR2194202 TEXTAR2332902 VAICOV45-0028 WAGNERWBP23329A ZIMMERMANN233291701 ZIMMERMANN233291709

OE Numbers — PORSCHE 996 351 930

14 15

OE Numbers — PORSCHE

99635193014 99635193015 99635193914 99635193915 99635193916 99635194700 99635194701 99635198000 99635293091 99635294890 99635294902 99635294903 99635294930 99735194800 99735194801 99735194803

OE Numbers — PORSCHE 996 351 939

16

OE Numbers — PORSCHE 996 351 947

00 01

OE Numbers — PORSCHE 996 352 930

91

OE Numbers — PORSCHE 996 352 948

90

OE Numbers — PORSCHE 996 352 949

02 03 30
MakeModelType / Engine YearsCCkWHP
PORSCHE 911 (996) 3.4 Carrera 1997 – 2005 3387 221 301
PORSCHE 911 (996) 3.4 Carrera 4 1997 – 2005 3387 221 301
PORSCHE 911 (996) 3.6 GT3 1997 – 2005 3600 265 360
PORSCHE 911 (996) 3.6 Turbo 4 1997 – 2005 3600 309 420
PORSCHE 911 (996) 3.4 Carrera 1997 – 2005 3387 235 320
PORSCHE 911 (996) 3.4 Carrera 4 1997 – 2005 3387 235 320
PORSCHE 911 (996) 3.6 GT2 1997 – 2005 3600 340 462
PORSCHE 911 (996) 3.6 Carrera 1997 – 2005 3596 235 320
PORSCHE 911 (996) 3.6 Carrera 4 1997 – 2005 3596 235 320
PORSCHE 911 (996) 3.6 GT3 1997 – 2005 3600 280 381
PORSCHE 911 (996) 3.6 Turbo 4S 1997 – 2005 3600 331 450
PORSCHE 911 (996) 3.6 Carrera S 1997 – 2005 3596 254 345
PORSCHE 911 (996) 3.6 Carrera 4S 1997 – 2005 3596 254 345
PORSCHE 911 (996) 3.6 GT2 1997 – 2005 3600 355 483
PORSCHE 911 (996) 3.6 S 1997 – 2005 3600 331 450
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 368 500
PORSCHE 911 (997) 3.8 Carrera S / GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.8 Carrera 4S / 4 GTS 2004 – 2013 3800 300 408
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 456 620
PORSCHE 911 (997) 4.0 GT3 RS 2004 – 2013 3996 368 500
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 390 530
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 239 325
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 261 355
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 353 480
PORSCHE 911 (997) 3.6 GT3 2004 – 2013 3600 305 415
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 280 381
PORSCHE 911 (997) 3.6 GT 2 2004 – 2013 3600 390 530
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 Carrera S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3800 283 385
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3614 254 345
PORSCHE 911 (997) 3.8 GT3 2004 – 2013 3797 320 435
PORSCHE 911 (997) 3.6 Carrera 2004 – 2013 3596 235 320
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3797 331 450
PORSCHE 911 (997) 3.6 Turbo 2004 – 2013 3600 309 420
PORSCHE 911 (997) 3.8 Turbo 2004 – 2013 3800 373 507
PORSCHE 911 (997) 3.8 GT3 RS 2004 – 2013 3800 335 456
PORSCHE 911 (997) 3.6 Carrera 4 2004 – 2013 3596 242 329
PORSCHE 911 (997) 3.8 Carrera 4S 2004 – 2013 3824 264 359
PORSCHE 911 (997) 3.8 Turbo S 2004 – 2013 3800 395 537
PORSCHE 911 (997) 3.6 GT2 RS 2004 – 2013 3600 462 628
PORSCHE 911 Convertible (996) 3.4 Carrera 1997 – 2005 3387 221 301
PORSCHE 911 Convertible (996) 3.4 Carrera 1997 – 2005 3387 235 320
PORSCHE 911 Convertible (996) 3.4 Carrera 4 1997 – 2005 3387 235 320
PORSCHE 911 Convertible (996) 3.6 Carrera 1997 – 2005 3596 235 320
PORSCHE 911 Convertible (996) 3.6 Carrera 4 1997 – 2005 3596 235 320
PORSCHE 911 Convertible (996) 3.6 Carrera S 1997 – 2005 3596 254 345
PORSCHE 911 Convertible (996) 3.6 Carrera 4S 1997 – 2005 3596 254 345
PORSCHE 911 Convertible (996) 3.6 Turbo 4 1997 – 2005 3600 309 420
PORSCHE 911 Convertible (996) 3.6 Turbo 4S 1997 – 2005 3600 331 450
PORSCHE 911 Convertible (996) 3.4 Carrera 4 1997 – 2005 3387 221 301
PORSCHE 911 Convertible (996) 3.6 S 1997 – 2005 3600 331 450
PORSCHE 911 Convertible (997) 3.8 Turbo 2005 – 2013 3800 368 500
PORSCHE 911 Convertible (997) 3.8 Carrera S / GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Carrera 4S / 4 GTS 2005 – 2013 3800 300 408
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 390 530
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3596 239 325
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 261 355
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3824 280 381
PORSCHE 911 Convertible (997) 3.6 Turbo 2005 – 2013 3600 353 480
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3614 254 345
PORSCHE 911 Convertible (997) 3.8 Carrera S 2005 – 2013 3800 283 385
PORSCHE 911 Convertible (997) 3.6 Carrera 4 2005 – 2013 3614 254 345
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3800 283 385
PORSCHE 911 Convertible (997) 3.6 Carrera 2005 – 2013 3596 235 320
PORSCHE 911 Convertible (997) 3.8 Carrera GTS 2005 – 2013 3800 304 413
PORSCHE 911 Convertible (997) 3.8 Carrera 2005 – 2013 3800 298 405
PORSCHE 911 Convertible (997) 3.8 Carrera 4S 2005 – 2013 3824 264 359
PORSCHE 911 Convertible (997) 3.8 Turbo S 2005 – 2013 3800 395 537
PORSCHE 911 Convertible (997) 3.8 Carrera 4 GTS 2005 – 2013 3800 304 413
PORSCHE 911 Speedster (997) 3.8 (997.720, 997.721) 2010 – 2011 3800 300 408
PORSCHE 911 Targa (996) 3.6 2001 – 2005 3596 235 320
PORSCHE 911 Targa (997) 3.6 Carrera 4 2006 – 2012 3614 254 345
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3800 283 385
PORSCHE 911 Targa (997) 3.6 Carrera 4 2006 – 2012 3596 239 325
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3824 261 355
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3824 280 381
PORSCHE 911 Targa (997) 3.8 Carrera 4S 2006 – 2012 3800 300 408
PORSCHE BOXSTER (986) 2.5 1996 – 2004 2480 150 204
PORSCHE BOXSTER (986) 2.7 1996 – 2004 2687 162 220
PORSCHE BOXSTER (986) S 3.2 1996 – 2004 3179 185 252
PORSCHE BOXSTER (986) 2.7 1996 – 2004 2687 168 228
PORSCHE BOXSTER (986) S 3.2 1996 – 2004 3179 191 260
PORSCHE BOXSTER (986) S 3.2 1996 – 2004 3179 196 266
PORSCHE BOXSTER (986) 2.7 1996 – 2004 2687 155 211
PORSCHE BOXSTER (987) 2.7 2004 – 2013 2687 176 240
PORSCHE BOXSTER (987) S 3.2 2004 – 2013 3179 206 280
PORSCHE BOXSTER (987) 2.7 2004 – 2013 2687 180 245
PORSCHE BOXSTER (987) S 3.4 2004 – 2013 3387 217 295
PORSCHE BOXSTER (987) S 3.4 2004 – 2013 3387 223 303
PORSCHE BOXSTER (987) S 3.4 2004 – 2013 3436 228 310
PORSCHE BOXSTER (987) 2.9 2004 – 2013 2893 188 255
PORSCHE BOXSTER (987) 2.7 2004 – 2013 2687 162 220
PORSCHE BOXSTER (987) 2.9 2004 – 2013 2893 155 211
PORSCHE BOXSTER (987) 3.2 2004 – 2013 3179 191 260
PORSCHE BOXSTER (987) S 3.4 (987.760, 987.761) 2004 – 2013 3436 235 320
PORSCHE BOXSTER Spyder (987) 3.4 2007 – 2011 3436 235 320
PORSCHE BOXSTER Spyder (987) 3.4 RS 60 2007 – 2011 3387 223 303
PORSCHE CAYMAN (987) R 3.4 2005 – 2013 3436 243 330
PORSCHE CAYMAN (987) S 3.4 2005 – 2013 3387 217 295
PORSCHE CAYMAN (987) 2.7 2005 – 2013 2687 180 245
PORSCHE CAYMAN (987) S 3,4 Sport 2005 – 2013 3387 223 303
PORSCHE CAYMAN (987) 2.9 2005 – 2013 2893 195 265
PORSCHE CAYMAN (987) S 3.4 2005 – 2013 3436 235 320
PORSCHE CAYMAN (987) 2.9 2005 – 2013 2893 155 211
