Braking System

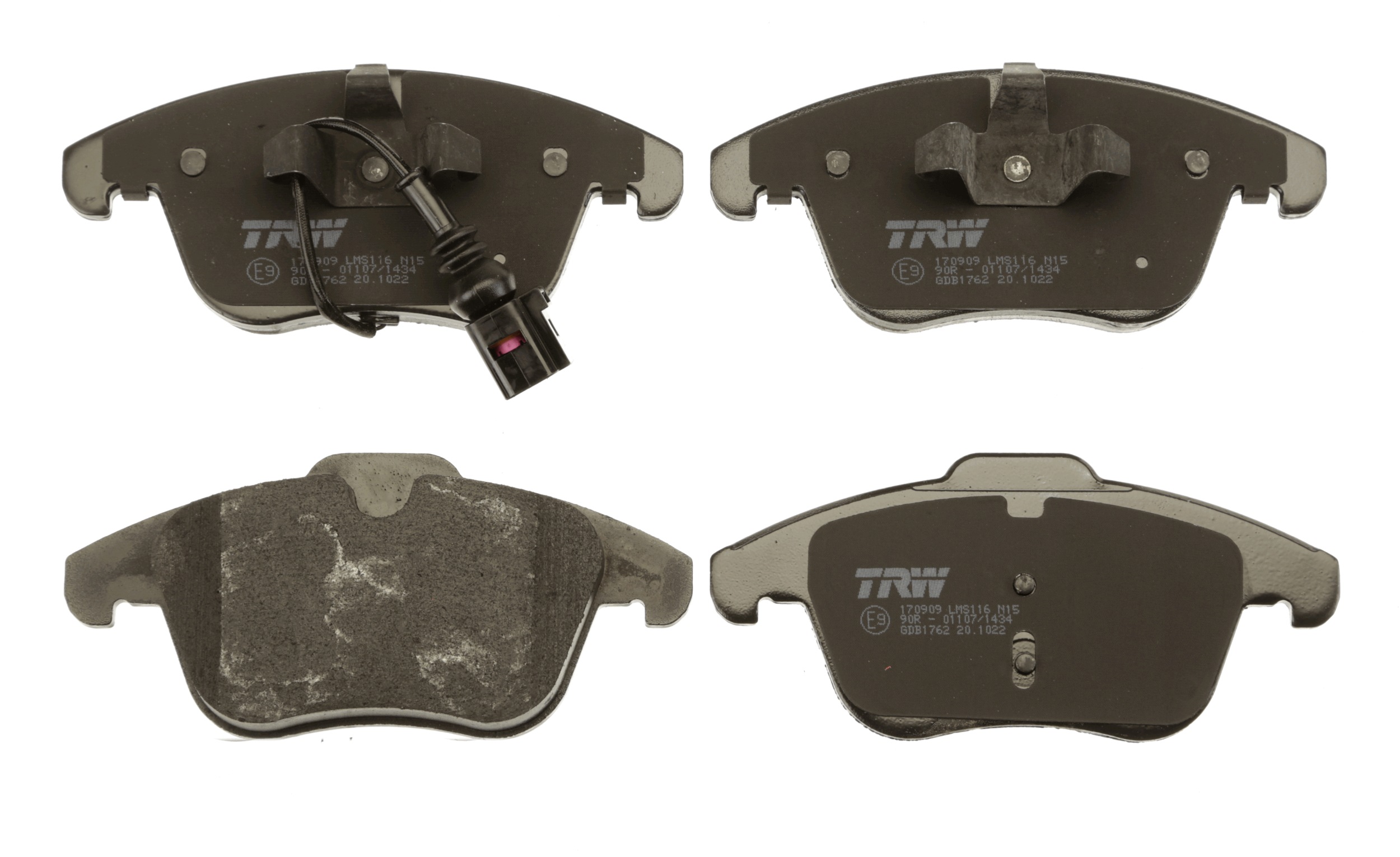

Brake Pad Set, disc brake

Name: Brake Pad Set, disc brake
Brand: TRW
SKU: GDB1762-TRW
Price: 6200.00 PHP
Availability: InStock

Part No. GDB1762 · SKU GDB1762-TRW

Front Axle

₱6,200.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

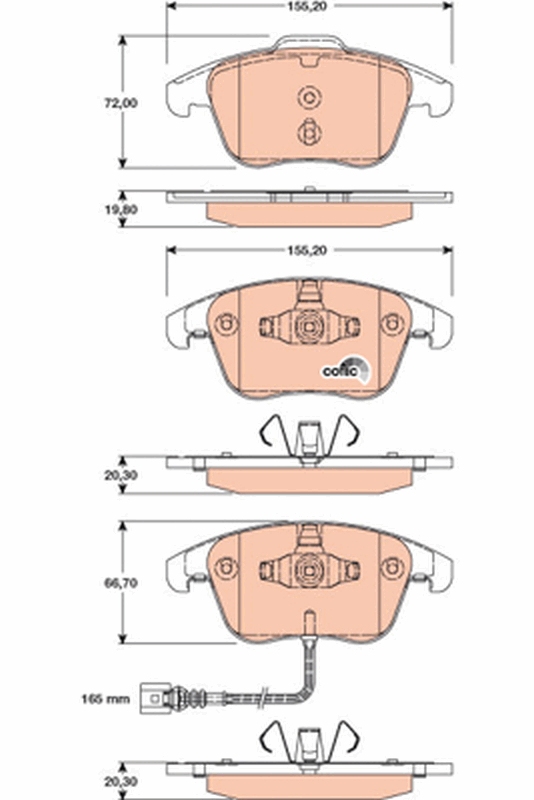

Specifications

Height 1 (mm)	72
Height 2 (mm)	66.7
Manufacturer Restriction ATE
Number of wear indicators (per axle)	1
Observe technical data
Test Mark E9 90R-01107/1434
Thickness 1 (mm)	19.8
Thickness 2 (mm)	20.3
Warning Contact Length (mm)	165
Wear Warning Contact incl. wear warning contact
Width (mm)	155.2

Height 1 [mm] 72, Height 2 [mm] 66,7, Manufacturer Restriction ATE, Number of wear indicators [per axle] 1, Observe technical data , Test Mark E9 90R-01107/1434, Thickness 1 [mm] 19,8, Thickness 2 [mm] 20,3, Warning Contact Length [mm] 165, Wear Warning Contact incl. wear warning contact, Width [mm] 155,2
Fits: AUDI, AUDI (FAW), SEAT, VW, VW (SVW)

Supplier Cross-References

TEXTAR2433301 ZIMMERMANN243339001 FERODOFDB4057 BREMBO07D43504 TRWGDB1762 VW5N0698151

Interchangeable Part Numbers

AISINBPVW-1023 APECPAD1653 ATE13046072422 ATE13047072422 BENDIX573246B BendixDB1849 BLUE PRINTADV184208 BORG & BECKBBP2049 BOSCH0 986 494 372 BOSCH0 986 495 464 BOSCH0 986 TB3 154 BREMBO P85 112X BREMBOP85112X BREMBOP85112 BREMBOP85112N BREMBOP85130 DELPHILP2110 DELPHILP2110N.D-19B1 FEBI BILSTEIN16760 FERODOFDB4057-D FERODOFDB4057-S FERODOFSL4057 FTE9001026 FTE9010655 FTEBL2071A2 HELLA8DB 355 014-031 HELLA8DB 355 020-321 Hi-QSP2264 ICER181864 JURID573246J JURID573246JAS JURID573246JC LPR05P1392 LUCASLBP1857 METELLI2206751 MEYLE025 243 3219/PD MEYLE025 243 3219/W MGA948 MINTEXMDB2973 NK224795 OPTIMAL12440 OPTIMALBP-12440 PAGIDT1783 PAGIDT2293 PEX7947S REMSA121921 REMYRAP1031 ROADHOUSE21219.21 RUVILLED13758486 SWAG30916760 TEXTAR2433304 TEXTAR2433319905 TEXTAR2433401 TRISCAN811029076 TRWGDB1762DTE VALEO601036 VALEO604003 WAGNERWBP24333A

OE Numbers — AUDI (FAW)

8UD698151

OE Numbers — AUDI

5N0 698 151 A 5N0 698 151 B 5N0 698 151 C 5N0 698 151 D

OE Numbers — SEAT

7N0 698 151

OE Numbers — VW (SVW)

5ND 698 151

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	Q3 (8UB, 8UG)	2.0 TDI	2011 – 2020	1968	110	150
AUDI	Q3 (8UB, 8UG)	1.4 TFSi Flex	2011 – 2020	1395	110	150
AUDI	Q3 (8UB, 8UG)	1.4 TFSI	2011 – 2020	1395	92	125
AUDI	Q3 (8UB, 8UG)	RS performance 2.5 quattro	2011 – 2020	2480	270	367
AUDI	Q3 (8UB, 8UG)	2.0 TDI	2011 – 2020	1968	135	184
AUDI	Q3 (8UB, 8UG)	2.0 TFSI	2011 – 2020	1984	132	180
AUDI	Q3 (8UB, 8UG)	2.0 TDI	2011 – 2020	1968	88	120
AUDI	Q3 (8UB, 8UG)	RS 2.5 quattro	2011 – 2020	2480	250	340
AUDI	Q3 (8UB, 8UG)	2.0 TFSI quattro	2011 – 2020	1984	132	180
AUDI	Q3 (8UB, 8UG)	2.0 TFSI quattro	2011 – 2020	1984	162	220
AUDI	Q3 (8UB, 8UG)	2.0 TDI quattro	2011 – 2020	1968	135	184
AUDI	Q3 (8UB, 8UG)	2.0 TDI quattro	2011 – 2020	1968	110	150
AUDI	Q3 (8UB, 8UG)	2.0 TDI quattro	2011 – 2020	1968	130	177
AUDI	Q3 (8UB, 8UG)	2.0 TFSI quattro	2011 – 2020	1984	147	200
AUDI	Q3 (8UB, 8UG)	2.0 TFSI	2011 – 2020	1984	147	200
AUDI	Q3 (8UB, 8UG)	1.4 TSI	2011 – 2020	1395	110	150
AUDI	Q3 (8UB, 8UG)	RS 2.5 quattro	2011 – 2020	2480	228	310
AUDI	Q3 (8UB, 8UG)	2.0 TDI	2011 – 2020	1968	130	177
AUDI	Q3 (8UB, 8UG)	2.0 TDI quattro	2011 – 2020	1968	103	140
AUDI	Q3 (8UB, 8UG)	2.0 TDI quattro	2011 – 2020	1968	120	163
AUDI	Q3 (8UB, 8UG)	2.0 TDI	2011 – 2020	1968	100	136
AUDI	Q3 (8UB, 8UG)	2.0 TFSI quattro	2011 – 2020	1984	125	170
AUDI	Q3 (8UB, 8UG)	2.0 TDI	2011 – 2020	1968	103	140
AUDI	Q3 (8UB, 8UG)	2.0 TFSI quattro	2011 – 2020	1984	155	211
