Braking System

Brake Pad Set, disc brake

Name: Brake Pad Set, disc brake
Brand: TRW
SKU: GDB1775-TRW
Price: 8400.00 PHP
Availability: InStock

Part No. GDB1775 · SKU GDB1775-TRW

Rear Axle

₱8,400.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs

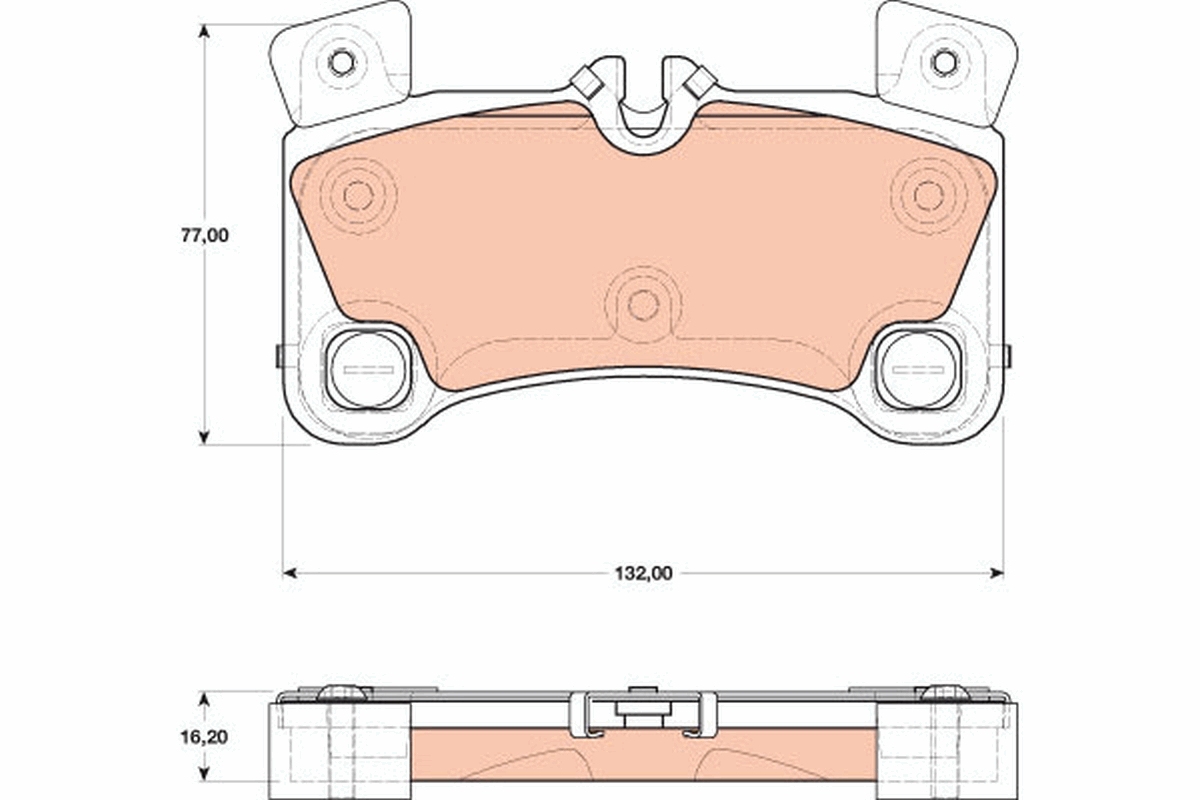

Height (mm)	77
Manufacturer Restriction BREMBO
Test Mark E9 90R - 01120/2662
Thickness (mm)	16.2
Wear Warning Contact prepared for wear warning indicator
Width (mm)	132

Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height [mm] 77, Manufacturer Restriction BREMBO, Test Mark E9 90R - 01120/2662, Thickness [mm] 16,2, Wear Warning Contact prepared for wear warning indicator, Width [mm] 132
Fits: AUDI, PORSCHE, VW

Supplier Cross-References

TEXTAR2429601 ZIMMERMANN246149651 FERODOFDB4065 BREMBO07B31516 TRWGDB1775 VW7L0698451E

Interchangeable Part Numbers

APECPAD1671 ATE13046048502 ATE13047048502 BENDIX573339B BLUE PRINTADV184252 BORG & BECKBBP2092 BOSCH0 986 494 205 BREMBOP85103 BREMBOP85103N DELPHILP2118 FEBI BILSTEIN16842 FIRST LINEFBP3736 FTE9005577 FTE9010641 FTEBL2057A2 GIRLING6117759 HELLA8DB 355 012-651 HELLA8DB 355 014-631 HELLA8DB 355 042-891 ICER181922 JURID573339J JURID573339JC LPR05P1655 LUCASLBP1870 MAGNETI MARELLI323700044900 MAGNETI MARELLI363802161190 MEYLE025 242 9616/PD MEYLE025 242 9616 MINTEXMDB3035 NK224799 OPTIMAL12444 OPTIMALBP-12444 PAGIDT1627 PAGIDT1863 REMSA134600 ROADHOUSE21346.00 SWAG30916842 TEXTAR2461401 TEXTAR2461416604 TRISCAN811029082 TRWGDB1775DTE ZIMMERMANN246141659

OE Numbers — AUDI

7L0 698 451 C 7L0 698 451 D 7L0 698 451 F 7L0 698 451 L

OE Numbers — PORSCHE

955 352 939 60 955 352 939 61 955 352 939 62 955 352 939 63

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	Q7 (4LB)	3.0 TDI quattro	2006 – 2016	2967	180	245
AUDI	Q7 (4LB)	3.0 TFSI quattro	2006 – 2016	2995	200	272
AUDI	Q7 (4LB)	3.0 TFSI quattro	2006 – 2016	2995	245	333
AUDI	Q7 (4LB)	3.0 TDI quattro	2006 – 2016	2967	150	204
AUDI	Q7 (4LB)	4.2 TDI quattro	2006 – 2016	4134	250	340
AUDI	Q7 (4LB)	6.0 TDI quattro	2006 – 2016	5934	368	500
AUDI	Q7 (4LB)	3.0 TDI quattro	2006 – 2016	2967	176	240
AUDI	Q7 (4LB)	4.2 TDI quattro	2006 – 2016	4134	240	326
AUDI	Q7 (4LB)	3.0 TDI quattro	2006 – 2016	2967	155	211
AUDI	Q7 (4LB)	3.6 FSI quattro	2006 – 2016	3597	206	280
AUDI	Q7 (4LB)	3.0 TDI quattro	2006 – 2016	2967	171	233
AUDI	Q7 (4LB)	4.2 FSI quattro	2006 – 2016	4163	257	350
AUDI	Q7 (4LB)	3.0 TDI quattro	2006 – 2016	2967	165	224
AUDI	Q7 (4LB)	3.0 TFSI quattro	2006 – 2016	2995	206	280
AUDI	Q7 Van (4LB)	3.6 FSI quattro	2006 – 2016	3597	206	280
AUDI	Q7 Van (4LB)	3.0 TFSI quattro	2006 – 2016	2995	245	333
AUDI	Q7 Van (4LB)	3.0 TDI quattro	2006 – 2016	2967	180	245
AUDI	Q7 Van (4LB)	3.0 TDI quattro	2006 – 2016	2967	176	240
AUDI	Q7 Van (4LB)	3.0 TDI quattro	2006 – 2016	2967	171	232
AUDI	Q7 Van (4LB)	3.0 TDI quattro	2006 – 2016	2967	155	211
AUDI	Q7 Van (4LB)	4.2 TDI quattro	2006 – 2016	4134	240	326
AUDI	Q7 Van (4LB)	4.2 TDI quattro	2006 – 2016	4134	250	340
AUDI	Q7 Van (4LB)	3.0 TDI quattro	2006 – 2016	2967	150	204
AUDI	Q7 Van (4LB)	4.2 FSI quattro	2006 – 2016	4163	257	350
AUDI	Q7 Van (4LB)	6.0 TDI quattro	2006 – 2016	5934	368	500
PORSCHE	CAYENNE (9PA)	Turbo S 4.8	2002 – 2010	4806	397	540
PORSCHE	CAYENNE (9PA)	Turbo S 4.8	2002 – 2010	4806	404	550
PORSCHE	CAYENNE (9PA)	Turbo 4.8	2002 – 2010	4806	373	507
PORSCHE	CAYENNE (9PA)	S 4.5	2002 – 2010	4511	184	250
PORSCHE	CAYENNE (9PA)	3.0 TDI	2002 – 2010	2967	176	240
PORSCHE	CAYENNE (9PA)	GTS 4.8	2002 – 2010	4806	298	405
PORSCHE	CAYENNE (9PA)	3.2	2002 – 2010	3189	177	241
PORSCHE	CAYENNE (9PA)	Turbo S 4.8	2002 – 2010	4806	368	500
PORSCHE	CAYENNE (9PA)	S 4.8	2002 – 2010	4806	283	385
PORSCHE	CAYENNE (9PA)	3.6	2002 – 2010	3598	213	290
PORSCHE	CAYENNE (9PA)	Turbo S 4.5	2002 – 2010	4511	383	521
PORSCHE	CAYENNE (9PA)	Turbo S 4.5	2002 – 2010	4511	368	500
PORSCHE	CAYENNE (9PA)	3.2	2002 – 2010	3189	184	250
PORSCHE	CAYENNE (9PA)	Turbo 4.5	2002 – 2010	4511	331	450
PORSCHE	CAYENNE (9PA)	S 4.5	2002 – 2010	4511	250	340
