Brake Pad Set, disc brake
Braking System

Brake Pad Set, disc brake

Part No. GDB1797DTE · SKU GDB1797DTE-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Braking System also for perforated brake discs
Braking System Low dust brake pads

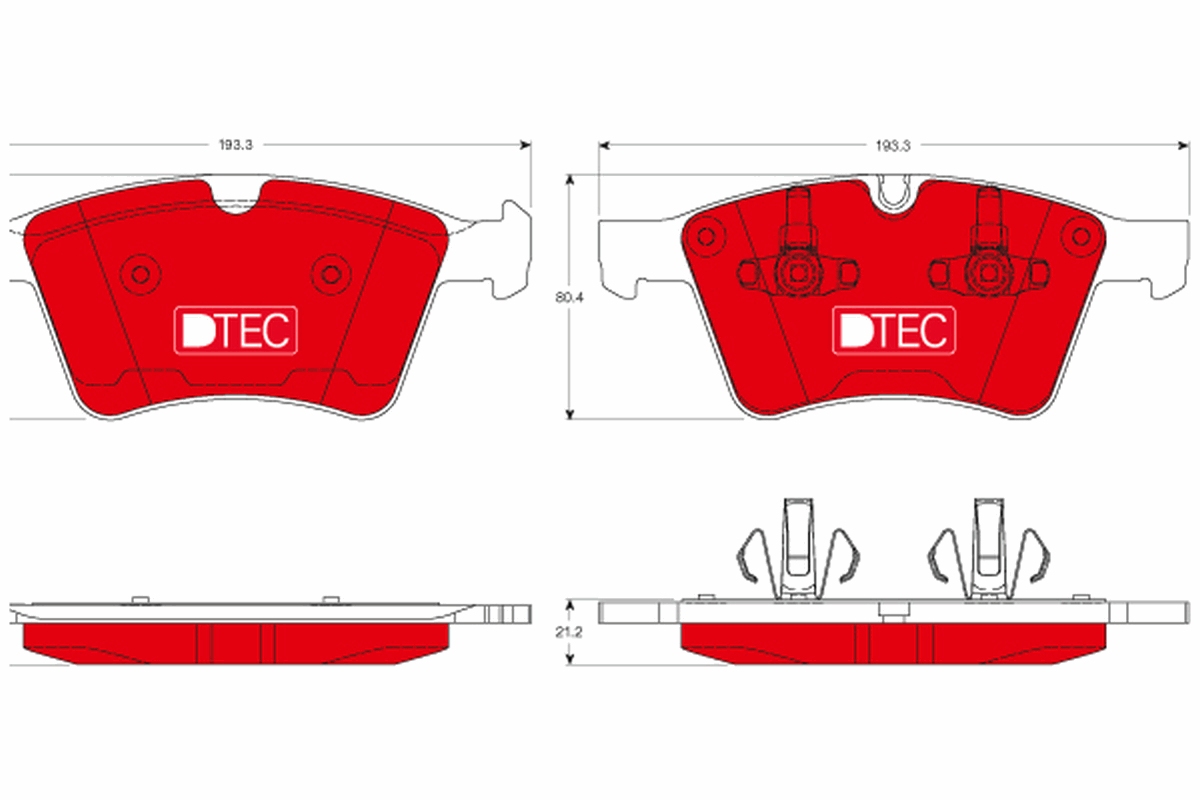

Height (mm)80.4
Manufacturer Restriction ATE
Test Mark E9-90R-02A1062/2545
Thickness 1 (mm)20.2
Thickness 2 (mm)21.2
Wear Warning Contact prepared for wear warning indicator
Width (mm)193.3
Braking System also for perforated brake discs, Braking System Low dust brake pads, Height [mm] 80,4, Manufacturer Restriction ATE, Test Mark E9-90R-02A1062/2545, Thickness 1 [mm] 20,2, Thickness 2 [mm] 21,2, Wear Warning Contact prepared for wear warning indicator, Width [mm] 193,3
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

A.B.S.37605 A.B.S.P50115 APECPAD1680 ATE13046072712 BENDIX573424B BLUE PRINTADU174236 BORG & BECKBBP2387 BOSCH 0 986 494427 BOSCH0986494427 BREMBOP50115N DELPHILP2139 DELPHILP2139-18B1 FEBI BILSTEIN116135 FERODOFDB4189 FTE9002290 FTE9011054 GIRLING6117972 HELLA 8DB 355014-191 HELLA8DB355014191 Hi-QSP1935 Hi-QSP1935(SD) JURID573424J LPR05P1912 MAGNETI MARELLI363700201802 MAGNETI MARELLI363700450115 MEYLE 025 2415120/PD MEYLE0252415120PD MEYLE 025 2415120 MEYLE0252415120 MGA984 MINTEXMDB2995 NK223374 OPEN PARTSBPA1370.00 OPTIMAL12615 OPTIMALBP-12615 PAGIDT1802 REMSA137000 ROADHOUSE2137000 sbs1501223374 SWAG 10 116135 SWAG10116135 TEXTAR2415101 TEXTAR2415103 TEXTAR2415120305 TRISCAN811023064 TRWGDB1797 ZIMMERMANN241512021

OE Numbers — DAIMLER A 000 420 72

04

OE Numbers — DAIMLER

A0004207204

OE Numbers — MERCEDES-BENZ 164 420 13

20

OE Numbers — MERCEDES-BENZ

1644201320 1644202520 A1644201320 A1644202520
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ GL-CLASS (X164) GL 320 CDI / 350 BlueTEC 4-matic (164.824, 164.825) 2006 – 2012 2987 155 211
MERCEDES-BENZ GL-CLASS (X164) GL 350 CDI 4-matic (164.823) 2006 – 2012 2987 195 265
MERCEDES-BENZ GL-CLASS (X164) GL 450 CDI 4-matic (164.828) 2006 – 2012 3996 225 306
MERCEDES-BENZ GL-CLASS (X164) GL 350 CDI 4-matic (164.822) 2006 – 2012 2987 165 224
MERCEDES-BENZ GL-CLASS (X164) GL 320 CDI 4-matic 2006 – 2012 2987 160 218
MERCEDES-BENZ GL-CLASS (X164) GL 350 CDI 4-matic 2006 – 2012 2987 170 231
MERCEDES-BENZ GL-CLASS (X164) GL 450 4-matic (164.871) 2006 – 2012 4663 250 340
MERCEDES-BENZ GL-CLASS (X164) GL 500 4-matic (164.886) 2006 – 2012 5461 285 388
MERCEDES-BENZ GL-CLASS (X164) GL 420 CDI 4-matic (164.828) 2006 – 2012 3996 225 306
MERCEDES-BENZ GL-CLASS (X164) GL 320 CDI 4-matic (164.822) 2006 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic 2005 – 2012 2987 160 218
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124) 2005 – 2012 2987 170 231
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.172) 2005 – 2012 5461 285 388
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic 2005 – 2012 2987 157 214
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic 2005 – 2012 2987 190 258
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124) 2005 – 2012 2987 155 211
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.175) 2005 – 2012 4966 218 296
MERCEDES-BENZ M-CLASS (W164) ML 300 CDI 4-matic (164.121) 2005 – 2012 2987 150 204
MERCEDES-BENZ M-CLASS (W164) ML 450 CDI 4-matic (164.128) 2005 – 2012 3996 225 306
MERCEDES-BENZ M-CLASS (W164) ML 300 CDI 4-matic (164.120) 2005 – 2012 2987 140 190
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.122) 2005 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 300 4-matic (164.182) 2005 – 2012 2996 170 231
MERCEDES-BENZ M-CLASS (W164) ML 420 CDI 4-matic (164.128) 2005 – 2012 3996 225 306
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic (164.124, 164.125, 164.122) 2005 – 2012 2987 155 211
MERCEDES-BENZ M-CLASS (W164) ML 63 AMG 4-matic (164.177) 2005 – 2012 6208 375 510
MERCEDES-BENZ M-CLASS (W164) ML 350 (164.156) 2005 – 2012 3498 200 272
MERCEDES-BENZ M-CLASS (W164) ML 63 AMG 4-matic (164.177) 2005 – 2012 6208 375 510
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic (164.122) 2005 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 280 CDI 4-matic (164.120) 2005 – 2012 2987 140 190
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.175) 2005 – 2012 4966 225 306
MERCEDES-BENZ M-CLASS (W164) ML 350 4-matic (164.186) 2005 – 2012 3498 200 272
MERCEDES-BENZ M-CLASS (W164) ML 450 Hybrid 4-matic (164.195) 2005 – 2012 3498 250 340
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic 2005 – 2017 2987 157 214
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic (251.125) 2005 – 2017 2987 155 211
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic 2005 – 2017 2987 160 218
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic 2005 – 2017 2987 157 214
MERCEDES-BENZ R-CLASS (W251, V251) R 63 AMG 4-matic (251.077, 251.177) 2005 – 2017 6208 375 510
MERCEDES-BENZ R-CLASS (W251, V251) R 400 4-matic (251.166) 2005 – 2017 2996 245 333
MERCEDES-BENZ R-CLASS (W251, V251) R 320 4-matic (251.163) 2005 – 2017 2996 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 300 (251.154) 2005 – 2017 2996 180 245
MERCEDES-BENZ R-CLASS (W251, V251) R 300 4-matic (251.062) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.023, 251.123) 2005 – 2017 2987 195 265
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic (251.072, 251.172) 2005 – 2017 5461 285 388
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CGI 4-matic (251.057, 251.157) 2005 – 2017 3498 225 306
MERCEDES-BENZ R-CLASS (W251, V251) R 350 4-matic (251.065, 251.165) 2005 – 2017 3498 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic (251.075, 251.175) 2005 – 2017 4966 225 306
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic (251.022, 251.122) 2005 – 2017 2987 165 224
MERCEDES-BENZ R-CLASS (W251, V251) R 280 CDI 4-matic (251.020) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 63 AMG 4-matic (251.077, 251.177) 2005 – 2017 6208 375 510
MERCEDES-BENZ R-CLASS (W251, V251) R 280 (251.054, 251.154) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 350 (251.056, 251.156) 2005 – 2017 3498 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic 2005 – 2017 4966 218 296
MERCEDES-BENZ R-CLASS (W251, V251) R 280 CDI (251.121, 251.026, 251.126) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 280 4-matic (251.062) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 300 CDI (251.021, 251.121, 251.026, 251.126) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 300 CDI 4-matic (251.020) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.022, 251.122) 2005 – 2017 2987 165 224
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.124, 251.125) 2005 – 2017 2987 155 211
MERCEDES-BENZ R-CLASS (W251, V251) R 300 (251.054, 251.154) 2005 – 2017 2996 170 231
