Brake Pad Set, disc brake
Brake Pad Set, disc brake 1 Brake Pad Set, disc brake 2 Brake Pad Set, disc brake 3 Brake Pad Set, disc brake 4 Brake Pad Set, disc brake 5
Braking System

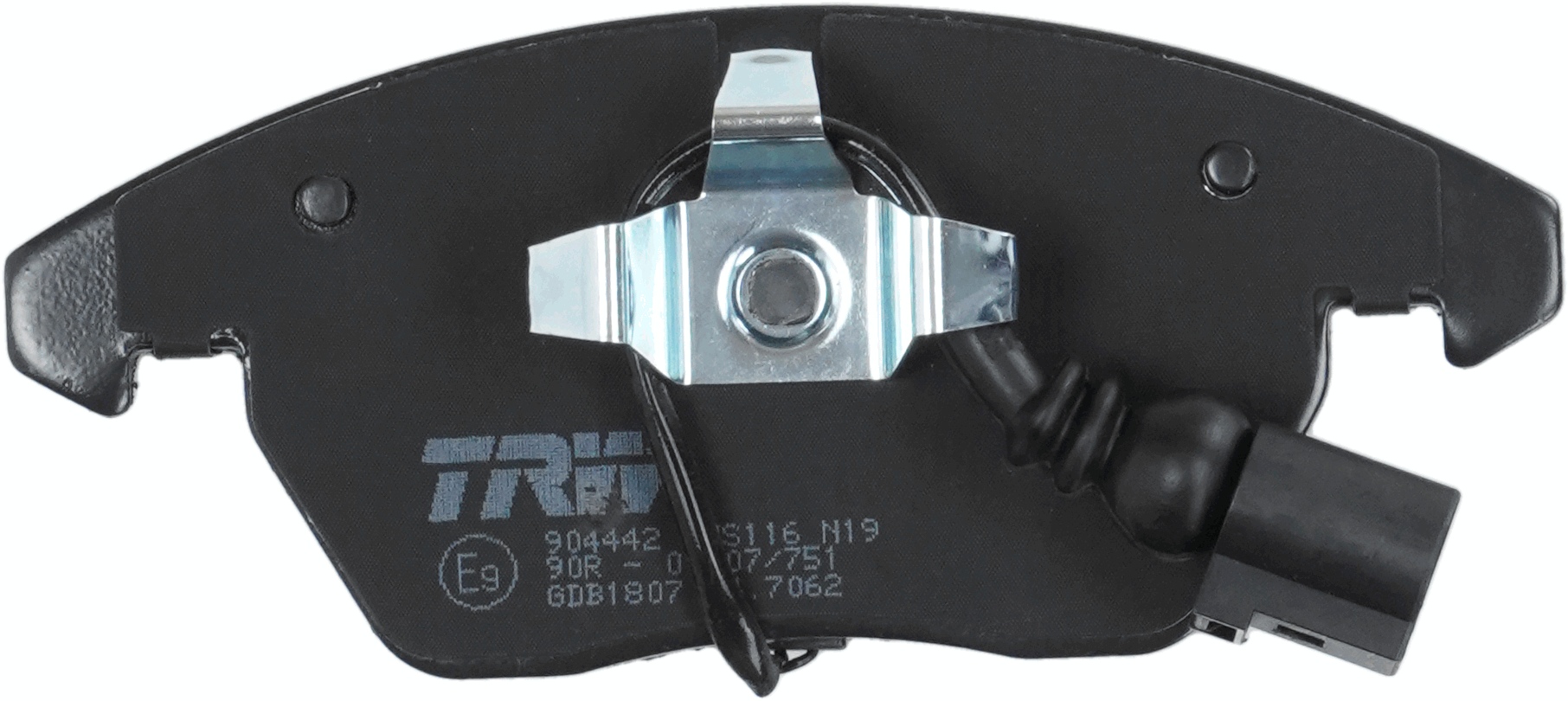

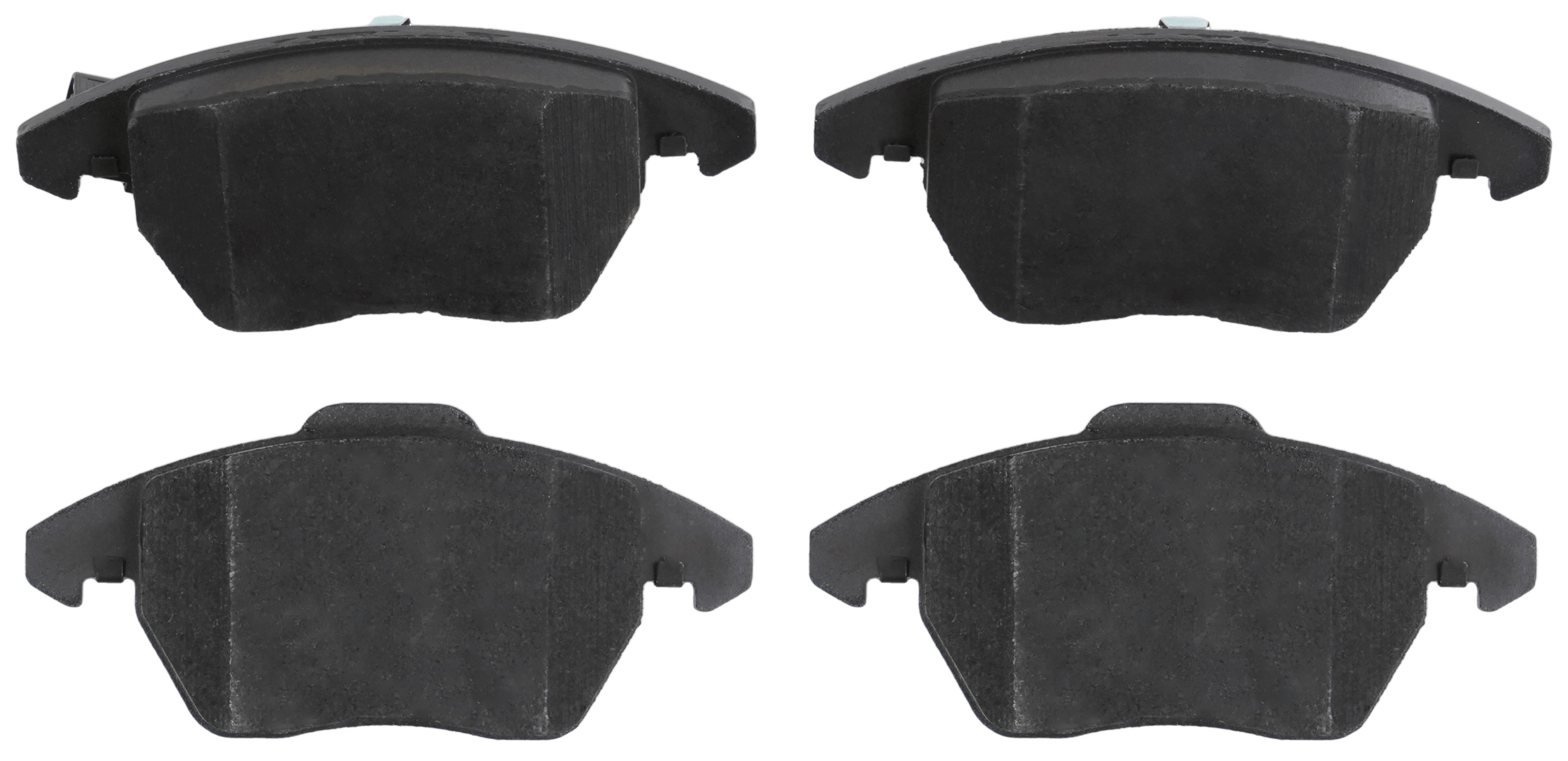

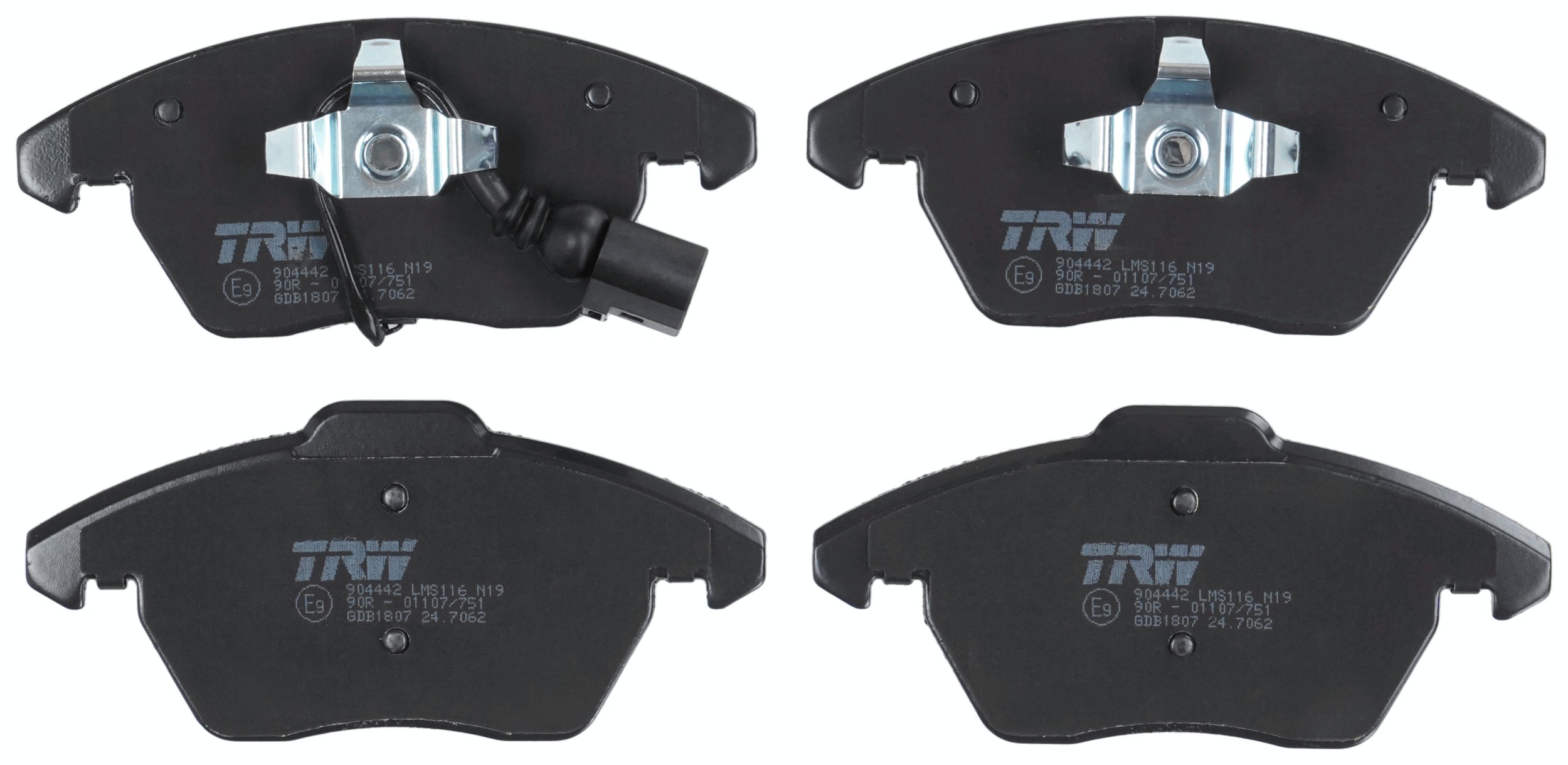

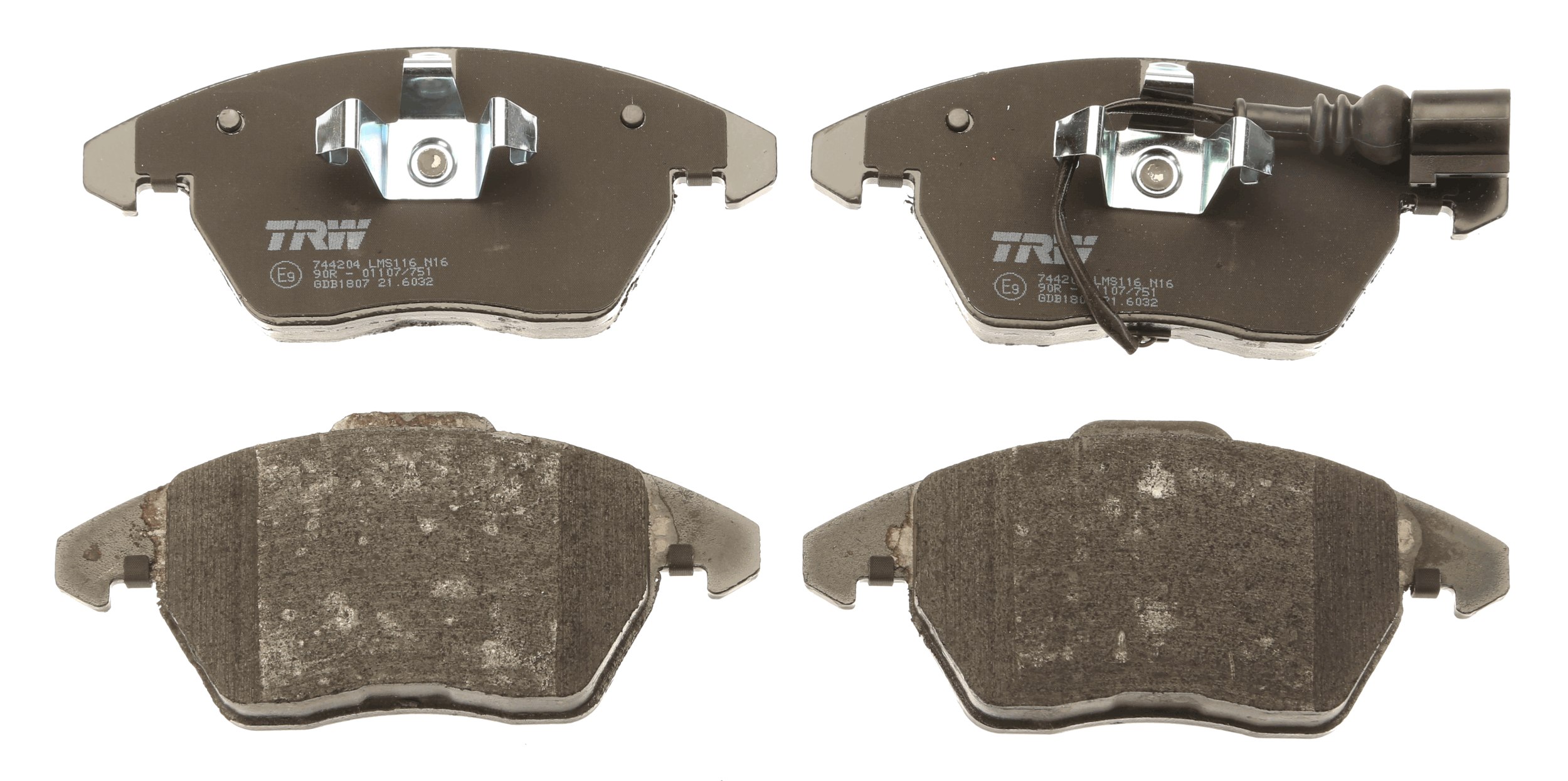

Brake Pad Set, disc brake

Part No. GDB1807 · SKU GDB1807-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs

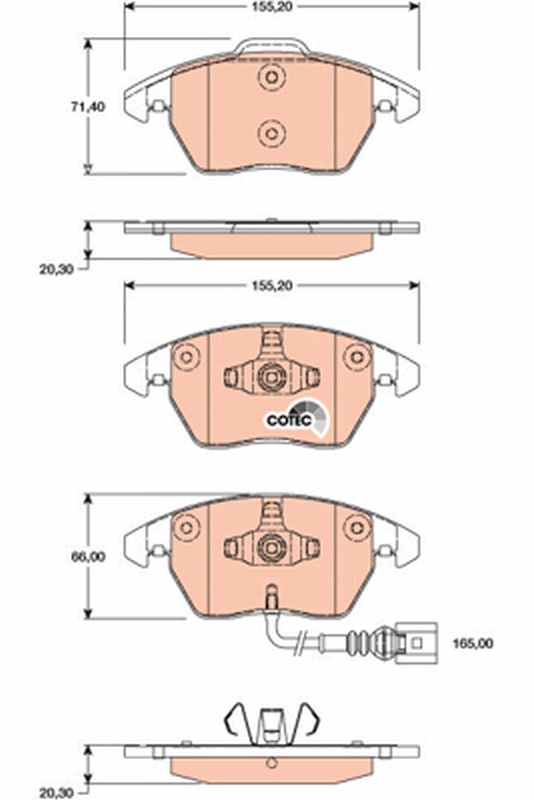

Height 1 (mm)71.4
Height 2 (mm)66
Manufacturer Restriction ATE
Number of wear indicators (per axle)1
Observe technical data
Test Mark E9 90R - 01107/874
Thickness (mm)20.3
Warning Contact Length (mm)165
Wear Warning Contact incl. wear warning contact
Width (mm)155.2
Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height 1 [mm] 71,4, Height 2 [mm] 66, Manufacturer Restriction ATE, Number of wear indicators [per axle] 1, Observe technical data , Test Mark E9 90R - 01107/874, Thickness [mm] 20,3, Warning Contact Length [mm] 165, Wear Warning Contact incl. wear warning contact, Width [mm] 155,2
Fits: AUDI, SEAT, VW

Interchangeable Part Numbers

A.B.S.37414 APECPAD1731 ATE13046072262 ATE13047071842 ATE13047072262 BLUE PRINTADV184204 BORG & BECKBBP1876 BOSCH0 986 424 797 BOSCH0 986 TB2 457 BOSCH F03B 150 155 BOSCHF03B150155 Brake ENGINEERINGPA1832 BREMBOP85075 FEBI BILSTEIN16502 FERODOFDB1641 FERODOFQT1641 FERODOFSL1641 GIRLING6118072 HELLA8DB 355 010-581 JURID573128J JURID573128JAS JURID573128JC LPR05P866 METZGER103001 MEYLE025 235 8720/PD MEYLE025 235 8720/W MINTEXMDB2604 NECTOFD7111A NECTOFD7111N PAGIDT1376 PAGIDT1376EP REMSA103011 REMYRAP1006 ROADHOUSE2103001 ROULUNDS RUBBER605081 SWAG30916502 TEXTAR2358701 TEXTAR2358708 TEXTAR2358781 TEXTAR2469602 TEXTAR2469682 VALEO301635 VALEO598635 VALEO601087 WAGNERWBP23587A ZIMMERMANN235872001

OE Numbers — AUDI

3C0 698 151 D 8J0 698 151 C 8J0 698 151 P
MakeModelType / Engine YearsCCkWHP
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 85 115
AUDI A1 (8X1, 8XK) 1.4 TDI 2010 – 2019 1422 66 90
AUDI A1 (8X1, 8XK) 1.8 TFSI 2010 – 2019 1798 141 192
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 60 82
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 70 95
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 136 185
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 66 90
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 105 143
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 103 140
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 100 136
AUDI A1 (8X1, 8XK) 1.2 TFSI 2010 – 2019 1197 63 86
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 77 105
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 90 122
AUDI A1 (8X1, 8XK) 2.0 TFSI quattro 2010 – 2019 1984 188 256
AUDI A1 (8X1, 8XK) S1 quattro 2010 – 2019 1984 170 231
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 92 125
AUDI A1 (8X1, 8XK) 1.4 TSI 2010 – 2019 1395 110 150
AUDI A1 Sportback (8XA, 8XF) 1.2 TFSI 2011 – 2019 1197 63 86
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 90 122
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 103 140
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 136 185
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 66 90
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 77 105
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 100 136
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 105 143
AUDI A1 Sportback (8XA, 8XF) S1 quattro 2011 – 2019 1984 170 231
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 92 125
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 70 95
AUDI A1 Sportback (8XA, 8XF) 1.4 30 TFSI 2011 – 2019 1395 92 125
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 60 82
AUDI A1 Sportback (8XA, 8XF) 1.4 TSI 2011 – 2019 1395 110 150
AUDI A1 Sportback (8XA, 8XF) 1.8 TFSI 2011 – 2019 1798 141 192
AUDI A1 Sportback (8XA, 8XF) 1.4 TDI 2011 – 2019 1422 66 90
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 85 115
AUDI A3 (8P1) 1.6 E-Power 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 FSI 2003 – 2013 1984 110 150
AUDI A3 (8P1) 1.6 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 TDI 16V 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.9 TDI 2003 – 2013 1896 77 105
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 100 136
AUDI A3 (8P1) 3.2 V6 quattro 2003 – 2013 3189 184 250
AUDI A3 (8P1) 1.6 FSI 2003 – 2013 1598 85 115
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 100 136
AUDI A3 (8P1) 2.0 TFSI 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TFSI quattro 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TDI 16V quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 125 170
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 125 170
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 195 265
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.8 TFSI 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.8 T 2003 – 2013 1781 110 150
AUDI A3 (8P1) 1.4 TFSI 2003 – 2013 1390 92 125
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 188 256
AUDI A3 (8P1) 1.8 TFSI quattro 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 66 90
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 77 105
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 120 163
AUDI A3 (8P1) 1.2 TSI 2003 – 2013 1197 77 105
AUDI A3 Convertible (8P7) 1.4 TFSI 2008 – 2013 1390 92 125
AUDI A3 Convertible (8P7) 1.8 TFSI 2008 – 2013 1798 118 160
AUDI A3 Convertible (8P7) 2.0 TFSI 2008 – 2013 1984 147 200
AUDI A3 Convertible (8P7) 1.9 TDI 2008 – 2013 1896 77 105
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 103 140
AUDI A3 Convertible (8P7) 1.6 2008 – 2013 1595 75 102
AUDI A3 Convertible (8P7) 1.6 TDI 2008 – 2013 1598 77 105
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 100 136
AUDI A3 Convertible (8P7) 1.2 TFSI 2008 – 2013 1197 77 105
AUDI A3 Sportback (8PA) 1.6 E-Power 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) RS3 quattro 2004 – 2015 2480 250 340
AUDI A3 Sportback (8PA) 1.6 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) 1.9 TDI 2004 – 2015 1896 77 105
AUDI A3 Sportback (8PA) 1.6 FSI 2004 – 2015 1598 85 115
AUDI A3 Sportback (8PA) 2.0 FSI 2004 – 2015 1984 110 150
AUDI A3 Sportback (8PA) 3.2 V6 quattro 2004 – 2015 3189 184 250
AUDI A3 Sportback (8PA) 2.0 TDI 16V 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TFSI 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TFSI quattro 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 100 136
AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 1.8 TFSI 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 1.4 TFSI 2004 – 2015 1390 92 125
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 195 265
AUDI A3 Sportback (8PA) 1.8 TFSI quattro 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 66 90
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 77 105
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 120 163
AUDI A3 Sportback (8PA) 1.2 TSI 2004 – 2015 1197 77 105
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 188 256
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 104 141
AUDI A3 Sportback (8PA) 1.8 FSI 2004 – 2015 1781 110 150
AUDI TT (8J3) 2.0 TFSI 2006 – 2015 1984 149 203
AUDI TT (8J3) 45 TFSI 2006 – 2015 1984 155 211
AUDI TT (8J3) 45 TFSI quattro 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.0 TFSI 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.0 TFSI quattro 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.5 RS quattro 2006 – 2015 2480 265 360
AUDI TT (8J3) 2.0 TFSI 2006 – 2015 1984 147 200
AUDI TT (8J3) 3.2 V6 quattro 2006 – 2015 3189 184 250
AUDI TT (8J3) 2.0 TTS quattro 2006 – 2015 1984 200 272
AUDI TT (8J3) 1.8 TFSI 2006 – 2015 1798 118 160
AUDI TT (8J3) 2.0 TDI quattro 2006 – 2015 1968 125 170
AUDI TT (8J3) 2.0 TTS quattro 2006 – 2015 1984 195 265
AUDI TT (8J3) 2.0 TFSI quattro 2006 – 2015 1984 147 200
AUDI TT (8J3) 2.5 RS quattro 2006 – 2015 2480 250 340
AUDI TT Roadster (8J9) 2.0 TFSI 2007 – 2014 1984 155 211
AUDI TT Roadster (8J9) 2.0 TFSI quattro 2007 – 2014 1984 155 211
AUDI TT Roadster (8J9) 2.5 RS quattro 2007 – 2014 2480 265 360
AUDI TT Roadster (8J9) 2.0 TFSI 2007 – 2014 1984 147 200
AUDI TT Roadster (8J9) 3.2 V6 quattro 2007 – 2014 3189 184 250
AUDI TT Roadster (8J9) 2.0 TTS quattro 2007 – 2014 1984 200 272
AUDI TT Roadster (8J9) 1.8 TFSI 2007 – 2014 1798 118 160
AUDI TT Roadster (8J9) 2.0 TDI quattro 2007 – 2014 1968 125 170
AUDI TT Roadster (8J9) 2.0 TTS quattro 2007 – 2014 1984 195 265
AUDI TT Roadster (8J9) 2.0 TFSI quattro 2007 – 2014 1984 147 200
AUDI TT Roadster (8J9) 2.5 RS quattro 2007 – 2014 2480 250 340
