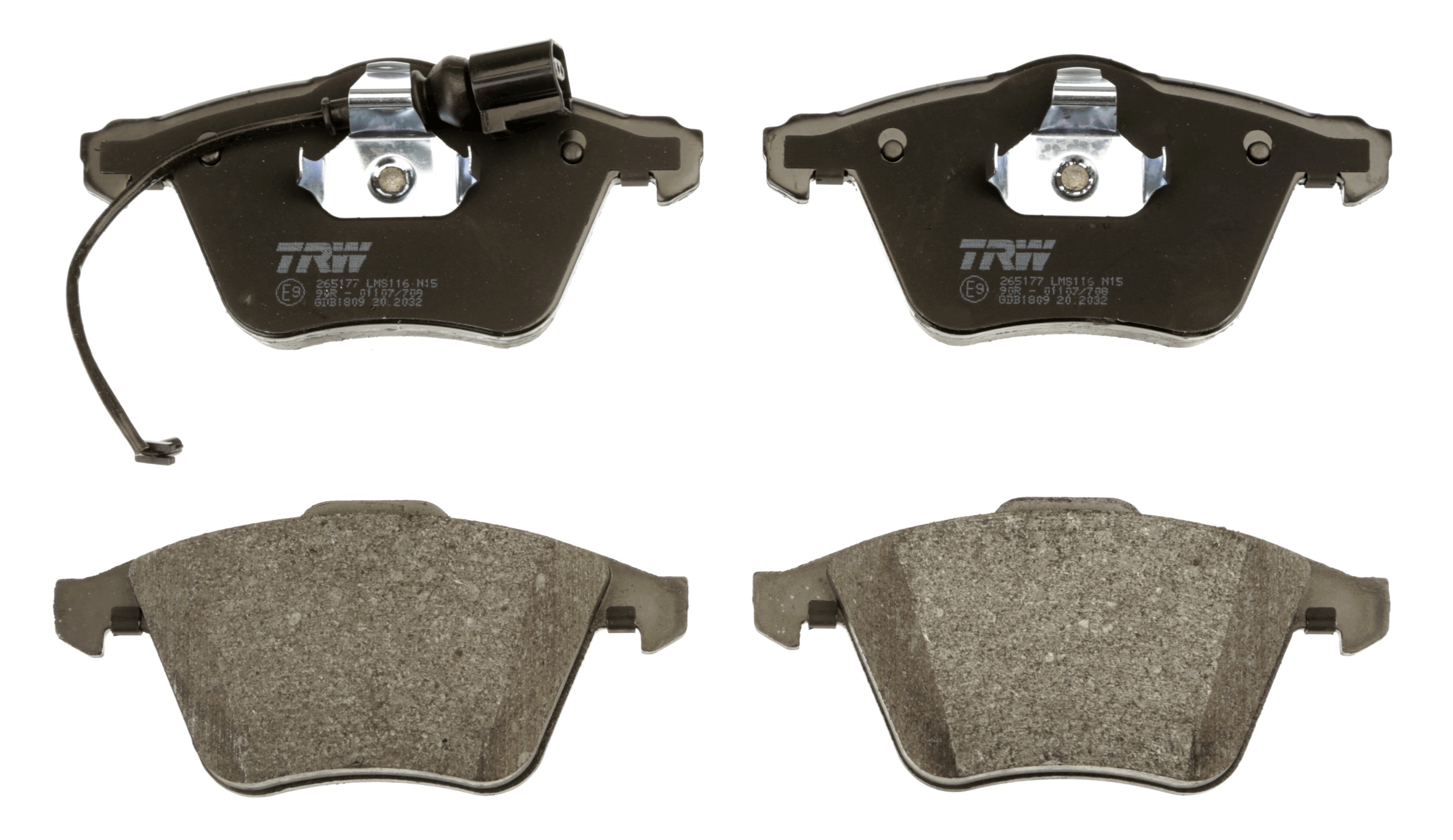

Brake Pad Set, disc brake
Brake Pad Set, disc brake 1 Brake Pad Set, disc brake 2
Braking System

Brake Pad Set, disc brake

Part No. GDB1809 · SKU GDB1809-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Height (mm)72.9
Manufacturer Restriction ATE
Number of wear indicators (per axle)1
Test Mark E9 90R - 01107/708
Thickness (mm)20
Warning Contact Length (mm)200
Wear Warning Contact incl. wear warning contact
Width (mm)155.2
Height [mm] 72,9, Manufacturer Restriction ATE, Number of wear indicators [per axle] 1, Test Mark E9 90R - 01107/708, Thickness [mm] 20, Warning Contact Length [mm] 200, Wear Warning Contact incl. wear warning contact, Width [mm] 155,2
Fits: AUDI, SEAT, VW

Interchangeable Part Numbers

A.B.S.37613 AISINBPVW-1011 ATE13046072272 ATE13047072272 BENDIX573463B BLUE PRINTADV184216 BORG & BECKBBP2177 BOSCH 0 986 494550 BOSCH0986494550 BOSCH 0 986 495356 BOSCH0986495356 Brake ENGINEERINGPA1833 BREMBO P 85129X BREMBOP85129X BREMBOP85129 BREMBOP85129N DELPHILP2032 FEBI BILSTEIN16796 FERODOFDB4223 FERODOFSL4223 fri.tech.5654 FTE9002254 FTEBL1993A2 FTEBL2785A1 HELLA 8DB 355015-971 HELLA8DB355015971 HELLA 8DB 355023-671 HELLA8DB355023671 HELLA 8DB 355031-011 HELLA8DB355031011 JURID573463J LPR05P1384 METELLI2205494 MEYLE 025 2380120/W MEYLE0252380120W MINTEXMDB2677 MINTEXMDB3183 NK224787 OPTIMAL12532 OPTIMALBP-12532 PAGIDT1350 PAGIDT2084 REMSA0964.51 REMSA096441 REMSA96441 REMYRAP1029 ROULUNDS RUBBER849381 SWAG32916796 TEXTAR2380101 TEXTAR2380120405 TEXTAR2391301 TEXTAR2391301CP TEXTAR2391302 TRISCAN811029069 VALEO601375 ZIMMERMANN238012001

OE Numbers — AUDI 8J0 698 151

F N

OE Numbers — AUDI

8J0698151F 8J0698151N 8P0698151

OE Numbers — AUDI 8P0 698

151
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8P1) 1.4 TFSI 2003 – 2013 1390 92 125
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 77 105
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 66 90
AUDI A3 (8P1) 1.8 TFSI quattro 2003 – 2013 1798 118 160
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 188 256
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 100 136
AUDI A3 (8P1) 2.0 TFSI 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TFSI quattro 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TDI 16V quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.6 E-Power 2003 – 2013 1595 75 102
AUDI A3 (8P1) 1.8 T 2003 – 2013 1781 110 150
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 125 170
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 125 170
AUDI A3 (8P1) 1.8 TFSI 2003 – 2013 1798 118 160
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 195 265
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.6 FSI 2003 – 2013 1598 85 115
AUDI A3 (8P1) 3.2 V6 quattro 2003 – 2013 3189 184 250
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 100 136
AUDI A3 (8P1) 1.9 TDI 2003 – 2013 1896 77 105
AUDI A3 (8P1) 2.0 TDI 16V 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.6 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 FSI 2003 – 2013 1984 110 150
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 120 163
AUDI A3 (8P1) 1.2 TSI 2003 – 2013 1197 77 105
AUDI A3 Sportback (8PA) 1.6 E-Power 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 66 90
AUDI A3 Sportback (8PA) 1.8 FSI 2004 – 2015 1781 110 150
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 104 141
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 188 256
AUDI A3 Sportback (8PA) 1.2 TSI 2004 – 2015 1197 77 105
AUDI A3 Sportback (8PA) 1.8 TFSI 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 120 163
AUDI A3 Sportback (8PA) 1.4 TFSI 2004 – 2015 1390 92 125
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 195 265
AUDI A3 Sportback (8PA) 1.8 TFSI quattro 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 77 105
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 3.2 V6 quattro 2004 – 2015 3189 184 250
AUDI A3 Sportback (8PA) 2.0 TDI 16V 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 FSI 2004 – 2015 1984 110 150
AUDI A3 Sportback (8PA) RS3 quattro 2004 – 2015 2480 250 340
AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 100 136
AUDI A3 Sportback (8PA) 2.0 TFSI quattro 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TFSI 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 1.6 FSI 2004 – 2015 1598 85 115
AUDI A3 Sportback (8PA) 1.9 TDI 2004 – 2015 1896 77 105
AUDI A3 Sportback (8PA) 1.6 2004 – 2015 1595 75 102
AUDI TT (8J3) 2.0 TFSI quattro 2006 – 2015 1984 147 200
AUDI TT (8J3) 45 TFSI quattro 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.5 RS quattro 2006 – 2015 2480 250 340
AUDI TT (8J3) 2.5 RS quattro 2006 – 2015 2480 265 360
AUDI TT (8J3) 2.0 TFSI 2006 – 2015 1984 149 203
AUDI TT (8J3) 2.0 TFSI quattro 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.0 TFSI 2006 – 2015 1984 155 211
AUDI TT (8J3) 45 TFSI 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.0 TTS quattro 2006 – 2015 1984 195 265
AUDI TT (8J3) 3.2 V6 quattro 2006 – 2015 3189 184 250
AUDI TT (8J3) 2.0 TDI quattro 2006 – 2015 1968 125 170
AUDI TT (8J3) 2.0 TFSI 2006 – 2015 1984 147 200
AUDI TT (8J3) 2.0 TTS quattro 2006 – 2015 1984 200 272
AUDI TT (8J3) 1.8 TFSI 2006 – 2015 1798 118 160
AUDI TT Roadster (8J9) 3.2 V6 quattro 2007 – 2014 3189 184 250
AUDI TT Roadster (8J9) 2.0 TFSI quattro 2007 – 2014 1984 147 200
AUDI TT Roadster (8J9) 2.0 TFSI 2007 – 2014 1984 147 200
AUDI TT Roadster (8J9) 2.0 TFSI 2007 – 2014 1984 155 211
AUDI TT Roadster (8J9) 2.0 TFSI quattro 2007 – 2014 1984 155 211
AUDI TT Roadster (8J9) 2.0 TTS quattro 2007 – 2014 1984 200 272
AUDI TT Roadster (8J9) 2.5 RS quattro 2007 – 2014 2480 265 360
AUDI TT Roadster (8J9) 2.5 RS quattro 2007 – 2014 2480 250 340
AUDI TT Roadster (8J9) 1.8 TFSI 2007 – 2014 1798 118 160
AUDI TT Roadster (8J9) 2.0 TDI quattro 2007 – 2014 1968 125 170
AUDI TT Roadster (8J9) 2.0 TTS quattro 2007 – 2014 1984 195 265
