Braking System

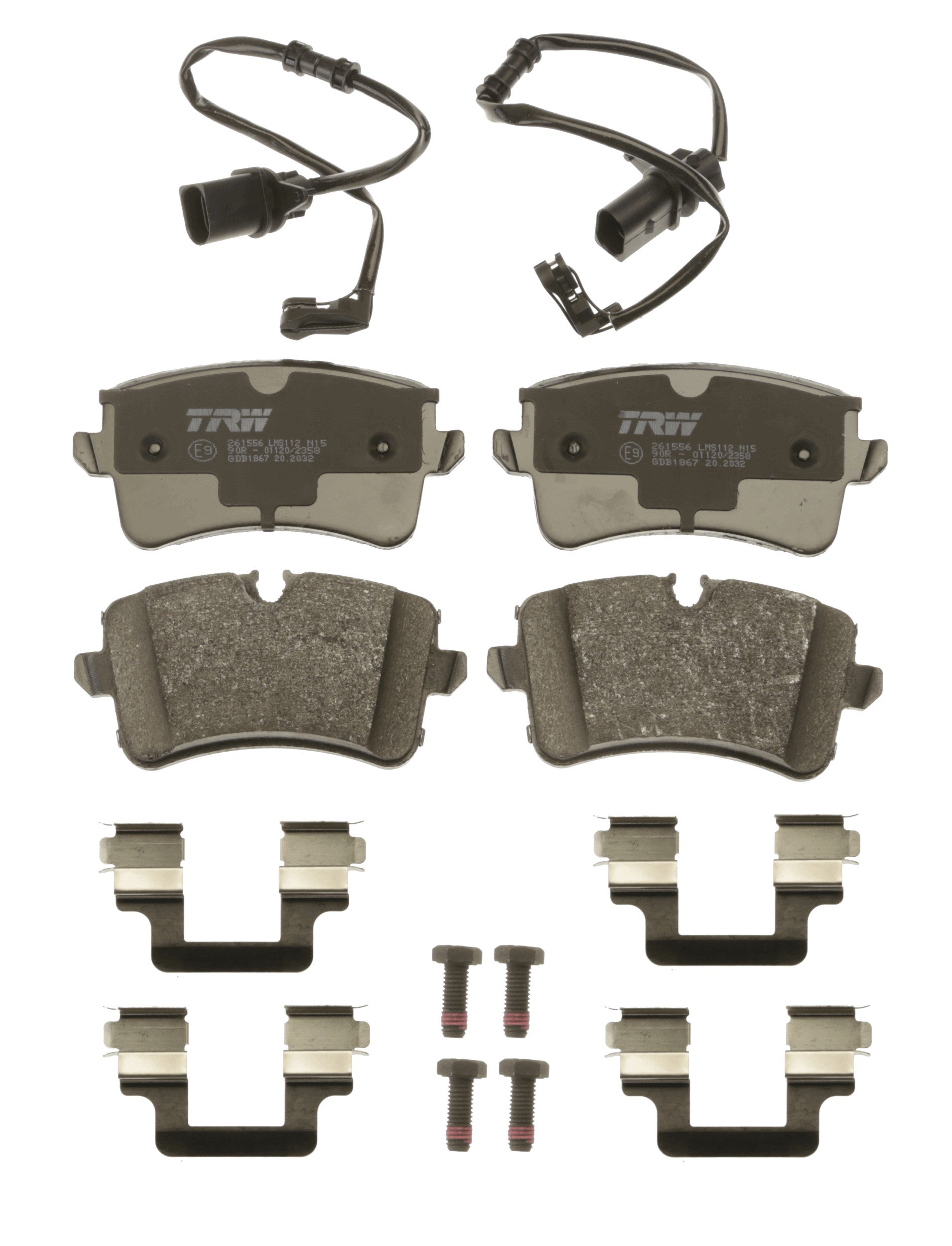

Brake Pad Set, disc brake

Name: Brake Pad Set, disc brake
Brand: TRW
SKU: GDB1867-TRW
Price: 8900.00 PHP
Availability: InStock

Part No. GDB1867 · SKU GDB1867-TRW

Rear Axle

₱8,900.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs

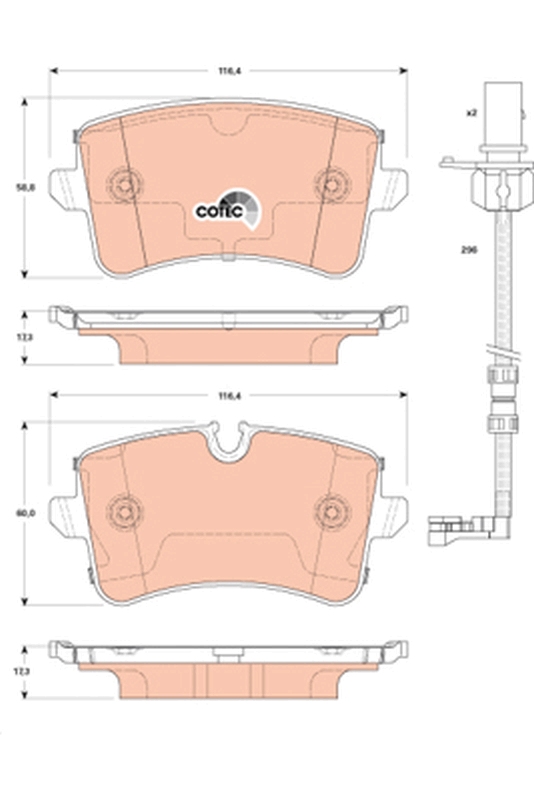

Height 1 (mm)	58.8
Height 2 (mm)	60
Manufacturer Restriction TRW
Number of wear indicators (per axle)	2
Observe technical data
Supplementary Article/Info 2 with brake caliper screws
Supplementary Article/Supplementary Info with accessories
Test Mark E9 90R - 01120/2358
Thickness (mm)	17.3
Warning Contact Length (mm)	296
Wear Warning Contact incl. wear warning contact
Width (mm)	116.4

Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height 1 [mm] 58,8, Height 2 [mm] 60, Manufacturer Restriction TRW, Number of wear indicators [per axle] 2, Observe technical data , Supplementary Article/Info 2 with brake caliper screws, Supplementary Article/Supplementary Info with accessories, Test Mark E9 90R - 01120/2358, Thickness [mm] 17,3, Warning Contact Length [mm] 296, Wear Warning Contact incl. wear warning contact, Width [mm] 116,4
Fits: AUDI

Supplier Cross-References

DELPHILP2226 ATE13047027732 HELLA PAGID355016011 BREMBOP85120 TRWGDB1867 VW4H0698451C

Interchangeable Part Numbers

A.B.S.37830 ATE13.0460-2773.2 BORG & BECKBBP2292 BOSCH0 986 494 446 BREMBOP85120N FEBI BILSTEIN116017 FTEBL2644A1 GIRLING6118671 HELLA8DB 355 016-011 HELLA8DB 355 016-161 HELLA8DB 355 026-381 ICER181986 JURID573428J MAGNETI MARELLI363700202091 METELLI22-0955-1K MEYLE025 246 0617/PD MEYLE025 246 0617/W OPTIMAL12458 OPTIMALBP-12458 PAGIDT2091 PAGIDT2114 REMSA134320 REMYRAP2312 ROADHOUSE2134320 ROULUNDS RUBBER998781 SWAG30 11 6017 TEXTAR2521404 TEXTAR2521405 TEXTAR2521412 TRUSTING9711W VALEO601325

OE Numbers — AUDI

4H0 698 451 D 4H0 698 451 K 4H0 698 451 R

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	4.0 TFSI quattro	2009 – 2019	3993	320	435
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	3.0 50 TFSI quattro	2009 – 2019	2995	245	333
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	2.5 30 FSI	2009 – 2019	2498	150	204
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	4.0 60 TSI quattro	2009 – 2019	3993	320	435
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	3.0 45 TFSI quattro	2009 – 2019	2995	213	290
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	2.0 30 FSI quattro	2009 – 2019	1984	185	252
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	4.0 TFSI quattro	2009 – 2019	3993	331	450
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	S8 quattro	2009 – 2019	3993	388	528
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	2.0 TFSI quattro	2009 – 2019	1984	185	252
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	S8 plus quattro	2009 – 2019	3993	445	605
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	3.0 TDI quattro	2009 – 2019	2967	193	262
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	2.5 TFSI	2009 – 2019	2498	150	204
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	3.0 TDI quattro	2009 – 2019	2967	176	239
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	3.0 TDI quattro	2009 – 2019	2967	190	258
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	6.3 W12 quattro	2009 – 2019	6299	368	500
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	4.2 TDI quattro	2009 – 2019	4134	283	385
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	4.2 TDI quattro	2009 – 2019	4134	258	351
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	3.0 TDI quattro	2009 – 2019	2967	184	250
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	4.2 FSI quattro	2009 – 2019	4163	273	371
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	3.0 TFSI quattro	2009 – 2019	2995	213	290
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	2.0 TFSI hybrid	2009 – 2019	1984	180	245
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	3.0 TFSI quattro	2009 – 2019	2995	228	310
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	4.0 TFSI quattro	2009 – 2019	3993	309	420
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	S8 quattro	2009 – 2019	3993	382	520
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	3.0 TDI quattro	2009 – 2019	2967	155	211
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	3.0 TDI	2009 – 2019	2967	150	204
AUDI	A8 D4 (4H2, 4H8, 4HC, 4HL)	3.0 TFSI quattro	2009 – 2019	2995	245	333
