Brake Pad Set, disc brake
Brake Pad Set, disc brake 1 Brake Pad Set, disc brake 2 Brake Pad Set, disc brake 3 Brake Pad Set, disc brake 4 Brake Pad Set, disc brake 5 Brake Pad Set, disc brake 6 Brake Pad Set, disc brake 7
Braking System

Brake Pad Set, disc brake

Part No. GDB1884 · SKU GDB1884-TRW
Front Axle
₱10,300.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs

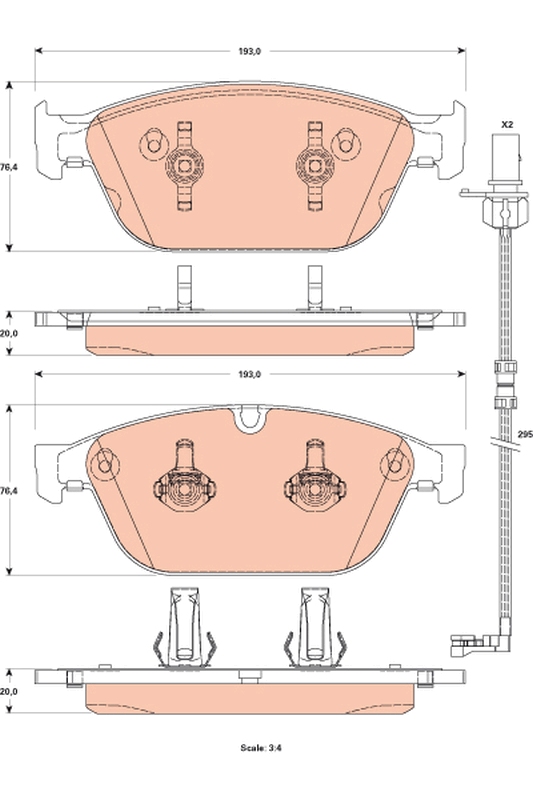

Height (mm)76.4
Manufacturer Restriction ATE
Number of wear indicators (per axle)2
Observe technical data

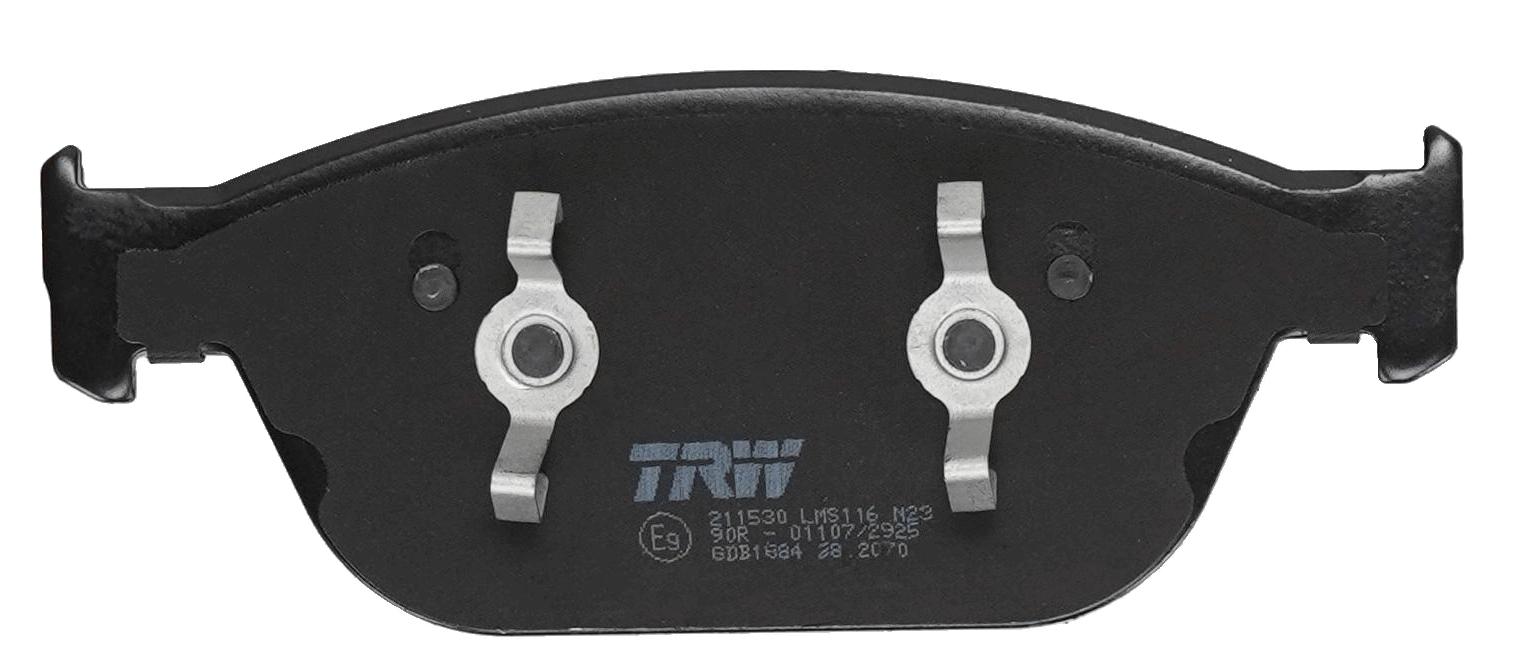

Test Mark E9 90R - 01107/2925
Thickness (mm)20
Warning Contact Length (mm)295

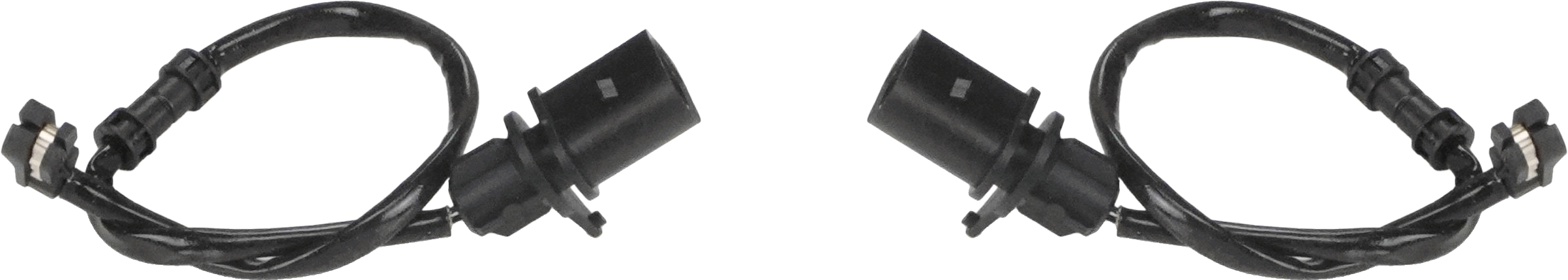

Wear Warning Contact incl. wear warning contact
Width (mm)193
Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height [mm] 76,4, Manufacturer Restriction ATE, Number of wear indicators [per axle] 2, Observe technical data , Test Mark E9 90R - 01107/2925, Thickness [mm] 20, Warning Contact Length [mm] 295, Wear Warning Contact incl. wear warning contact, Width [mm] 193
Fits: AUDI

Supplier Cross-References

TEXTAR2516002 FERODOFDB4969 BREMBOP85128 TRWGDB1884 BOSCH986494988 VALEO601282

Interchangeable Part Numbers

ATE13.0460-7281.2 ATE13.0470-7281.2 BORG & BECKBBP2293 BOSCH0 986 494 988 BOSCH0 986 AB2 573 BREMBOP85128N DELPHILP2292 DELPHILP2292.D-19B1 FEBI BILSTEIN16822 FTE9001375 FTE9002281 FTE9010891 FTEBL2652A1 GIRLING6118842 HELLA8DB 355 015-191 HELLA8DB 355 016-021 HELLA8DB 355 026-391 ICER181994 JURID573775J LPR05P2140A LUCASLBP1979 METELLI22-0954-0 MINTEXMDB3085 NK2247104 PAGIDT1954 PAGIDT2092 REMSA144302 ROADHOUSE2144302 ROULUNDS RUBBER998981 SWAG30916822 TEXTAR2516001 TEXTAR2516002CP TEXTAR2516004 TEXTAR2516119915 TRISCAN811029095 TRUSTING9700W

OE Numbers — AUDI

4H0 698 151 E 4H0 698 151 H 4H0 698 151 N 8R0 698 151 F 8R0 698 151 R
MakeModelType / Engine YearsCCkWHP
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 3.0 TDI quattro 2009 – 2019 2967 193 262
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 3.0 TFSI quattro 2009 – 2019 2995 213 290
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 4.2 FSI quattro 2009 – 2019 4163 273 371
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 3.0 TDI quattro 2009 – 2019 2967 184 250
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 4.2 TDI quattro 2009 – 2019 4134 258 351
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 4.2 TDI quattro 2009 – 2019 4134 283 385
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 4.0 TFSI quattro 2009 – 2019 3993 320 435
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 3.0 TDI quattro 2009 – 2019 2967 190 258
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 3.0 TDI quattro 2009 – 2019 2967 176 239
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 2.5 TFSI 2009 – 2019 2498 150 204
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 3.0 TFSI quattro 2009 – 2019 2995 245 333
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) S8 plus quattro 2009 – 2019 3993 445 605
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 2.0 TFSI quattro 2009 – 2019 1984 185 252
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) S8 quattro 2009 – 2019 3993 388 528
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 4.0 TFSI quattro 2009 – 2019 3993 331 450
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 2.0 30 FSI quattro 2009 – 2019 1984 185 252
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 3.0 45 TFSI quattro 2009 – 2019 2995 213 290
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 4.0 60 TSI quattro 2009 – 2019 3993 320 435
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 2.5 30 FSI 2009 – 2019 2498 150 204
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 3.0 50 TFSI quattro 2009 – 2019 2995 245 333
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 6.3 W12 quattro 2009 – 2019 6299 368 500
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 3.0 TDI 2009 – 2019 2967 150 204
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 3.0 TDI quattro 2009 – 2019 2967 155 211
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) S8 quattro 2009 – 2019 3993 382 520
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 4.0 TFSI quattro 2009 – 2019 3993 309 420
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 2.0 TFSI hybrid 2009 – 2019 1984 180 245
AUDI A8 D4 (4H2, 4H8, 4HC, 4HL) 3.0 TFSI quattro 2009 – 2019 2995 228 310
AUDI Q5 (8RB) SQ5 TFSI quattro 2008 – 2019 2995 260 354
AUDI Q5 (8RB) 2.0 TDI 2008 – 2019 1968 140 190
AUDI Q5 (8RB) 3.0 TDI quattro 2008 – 2019 2967 184 250
AUDI Q5 (8RB) SQ5 TDI quattro 2008 – 2019 2967 240 326
AUDI Q5 (8RB) 2.0 TFSI quattro 2008 – 2019 1984 169 230
AUDI Q5 (8RB) SQ5 TDI quattro 2008 – 2019 2967 250 340
AUDI Q5 (8RB) 3.0 TDI quattro 2008 – 2019 2967 155 211
AUDI Q5 (8RB) 2.0 TFSI Flexfuel quattro 2008 – 2019 1984 155 211
AUDI Q5 (8RB) 2.0 TFSI Flexfuel quattro 2008 – 2019 1984 162 220
AUDI Q5 (8RB) 2.0 TDI 2008 – 2019 1968 105 143
AUDI Q5 (8RB) 2.0 TDI 2008 – 2019 1968 100 136
AUDI Q5 (8RB) 2.0 TFSI Hybrid quattro 2008 – 2019 1984 180 245
AUDI Q5 (8RB) 2.0 TDI quattro 2008 – 2019 1968 140 190
AUDI Q5 (8RB) 2.0 TDI quattro 2008 – 2019 1968 120 163
AUDI Q5 (8RB) 2.0 TDI quattro 2008 – 2019 1968 100 136
AUDI Q5 (8RB) 2.0 TDI quattro 2008 – 2019 1968 105 143
AUDI Q5 (8RB) 2.0 TFSI quattro 2008 – 2019 1984 132 180
AUDI Q5 (8RB) 3.2 FSI quattro 2008 – 2019 3197 199 270
AUDI Q5 (8RB) 3.0 TDI quattro 2008 – 2019 2967 176 240
AUDI Q5 (8RB) 3.0 TDI quattro 2008 – 2019 2967 180 245
AUDI Q5 (8RB) 2.0 TDI quattro 2008 – 2019 1968 130 177
AUDI Q5 (8RB) 2.0 TFSI quattro 2008 – 2019 1984 165 224
AUDI Q5 (8RB) 3.0 TDI quattro 2008 – 2019 2967 190 258
AUDI Q5 (8RB) 2.0 TDI quattro 2008 – 2019 1968 110 150
AUDI Q5 (8RB) 2.0 TDI 2008 – 2019 1968 110 150
AUDI Q5 (8RB) 2.0 TFSI quattro 2008 – 2019 1984 155 211
AUDI Q5 (8RB) 2.0 TDI quattro 2008 – 2019 1968 125 170
AUDI Q5 (8RB) SQ5 TDI quattro 2008 – 2019 2967 230 313
AUDI Q5 (8RB) 3.0 TFSI quattro 2008 – 2019 2995 200 272
AUDI Q5 (8RB) 2.0 TFSI quattro 2008 – 2019 1984 162 220
AUDI Q5 Van (8RB) 3.2 FSI quattro 2008 – 2017 3197 199 271
AUDI Q5 Van (8RB) 2.0 TDI 2008 – 2017 1968 110 150
AUDI Q5 Van (8RB) 2.0 TDI 2008 – 2017 1968 100 136
AUDI Q5 Van (8RB) 3.0 SQ5 TDI quattro 2008 – 2017 2967 250 340
AUDI Q5 Van (8RB) 3.0 SQ5 TDI quattro 2008 – 2017 2967 240 326
AUDI Q5 Van (8RB) 2.0 TFSI quattro 2008 – 2017 1984 155 211
AUDI Q5 Van (8RB) 2.0 TDI 2008 – 2017 1968 140 190
AUDI Q5 Van (8RB) 2.0 TDI 2008 – 2017 1968 105 143
AUDI Q5 Van (8RB) 3.0 TDI quattro 2008 – 2017 2967 176 239
AUDI Q5 Van (8RB) 2.0 TDI quattro 2008 – 2017 1968 130 177
AUDI Q5 Van (8RB) 2.0 TDI quattro 2008 – 2017 1968 125 170
AUDI Q5 Van (8RB) 3.0 TDI quattro 2008 – 2017 2967 180 245
AUDI Q5 Van (8RB) 3.0 SQ5 TDI quattro 2008 – 2017 2967 230 313
AUDI Q5 Van (8RB) 3.0 TDI quattro 2008 – 2017 2967 190 258
