Brake Pad Set, disc brake
Brake Pad Set, disc brake 1 Brake Pad Set, disc brake 2 Brake Pad Set, disc brake 3 Brake Pad Set, disc brake 4 Brake Pad Set, disc brake 5
Braking System

Brake Pad Set, disc brake

Part No. GDB1897 · SKU GDB1897-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

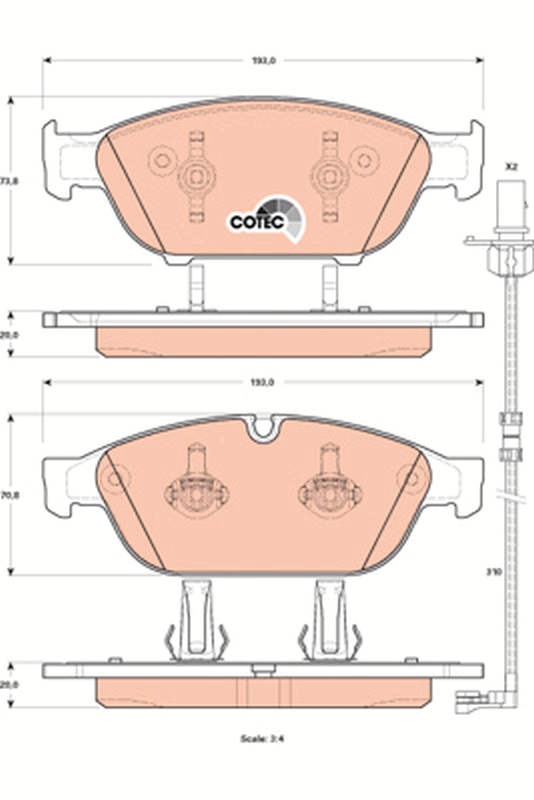

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs
Height 1 (mm)73.8
Height 2 (mm)70.8
Manufacturer Restriction ATE
Number of wear indicators (per axle)2
Observe technical data
Test Mark E9 90R - 01107/2923
Thickness (mm)20
Warning Contact Length (mm)310
Wear Warning Contact incl. wear warning contact
Width (mm)193
Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height 1 [mm] 73,8, Height 2 [mm] 70,8, Manufacturer Restriction ATE, Number of wear indicators [per axle] 2, Observe technical data , Test Mark E9 90R - 01107/2923, Thickness [mm] 20, Warning Contact Length [mm] 310, Wear Warning Contact incl. wear warning contact, Width [mm] 193
Fits: AUDI, AUDI (FAW)

Interchangeable Part Numbers

ATE13.0460-7280.2 ATE13.0470-7280.2 BENDIX573381B BORG & BECKBBP2276 BOSCH 0 986 494986 BOSCH0986494986 BREMBOP85127 DELPHILP2239 FEBI BILSTEIN16823 FERODOFDB4397 FTE9010890 FTEBL2651A1 GIRLING6118972 HELLA 8DB 355016-031 HELLA8DB355016031 ICER181993 JURID573381J METELLI22-0953-0K METZGER144102 MEYLE 025 2615820/PD MEYLE0252615820PD NK2247106 OPTIMAL12552 PAGIDT2093 REMSA144112 ROADHOUSE2144112 SWAG 30 222117 SWAG30222117 SWAG30916823 TEXTAR2515801 TEXTAR2515802 TEXTAR2515806 TRISCAN811029096 TRUCKTEC AUTOMOTIVE0735259 TRUSTING9690W VALEO604010

OE Numbers — AUDI 4G0 698 151

B G

OE Numbers — AUDI

4G0698151B 4G0698151G
MakeModelType / Engine YearsCCkWHP
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TFSI quattro 2012 – 2018 2995 228 310
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 150 204
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 180 245
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 230 313
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 155 211
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 160 218
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 200 272
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 235 320
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TFSI quattro 2012 – 2018 2995 245 333
AUDI A6 Allroad C7 (4GH, 4GJ) 3.0 TDI quattro 2012 – 2018 2967 140 190
AUDI A6 C7 (4G2, 4GC) 2.8 FSI 2010 – 2019 2773 150 204
AUDI A6 C7 (4G2, 4GC) 2.8 FSI quattro 2010 – 2019 2773 150 204
AUDI A6 C7 (4G2, 4GC) 3.0 TFSI quattro 2010 – 2019 2995 220 300
AUDI A6 C7 (4G2, 4GC) 2.0 TDI 2010 – 2019 1968 130 177
AUDI A6 C7 (4G2, 4GC) 3.0 TDI 2010 – 2019 2967 150 204
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 2010 – 2019 2967 150 204
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 2010 – 2019 2967 180 245
AUDI A6 C7 (4G2, 4GC) 2.0 TDI 2010 – 2019 1968 120 163
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI 2010 – 2019 1984 132 180
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 2010 – 2019 2967 230 313
AUDI A6 C7 (4G2, 4GC) S6 quattro 2010 – 2019 3993 309 420
AUDI A6 C7 (4G2, 4GC) 3.0 TFSI quattro 2010 – 2019 2995 228 310
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI 2010 – 2019 1984 155 211
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI Hybrid 2010 – 2019 1984 180 245
AUDI A6 C7 (4G2, 4GC) 2.0 TDI 2010 – 2019 1968 100 136
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI quattro 2010 – 2019 1984 155 211
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI 2010 – 2019 1984 162 220
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI quattro 2010 – 2019 1984 162 220
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 2010 – 2019 2967 176 239
AUDI A6 C7 (4G2, 4GC) 2.0 TDI 2010 – 2019 1968 140 190
AUDI A6 C7 (4G2, 4GC) 1.8 TFSI 2010 – 2019 1798 140 190
AUDI A6 C7 (4G2, 4GC) 2.0 TDI 2010 – 2019 1968 110 150
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI 2010 – 2019 1984 185 252
AUDI A6 C7 (4G2, 4GC) 3.0 TDI 2010 – 2019 2967 155 211
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 2010 – 2019 2967 155 211
AUDI A6 C7 (4G2, 4GC) 3.0 TDI 2010 – 2019 2967 160 218
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 2010 – 2019 2967 160 218
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 2010 – 2019 2967 200 272
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 2010 – 2019 2967 235 320
AUDI A6 C7 (4G2, 4GC) 3.0 TDI quattro 2010 – 2019 2967 240 326
AUDI A6 C7 (4G2, 4GC) 3.0 TFSI quattro 2010 – 2019 2995 245 333
AUDI A6 C7 (4G2, 4GC) S6 quattro 2010 – 2019 3993 331 450
AUDI A6 C7 (4G2, 4GC) 2.0 TDI quattro 2010 – 2019 1968 140 190
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI quattro 2010 – 2019 1984 185 252
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI quattro 2010 – 2019 1984 183 249
AUDI A6 C7 (4G2, 4GC) 2.8 FSI quattro 2010 – 2019 2773 162 220
AUDI A6 C7 (4G2, 4GC) 2.0 TFSI quattro 2010 – 2019 1984 164 223
AUDI A6 C7 (4G2, 4GC) 3.0 TFSI quattro 2010 – 2019 2995 250 340
AUDI A6 C7 Avant (4G5, 4GD) 2.8 FSI quattro 2011 – 2019 2773 162 220
AUDI A6 C7 Avant (4G5, 4GD) 1.8 35 TFSI 2011 – 2019 1798 140 190
AUDI A6 C7 Avant (4G5, 4GD) 2.0 40 TFSI quattro 2011 – 2019 1984 185 252
AUDI A6 C7 Avant (4G5, 4GD) 2.8 FSI 2011 – 2019 2773 150 204
AUDI A6 C7 Avant (4G5, 4GD) 2.8 FSI quattro 2011 – 2019 2773 150 204
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TFSI quattro 2011 – 2019 2995 220 300
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TDI 2011 – 2019 1968 130 177
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI 2011 – 2019 2967 150 204
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro 2011 – 2019 2967 150 204
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro 2011 – 2019 2967 180 245
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TDI 2011 – 2019 1968 120 163
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro 2011 – 2019 2967 230 313
AUDI A6 C7 Avant (4G5, 4GD) S6 quattro 2011 – 2019 3993 309 420
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TFSI 2011 – 2019 1984 132 180
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TFSI quattro 2011 – 2019 2995 228 310
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TDI 2011 – 2019 1968 100 136
AUDI A6 C7 Avant (4G5, 4GD) RS6 quattro 2011 – 2019 3993 412 560
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TDI 2011 – 2019 1968 140 190
AUDI A6 C7 Avant (4G5, 4GD) 1.8 TFSI 2011 – 2019 1798 140 190
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TDI 2011 – 2019 1968 110 150
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TFSI 2011 – 2019 1984 185 252
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI 2011 – 2019 2967 155 211
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI 2011 – 2019 2967 160 218
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro 2011 – 2019 2967 155 211
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro 2011 – 2019 2967 160 218
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro 2011 – 2019 2967 200 272
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro 2011 – 2019 2967 235 320
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TDI quattro 2011 – 2019 2967 240 326
AUDI A6 C7 Avant (4G5, 4GD) S6 quattro 2011 – 2019 3993 331 450
AUDI A6 C7 Avant (4G5, 4GD) 3.0 TFSI quattro 2011 – 2019 2995 245 333
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TDI quattro 2011 – 2019 1968 140 190
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TFSI quattro 2011 – 2019 1984 183 249
AUDI A6 C7 Avant (4G5, 4GD) 2.0 TFSI quattro 2011 – 2019 1984 185 252
AUDI A6 C7 Avant (4G5, 4GD) RS6 performance quattro 2011 – 2019 3993 445 605
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI 2010 – 2019 2967 150 204
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 150 204
AUDI A7 Sportback (4GA, 4GF) 2.8 FSI 2010 – 2019 2773 150 204
AUDI A7 Sportback (4GA, 4GF) 3.0 TFSI quattro 2010 – 2019 2995 228 310
AUDI A7 Sportback (4GA, 4GF) S7 quattro 2010 – 2019 3993 309 420
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 230 313
AUDI A7 Sportback (4GA, 4GF) 2.8 FSI quattro 2010 – 2019 2773 150 204
AUDI A7 Sportback (4GA, 4GF) 3.0 TFSI quattro 2010 – 2019 2995 220 300
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 180 245
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 176 239
AUDI A7 Sportback (4GA, 4GF) RS7 quattro 2010 – 2019 3993 412 560
AUDI A7 Sportback (4GA, 4GF) 2.5 FSI 2010 – 2019 2498 150 204
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 160 218
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI 2010 – 2019 2967 160 218
AUDI A7 Sportback (4GA, 4GF) 3.0 TFSI quattro 2010 – 2019 2995 245 333
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 200 272
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 235 320
AUDI A7 Sportback (4GA, 4GF) S7 quattro 2010 – 2019 3993 331 450
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 155 211
AUDI A7 Sportback (4GA, 4GF) 2.0 TFSI 2010 – 2019 1984 185 252
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 240 326
AUDI A7 Sportback (4GA, 4GF) 1.8 TFSI 2010 – 2019 1798 140 190
AUDI A7 Sportback (4GA, 4GF) 2.0 TFSI quattro 2010 – 2019 1984 183 249
AUDI A7 Sportback (4GA, 4GF) 2.0 TFSI quattro 2010 – 2019 1984 185 252
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI 2010 – 2019 2967 140 190
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI quattro 2010 – 2019 2967 140 190
AUDI A7 Sportback (4GA, 4GF) RS7 performance quattro 2010 – 2019 3993 445 605
AUDI A7 Sportback (4GA, 4GF) 3.0 TDI 2010 – 2019 2967 155 211
AUDI A7 Sportback (4GA, 4GF) 2.8 FSI quattro 2010 – 2019 2773 162 220
AUDI A7 Sportback (4GA, 4GF) 3.0 TFSI QUATTRO 2010 – 2019 2995 250 340
AUDI A7 Sportback (4GA, 4GF) 3.0 50 TFSI quattro 2010 – 2019 2995 245 333
AUDI A7 Sportback (4GA, 4GF) 2.0 40 TFSI 2010 – 2019 1984 185 252
AUDI A7 Sportback (4GA, 4GF) 1.8 35 TFSI 2010 – 2019 1798 140 190
AUDI A7 Sportback (4GA, 4GF) 2.0 40 TFSI quattro 2010 – 2019 1984 185 252
