Brake Pad Set, disc brake
Brake Pad Set, disc brake 1 Brake Pad Set, disc brake 2 Brake Pad Set, disc brake 3 Brake Pad Set, disc brake 4
Braking System

Brake Pad Set, disc brake

Part No. GDB1918 · SKU GDB1918-TRW
Front Axle
₱7,100.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

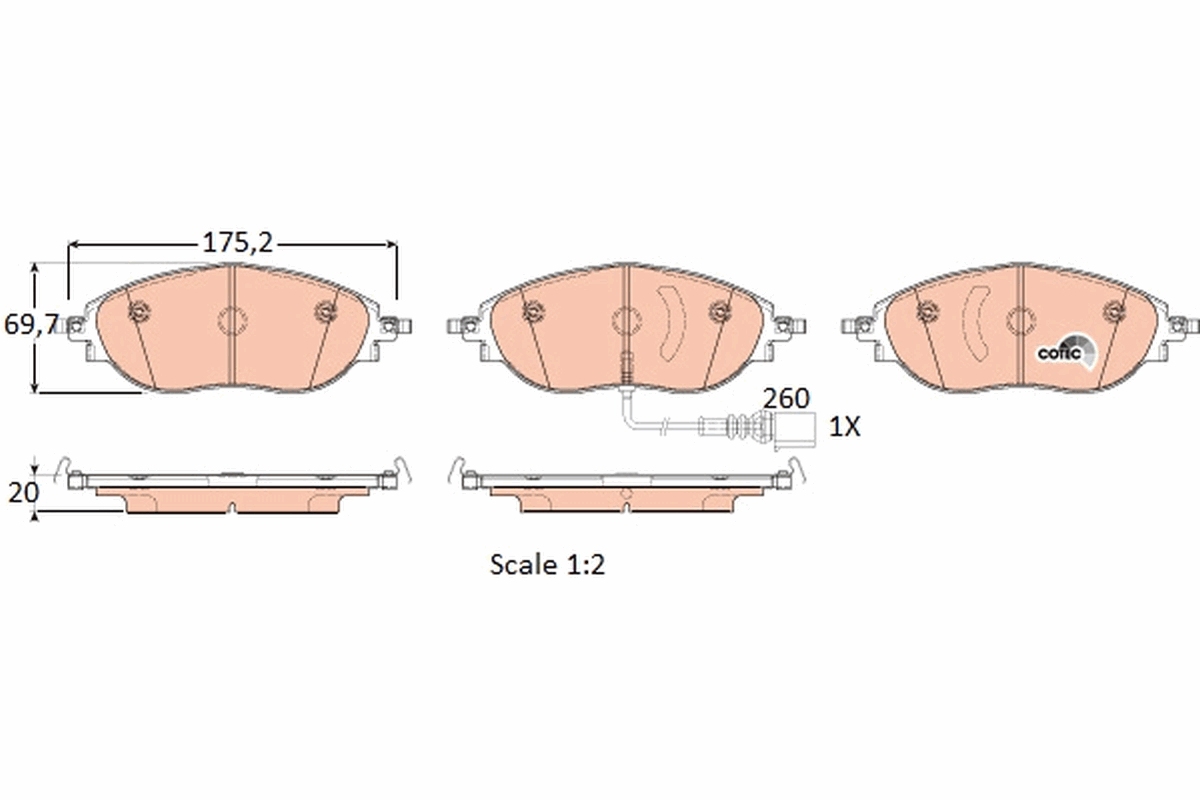

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs, directional
Height (mm)69.7
Manufacturer Restriction TRW
Number of wear indicators (per axle)1
Observe technical data
Test Mark E9 90R - 01107/3181
Thickness (mm)20
Warning Contact Length (mm)260
Wear Warning Contact incl. wear warning contact
Width (mm)175.2
Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, directional , Height [mm] 69,7, Manufacturer Restriction TRW, Number of wear indicators [per axle] 1, Observe technical data , Test Mark E9 90R - 01107/3181, Thickness [mm] 20, Warning Contact Length [mm] 260, Wear Warning Contact incl. wear warning contact, Width [mm] 175,2
Fits: AUDI, SEAT, SKODA, SKODA (SVW), VW, VW (SVW)

Supplier Cross-References

TEXTAR2473801 FERODOFDB4425 BREMBO07B31481 TRWGDB1918 VW3C0698151E BOSCH986494704

Interchangeable Part Numbers

AISINBPVW-1054 ATE13.0470-2764.2 ATE13046027642 BENDIX573418B BORG & BECKBBP2339 BOSCH 0 986 494292 BOSCH0986494292 BOSCH 0 986 494704 BOSCH0986494704 BOSCH 0 986 495350 BOSCH0986495350 BOSCH 0 986 TB3175 BOSCH0986TB3175 Brake ENGINEERINGPA1896 BREMBO P 85131X BREMBOP85131X BREMBOP85131 BREMBOP85131N DELPHILP2250 FEBI BILSTEIN16868 FTEBL2670A1 GIRLING6119184 HELLA 8DB 355015-921 HELLA8DB355015921 HELLA 8DB 355031-911 HELLA8DB355031911 Hi-QSP1698 ICER182018 JURID573418J LPR05P1734 LUCASLBP2013 MAGNETI MARELLI363700202074 METELLI22-0952-0 MEYLE 025 2511720/PD MEYLE0252511720PD MEYLE 025 2511720/W MEYLE0252511720W MINTEXMDB3173 NK2247111 OPTIMALBP-12802 PAGIDT2074 REMSA147001 REMYRAP1330 ROADHOUSE2147001 SWAG30916868 TEXTAR2473803 TEXTAR2473805 TEXTAR2473808 TEXTAR2473820015 TRISCAN811029098 VALEO601286 VALEO601328 WAGNERWBP24738A WOKINGP1570301

OE Numbers — AUDI 3C0 698 151

F

OE Numbers — AUDI

3C0698151F 3Q0698151B 7N0698151B

OE Numbers — AUDI 3Q0 698 151

B

OE Numbers — SEAT 7N0 698 151

A C D

OE Numbers — SEAT

7N0698151A 7N0698151C 7N0698151D

OE Numbers — SKODA 3C0 698 151

G L

OE Numbers — SKODA

3C0698151G 3C0698151L

OE Numbers — VW 3C0 698 151

E H

OE Numbers — VW

3C0698151H
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 85 115
AUDI A3 (8V1, 8VK) 1.5 TFSI 2012 – 2020 1498 110 150
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 90 122
AUDI A3 (8V1, 8VK) 1.8 TFSI 2012 – 2020 1798 132 180
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 105 143
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 110 150
AUDI A3 (8V1, 8VK) 1.8 TFSI quattro 2012 – 2020 1798 132 180
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 77 105
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 81 110
AUDI A3 (8V1, 8VK) 2.0 TDI quattro 2012 – 2020 1968 110 150
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 135 184
AUDI A3 (8V1, 8VK) 2.0 TDI quattro 2012 – 2020 1968 135 184
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 103 140
AUDI A3 (8V1, 8VK) 1.2 TFSI 2012 – 2020 1197 77 105
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 206 280
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 221 300
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 100 136
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 81 110
AUDI A3 (8V1, 8VK) 1.2 TFSI 2012 – 2020 1197 81 110
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 92 125
AUDI A3 (8V1, 8VK) 1.4 TSI 2012 – 2020 1395 110 150
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 210 286
AUDI A3 (8V1, 8VK) 1.0 TFSI 2012 – 2020 999 85 115
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 228 310
AUDI A3 (8V1, 8VK) 2.0 TFSI quattro 2012 – 2020 1984 140 190
AUDI A3 (8V1, 8VK) 2.0 TFSI 2012 – 2020 1984 140 190
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 213 290
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 103 140
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI 2013 – 2021 1798 132 180
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 110 150
AUDI A3 Convertible (8V7, 8VE) 1.6 TDI 2013 – 2021 1598 81 110
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI quattro 2013 – 2021 1798 132 180
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI quattro 2013 – 2021 1968 110 150
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 92 125
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 221 300
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 135 184
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI 2013 – 2021 1798 125 170
AUDI A3 Convertible (8V7, 8VE) 1.4 TSI 2013 – 2021 1395 110 150
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 100 136
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 210 286
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 162 220
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 85 115
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 228 310
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 213 290
AUDI A3 Convertible (8V7, 8VE) 35 TFSI 2013 – 2021 1498 110 150
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI 2013 – 2021 1984 137 186
AUDI A3 Convertible (8V7, 8VE) 1.5 TFSI 2013 – 2021 1498 110 150
AUDI A3 Convertible (8V7, 8VE) 40 TFSI 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 40 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 1.6 TDI 2013 – 2021 1598 85 115
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 170 231
AUDI A3 Convertible (8V7, 8VE) 1.8 40 TFSI 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) 40 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 40 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 170 231
AUDI A3 Limousine (8VS, 8VM) 40 TFSI 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 35 TDI 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 30 TDI 2013 – 2021 1598 85 115
AUDI A3 Limousine (8VS, 8VM) 35 TFSI 2013 – 2021 1498 110 150
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 213 290
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI Flex 2013 – 2021 1395 110 150
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 85 115
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 137 186
AUDI A3 Limousine (8VS, 8VM) 1.5 TFSI 2013 – 2021 1498 110 150
AUDI A3 Limousine (8VS, 8VM) 30 TFSI 2013 – 2021 999 85 115
AUDI A3 Limousine (8VS, 8VM) RS3 quattro 2013 – 2021 2480 294 400
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 90 122
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 221 300
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 105 143
AUDI A3 Limousine (8VS, 8VM) 1.2 TFSI 2013 – 2021 1197 77 105
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 77 105
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 92 125
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI quattro 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 206 280
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 103 140
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 81 110
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 100 136
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI quattro 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 2013 – 2021 1798 125 170
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 1.2 TFSI 2013 – 2021 1197 81 110
AUDI A3 Limousine (8VS, 8VM) 1.4 TSI 2013 – 2021 1395 110 150
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 81 110
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 210 286
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 162 220
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 215 292
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI quattro 2013 – 2021 1598 81 110
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 162 220
AUDI A3 Limousine (8VS, 8VM) 1.0 TFSI 2013 – 2021 999 85 115
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 228 310
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 90 122
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 105 143
AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 77 105
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 103 140
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 221 300
AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI quattro 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 1.2 TFSI 2012 – 2021 1197 77 105
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 100 136
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 206 280
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI g-tron 2012 – 2021 1395 81 110
AUDI A3 Sportback (8VA, 8VF) 1.2 TFSI 2012 – 2021 1197 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 92 125
AUDI A3 Sportback (8VA, 8VF) 1.4 TSI 2012 – 2021 1395 110 150
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 210 286
AUDI A3 Sportback (8VA, 8VF) 2.0 45 TFSI 2012 – 2021 1984 162 220
AUDI A3 Sportback (8VA, 8VF) RS3 quattro 2012 – 2021 2480 270 367
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI quattro 2012 – 2021 1598 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI e-tron 2012 – 2021 1395 150 204
AUDI A3 Sportback (8VA, 8VF) 1.0 TFSI 2012 – 2021 999 85 115
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 228 310
AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI quattro 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 213 290
AUDI A3 Sportback (8VA, 8VF) 40 TFSI quattro 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 1.8 40 TFSI 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 40 e-tron 2012 – 2021 1395 150 204
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 85 115
AUDI A3 Sportback (8VA, 8VF) RS3 quattro 2012 – 2021 2480 294 400
AUDI A3 Sportback (8VA, 8VF) 1.5 TFSI 2012 – 2021 1498 110 150
AUDI A3 Sportback (8VA, 8VF) 40 TDI quattro 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 30 TFSI 2012 – 2021 999 85 116
AUDI A3 Sportback (8VA, 8VF) 35 TDI 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) 40 TFSI 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 30 g-tron 2012 – 2021 1498 96 131
AUDI A3 Sportback (8VA, 8VF) 35 TFSI 2012 – 2021 1498 110 150
AUDI A3 Sportback (8VA, 8VF) 30 TDI 2012 – 2021 1598 85 115
