Brake Pad Set, disc brake
Braking System

Brake Pad Set, disc brake

Part No. GDB2014 · SKU GDB2014-TRW
Rear Axle
₱3,600.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Braking System not for carbon-ceramic brake discs
Braking System only in conjunction with steel brake discs

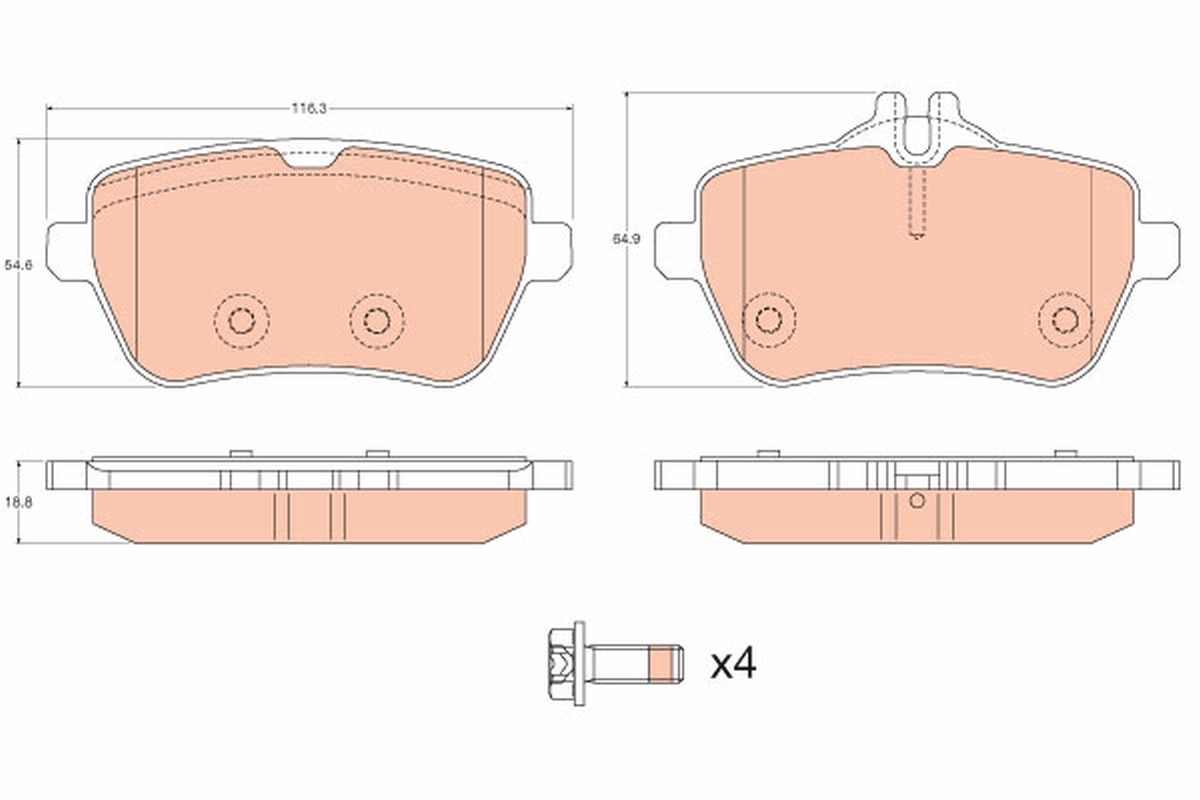

Height 1 (mm)54.6
Height 2 (mm)64.9
Manufacturer Restriction TRW
Test Mark E9 90R-02A0120/3571
Thickness (mm)18.8
Wear Warning Contact prepared for wear warning indicator
Width (mm)116.3
Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height 1 [mm] 54,6, Height 2 [mm] 64,9, Manufacturer Restriction TRW, Test Mark E9 90R-02A0120/3571, Thickness [mm] 18,8, Wear Warning Contact prepared for wear warning indicator, Width [mm] 116,3
Fits: MERCEDES-BENZ

Supplier Cross-References

TEXTAR2507103 FERODOFDB4261 ATE13046027802 BREMBOP50103 TRWGDB2014 BOSCH986494790

Interchangeable Part Numbers

A.B.S.37946 ATE13.0470-2780.2 BENDIX573451B BORG & BECKBBP2366 BOSCH 0 986 TB3208 BOSCH0986TB3208 BREMBOP50117 DELPHILP2659 DELPHILP2659N-18B1 DELPHILP2659N.D-19B1 FEBI BILSTEIN116237 FMSI-VERBAND8916D1689 FMSI-VERBANDD16898916 FREMAXFBP-0013 HELLA 8DB 355020-471 HELLA8DB355020471 ICER182076 JURID573451J KAWE153500 LPR05P1969 LUCASLBP2109 METELLI22-1022-0 MEYLE 025 2507119/PD MEYLE0252507119PD MEYLE 025 2507119 MEYLE0252507119 MINTEXMDB3284 NK223389 OPTIMAL12659 OPTIMALBP-12659 PAGIDT2184 PAGIDT2382 ROADHOUSE2153500 sbs1501223389 SWAG 33 107615 SWAG33107615 TEXTAR2507101 TEXTAR2507105 TEXTAR2507118815 WOKINGP1435300

OE Numbers — DAIMLER 000 420 31

05

OE Numbers — DAIMLER

0004203105 A0004203105 A0004202805

OE Numbers — MERCEDES-BENZ

0064205720 0064207220 0064209220 0084200820 0084203420 A0064205720 A0064207220 A0064209220 A0084200820 A0084203420

OE Numbers — MERCEDES-BENZ 006 420 57

20
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 d 4-matic (222.021, 222.121) 2013 – 2020 2925 210 286
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Maybach (222.982) 2013 – 2020 4663 338 460
MERCEDES-BENZ S-CLASS (W222, V222, X222) AMG S 63 (222.187) 2013 – 2020 3982 450 612
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Maybach (222.982) 2013 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 600 Maybach (222.976) 2013 – 2020 5980 390 530
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 Maybach 4-matic (222.967) 2013 – 2020 2996 245 333
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 Maybach 4-matic (222.964) 2013 – 2020 2996 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Maybach 4-matic (222.985) 2013 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 (222.165) 2013 – 2020 2996 245 333
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Maybach 4-matic (222.984) 2013 – 2020 3996 310 422
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 (222.155) 2013 – 2020 2996 230 313
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 EQ Boost (222.060, 222.160) 2013 – 2020 2999 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 EQ Boost 4-matic (222.059, 222.159) 2013 – 2020 2999 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 4-matic (222.184) 2013 – 2020 3996 310 422
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 4-matic (222.067, 222.167) 2013 – 2020 2996 245 333
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 d 4-matic (222.035, 222.135) 2013 – 2020 2925 250 340
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 4-matic (222.086, 222.186) 2013 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS (W222, V222, X222) AMG S 63 4-matic+ (222.188) 2013 – 2020 3982 450 612
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 Maybach 4-matic (222.986) 2013 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 4-matic (222.064, 222.164, 222.964) 2013 – 2020 2996 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 (222.066, 222.166) 2013 – 2020 2996 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 650 Maybach (222.980) 2013 – 2020 5980 463 630
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 Maybach (222.983) 2013 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 d (222.034, 222.134) 2013 – 2020 2925 250 340
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 d (222.020, 222.120) 2013 – 2020 2925 210 286
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 (222.083, 222.183) 2013 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 EQ Boost (222.158, 222.058) 2013 – 2020 2999 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 600 (222.176) 2013 – 2020 5980 390 530
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 650 Maybach (222.980) 2013 – 2020 5980 390 530
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 63 AMG (222.077, 222.177) 2013 – 2020 5461 430 585
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 63 AMG 4-matic (222.178) 2013 – 2020 5461 430 585
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 320 EQ Boost (222.156) 2013 – 2020 2999 220 299
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 EQ Boost 4-matic (222.169) 2013 – 2020 2999 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 4-matic (222.085, 222.185) 2013 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 450 Maybach EQ Boost 4-matic (222.959) 2013 – 2020 2999 270 367
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 BlueTEC / d (222.132, 222.032, 222.123) 2013 – 2020 2987 190 258
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 400 Hybrid / h (222.057, 222.157) 2013 – 2020 3498 225 306
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 (222.082, 222.182) 2013 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 560 e (222.173) 2013 – 2020 2996 350 476
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 (222.082, 222.182) 2013 – 2020 4663 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 300 BlueTEC Hybrid / h (222.104, 222.004) 2013 – 2020 2143 170 231
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 BlueTEC / d 4-matic (222.033, 222.133) 2013 – 2020 2987 190 258
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 (222.182) 2013 – 2020 4663 338 460
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 65 AMG (222.179) 2013 – 2020 5980 463 630
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 BlueTEC 4-matic (222.133) 2013 – 2020 2987 185 252
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 4-matic (222.169) 2013 – 2020 2999 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 320 EQ Boost (222.150) 2013 – 2020 1991 220 299
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 4-matic (222.185) 2013 – 2020 4663 320 435
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 350 d 4-matic (222.121) 2013 – 2020 2925 183 249
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 320 (222.162) 2013 – 2020 2996 200 272
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 500 Hybrid / e (222.163) 2013 – 2020 2996 325 442
MERCEDES-BENZ S-CLASS (W222, V222, X222) S 63 AMG (222.077) 2013 – 2020 5461 435 591
MERCEDES-BENZ S-CLASS Convertible (A217) S 650 Maybach (217.479) 2015 – 2020 5980 463 630
MERCEDES-BENZ S-CLASS Convertible (A217) AMG S 63 4-matic+ (217.488) 2015 – 2020 3982 450 612
MERCEDES-BENZ S-CLASS Convertible (A217) S 560 (217.483) 2015 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS Convertible (A217) AMG S 63 (217.487) 2015 – 2020 3982 450 612
MERCEDES-BENZ S-CLASS Convertible (A217) AMG S 65 (217.479) 2015 – 2020 5980 463 630
MERCEDES-BENZ S-CLASS Convertible (A217) AMG S 63 4-matic (217.478) 2015 – 2020 5461 430 585
MERCEDES-BENZ S-CLASS Convertible (A217) AMG S 63 (217.477) 2015 – 2020 5461 430 585
MERCEDES-BENZ S-CLASS Convertible (A217) S 500 (217.482) 2015 – 2020 4663 335 456
MERCEDES-BENZ S-CLASS Coupe (C217) S 63 AMG (217.377) 2014 – 2020 5461 430 585
MERCEDES-BENZ S-CLASS Coupe (C217) S 63 AMG (217.387) 2014 – 2020 3982 450 612
MERCEDES-BENZ S-CLASS Coupe (C217) S 65 AMG (217.379) 2014 – 2020 5980 463 630
MERCEDES-BENZ S-CLASS Coupe (C217) S 500 4-matic (217.384) 2014 – 2020 3996 310 422
MERCEDES-BENZ S-CLASS Coupe (C217) S 500 (217.382) 2014 – 2020 4663 335 455
MERCEDES-BENZ S-CLASS Coupe (C217) S 400 4-matic (217.364) 2014 – 2020 2996 270 367
MERCEDES-BENZ S-CLASS Coupe (C217) S 560 (217.383) 2014 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS Coupe (C217) S 560 4-matic (217.386) 2014 – 2020 3982 345 469
MERCEDES-BENZ S-CLASS Coupe (C217) S 450 4-matic (217.364) 2014 – 2020 2996 270 367
MERCEDES-BENZ S-CLASS Coupe (C217) S 63 AMG 4-matic+ (217.388) 2014 – 2020 3982 450 612
MERCEDES-BENZ S-CLASS Coupe (C217) S 63 AMG 4-matic (217.378) 2014 – 2020 5461 430 585
MERCEDES-BENZ S-CLASS Coupe (C217) S 500 4-matic (217.385) 2014 – 2020 4663 335 455
MERCEDES-BENZ SL (R231) 65 AMG (231.479) 2011 – 2020 5980 463 630
MERCEDES-BENZ SL (R231) 63 AMG (231.474) 2011 – 2020 5461 415 564
MERCEDES-BENZ SL (R231) 550 2011 – 2020 4663 324 441
MERCEDES-BENZ SL (R231) 63 AMG (231.474) 2011 – 2020 5461 420 571
MERCEDES-BENZ SL (R231) 350 (231.457) 2011 – 2020 3498 225 306
MERCEDES-BENZ SL (R231) 500 (231.473) 2011 – 2020 4663 320 435
MERCEDES-BENZ SL (R231) 63 AMG (231.474) 2011 – 2020 5461 430 585
MERCEDES-BENZ SL (R231) 400 (231.465) 2011 – 2020 2996 245 333
MERCEDES-BENZ SL (R231) 500 (231.473) 2011 – 2020 4663 335 455
MERCEDES-BENZ SL (R231) 400 (231.466) 2011 – 2020 2996 270 367
MERCEDES-BENZ SL (R231) 63 AMG (231.474) 2011 – 2020 5461 395 537
