Specifications
| Braking System not for carbon-ceramic brake discs | |
| Braking System only in conjunction with steel brake discs | |

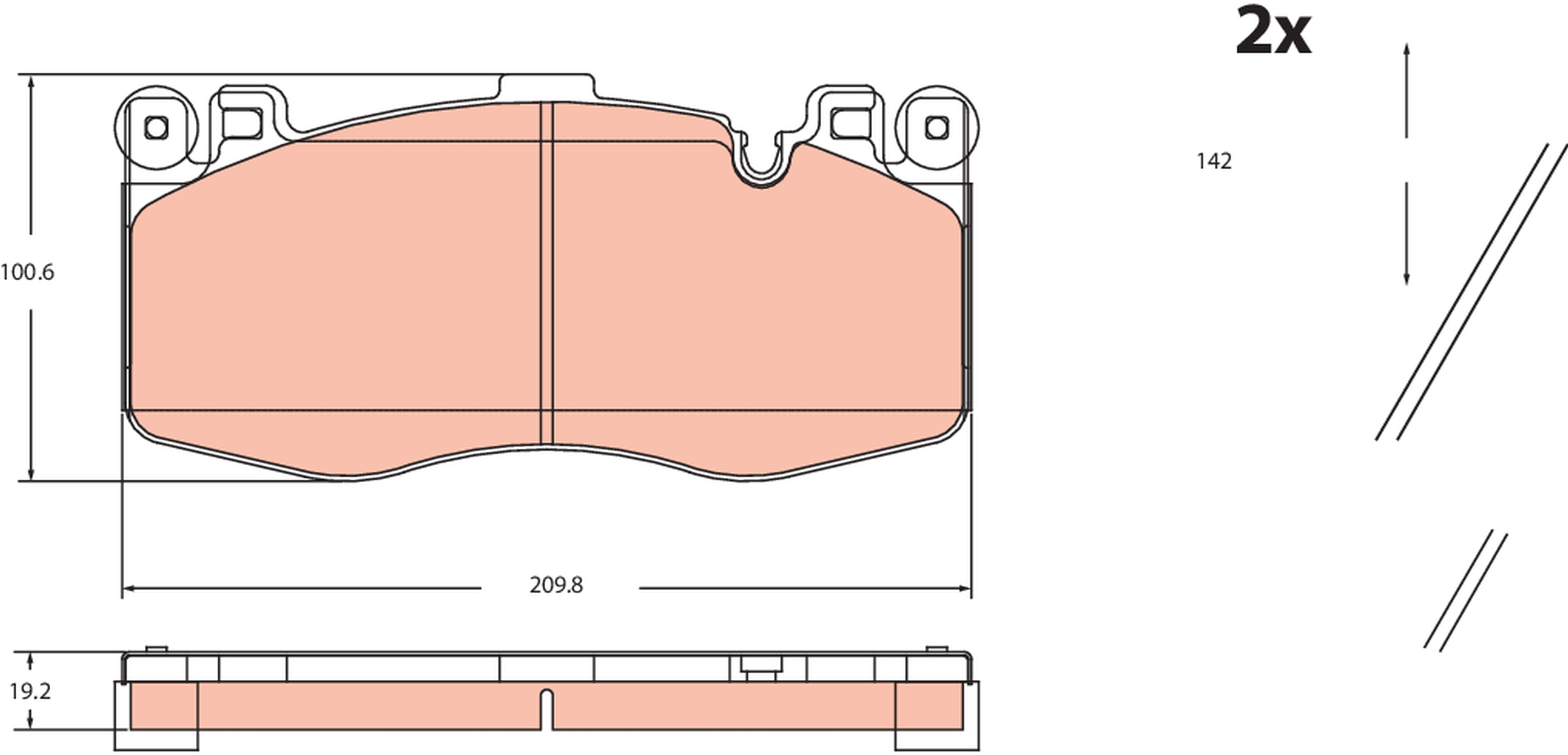

| Height (mm) | 100.6 |
| Manufacturer Restriction BREMBO | |
| Test Mark E9 90R-02A0107/5252 | |
| Thickness (mm) | 19.2 |
| Wear Warning Contact prepared for wear warning indicator | |
| Width (mm) | 209.8 |
Braking System not for carbon-ceramic brake discs, Braking System only in conjunction with steel brake discs, Height [mm] 100,6, Manufacturer Restriction BREMBO, Test Mark E9 90R-02A0107/5252, Thickness [mm] 19,2, Wear Warning Contact prepared for wear warning indicator, Width [mm] 209,8
Fits: BMW
Fits: BMW
Supplier Cross-References
Interchangeable Part Numbers
OE Numbers — BMW
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| BMW | X5 (F15, F85) | M | 2013 – 2018 | 4395 | 423 | 575 |
| BMW | X5 (F15, F85) | xDrive 30 d | 2013 – 2018 | 2993 | 210 | 286 |
| BMW | X5 (F15, F85) | xDrive 30 d | 2013 – 2018 | 2993 | 183 | 249 |
| BMW | X5 (F15, F85) | xDrive 25 d | 2013 – 2018 | 2993 | 160 | 218 |
| BMW | X5 (F15, F85) | xDrive 28 i | 2013 – 2018 | 1997 | 180 | 245 |
| BMW | X5 (F15, F85) | xDrive 25 d | 2013 – 2018 | 1995 | 155 | 211 |
| BMW | X5 (F15, F85) | sDrive 25 d | 2013 – 2018 | 1995 | 155 | 211 |
| BMW | X5 (F15, F85) | xDrive 40e | 2013 – 2018 | 1997 | 205 | 279 |
| BMW | X5 (F15, F85) | xDrive 40e | 2013 – 2018 | 1997 | 230 | 313 |
| BMW | X5 (F15, F85) | xDrive 25 d | 2013 – 2018 | 1995 | 170 | 231 |
| BMW | X5 (F15, F85) | sDrive 25 d | 2013 – 2018 | 1995 | 170 | 231 |
| BMW | X5 (F15, F85) | sDrive 35 i | 2013 – 2018 | 2979 | 225 | 306 |
| BMW | X5 (F15, F85) | xDrive 50 i | 2013 – 2018 | 4395 | 330 | 449 |
| BMW | X5 (F15, F85) | xDrive 30 d | 2013 – 2018 | 2993 | 204 | 277 |
| BMW | X5 (F15, F85) | M 50 d | 2013 – 2018 | 2993 | 280 | 381 |
| BMW | X5 (F15, F85) | xDrive 35 i | 2013 – 2018 | 2979 | 240 | 326 |
| BMW | X5 (F15, F85) | xDrive 30 d | 2013 – 2018 | 2993 | 190 | 258 |
| BMW | X5 (F15, F85) | xDrive 50 i | 2013 – 2018 | 4395 | 332 | 452 |
| BMW | X5 (F15, F85) | xDrive 35 i | 2013 – 2018 | 2979 | 225 | 306 |
| BMW | X5 (F15, F85) | sDrive 25 d | 2013 – 2018 | 1995 | 160 | 218 |
| BMW | X5 (F15, F85) | xDrive 25 d | 2013 – 2018 | 1995 | 160 | 218 |
| BMW | X5 (F15, F85) | xDrive 40 d | 2013 – 2018 | 2993 | 230 | 313 |
| BMW | X5 (F15, F85) | xDrive 50 i | 2013 – 2018 | 3982 | 300 | 408 |
| BMW | X6 (F16, F86) | xDrive 30 d | 2014 – 2019 | 2993 | 190 | 258 |
| BMW | X6 (F16, F86) | xDrive 30 d | 2014 – 2019 | 2993 | 160 | 218 |
| BMW | X6 (F16, F86) | xDrive 30 d | 2014 – 2019 | 2993 | 183 | 249 |
| BMW | X6 (F16, F86) | xDrive 28 i | 2014 – 2019 | 1997 | 180 | 245 |
| BMW | X6 (F16, F86) | xDrive 50 i | 2014 – 2019 | 3982 | 300 | 408 |
| BMW | X6 (F16, F86) | xDrive 35 i | 2014 – 2019 | 2979 | 225 | 306 |
| BMW | X6 (F16, F86) | xDrive 50 i | 2014 – 2019 | 4395 | 330 | 449 |
| BMW | X6 (F16, F86) | M 50 d | 2014 – 2019 | 2993 | 280 | 381 |
| BMW | X6 (F16, F86) | xDrive 35 i | 2014 – 2019 | 2979 | 240 | 326 |
| BMW | X6 (F16, F86) | xDrive 30 d | 2014 – 2019 | 2993 | 204 | 277 |
| BMW | X6 (F16, F86) | M | 2014 – 2019 | 4395 | 423 | 575 |
| BMW | X6 (F16, F86) | xDrive 30 d | 2014 – 2019 | 2993 | 155 | 211 |
| BMW | X6 (F16, F86) | sDrive 35 i | 2014 – 2019 | 2979 | 225 | 306 |
| BMW | X6 (F16, F86) | xDrive 40 d | 2014 – 2019 | 2993 | 230 | 313 |
