Braking System

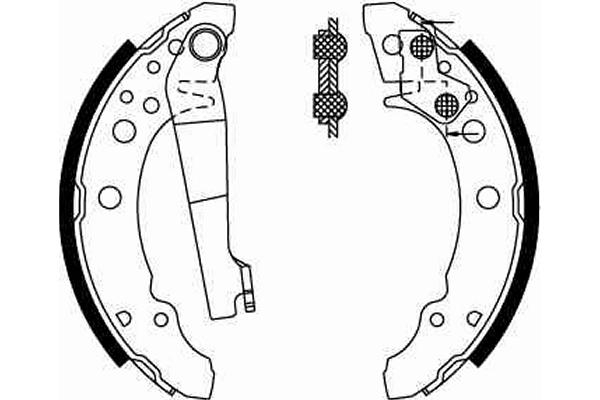

Brake Shoe Set

Name: Brake Shoe Set
Brand: TRW
SKU: GS8166-TRW
Price: 2800.00 PHP
Availability: InStock

Part No. GS8166 · SKU GS8166-TRW

Rear Axle

₱2,800.00

In stock — available to order

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Inner brake drum diameter (mm)	180
Manufacturer Restriction VAG
Test Mark E9 90R-02A0116/5577
Width (mm)	31

Inner brake drum diameter [mm] 180, Manufacturer Restriction VAG, Test Mark E9 90R-02A0116/5577, Width [mm] 31
Fits: AUDI, SEAT, VW, VW (SVW)

Supplier Cross-References

TEXTAR83018204 FERODOFSB191 ATE3013701262 TRWGS8166 BOSCH986487002

Interchangeable Part Numbers

A.B.S.8772 APECSHU300 ATE03.0137-0126.2 BENDIX325535 BENDIX361216B BENDIX380242 BORG & BECKBBS6248 BORG & BECKBBS6379 BOSCH 0 986 487002 BOSCH0986487002 BOSCH0986488018 Brake ENGINEERINGSH1166 BREMBOS85507 BREMBOS85535 DELPHILS1276 FEBI BILSTEIN08202 FEBI BILSTEIN37545 FEBI BILSTEIN37562 FERODOFSB4128 FIRST LINEFBS567 FTEBB1017A1 HELLA 8DB 355000-111 HELLA8DB355000111 HELLA 8DB 355003-341 HELLA8DB355003341 HELLA 8DB 355003-711 HELLA8DB355003711 HELLA 8DB 355003-721 HELLA8DB355003721 HELLA 8DB 355003-741 HELLA8DB355003741 HELLA 8DB 355004-001 HELLA8DB355004001 HELLA 8DB 355005-241 HELLA8DB355005241 JURID2830216 JURID361216J JURID361260J JURID361578J LEMFÖRDER 1011001 LEMFÖRDER1011001 LPR00140 MAGNETI MARELLI360219196276 MAGNETI MARELLI360219196625 MAGNETI MARELLI363601901200 MAGNETI MARELLI363602001200 MAGNETI MARELLI363602101200 MAGNETI MARELLI363610001200 METELLI530465 METELLI530468 METELLI530470 MEYLE 114 0420502 MEYLE1140420502 MEYLE 114 5330004/K MEYLE1145330004K MGAM585 MGAM717 MINTEXMFR175 NK2723340 NK2747340 PAGIDH1068 PAGIDQ0965 PAGIDR0230 PAGIDR0235 PAGIDR0245 PAGIDR0495 PAGIDR1315 PEX6002 PEX6221 QH Benelux1217 QH Benelux1717 QUINTON HAZELLBBF629 QUINTON HAZELLBS629 REMSA4045.00 SPIDAN30439 SWAG30908202 TEXTAR84018200 TEXTAR84018201 TEXTAR84018202 TEXTAR84018203 TEXTAR84018205 TEXTAR91018200 TEXTAR98101018204 TRISCAN810010340 TRISCAN810010520 TRISCAN810029001 TRUSTING124280 TRUSTING124286 TRUSTING124288 VALEO562020 VALEO562769 ZIMMERMANN109901002 ZIMMERMANN109901523

OE Numbers — AUDI 171 609 525

AV AX A

OE Numbers — AUDI

171609525AV 171609525AX 171609525A 171609526AV 171609526AX 171609526A 171609527FV 171609527FX 171609527F 171609528FV 171609528FX 171609528F 171698525AV 171698525AX 171698525BV 171698525BX 191609528 531609525V 531609525X 531609525 531609526V 531609526X 531609526 531609527V 531609527X 531609527 531609528V 531609528X 531609528 531698525V 6E0609525 6E0609526 6E0609527 6E0609528 6E0698525X 6E0698525 811609525 811609526 811609527 811609528 867609525 867609526 867698520X 867698525V 867698525X 867698525

OE Numbers — AUDI 171 609 527

FV FX F

OE Numbers — AUDI 171 698 525

BV BX

OE Numbers — AUDI 191 609

528

OE Numbers — AUDI 531 609 525

V X

OE Numbers — AUDI 531 609

525 526 527

OE Numbers — SEAT

191609525 191609526 191609527 191698051 531698525X 867609525528 867609525X 867609527 867609528

OE Numbers — SEAT 191 698

051

OE Numbers — VW

191609626 191688051

OE Numbers — VW 191 609

626

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	100 C1 Saloon (801, 803, 805, 807, 811, 813, F104)	1.9	1968 – 1976	1871	82	112
AUDI	100 C1 Saloon (801, 803, 805, 807, 811, 813, F104)	1.8	1968 – 1976	1760	79	107
AUDI	100 C1 Saloon (801, 803, 805, 807, 811, 813, F104)	1.9	1968 – 1976	1871	68	92
AUDI	100 C1 Saloon (801, 803, 805, 807, 811, 813, F104)	1.9	1968 – 1976	1871	70	95
AUDI	100 C1 Saloon (801, 803, 805, 807, 811, 813, F104)	1.8	1968 – 1976	1760	74	100
AUDI	100 C1 Saloon (801, 803, 805, 807, 811, 813, F104)	1.8	1968 – 1976	1760	59	80
AUDI	100 C1 Saloon (801, 803, 805, 807, 811, 813, F104)	1.8	1968 – 1976	1760	66	90
AUDI	100 C1 Saloon (801, 803, 805, 807, 811, 813, F104)	1.8	1968 – 1976	1760	63	85
AUDI	100 C1 Saloon (801, 803, 805, 807, 811, 813, F104)	1.9	1968 – 1976	1871	71	97
AUDI	100 C1 Saloon (801, 803, 805, 807, 811, 813, F104)	1.8	1968 – 1976	1760	85	115
AUDI	100 C1 Saloon (801, 803, 805, 807, 811, 813, F104)	1.6	1968 – 1976	1588	63	85
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	2.2	1978 – 1987	2144	85	115
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	2.2 quattro	1978 – 1987	2144	96	131
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.6	1978 – 1987	1588	51	70
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	2.0	1978 – 1987	1994	85	115
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.8 GTE quattro (85Q)	1978 – 1987	1781	81	110
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.3	1978 – 1987	1272	40	55
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.9 CD-5S	1978 – 1987	1921	85	115
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.8 GTE	1978 – 1987	1781	81	110
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.6	1978 – 1987	1588	55	75
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.3	1978 – 1987	1272	44	60
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	2.2 quattro	1978 – 1987	2226	100	136
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.6	1978 – 1987	1588	61	83
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.7	1978 – 1987	1715	58	79
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.8	1978 – 1987	1780	76	103
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	2.2	1978 – 1987	2226	88	120
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	2.2	1978 – 1987	2226	89	121
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	2.0	1978 – 1987	1994	81	110
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.3	1978 – 1987	1297	44	60
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.8 GTE quattro (85Q)	1978 – 1987	1781	82	112
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	2.2 quattro (85Q)	1978 – 1987	2144	100	136
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.8 CC quattro (85Q)	1978 – 1987	1781	66	90
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.6 TD	1978 – 1987	1588	51	70
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.6 D	1978 – 1987	1588	40	54
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.8 GTE	1978 – 1987	1781	82	112
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.8	1978 – 1987	1781	66	90
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.8	1978 – 1987	1781	65	88
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.6 GLE	1978 – 1987	1588	81	110
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.6	1978 – 1987	1588	63	85
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.6	1978 – 1987	1595	55	75
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	1.6	1978 – 1987	1595	54	73
AUDI	80 B2 Saloon (811, 813, 814, 819, 853)	2.0 quattro (85Q)	1978 – 1987	1994	85	115
AUDI	A2 (8Z0)	1.4 TDI	2000 – 2005	1422	55	75
AUDI	A2 (8Z0)	1.4	2000 – 2005	1390	55	75
AUDI	A2 (8Z0)	1.2 TDI	2000 – 2005	1191	45	61
AUDI	A2 (8Z0)	1.6 FSI	2000 – 2005	1598	81	110
AUDI	A2 (8Z0)	1.4 TDI	2000 – 2005	1422	66	90
AUDI	COUPE B2 (81, 855, 856)	1.8	1980 – 1988	1781	55	75
AUDI	COUPE B2 (81, 855, 856)	2.2 GT	1980 – 1988	2226	88	120
AUDI	COUPE B2 (81, 855, 856)	1.8 GT	1980 – 1988	1781	79	107
AUDI	COUPE B2 (81, 855, 856)	1.8 GT	1980 – 1988	1781	65	88
AUDI	COUPE B2 (81, 855, 856)	1.8 GT quattro	1980 – 1988	1781	82	112
AUDI	COUPE B2 (81, 855, 856)	1.8 GT	1980 – 1988	1781	66	90
AUDI	COUPE B2 (81, 855, 856)	2.1 GT	1980 – 1988	2144	79	107
AUDI	COUPE B2 (81, 855, 856)	1.6	1980 – 1988	1588	55	75
AUDI	COUPE B2 (81, 855, 856)	1.9	1980 – 1988	1921	85	115
AUDI	COUPE B2 (81, 855, 856)	2.0	1980 – 1988	1994	83	113
AUDI	COUPE B2 (81, 855, 856)	2.3 quattro	1980 – 1988	2309	98	133
AUDI	COUPE B2 (81, 855, 856)	2.3	1980 – 1988	2309	98	133
AUDI	COUPE B2 (81, 855, 856)	2.0	1980 – 1988	1994	85	115
AUDI	COUPE B2 (81, 855, 856)	2.1 GT	1980 – 1988	2144	96	131
AUDI	COUPE B2 (81, 855, 856)	2.2 GT	1980 – 1988	2226	85	115
AUDI	COUPE B2 (81, 855, 856)	2.2 GT	1980 – 1988	2226	100	136
AUDI	COUPE B2 (81, 855, 856)	2.2 quattro	1980 – 1988	2226	100	136
AUDI	COUPE B2 (81, 855, 856)	1.8 GT	1980 – 1988	1781	82	112
AUDI	COUPE B2 (81, 855, 856)	2.2 quattro	1980 – 1988	2226	88	120
