Braking System

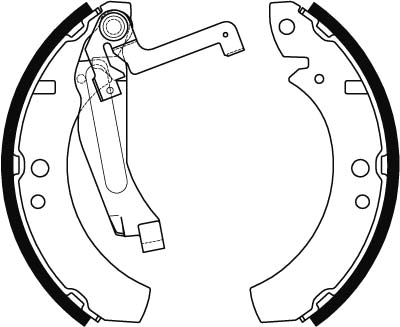

Brake Shoe Set

Name: Brake Shoe Set
Brand: TRW
SKU: GS8237-TRW
Availability: OutOfStock

Part No. GS8237 · SKU GS8237-TRW

Rear Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Inner brake drum diameter (mm)	180
Manufacturer Restriction VAG
Width (mm)	31

Inner brake drum diameter [mm] 180, Manufacturer Restriction VAG, Width [mm] 31
Fits: AUDI, VW

Interchangeable Part Numbers

A.B.S.8740 APECSHU88 ATE03.0137-0047.2 ATE3013700472 BOSCH 0 986 487101 BOSCH0986487101 BOSCH 0 986 487485 BOSCH0986487485 BREMBOS85506 DELPHILS1777 FERODOFSB070 GIRLING5182379 JURID2830215 MGAM581 MGAM585 MGAM621 PEX6032 QUINTON HAZELLBS629 REMSA4691.00 TRUSTING124270

OE Numbers — AUDI 171 609

528 537

OE Numbers — AUDI

171609528 171609537 171698527QV 171698527QX

OE Numbers — AUDI 171 698 527

QV QX

OE Numbers — VW 171 609 527

OE Numbers — VW

171609527B 171609528B 171609537B

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	50 (863)	1.1	1974 – 1978	1093	44	60
AUDI	50 (863)	1.3	1974 – 1978	1272	44	60
AUDI	50 (863)	1.1	1974 – 1978	1093	37	50
AUDI	50 (863)	1.3	1974 – 1978	1272	43	58
AUDI	50 (863)	0.8	1974 – 1978	771	25	34
AUDI	80 B1 Saloon (80, 82)	1.5	1972 – 1978	1471	57	77
AUDI	80 B1 Saloon (80, 82)	1.6	1972 – 1978	1588	61	83
AUDI	80 B1 Saloon (80, 82)	1.6	1972 – 1978	1588	53	72
AUDI	80 B1 Saloon (80, 82)	1.6	1972 – 1978	1588	57	78
AUDI	80 B1 Saloon (80, 82)	1.6 GTE	1972 – 1978	1588	81	110
AUDI	80 B1 Saloon (80, 82)	1.6 GT	1972 – 1978	1584	74	100
AUDI	80 B1 Saloon (80, 82)	1.6	1972 – 1978	1588	63	85
AUDI	80 B1 Saloon (80, 82)	1.3	1972 – 1978	1297	44	60
AUDI	80 B1 Saloon (80, 82)	1.6	1972 – 1978	1588	55	75
AUDI	80 B1 Saloon (80, 82)	1.5	1972 – 1978	1471	63	85
AUDI	80 B1 Saloon (80, 82)	1.5	1972 – 1978	1471	55	75
AUDI	80 B1 Saloon (80, 82)	1.3	1972 – 1978	1297	40	55
