Brake Shoe Set

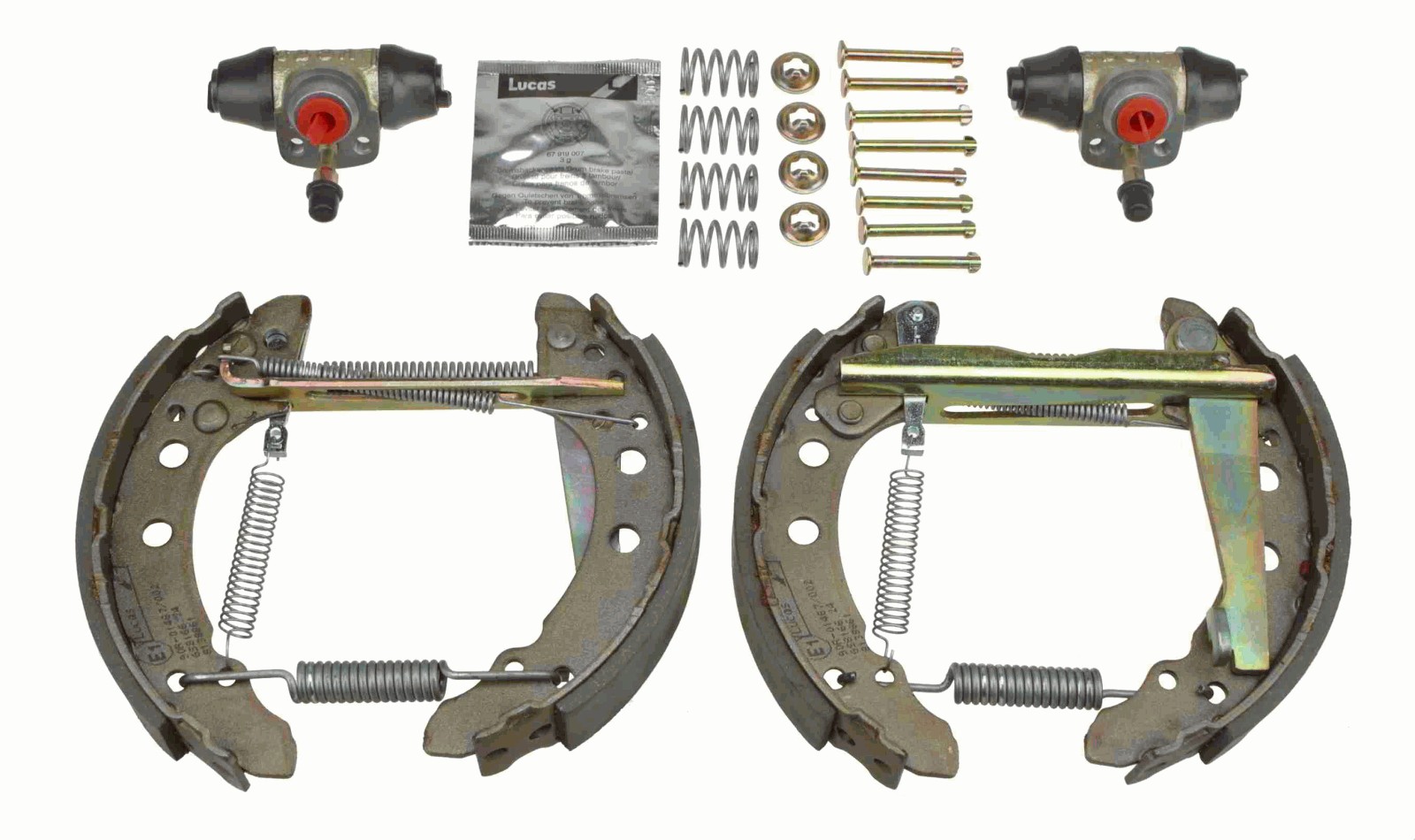

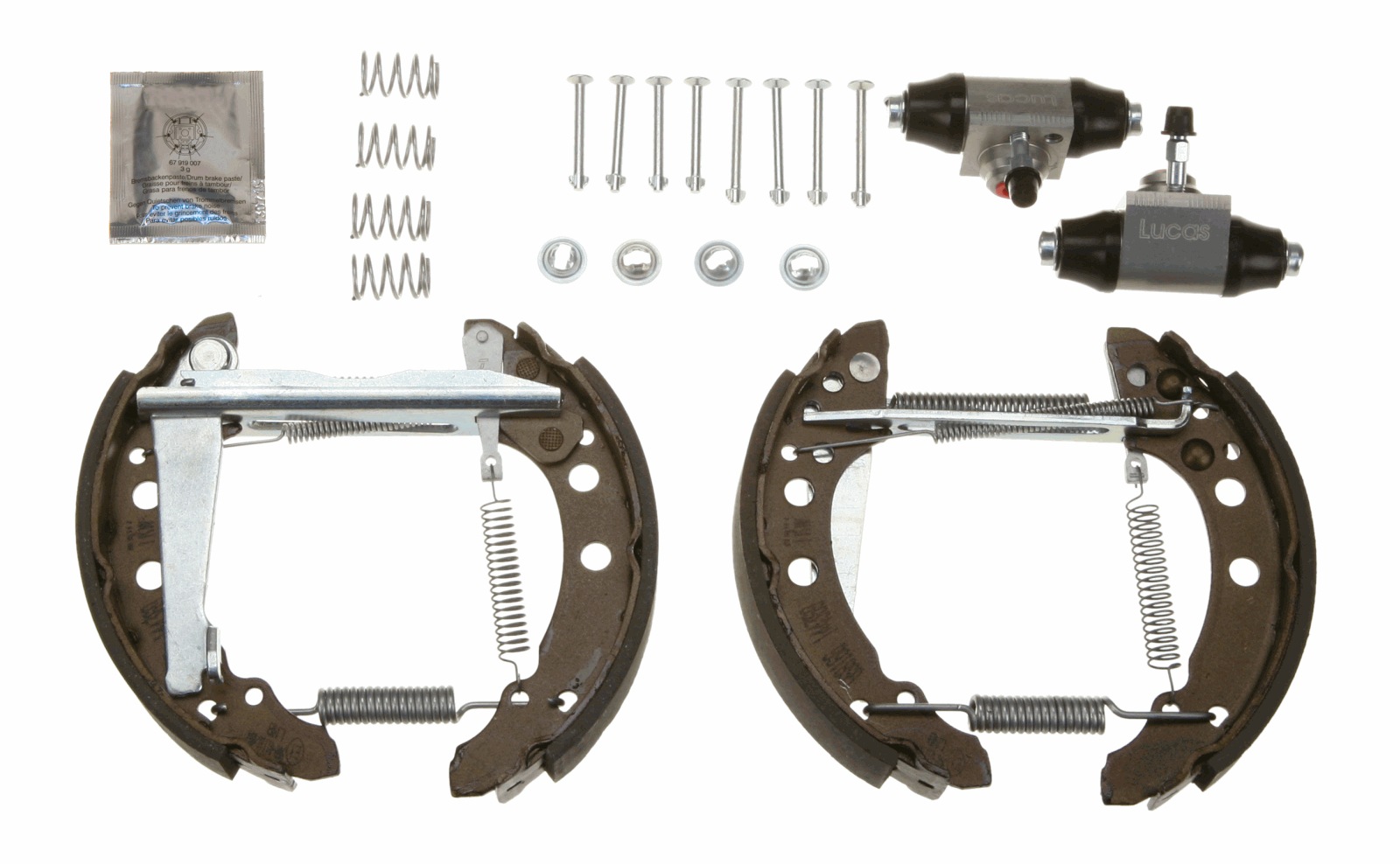

Brake Shoe Set 1 Brake Shoe Set 2
Braking System

Brake Shoe Set

Part No. GSK1500 · SKU GSK1500-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Inner brake drum diameter (mm)180
Manufacturer Restriction VAG
Material Aluminium
Mounting Type Pre-assembled
Piston Diameter (mm)14.3
Supplementary Article/Supplementary Info with wheel brake cylinder
Test Mark E1 90R 01195/017
Width (mm)31
Inner brake drum diameter [mm] 180, Manufacturer Restriction VAG, Material Aluminium, Mounting Type Pre-assembled, Piston Diameter [mm] 14,3, Supplementary Article/Supplementary Info with wheel brake cylinder, Test Mark E1 90R 01195/017, Width [mm] 31
Fits: AUDI, VW

Interchangeable Part Numbers

ABEXH2035 ATE03.0420-0114.3 ATE03.0520-0114.3 ATE3042001143 ATE3052001143 BENDIX3340927 BENDIX381092B BENDIX391092B BENDIXB334092 BENDIXB3340927 BOSCH 0 204 113502 BOSCH0204113502 BOSCH 0 204 114052 BOSCH0204114052 BOSCH204113502 BOSCH204114052 BOSCH 9 000 075415 BOSCH9000075415 BREMBOH85011 BREMBO K 85011 BREMBOK85011 DELPHI717 DELPHILSK717 DELPHITK1401 FERODOFMK003 FERODOKDF003 GIRLING5315009 JURID391092J LPROEK123 LPROPK123 MAPCO9857 METELLI51-0028 METZGERKT2004 METZGERKV9004 MGAPM585552 OPTIMALBK-5000N OPTIMALBK-5000 OPTIMALOP-BSK00041 PEXKIT2 QUINTON HAZELLKBS92 RAICAM7123RP REMSASPK304502 VALEO553069 VALEO554528

OE Numbers — VW 171 698

100

OE Numbers — VW

171698100
MakeModelType / Engine YearsCCkWHP
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 quattro (85Q) 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro (85Q) 1978 – 1987 2144 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.9 CD-5S 1978 – 1987 1921 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2144 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2144 96 131
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1297 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2226 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 61 83
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.7 1978 – 1987 1715 58 79
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1780 76 103
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 88 120
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 89 121
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 CC quattro (85Q) 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 40 55
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 54 73
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 63 85
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 GLE 1978 – 1987 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 65 88
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 D 1978 – 1987 1588 40 54
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 TD 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 82 112
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 85 115
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 85 115
AUDI COUPE B2 (81, 855, 856) 1.9 1980 – 1988 1921 85 115
AUDI COUPE B2 (81, 855, 856) 1.8 1980 – 1988 1781 55 75
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 79 107
AUDI COUPE B2 (81, 855, 856) 1.8 GT quattro 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 66 90
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 65 88
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 79 107
AUDI COUPE B2 (81, 855, 856) 1.6 1980 – 1988 1588 55 75
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 96 131
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 83 113
AUDI COUPE B2 (81, 855, 856) 2.3 quattro 1980 – 1988 2309 98 133
AUDI COUPE B2 (81, 855, 856) 2.3 1980 – 1988 2309 98 133
