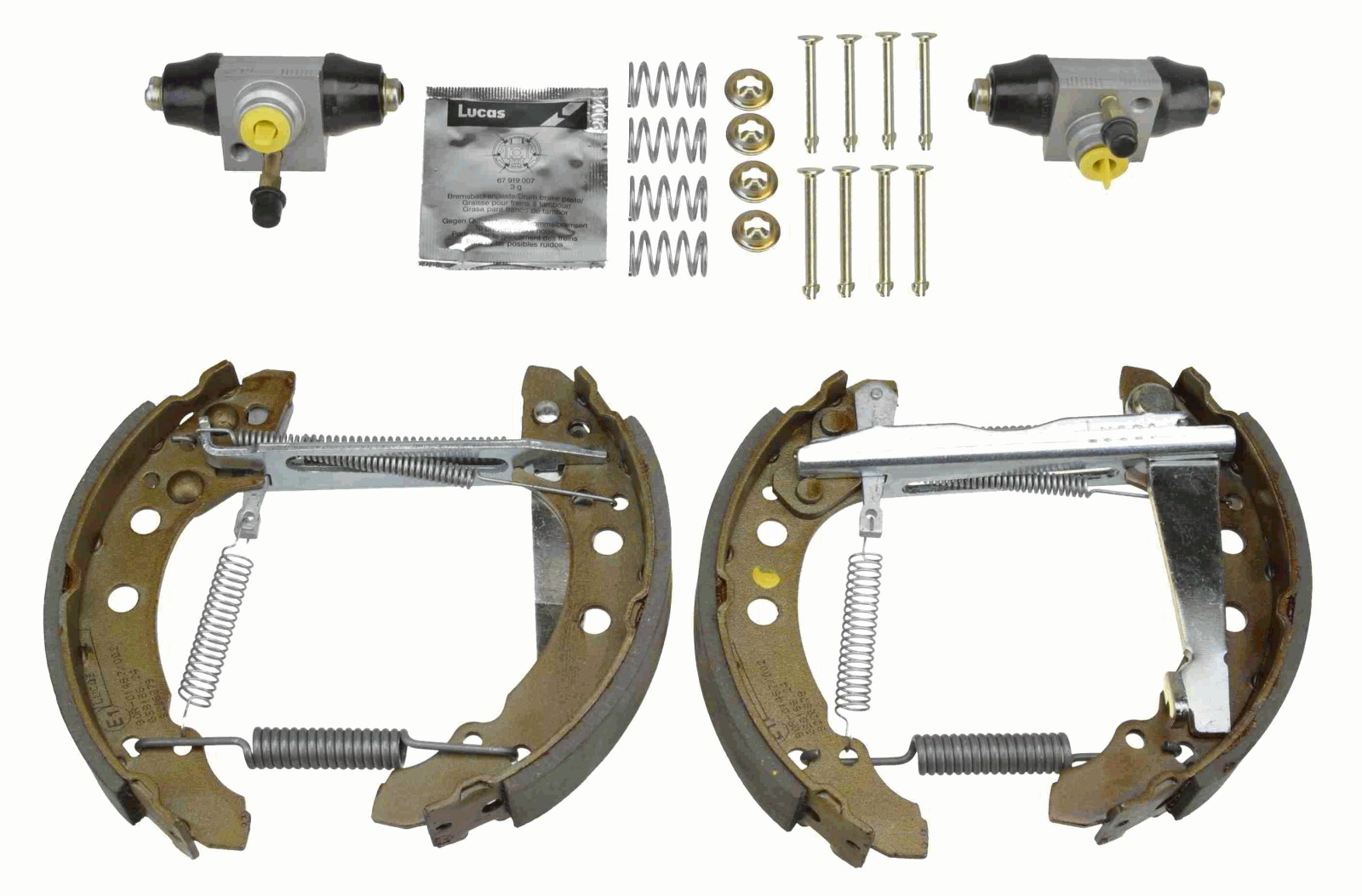

Brake Shoe Set
Brake Shoe Set 1 Brake Shoe Set 2
Braking System

Brake Shoe Set

Part No. GSK1501 · SKU GSK1501-TRW
Rear Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Inner brake drum diameter (mm)180
Manufacturer Restriction VAG
Material Aluminium
Mounting Type Pre-assembled
Piston Diameter (mm)17.5
Supplementary Article/Supplementary Info with wheel brake cylinder
Test Mark E1 90R 01195/017
Width (mm)31
Inner brake drum diameter [mm] 180, Manufacturer Restriction VAG, Material Aluminium, Mounting Type Pre-assembled, Piston Diameter [mm] 17,5, Supplementary Article/Supplementary Info with wheel brake cylinder, Test Mark E1 90R 01195/017, Width [mm] 31
Fits: AUDI, SEAT, VW

Interchangeable Part Numbers

A.B.S.111400 ABEXH2050 ATE03.0420-0617.3 ATE03.0520-0617.3 ATE3042006173 ATE3052006173 BENDIX381093B BENDIX391093B BENDIXB334093 BORG & BECKBBS1002K BOSCH0 204 113 510 BOSCH0 204 114 053 BOSCH204113510 BOSCH204114053 BOSCH9 000 075 424 BREMBOH85010 BREMBO K85 010 BREMBOK85010 DELPHI715 DELPHILSK715 DELPHITK1709 FERODOFMK002 FERODOKDF002 GIRLING5315019 ICER79KT0002 C JURID391093J LPROEK122 LPROPK122 METELLI51-0031 METZGERKT2003 METZGERKV9003 METZGERKV9506 MGAPM585550 OPTIMALBK-4999N OPTIMALBK-4999 OPTIMALOP-BSK00023 PEXKIT3 QUINTON HAZELLKBS91 RAICAM7122RP REMSASPK304503 VALEO553122 VALEO554529

OE Numbers — VW

331 698 100
MakeModelType / Engine YearsCCkWHP
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2144 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 89 121
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 88 120
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1780 76 103
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.7 1978 – 1987 1715 58 79
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 61 83
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2226 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2144 96 131
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 40 55
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.9 CD-5S 1978 – 1987 1921 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 TD 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1297 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 54 73
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 63 85
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 GLE 1978 – 1987 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 65 88
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 D 1978 – 1987 1588 40 54
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 CC quattro (85Q) 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 quattro (85Q) 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro (85Q) 1978 – 1987 2144 100 136
AUDI A2 (8Z0) 1.4 TDI 2000 – 2005 1422 66 90
AUDI A2 (8Z0) 1.6 FSI 2000 – 2005 1598 81 110
AUDI A2 (8Z0) 1.2 TDI 2000 – 2005 1191 45 61
AUDI A2 (8Z0) 1.4 2000 – 2005 1390 55 75
AUDI A2 (8Z0) 1.4 TDI 2000 – 2005 1422 55 75
