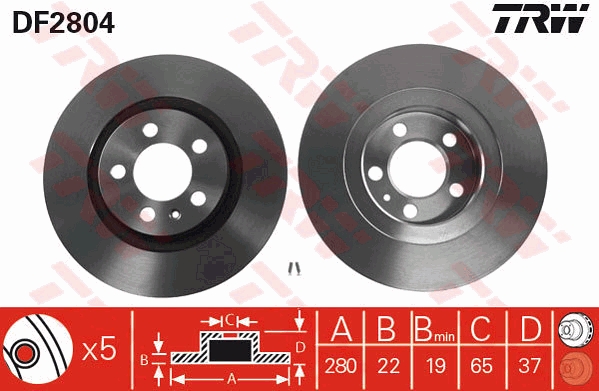

Specifications
| Bolt Hole Circle Ø (mm) | 100 |
| Brake Disc Thickness (mm) | 22 |
| Brake Disc Type Vented | |
| Fitting Position Front Axle | |
| Manufacturer Restriction KELSEY HAYES | |
| Number of Holes 5 | |
| Outer Diameter (mm) | 280 |
| Wear Warning Contact not prepared for wear warning indicator | |
Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Fitting Position Front Axle, Manufacturer Restriction KELSEY HAYES, Number of Holes 5, Outer Diameter [mm] 280, Wear Warning Contact not prepared for wear warning indicator
Fits: AUDI, SEAT, SKODA, VW
Fits: AUDI, SEAT, SKODA, VW
Interchangeable Part Numbers
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| AUDI | A3 (8L1) | 1.6 | 1996 – 2006 | 1595 | 74 | 101 |
| AUDI | A3 (8L1) | 1.8 | 1996 – 2006 | 1781 | 92 | 125 |
| AUDI | A3 (8L1) | 1.8 T | 1996 – 2006 | 1781 | 110 | 150 |
| AUDI | A3 (8L1) | 1.9 TDI | 1996 – 2006 | 1896 | 66 | 90 |
| AUDI | A3 (8L1) | 1.9 TDI | 1996 – 2006 | 1896 | 81 | 110 |
| AUDI | A3 (8L1) | 1.8 T quattro | 1996 – 2006 | 1781 | 132 | 180 |
| AUDI | A3 (8L1) | S3 quattro | 1996 – 2006 | 1781 | 154 | 210 |
| AUDI | A3 (8L1) | 1.8 T quattro | 1996 – 2006 | 1781 | 110 | 150 |
| AUDI | A3 (8L1) | 1.8 T | 1996 – 2006 | 1781 | 132 | 180 |
| AUDI | A3 (8L1) | 1.9 TDI | 1996 – 2006 | 1896 | 96 | 130 |
| AUDI | A3 (8L1) | 1.6 | 1996 – 2006 | 1595 | 75 | 102 |
| AUDI | A3 (8L1) | 1.9 TDI quattro | 1996 – 2006 | 1896 | 96 | 130 |
| AUDI | A3 (8L1) | 1.9 TDI | 1996 – 2006 | 1896 | 74 | 100 |
| AUDI | A3 (8L1) | S3 quattro | 1996 – 2006 | 1781 | 165 | 224 |
| AUDI | A3 (8L1) | 1.6 | 1996 – 2006 | 1598 | 74 | 101 |
