Braking System

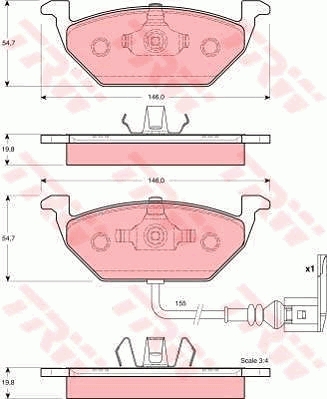

Brake Kit, disc brake

Name: Brake Kit, disc brake
Brand: TRW
SKU: GTD1119-TRW
Availability: OutOfStock

Part No. GTD1119 · SKU GTD1119-TRW

Front Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

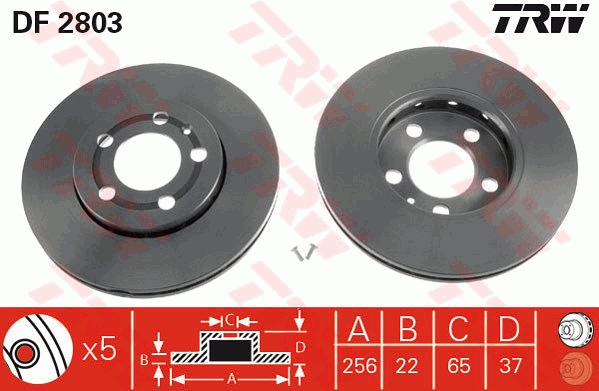

Specifications

Bolt Hole Circle Ø (mm)	100
Brake Disc Thickness (mm)	22
Brake Disc Type Vented
Fitting Position Front Axle
Manufacturer Restriction KELSEY HAYES
Number of Holes 5
Number of wear indicators (per axle)	1
Outer Diameter (mm)	256
Warning Contact Length (mm)	155
Wear Warning Contact incl. wear warning contact

Bolt Hole Circle Ø [mm] 100, Brake Disc Thickness [mm] 22, Brake Disc Type Vented, Fitting Position Front Axle, Manufacturer Restriction KELSEY HAYES, Number of Holes 5, Number of wear indicators [per axle] 1, Outer Diameter [mm] 256, Warning Contact Length [mm] 155, Wear Warning Contact incl. wear warning contact
Fits: AUDI, SEAT, SKODA, VW

Interchangeable Part Numbers

GIRLING6411195 MINTEXMDK0152

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	A2 (8Z0)	1.4 TDI	2000 – 2005	1422	66	90
AUDI	A2 (8Z0)	1.6 FSI	2000 – 2005	1598	81	110
AUDI	A2 (8Z0)	1.4 TDI	2000 – 2005	1422	55	75
AUDI	A2 (8Z0)	1.4	2000 – 2005	1390	55	75
AUDI	A2 (8Z0)	1.2 TDI	2000 – 2005	1191	45	61
AUDI	A3 (8L1)	1.6	1996 – 2006	1598	74	101
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	74	101
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	165	224
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	74	100
AUDI	A3 (8L1)	1.9 TDI quattro	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.6	1996 – 2006	1595	75	102
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	96	130
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	S3 quattro	1996 – 2006	1781	154	210
AUDI	A3 (8L1)	1.8 T quattro	1996 – 2006	1781	132	180
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	81	110
AUDI	A3 (8L1)	1.9 TDI	1996 – 2006	1896	66	90
AUDI	A3 (8L1)	1.8 T	1996 – 2006	1781	110	150
AUDI	A3 (8L1)	1.8	1996 – 2006	1781	92	125
