Specifications
| Article number of the recommended special tool OCS 2 | |

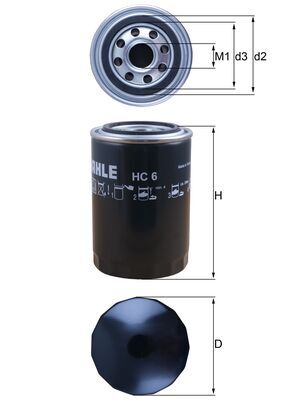

| Diameter 2 (mm) | 72.0 |
| Diameter (mm) | 93.4 |
| Filter type Spin-on Filter | |
| Height (mm) | 143.0 |
| Net Weight (g) | 540 |
| Net Weight (g) | 675 |
| Packaging height (cm) | 14.15 |
| Packaging height (cm) | 14.70 |
| Packaging length (cm) | 9.6 |
| Packaging length (cm) | 9.7 |
| Packaging width (cm) | 9.6 |
| Packaging width (cm) | 9.70 |
| Sealing Ring Diameter (mm) | 62.0 |
| Sealing Ring Diameter (mm) | 62.6 |
| Thread Size 1"-12UNF-2B | |
Article number of the recommended special tool OCS 2, Diameter 2 [mm] 72,0, Diameter [mm] 93,4, Filter type Spin-on Filter, Height [mm] 143,0, Net Weight [g] 540, Net Weight [g] 675, Packaging height [cm] 14,15, Packaging height [cm] 14,70, Packaging length [cm] 9,6, Packaging length [cm] 9,7, Packaging width [cm] 9,6, Packaging width [cm] 9,70, Sealing Ring Diameter [mm] 62,0, Sealing Ring Diameter [mm] 62,6, Thread Size 1"-12UNF-2B
