Brake Caliper

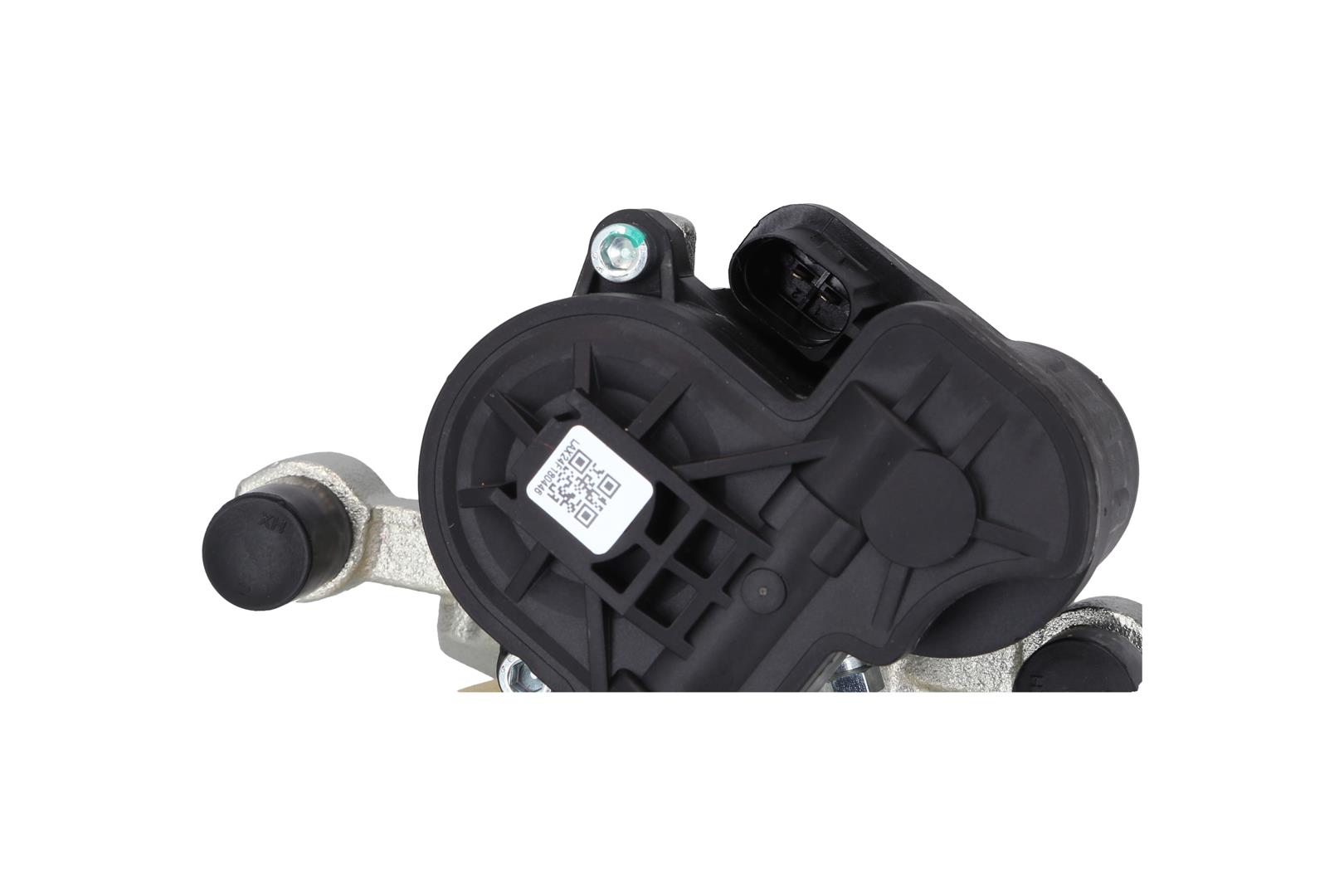

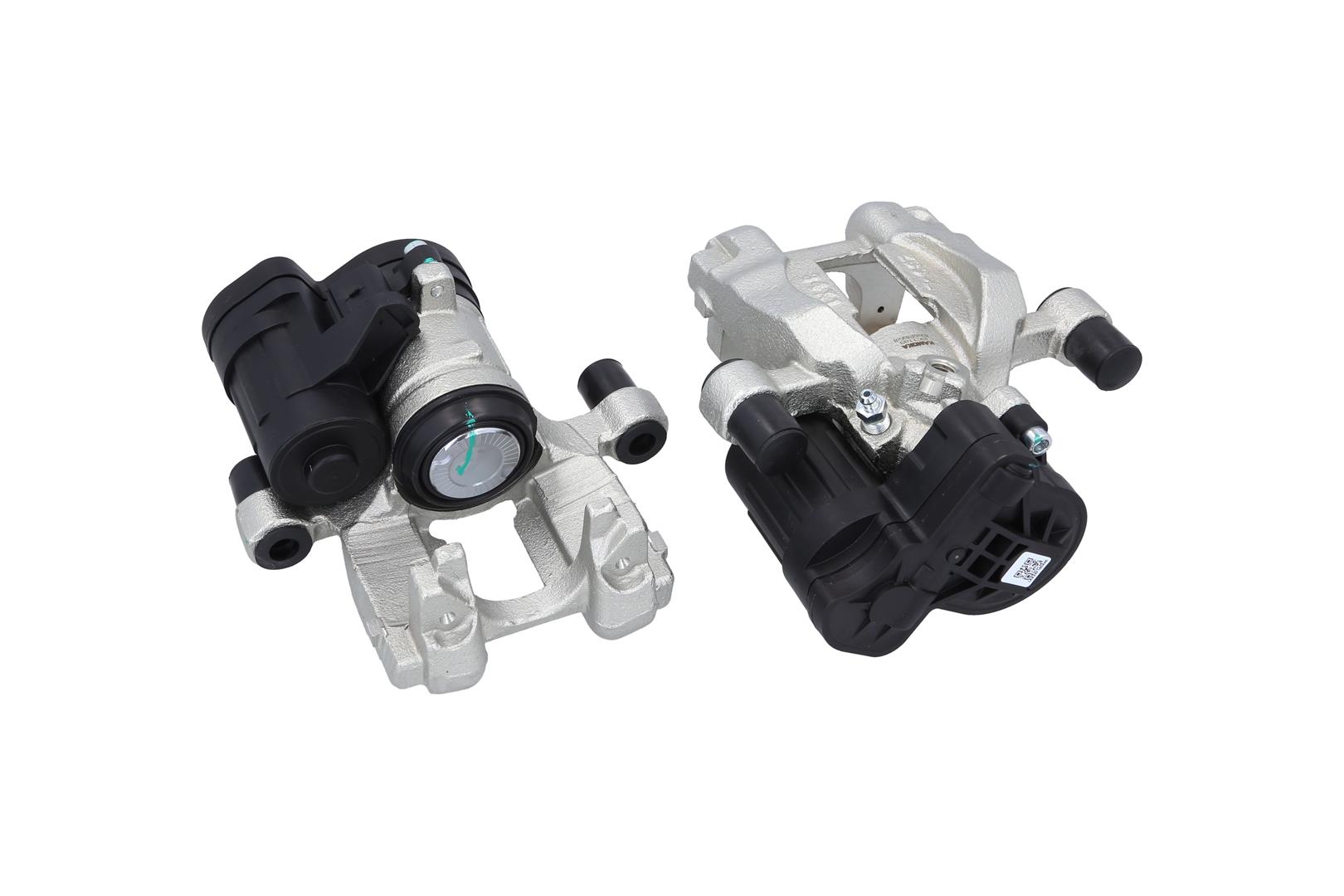

Brake Caliper 1 Brake Caliper 2
Braking System

Brake Caliper

Part No. JBC1189 · SKU JBC1189-KAMOKA
Rear Axle Left
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Brake Caliper Type Brake Caliper (1 piston)
Brake System ATE
Distance of mounting bores (mm)144
Fitting Position Rear Axle Left, for brake disc thickness (mm)12
Material Grey Cast Iron
Number of connectors 1, paired article number JBC1190
Piston Diameter (mm)38
Vehicle Equipment for vehicles with electric parking brake
Brake Caliper Type Brake Caliper (1 piston), Brake System ATE, Distance of mounting bores [mm] 144, Fitting Position Rear Axle Left, for brake disc thickness [mm] 12, Material Grey Cast Iron, Number of connectors 1, paired article number JBC1190, Piston Diameter [mm] 38, Vehicle Equipment for vehicles with electric parking brake
Fits: AUDI, VW

Interchangeable Part Numbers

A.B.S.431371 A.B.S.431371C3 ATE24.6238-7007.5 ATE24.6238-7025.5 ATIE4838 BREMBO F85 342 BREMBOF85342 BUDWEG CALIPER344838 CARDONE86-2488 COMLINECBC313L DA SILVAET9289 DEPAET74838 DRI4148820 EAI2227003 ERA BeneluxBCE54838 GENERAL RICAMBIAU6195 GENERAL RICAMBIWW6225 HELLA8AC 355 397-451 LAUBER77.5408 MAXGEAR82-0907 METZGER6261227 MOTAQUIPVBC412L NK2147381 NTYHZT-VW-081 REMYDC74838RDE SHAFTECBC11531 SNRA1227003 TRISCAN8170344838 TRWBHN1315E TRWBHN1419E

OE Numbers — AUDI

5G0 615 423B 8V0 615 423C 8V0 615 423F
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 85 115
AUDI A3 (8V1, 8VK) 1.5 TFSI 2012 – 2020 1498 110 150
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 90 122
AUDI A3 (8V1, 8VK) 1.8 TFSI 2012 – 2020 1798 132 180
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 105 143
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 110 150
AUDI A3 (8V1, 8VK) 1.8 TFSI quattro 2012 – 2020 1798 132 180
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 77 105
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 81 110
AUDI A3 (8V1, 8VK) 2.0 TDI quattro 2012 – 2020 1968 110 150
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 135 184
AUDI A3 (8V1, 8VK) 2.0 TDI quattro 2012 – 2020 1968 135 184
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 103 140
AUDI A3 (8V1, 8VK) 1.2 TFSI 2012 – 2020 1197 77 105
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 206 280
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 221 300
AUDI A3 (8V1, 8VK) 2.0 TDI 2012 – 2020 1968 100 136
AUDI A3 (8V1, 8VK) 1.6 TDI 2012 – 2020 1598 81 110
AUDI A3 (8V1, 8VK) 1.2 TFSI 2012 – 2020 1197 81 110
AUDI A3 (8V1, 8VK) 1.4 TFSI 2012 – 2020 1395 92 125
AUDI A3 (8V1, 8VK) 1.4 TSI 2012 – 2020 1395 110 150
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 210 286
AUDI A3 (8V1, 8VK) 1.0 TFSI 2012 – 2020 999 85 115
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 228 310
AUDI A3 (8V1, 8VK) 2.0 TFSI quattro 2012 – 2020 1984 140 190
AUDI A3 (8V1, 8VK) 2.0 TFSI 2012 – 2020 1984 140 190
AUDI A3 (8V1, 8VK) S3 quattro 2012 – 2020 1984 213 290
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 103 140
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI 2013 – 2021 1798 132 180
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 110 150
AUDI A3 Convertible (8V7, 8VE) 1.6 TDI 2013 – 2021 1598 81 110
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI quattro 2013 – 2021 1798 132 180
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI quattro 2013 – 2021 1968 110 150
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 92 125
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 221 300
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 135 184
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Convertible (8V7, 8VE) 1.8 TFSI 2013 – 2021 1798 125 170
AUDI A3 Convertible (8V7, 8VE) 1.4 TSI 2013 – 2021 1395 110 150
AUDI A3 Convertible (8V7, 8VE) 2.0 TDI 2013 – 2021 1968 100 136
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 210 286
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 162 220
AUDI A3 Convertible (8V7, 8VE) 1.4 TFSI 2013 – 2021 1395 85 115
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 228 310
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) S3 quattro 2013 – 2021 1984 213 290
AUDI A3 Convertible (8V7, 8VE) 35 TFSI 2013 – 2021 1498 110 150
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI 2013 – 2021 1984 137 186
AUDI A3 Convertible (8V7, 8VE) 1.5 TFSI 2013 – 2021 1498 110 150
AUDI A3 Convertible (8V7, 8VE) 40 TFSI 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 40 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Convertible (8V7, 8VE) 1.6 TDI 2013 – 2021 1598 85 115
AUDI A3 Convertible (8V7, 8VE) 2.0 TFSI quattro 2013 – 2021 1984 170 231
AUDI A3 Convertible (8V7, 8VE) 1.8 40 TFSI 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) 40 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 40 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 170 231
AUDI A3 Limousine (8VS, 8VM) 40 TFSI 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 35 TDI 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 30 TDI 2013 – 2021 1598 85 115
AUDI A3 Limousine (8VS, 8VM) 35 TFSI 2013 – 2021 1498 110 150
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 213 290
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI Flex 2013 – 2021 1395 110 150
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 85 115
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 137 186
AUDI A3 Limousine (8VS, 8VM) 1.5 TFSI 2013 – 2021 1498 110 150
AUDI A3 Limousine (8VS, 8VM) 30 TFSI 2013 – 2021 999 85 115
AUDI A3 Limousine (8VS, 8VM) RS3 quattro 2013 – 2021 2480 294 400
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 90 122
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 221 300
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 105 143
AUDI A3 Limousine (8VS, 8VM) 1.2 TFSI 2013 – 2021 1197 77 105
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 77 105
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 92 125
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI quattro 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 206 280
AUDI A3 Limousine (8VS, 8VM) 1.4 TFSI 2013 – 2021 1395 103 140
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 2013 – 2021 1798 132 180
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 81 110
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 100 136
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI quattro 2013 – 2021 1968 110 150
AUDI A3 Limousine (8VS, 8VM) 1.8 TFSI 2013 – 2021 1798 125 170
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 2.0 TDI quattro 2013 – 2021 1968 135 184
AUDI A3 Limousine (8VS, 8VM) 1.2 TFSI 2013 – 2021 1197 81 110
AUDI A3 Limousine (8VS, 8VM) 1.4 TSI 2013 – 2021 1395 110 150
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI 2013 – 2021 1598 81 110
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 210 286
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 162 220
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 215 292
AUDI A3 Limousine (8VS, 8VM) 1.6 TDI quattro 2013 – 2021 1598 81 110
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 162 220
AUDI A3 Limousine (8VS, 8VM) 1.0 TFSI 2013 – 2021 999 85 115
AUDI A3 Limousine (8VS, 8VM) S3 quattro 2013 – 2021 1984 228 310
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI quattro 2013 – 2021 1984 140 190
AUDI A3 Limousine (8VS, 8VM) 2.0 TFSI 2013 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 90 122
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 105 143
AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 77 105
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 103 140
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI quattro 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 221 300
AUDI A3 Sportback (8VA, 8VF) 1.8 TFSI quattro 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 1.2 TFSI 2012 – 2021 1197 77 105
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 2.0 TDI 2012 – 2021 1968 100 136
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 206 280
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI g-tron 2012 – 2021 1395 81 110
AUDI A3 Sportback (8VA, 8VF) 1.2 TFSI 2012 – 2021 1197 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI 2012 – 2021 1395 92 125
AUDI A3 Sportback (8VA, 8VF) 1.4 TSI 2012 – 2021 1395 110 150
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 210 286
AUDI A3 Sportback (8VA, 8VF) 2.0 45 TFSI 2012 – 2021 1984 162 220
AUDI A3 Sportback (8VA, 8VF) RS3 quattro 2012 – 2021 2480 270 367
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI quattro 2012 – 2021 1598 81 110
AUDI A3 Sportback (8VA, 8VF) 1.4 TFSI e-tron 2012 – 2021 1395 150 204
AUDI A3 Sportback (8VA, 8VF) 1.0 TFSI 2012 – 2021 999 85 115
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 228 310
AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI quattro 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 2.0 TFSI 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) S3 quattro 2012 – 2021 1984 213 290
AUDI A3 Sportback (8VA, 8VF) 40 TFSI quattro 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 1.8 40 TFSI 2012 – 2021 1798 132 180
AUDI A3 Sportback (8VA, 8VF) 40 e-tron 2012 – 2021 1395 150 204
AUDI A3 Sportback (8VA, 8VF) 1.6 TDI 2012 – 2021 1598 85 115
AUDI A3 Sportback (8VA, 8VF) RS3 quattro 2012 – 2021 2480 294 400
AUDI A3 Sportback (8VA, 8VF) 1.5 TFSI 2012 – 2021 1498 110 150
AUDI A3 Sportback (8VA, 8VF) 40 TDI quattro 2012 – 2021 1968 135 184
AUDI A3 Sportback (8VA, 8VF) 30 TFSI 2012 – 2021 999 85 116
AUDI A3 Sportback (8VA, 8VF) 35 TDI 2012 – 2021 1968 110 150
AUDI A3 Sportback (8VA, 8VF) 40 TFSI 2012 – 2021 1984 140 190
AUDI A3 Sportback (8VA, 8VF) 30 g-tron 2012 – 2021 1498 96 131
AUDI A3 Sportback (8VA, 8VF) 35 TFSI 2012 – 2021 1498 110 150
AUDI A3 Sportback (8VA, 8VF) 30 TDI 2012 – 2021 1598 85 115
