Suspension Spring
Suspension/Damping

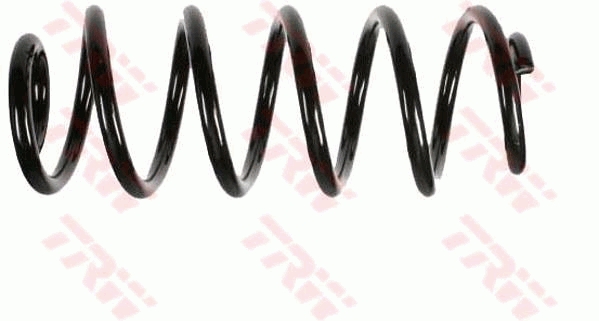

Suspension Spring

Part No. JCS504 · SKU JCS504-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Fitting Position Front Axle
Length (mm)354
Outer Diameter (mm)136
Thickness (mm)14.25
Weight (kg)2.878
Fitting Position Front Axle, Length [mm] 354, Outer Diameter [mm] 136, Thickness [mm] 14,25, Weight [kg] 2,878
Fits: AUDI

Interchangeable Part Numbers

BILSTEIN36-266432 EIBACHR10811 KYBRA1097 KYBRH3387 LESJÖFORS4095057 MUBEA90171161 SACHS 998431 SACHS998431 SPIDAN56875 SUPLEX03237

OE Numbers — AUDI 8D0 411 105

DR

OE Numbers — AUDI

8D0411105DR
MakeModelType / Engine YearsCCkWHP
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 184 250
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) S6 quattro 1997 – 2005 4172 250 340
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 85 115
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 85 116
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.0 1997 – 2005 1984 96 130
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 114 155
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 110 150
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 96 130
AUDI A6 C5 (4B2, 4B4) RS6 quattro 1997 – 2005 4172 331 450
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.7 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 195 265
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 164 223
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 2.7 T 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 100 136
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 81 110
AUDI A6 C5 (4B2, 4B4) 3.7 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 4.2 quattro 1997 – 2005 4172 220 299
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 92 125
AUDI A6 C5 (4B2, 4B4) 3.7 quattro 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.8 quattro 1997 – 2006 2771 142 193
AUDI A6 C5 Avant (4B5, 4B6) 1.8 1997 – 2006 1781 92 125
AUDI A6 C5 Avant (4B5, 4B6) 3.0 1997 – 2006 2976 162 220
AUDI A6 C5 Avant (4B5, 4B6) RS6 quattro 1997 – 2006 4172 331 450
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T 1997 – 2006 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 96 130
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 162 220
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 125 170
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 120 163
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 81 110
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 115 156
AUDI A6 C5 Avant (4B5, 4B6) RS6 plus quattro 1997 – 2006 4172 353 480
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 164 223
AUDI A6 C5 Avant (4B5, 4B6) 3.0 1997 – 2006 2976 160 218
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 160 218
AUDI A6 C5 Avant (4B5, 4B6) 2.8 quattro 1997 – 2006 2771 140 190
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 115 156
AUDI A6 C5 Avant (4B5, 4B6) 3.7 1997 – 2006 3697 191 260
AUDI A6 C5 Avant (4B5, 4B6) 4.2 quattro 1997 – 2006 4172 220 299
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T 1997 – 2006 1781 132 180
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro 1997 – 2006 1781 132 180
AUDI A6 C5 Avant (4B5, 4B6) S6 quattro 1997 – 2006 4172 250 340
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI quattro 1997 – 2006 2496 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 100 136
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 85 115
AUDI A6 C5 Avant (4B5, 4B6) 1.8 1997 – 2006 1781 85 116
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 140 190
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T quattro 1997 – 2006 2671 184 250
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T quattro 1997 – 2006 2671 169 230
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T 1997 – 2006 2671 169 230
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI quattro 1997 – 2006 2496 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 121 165
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro 1997 – 2006 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 142 193
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 121 165
AUDI A6 C5 Avant (4B5, 4B6) 2.0 1997 – 2006 1984 96 130
AUDI A6 C5 Avant (4B5, 4B6) 3.7 quattro 1997 – 2006 3697 191 260
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 125 170
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 114 155
