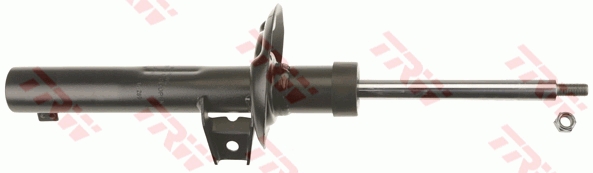

Shock Absorber
Suspension/Damping

Shock Absorber

Part No. JGM830S · SKU JGM830S-TRW
Front Axle
₱10,200.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Diameter (mm)50
Fitting Position Front Axle
Length 1 (mm)560
Length 2 (mm)389
Observe technical data
Piston Rod Diameter (mm)22
Quantity per axle 2
Shock Absorber Design Suspension Strut
Shock Absorber Mounting Type Top pin
Shock Absorber System Twin-Tube
Shock Absorber Type Gas Pressure
Diameter [mm] 50, Fitting Position Front Axle, Length 1 [mm] 560, Length 2 [mm] 389, Observe technical data , Piston Rod Diameter [mm] 22, Quantity per axle 2, Shock Absorber Design Suspension Strut, Shock Absorber Mounting Type Top pin, Shock Absorber System Twin-Tube, Shock Absorber Type Gas Pressure
Fits: AUDI, SEAT, SKODA, VW

Supplier Cross-References

SACHS310717 BILSTEIN22139191 TRWJGM830S MONROE742252SP BOGE36C97A VW1T0413031BH

Interchangeable Part Numbers

BENDIX060943GB GABRIELG35491 KONI87101431SPORT KONI87101432SPORT KONI87411515SPORT KONI87501005 KONI87501006 KYB324703 KYB325700 KYB334834 KYB335808 Maysan MandoPS9711509 MEYLE 126 6230050 MEYLE1266230050 MEYLE 126 6230055 MEYLE1266230055 MONROE16495 MONROEE7028 MONROEE7052 MONROEE7056 MONROEE7057 MONROEG16495 MONROEG8388 QUINTON HAZELL178943 QUINTON HAZELL178944 QUINTON HAZELL178990 TRUCKTEC AUTOMOTIVE0730155

OE Numbers — AUDI 1K0 413 031

AQ AR AT CL

OE Numbers — AUDI

1K0413031AQ 1K0413031AR 1K0413031AT 1K0413031CL 1T0413031CE 1T0413031DC 1T0413031EL

OE Numbers — AUDI 1T0 413 031

BH CE DC EL

OE Numbers — SKODA 1T0 413 031

CS

OE Numbers — SKODA

1T0413031CS

OE Numbers — VW 1K0 413 031

DK

OE Numbers — VW

1K0413031DK 1T0413031DM 1T0413031GK

OE Numbers — VW 1T0 413 031

DM GK
MakeModelType / Engine YearsCCkWHP
AUDI A3 (8P1) 1.8 TFSI quattro 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 77 105
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 66 90
AUDI A3 (8P1) 2.0 TFSI 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TFSI quattro 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TDI 16V quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 125 170
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 125 170
AUDI A3 (8P1) 1.6 E-Power 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 100 136
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 195 265
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 188 256
AUDI A3 (8P1) 1.8 TFSI 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.8 T 2003 – 2013 1781 110 150
AUDI A3 (8P1) 1.4 TFSI 2003 – 2013 1390 92 125
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 120 163
AUDI A3 (8P1) 1.2 TSI 2003 – 2013 1197 77 105
AUDI A3 (8P1) 2.0 FSI 2003 – 2013 1984 110 150
AUDI A3 (8P1) 1.6 2003 – 2013 1595 75 102
AUDI A3 (8P1) 1.6 FSI 2003 – 2013 1598 85 115
AUDI A3 (8P1) 3.2 V6 quattro 2003 – 2013 3189 184 250
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 100 136
AUDI A3 (8P1) 1.9 TDI 2003 – 2013 1896 77 105
AUDI A3 (8P1) 2.0 TDI 16V 2003 – 2013 1968 103 140
AUDI A3 Sportback (8PA) 1.8 FSI 2004 – 2015 1781 110 150
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 66 90
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 104 141
AUDI A3 Sportback (8PA) 1.4 TFSI 2004 – 2015 1390 92 125
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 195 265
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 188 256
AUDI A3 Sportback (8PA) 1.2 TSI 2004 – 2015 1197 77 105
AUDI A3 Sportback (8PA) 1.8 TFSI quattro 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 120 163
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 77 105
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 1.8 TFSI 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 100 136
AUDI A3 Sportback (8PA) 2.0 TFSI quattro 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TFSI 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TDI 16V 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 3.2 V6 quattro 2004 – 2015 3189 184 250
AUDI A3 Sportback (8PA) 2.0 FSI 2004 – 2015 1984 110 150
AUDI A3 Sportback (8PA) 1.6 FSI 2004 – 2015 1598 85 115
AUDI A3 Sportback (8PA) 1.9 TDI 2004 – 2015 1896 77 105
AUDI A3 Sportback (8PA) 1.6 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) RS3 quattro 2004 – 2015 2480 250 340
AUDI A3 Sportback (8PA) 1.6 E-Power 2004 – 2015 1595 75 102
