Shock Absorber
Suspension/Damping

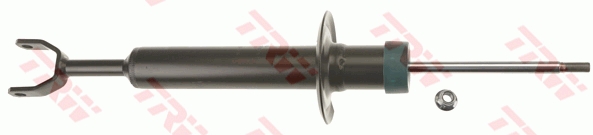

Shock Absorber

Part No. JGS232S · SKU JGS232S-TRW
Front Axle
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Diameter (mm)49
Length 1 (mm)599
Length 2 (mm)458
Observe technical data
Piston Rod Diameter (mm)14
Quantity per axle 2
Shock Absorber Design Spring-bearing Damper
Shock Absorber Mounting Type Bottom Fork
Shock Absorber Mounting Type Top pin
Shock Absorber System Twin-Tube
Shock Absorber Type Gas Pressure
Diameter [mm] 49, Length 1 [mm] 599, Length 2 [mm] 458, Observe technical data , Piston Rod Diameter [mm] 14, Quantity per axle 2, Shock Absorber Design Spring-bearing Damper, Shock Absorber Mounting Type Bottom Fork, Shock Absorber Mounting Type Top pin, Shock Absorber System Twin-Tube, Shock Absorber Type Gas Pressure
Fits: AUDI, VW

Interchangeable Part Numbers

AL-KO201013 AL-KO201213 AL-KO2101G AL-KO2121G AL-KO2121P AL-KO2141G AL-KO2141P AL-KO810040 BENDIX061566GB BENDIX062468GB BILSTEIN22-031167 BILSTEIN24-065122 DELPHIDG3944 DELPHIDG9905 GABRIELG51056 KONI822488 KONI822488SPORT KONI822502SPORT KONI822516SPORT KONI82501001 KYB341207 KYB341301 MONROE26655 MONROE26659 MONROE376044SP MONROEE2048 MONROEE2049 QUINTON HAZELL179917

OE Numbers — AUDI

4B0 412 031 AP 4B0 412 031 BD 4B0 412 031 BG 4B0 412 031 BP 4B0 412 031 CD 4B0 412 031 CE 4B0 412 031 CF
MakeModelType / Engine YearsCCkWHP
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 184 250
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) S6 quattro 1997 – 2005 4172 250 340
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 132 180
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 85 115
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 85 116
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.0 1997 – 2005 1984 96 130
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 162 220
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 125 170
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 114 155
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 110 150
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 96 130
AUDI A6 C5 (4B2, 4B4) RS6 quattro 1997 – 2005 4172 331 450
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 120 163
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 120 163
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 115 156
AUDI A6 C5 (4B2, 4B4) 2.7 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 187 254
AUDI A6 C5 (4B2, 4B4) 2.7 quattro 1997 – 2005 2671 195 265
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 132 180
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 140 190
AUDI A6 C5 (4B2, 4B4) 3.0 1997 – 2005 2976 160 218
AUDI A6 C5 (4B2, 4B4) 3.0 quattro 1997 – 2005 2976 164 223
AUDI A6 C5 (4B2, 4B4) 2.4 quattro 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 2.7 T 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 2.5 TDI quattro 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 2.8 quattro 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.8 1997 – 2005 2771 142 193
AUDI A6 C5 (4B2, 4B4) 2.7 T quattro 1997 – 2005 2671 169 230
AUDI A6 C5 (4B2, 4B4) 1.8 T quattro 1997 – 2005 1781 132 180
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 100 136
AUDI A6 C5 (4B2, 4B4) 2.5 TDI 1997 – 2005 2496 110 150
AUDI A6 C5 (4B2, 4B4) 1.9 TDI 1997 – 2005 1896 81 110
AUDI A6 C5 (4B2, 4B4) 3.7 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 4.2 quattro 1997 – 2005 4172 220 299
AUDI A6 C5 (4B2, 4B4) 2.4 1997 – 2005 2393 121 165
AUDI A6 C5 (4B2, 4B4) 1.8 1997 – 2005 1781 92 125
AUDI A6 C5 (4B2, 4B4) 3.7 quattro 1997 – 2005 3697 191 260
AUDI A6 C5 (4B2, 4B4) 1.8 T 1997 – 2005 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.8 quattro 1997 – 2006 2771 142 193
AUDI A6 C5 Avant (4B5, 4B6) 1.8 1997 – 2006 1781 92 125
AUDI A6 C5 Avant (4B5, 4B6) 3.0 1997 – 2006 2976 162 220
AUDI A6 C5 Avant (4B5, 4B6) RS6 quattro 1997 – 2006 4172 331 450
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T 1997 – 2006 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 96 130
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 162 220
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 125 170
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 120 163
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 81 110
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 120 163
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 115 156
AUDI A6 C5 Avant (4B5, 4B6) RS6 plus quattro 1997 – 2006 4172 353 480
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 164 223
AUDI A6 C5 Avant (4B5, 4B6) 3.0 1997 – 2006 2976 160 218
AUDI A6 C5 Avant (4B5, 4B6) 3.0 quattro 1997 – 2006 2976 160 218
AUDI A6 C5 Avant (4B5, 4B6) 2.8 quattro 1997 – 2006 2771 140 190
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 115 156
AUDI A6 C5 Avant (4B5, 4B6) 3.7 1997 – 2006 3697 191 260
AUDI A6 C5 Avant (4B5, 4B6) 4.2 quattro 1997 – 2006 4172 220 299
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T 1997 – 2006 1781 132 180
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro 1997 – 2006 1781 132 180
AUDI A6 C5 Avant (4B5, 4B6) S6 quattro 1997 – 2006 4172 250 340
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI quattro 1997 – 2006 2496 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 100 136
AUDI A6 C5 Avant (4B5, 4B6) 1.9 TDI 1997 – 2006 1896 85 115
AUDI A6 C5 Avant (4B5, 4B6) 1.8 1997 – 2006 1781 85 116
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 132 180
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 140 190
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T quattro 1997 – 2006 2671 184 250
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T quattro 1997 – 2006 2671 169 230
AUDI A6 C5 Avant (4B5, 4B6) 2.7 T 1997 – 2006 2671 169 230
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI quattro 1997 – 2006 2496 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 121 165
AUDI A6 C5 Avant (4B5, 4B6) 1.8 T quattro 1997 – 2006 1781 110 150
AUDI A6 C5 Avant (4B5, 4B6) 2.8 1997 – 2006 2771 142 193
AUDI A6 C5 Avant (4B5, 4B6) 2.4 1997 – 2006 2393 121 165
AUDI A6 C5 Avant (4B5, 4B6) 2.0 1997 – 2006 1984 96 130
AUDI A6 C5 Avant (4B5, 4B6) 3.7 quattro 1997 – 2006 3697 191 260
AUDI A6 C5 Avant (4B5, 4B6) 2.4 quattro 1997 – 2006 2393 125 170
AUDI A6 C5 Avant (4B5, 4B6) 2.5 TDI 1997 – 2006 2496 114 155
