Suspension/Damping

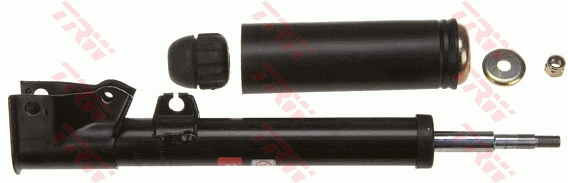

Shock Absorber

Name: Shock Absorber
Brand: TRW
SKU: JHM114S-TRW
Availability: OutOfStock

Part No. JHM114S · SKU JHM114S-TRW

Rear Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Diameter (mm)	45
Fitting Position Rear Axle
Length 1 (mm)	563
Length 2 (mm)	418
Observe technical data
Piston Rod Diameter (mm)	20
Quantity per axle 2
Shock Absorber Design Suspension Strut
Shock Absorber Mounting Type Top pin
Shock Absorber System Twin-Tube
Shock Absorber Type Oil Pressure
Thread Size M12x1,25

Diameter [mm] 45, Fitting Position Rear Axle, Length 1 [mm] 563, Length 2 [mm] 418, Observe technical data , Piston Rod Diameter [mm] 20, Quantity per axle 2, Shock Absorber Design Suspension Strut, Shock Absorber Mounting Type Top pin, Shock Absorber System Twin-Tube, Shock Absorber Type Oil Pressure, Thread Size M12x1,25

Interchangeable Part Numbers

AL-KO100350 AL-KO1035 AL-KO3.328 AL-KO303280 AL-KO303283 AL-KO3328G BILSTEINVNE4076 DELPHID2255473 DELPHID2255506 DELPHIDG5506 DELPHIV34550653 DELPHIV35547353 GABRIEL35027 KONI80-2282 KYB333047 KYB333814 KYB333815 KYB443006 KYB633044 KYB633814 KYB633815 MGAAM5610 MGAAM5610H MONROE11046 MONROE11065 MONROER11046 MONROER11065 NK62233328 NK65233328 QUINTON HAZELL127387 QUINTON HAZELL129011 QUINTON HAZELL129053 QUINTON HAZELL129082

OE Numbers — FIAT

3929375 3930381 4374369 4380559 4408866 4434258 4434295 4434780 4434925 4434950 4472943 5975663 5981916 5987085 5987086 7531930 7531934 7531937 7549340 7550272 7609698 7628340

OE Numbers — RENAULT

86 71 006 080

OE Numbers — SEAT

3897586 3899590 3945653 3946316 3946868 3949773 3950127 3980050 SE021157200A SE021157200B SE022157200A SE023157200A

OE Numbers — SEAT SE

021 157 200 A 021 157 200 B 022 157 200 A 023 157 200 A
