Suspension/Damping

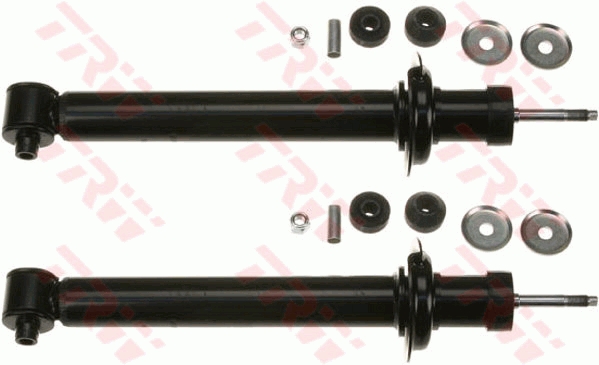

Shock Absorber

Name: Shock Absorber
Brand: TRW
SKU: JHS100T-TRW
Availability: OutOfStock

Part No. JHS100T · SKU JHS100T-TRW

Rear Axle

Price on request

Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Diameter (mm)	39
Fitting Position Rear Axle
Length 1 (mm)	551
Length 2 (mm)	363
Observe technical data
Piston Rod Diameter (mm)	12
Quantity per axle 1
Shock Absorber Design Spring-bearing Damper
Shock Absorber Mounting Type Bottom eye
Shock Absorber Mounting Type Top pin
Shock Absorber System Twin-Tube
Shock Absorber Type Oil Pressure
Thread Size M10x1,0

Diameter [mm] 39, Fitting Position Rear Axle, Length 1 [mm] 551, Length 2 [mm] 363, Observe technical data , Piston Rod Diameter [mm] 12, Quantity per axle 1, Shock Absorber Design Spring-bearing Damper, Shock Absorber Mounting Type Bottom eye, Shock Absorber Mounting Type Top pin, Shock Absorber System Twin-Tube, Shock Absorber Type Oil Pressure, Thread Size M10x1,0
Fits: AUDI, VW

Interchangeable Part Numbers

AL-KO1.596 AL-KO105960 AL-KO105963 BENDIX060312GB BENDIX060312HB DELPHID2252017 DELPHID2252503 DELPHID2252797 DELPHIDG3720 DELPHIV00201713 DELPHIV20250313 DELPHIV20279513 FIRST LINEFSA5019 KONI802315SPORT KYB341023 KYB343165 KYB351004 KYB441019 KYB443165 KYB551015 Maysan MandoC5121514 METZGER2340208 MEYLE1267150007 MGAAM5189H MONROEE1013 MONROER3720 MONROER3725 QUINTON HAZELL127281

OE Numbers — AUDI

861 513 031 B 861 513 031 C 861 513 031 F 861 513 031 G 861 513 031 K 861 513 031 L 867 513 031 B 867 513 031 C 867 513 031 D 867 513 031 E 867 513 031 G 867 513 031 J 867 513 031 897 513 031 G

OE Numbers — VW

861 412 031 G 861 412 031 K 861 412 031 861 513 031 867 513 031 A

Make	Model	Type / Engine	Years	CC	kW	HP
AUDI	50 (863)	1.1	1974 – 1978	1093	37	50
AUDI	50 (863)	1.1	1974 – 1978	1093	44	60
AUDI	50 (863)	1.3	1974 – 1978	1272	44	60
AUDI	50 (863)	0.8	1974 – 1978	771	25	34
AUDI	50 (863)	1.3	1974 – 1978	1272	43	58
