TRW
Suspension/Damping

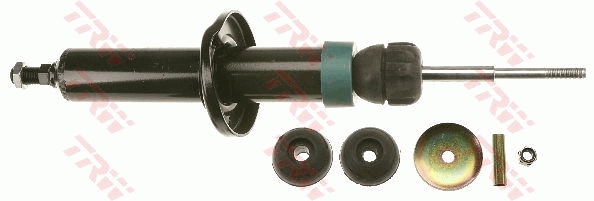

Shock Absorber
Part No.
JHS207S
·
SKU
JHS207S-TRW
Front Axle
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Diameter (mm) | 49 |
| Fitting Position Front Axle |
| Length 1 (mm) | 396 |
| Length 2 (mm) | 332 |
| Observe technical data |
| Piston Rod Diameter (mm) | 14 |
| Quantity per axle 2 |
| Shock Absorber Design Spring-bearing Damper |
| Shock Absorber Mounting Type Bottom Pin |
| Shock Absorber Mounting Type Top pin |
| Shock Absorber System Twin-Tube |
| Shock Absorber Type Oil Pressure |
| Thread Size M10x1,0 |
| Thread Size M16x1,5 |
Diameter [mm] 49, Fitting Position Front Axle, Length 1 [mm] 396, Length 2 [mm] 332, Observe technical data , Piston Rod Diameter [mm] 14, Quantity per axle 2, Shock Absorber Design Spring-bearing Damper, Shock Absorber Mounting Type Bottom Pin, Shock Absorber Mounting Type Top pin, Shock Absorber System Twin-Tube, Shock Absorber Type Oil Pressure, Thread Size M10x1,0, Thread Size M16x1,5
Interchangeable Part Numbers
AL-KO202563
AL-KO208090
AL-KO2256G
AL-KO2809
BENDIX060622HB
BILSTEIN19-020181
BILSTEINBNE2018
DELPHID2252410
DELPHID2252686
DELPHIDG2591
DELPHIV01268622
GABRIEL51409
KYB341109
KYB441058
MGAAM5100H
MONROEE5604
MONROER6521
NK63391856
QUINTON HAZELL127296
OE Numbers — RENAULT 77 00 722
469
OE Numbers — RENAULT
7700722469
7700794578
7700794579
7700794580
7700794581
7701204146
OE Numbers — RENAULT 77 00 794
578
579
580
581
OE Numbers — RENAULT 77 01 204
146
