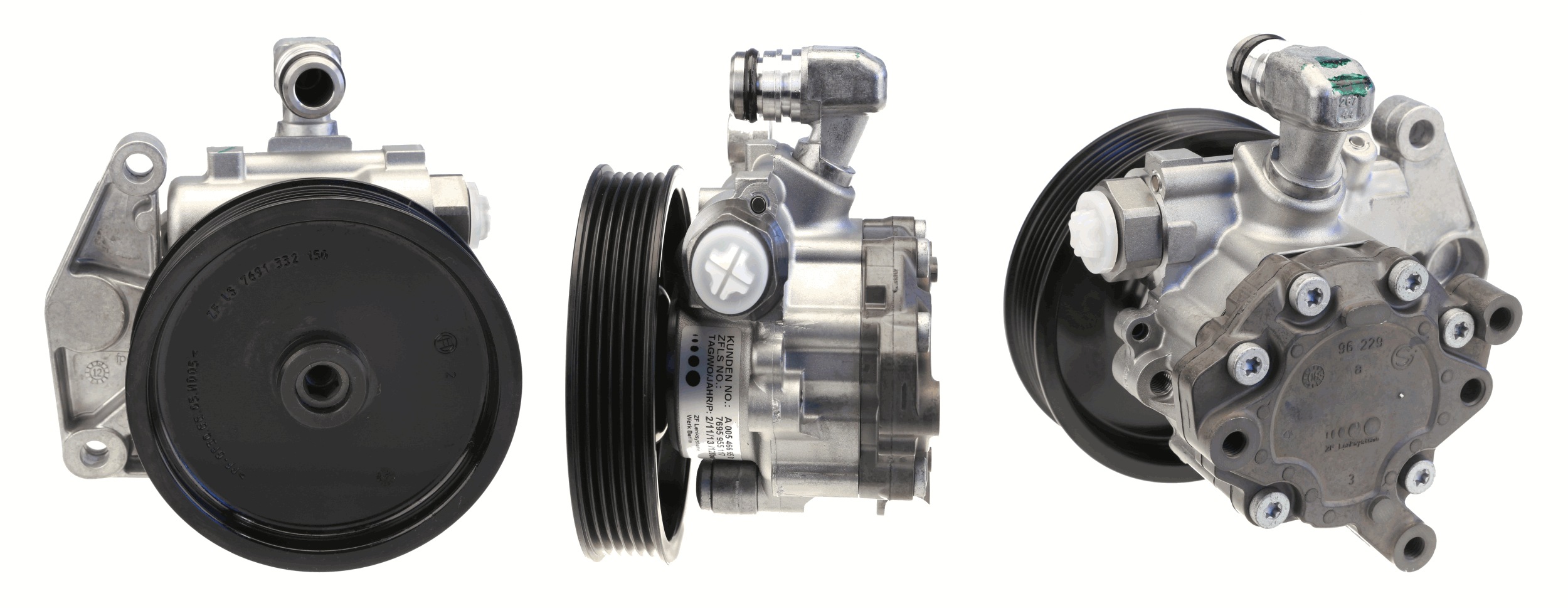

Hydraulic Pump, steering
Steering

Hydraulic Pump, steering

Part No. JPR800 · SKU JPR800-TRW
₱27,600.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Backflow Connector Thread Size M16x1,5
Belt Pulley Ø (mm)120
Distance from adapter to pump (mm)27.6
Distance of mounting bores (mm)78
Exchange Part
Left-/right-hand drive vehicles for left-hand drive vehicles
Left-/right-hand drive vehicles for left-hand/right-hand drive vehicles
Left-/right-hand drive vehicles for right-hand drive vehicles
Manufacturer Restriction ZF
Mounting points diameter (mm)8.5
Number of inlets/outlets 2
Number of ribs 7
Observe technical data
Operating Mode Hydraulic
Suction pipe connector diameter (mm)19
Backflow Connector Thread Size M16x1,5, Belt Pulley Ø [mm] 120, Distance from adapter to pump [mm] 27,6, Distance of mounting bores [mm] 78, Exchange Part , Left-/right-hand drive vehicles for left-hand drive vehicles, Left-/right-hand drive vehicles for left-hand/right-hand drive vehicles, Left-/right-hand drive vehicles for right-hand drive vehicles, Manufacturer Restriction ZF, Mounting points diameter [mm] 8,5, Number of inlets/outlets 2, Number of ribs 7, Observe technical data , Operating Mode Hydraulic, Suction pipe connector diameter [mm] 19
Fits: MERCEDES-BENZ

Supplier Cross-References

LUK541025710 TRWJPR800 SPIDAN54586 HELLA8TL359003401 BOSCHKS00000728

Interchangeable Part Numbers

AMKPUM1359 BOSCH K S00 000728 BOSCH K S01 000698 BOSCHKS01000698 DA SILVADP3182 DRI715521175 ELSTOCK15-1175 ERA BeneluxSP85402 LENCOSP3966 Schaeffler LuK 541 025710 Test_Bosch7695.955.117 ZF Parts8001699

OE Numbers — MERCEDES-BENZ 005 466 42

01

OE Numbers — MERCEDES-BENZ

0054664201 005466650180 0054666501 A005466420180 A0054664201 A005466650180 A0054666501

OE Numbers — MERCEDES-BENZ 005 466 65 01

80
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ C-CLASS (W204) C 63 AMG DR 520 2007 – 2015 6208 383 520
MERCEDES-BENZ C-CLASS (W204) C 220 CDI 4-matic (204.084) 2007 – 2015 2143 125 170
MERCEDES-BENZ C-CLASS (W204) C 220 CDI (204.002) 2007 – 2015 2143 120 163
MERCEDES-BENZ C-CLASS (W204) C 300 Flexfuel 2007 – 2015 2996 170 231
MERCEDES-BENZ C-CLASS (W204) C 180 CGI (204.031) 2007 – 2015 1595 115 156
MERCEDES-BENZ C-CLASS (W204) C 300 (204.055) 2007 – 2015 3498 185 252
MERCEDES-BENZ C-CLASS (W204) C 300 4-matic (204.080) 2007 – 2015 3498 185 252
MERCEDES-BENZ C-CLASS (W204) C 63 AMG (204.077) 2007 – 2015 6208 373 507
MERCEDES-BENZ C-CLASS (W204) C 180 CDI (204.000) 2007 – 2015 2143 88 120
MERCEDES-BENZ C-CLASS (W204) C 200 CDI (204.001) 2007 – 2015 2143 100 136
MERCEDES-BENZ C-CLASS (W204) C 250 CDI 4-matic (204.082) 2007 – 2015 2143 150 204
MERCEDES-BENZ C-CLASS (W204) C 300 CDI 4-matic (204.092) 2007 – 2015 2987 170 231
MERCEDES-BENZ C-CLASS (W204) C 350 (204.057) 2007 – 2015 3498 225 306
MERCEDES-BENZ C-CLASS (W204) C 350 4-matic (204.088) 2007 – 2015 3498 225 306
MERCEDES-BENZ C-CLASS (W204) C 350 CDI (204.023) 2007 – 2015 2987 195 265
MERCEDES-BENZ C-CLASS (W204) C 200 (204.048) 2007 – 2015 1796 137 186
MERCEDES-BENZ C-CLASS (W204) C 63 AMG (204.077) 2007 – 2015 6208 358 487
MERCEDES-BENZ C-CLASS (W204) C 200 CDI (204.007, 204.006) 2007 – 2015 2148 100 136
MERCEDES-BENZ C-CLASS (W204) C 220 CDI (204.008) 2007 – 2015 2148 125 170
MERCEDES-BENZ C-CLASS (W204) C 320 CDI (204.022) 2007 – 2015 2987 165 224
MERCEDES-BENZ C-CLASS (W204) C 180 Kompressor (204.046) 2007 – 2015 1796 115 156
MERCEDES-BENZ C-CLASS (W204) C 200 Kompressor (204.041) 2007 – 2015 1796 135 184
MERCEDES-BENZ C-CLASS (W204) C 230 (204.052) 2007 – 2015 2496 150 204
MERCEDES-BENZ C-CLASS (W204) C 280 (204.054) 2007 – 2015 2996 170 231
MERCEDES-BENZ C-CLASS (W204) C 350 (204.056) 2007 – 2015 3498 200 272
MERCEDES-BENZ C-CLASS (W204) C 230 4-matic (204.085) 2007 – 2015 2496 150 204
MERCEDES-BENZ C-CLASS (W204) C 280 4-matic (204.081) 2007 – 2015 2996 170 231
MERCEDES-BENZ C-CLASS (W204) C 350 4-matic (204.087) 2007 – 2015 3498 200 272
MERCEDES-BENZ C-CLASS (W204) C 320 CDI 4-matic (204.089) 2007 – 2015 2987 165 224
MERCEDES-BENZ C-CLASS (W204) C 63 AMG (204.077) 2007 – 2015 6208 336 457
MERCEDES-BENZ C-CLASS (W204) C 180 Kompressor (204.044, 204.045) 2007 – 2015 1597 115 156
MERCEDES-BENZ C-CLASS (W204) C 350 CGI (204.065) 2007 – 2015 3498 215 292
MERCEDES-BENZ C-CLASS (W204) C 250 CDI (204.003) 2007 – 2015 2143 150 204
MERCEDES-BENZ C-CLASS (W204) C 220 CDI (204.002) 2007 – 2015 2143 125 170
MERCEDES-BENZ C-CLASS (W204) C 350 CDI (204.022) 2007 – 2015 2987 165 224
MERCEDES-BENZ C-CLASS (W204) C 350 CDI 4-matic (204.089) 2007 – 2015 2987 165 224
MERCEDES-BENZ C-CLASS (W204) C 250 CGI (204.047) 2007 – 2015 1796 150 204
MERCEDES-BENZ C-CLASS (W204) C 300 (204.054) 2007 – 2015 2996 170 231
MERCEDES-BENZ C-CLASS (W204) C 300 4-matic (204.081) 2007 – 2015 2996 170 231
MERCEDES-BENZ C-CLASS (W204) C 350 CDI (204.025) 2007 – 2015 2987 170 231
MERCEDES-BENZ C-CLASS (W204) C 350 CDI 4-matic (204.092) 2007 – 2015 2987 170 231
MERCEDES-BENZ C-CLASS (W204) C 180 CGI (204.049) 2007 – 2015 1796 115 156
MERCEDES-BENZ C-CLASS (W204) C 200 CGI (204.048) 2007 – 2015 1796 135 184
MERCEDES-BENZ C-CLASS (W204) C 220 CDI (204.008) 2007 – 2015 2148 120 163
MERCEDES-BENZ C-CLASS T-Model (S204) C 250 CGI (204.247) 2007 – 2014 1796 150 204
MERCEDES-BENZ C-CLASS T-Model (S204) C 200 CDI (204.201) 2007 – 2014 2143 100 136
MERCEDES-BENZ C-CLASS T-Model (S204) C 180 CGI (204.249) 2007 – 2014 1796 115 156
MERCEDES-BENZ C-CLASS T-Model (S204) C 250 CDI 4-matic (204.282) 2007 – 2014 2143 150 204
MERCEDES-BENZ C-CLASS T-Model (S204) C 180 CDI (204.200) 2007 – 2014 2143 88 120
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 CDI (204.223) 2007 – 2014 2987 195 265
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 CGI (204.257) 2007 – 2014 3498 225 306
MERCEDES-BENZ C-CLASS T-Model (S204) C 63 AMG (204.277) 2007 – 2014 6208 358 487
MERCEDES-BENZ C-CLASS T-Model (S204) C 180 Kompressor (204.246) 2007 – 2014 1796 115 156
MERCEDES-BENZ C-CLASS T-Model (S204) C 200 Kompressor (204.241) 2007 – 2014 1796 135 184
MERCEDES-BENZ C-CLASS T-Model (S204) C 230 (204.252) 2007 – 2014 2496 150 204
MERCEDES-BENZ C-CLASS T-Model (S204) C 280 (204.254) 2007 – 2014 2996 170 231
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 (204.256) 2007 – 2014 3498 200 272
MERCEDES-BENZ C-CLASS T-Model (S204) C 200 CDI (204.207) 2007 – 2014 2148 100 136
MERCEDES-BENZ C-CLASS T-Model (S204) C 220 CDI (204.208) 2007 – 2014 2148 125 170
MERCEDES-BENZ C-CLASS T-Model (S204) C 320 CDI (204.222) 2007 – 2014 2987 165 224
MERCEDES-BENZ C-CLASS T-Model (S204) C 320 CDI 4-matic (204.289) 2007 – 2014 2987 165 224
MERCEDES-BENZ C-CLASS T-Model (S204) C 63 AMG (204.277) 2007 – 2014 6208 336 457
MERCEDES-BENZ C-CLASS T-Model (S204) C 180 Kompressor (204.245) 2007 – 2014 1597 115 156
MERCEDES-BENZ C-CLASS T-Model (S204) C 220 CDI (204.202) 2007 – 2014 2143 125 170
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 CDI (204.225) 2007 – 2014 2987 170 231
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 CDI 4-matic (204.292) 2007 – 2014 2987 170 231
MERCEDES-BENZ C-CLASS T-Model (S204) C 250 CDI (204.203) 2007 – 2014 2143 150 204
MERCEDES-BENZ C-CLASS T-Model (S204) C 220 CDI (204.208) 2007 – 2014 2148 120 163
MERCEDES-BENZ C-CLASS T-Model (S204) C 300 (204.254) 2007 – 2014 2996 170 231
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 CDI (204.225) 2007 – 2014 2987 165 224
MERCEDES-BENZ C-CLASS T-Model (S204) C 200 CGI (204.248) 2007 – 2014 1796 135 184
MERCEDES-BENZ C-CLASS T-Model (S204) C 180 (204.231) 2007 – 2014 1595 115 156
MERCEDES-BENZ C-CLASS T-Model (S204) C 300 CDI 4-matic (204.292) 2007 – 2014 2987 170 231
MERCEDES-BENZ C-CLASS T-Model (S204) C 350 CDI 4-matic (204.289) 2007 – 2014 2987 165 224
MERCEDES-BENZ C-CLASS T-Model (S204) C 250 (204.252) 2007 – 2014 2496 150 204
MERCEDES-BENZ C-CLASS T-Model (S204) C 250 2007 – 2014 1991 155 211
MERCEDES-BENZ C-CLASS T-Model (S204) C 220 CDI (204.202) 2007 – 2014 2143 120 163
MERCEDES-BENZ C-CLASS T-Model (S204) C 220 CDI 4-matic (204.284) 2007 – 2014 2143 125 170
MERCEDES-BENZ C-CLASS T-Model (S204) C 63 AMG 2007 – 2014 6208 383 521
MERCEDES-BENZ C-CLASS T-Model (S204) C 63 AMG 2007 – 2014 6208 373 507
MERCEDES-BENZ M-CLASS (W164) ML 63 AMG 4-matic (164.177) 2005 – 2012 6208 375 510
MERCEDES-BENZ M-CLASS (W164) ML 300 4-matic (164.182) 2005 – 2012 2996 170 231
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic (164.124, 164.125, 164.122) 2005 – 2012 2987 155 211
MERCEDES-BENZ M-CLASS (W164) ML 350 (164.156) 2005 – 2012 3498 200 272
MERCEDES-BENZ M-CLASS (W164) ML 350 4-matic (164.186) 2005 – 2012 3498 200 272
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.175) 2005 – 2012 4966 225 306
MERCEDES-BENZ M-CLASS (W164) ML 280 CDI 4-matic (164.120) 2005 – 2012 2987 140 190
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic (164.122) 2005 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 63 AMG 4-matic (164.177) 2005 – 2012 6208 375 510
MERCEDES-BENZ M-CLASS (W164) ML 420 CDI 4-matic (164.128) 2005 – 2012 3996 225 306
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.172) 2005 – 2012 5461 285 388
MERCEDES-BENZ M-CLASS (W164) ML 300 CDI 4-matic (164.120) 2005 – 2012 2987 140 190
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.122) 2005 – 2012 2987 165 224
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124) 2005 – 2012 2987 155 211
MERCEDES-BENZ M-CLASS (W164) ML 450 CDI 4-matic (164.128) 2005 – 2012 3996 225 306
MERCEDES-BENZ M-CLASS (W164) ML 300 CDI 4-matic (164.121) 2005 – 2012 2987 150 204
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic (164.125, 164.124) 2005 – 2012 2987 170 231
MERCEDES-BENZ M-CLASS (W164) ML 450 Hybrid 4-matic (164.195) 2005 – 2012 3498 250 340
MERCEDES-BENZ M-CLASS (W164) ML 500 4-matic (164.175) 2005 – 2012 4966 218 296
MERCEDES-BENZ M-CLASS (W164) ML 320 CDI 4-matic 2005 – 2012 2987 160 218
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic 2005 – 2012 2987 190 258
MERCEDES-BENZ M-CLASS (W164) ML 350 CDI 4-matic 2005 – 2012 2987 157 214
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.023, 251.123) 2005 – 2017 2987 195 265
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CGI 4-matic (251.057, 251.157) 2005 – 2017 3498 225 306
MERCEDES-BENZ R-CLASS (W251, V251) R 350 4-matic (251.065, 251.165) 2005 – 2017 3498 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic (251.075, 251.175) 2005 – 2017 4966 225 306
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic (251.022, 251.122) 2005 – 2017 2987 165 224
MERCEDES-BENZ R-CLASS (W251, V251) R 280 CDI 4-matic (251.020) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 63 AMG 4-matic (251.077, 251.177) 2005 – 2017 6208 375 510
MERCEDES-BENZ R-CLASS (W251, V251) R 280 (251.054, 251.154) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 350 (251.056, 251.156) 2005 – 2017 3498 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic (251.072, 251.172) 2005 – 2017 5461 285 388
MERCEDES-BENZ R-CLASS (W251, V251) R 280 CDI (251.121, 251.026, 251.126) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 280 4-matic (251.062) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 300 CDI (251.021, 251.121, 251.026, 251.126) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 300 CDI 4-matic (251.020) 2005 – 2017 2987 140 190
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.022, 251.122) 2005 – 2017 2987 165 224
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic (251.124, 251.125) 2005 – 2017 2987 155 211
MERCEDES-BENZ R-CLASS (W251, V251) R 300 (251.054, 251.154) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 500 4-matic 2005 – 2017 4966 218 296
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic 2005 – 2017 2987 157 214
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic 2005 – 2017 2987 160 218
MERCEDES-BENZ R-CLASS (W251, V251) R 350 CDI 4-matic 2005 – 2017 2987 157 214
MERCEDES-BENZ R-CLASS (W251, V251) R 320 CDI 4-matic (251.125) 2005 – 2017 2987 155 211
MERCEDES-BENZ R-CLASS (W251, V251) R 63 AMG 4-matic (251.077, 251.177) 2005 – 2017 6208 375 510
MERCEDES-BENZ R-CLASS (W251, V251) R 300 4-matic (251.062) 2005 – 2017 2996 170 231
MERCEDES-BENZ R-CLASS (W251, V251) R 300 (251.154) 2005 – 2017 2996 180 245
MERCEDES-BENZ R-CLASS (W251, V251) R 320 4-matic (251.163) 2005 – 2017 2996 200 272
MERCEDES-BENZ R-CLASS (W251, V251) R 400 4-matic (251.166) 2005 – 2017 2996 245 333
