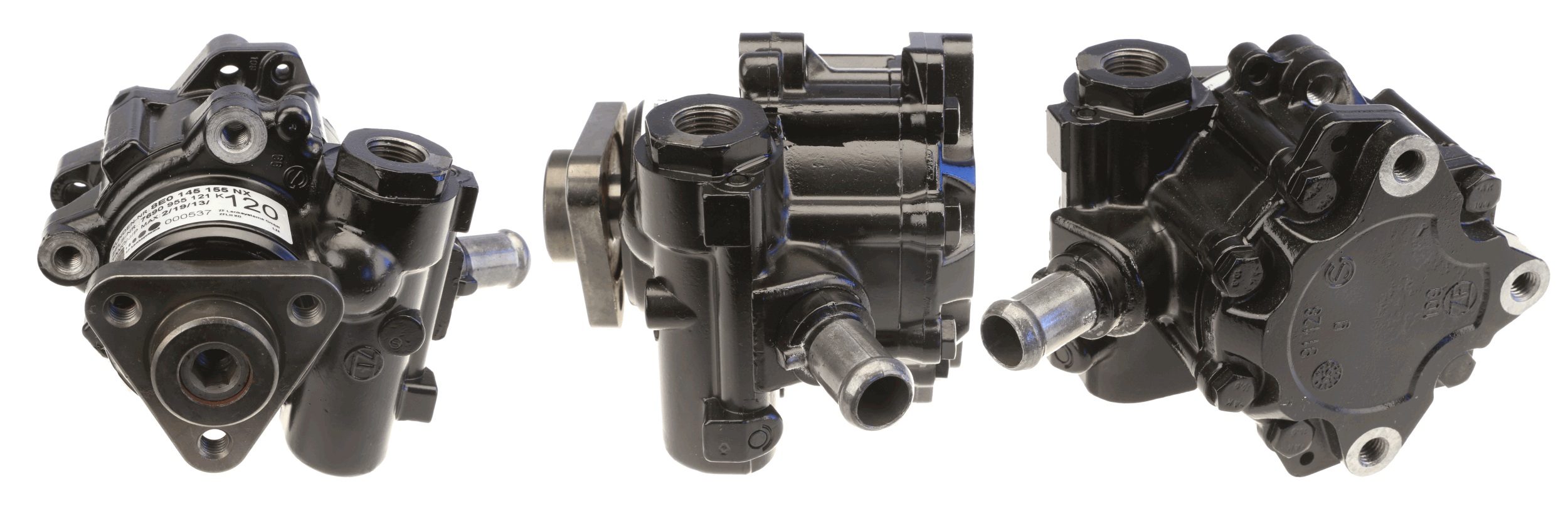

Hydraulic Pump, steering
Steering

Hydraulic Pump, steering

Part No. JPR840 · SKU JPR840-TRW
₱24,900.00
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Backflow Connector Thread Size M16x1,5
Distance from adapter to pump (mm)31
Distance of mounting bores (mm)80
Exchange Part
Manufacturer Restriction ZF
Mounting points diameter (mm)8
Number of inlets/outlets 2
Observe technical data
Operating Mode Hydraulic
Pressure (bar)120
Suction pipe connector diameter (mm)16
Backflow Connector Thread Size M16x1,5, Distance from adapter to pump [mm] 31, Distance of mounting bores [mm] 80, Exchange Part , Manufacturer Restriction ZF, Mounting points diameter [mm] 8, Number of inlets/outlets 2, Observe technical data , Operating Mode Hydraulic, Pressure [bar] 120, Suction pipe connector diameter [mm] 16
Fits: AUDI, SEAT

Supplier Cross-References

TRWJPR840 BOSCHKS00000518 DELCO REMYDSP1320 VAICOV100575 ZF PARTS2926401 TRISCAN851529636

Interchangeable Part Numbers

BOSCH KS00 000 518 BOSCH KS01 000 488 BOSCHKS01000488 DA SILVADP2990 DEPAPA515 DRI715520208 ELSTOCK150208 ERA BeneluxSP81251 GENERAL RICAMBIPI1199 JP GROUP1145101700 LENCOSP3703 LIZARTE04.13.0305 MAPCO27825 MAXGEAR480049 MEYLE114 631 0024 SPIDAN54292 Test_Bosch7690.955.121-40 Test_Bosch7690.955.121 WATBAD67Z

OE Numbers — AUDI

8E0 145 155 N
MakeModelType / Engine YearsCCkWHP
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 186 253
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 184 250
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 164 223
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 127 173
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 164 223
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 2671 187 254
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 110 150
AUDI A4 B6 (8E2) 2.0 2000 – 2005 1984 96 130
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 110 150
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 162 220
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 162 220
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 96 130
AUDI A4 B6 (8E2) 2.5 TDI quattro 2000 – 2005 2496 132 180
AUDI A4 B6 (8E2) 1.6 2000 – 2005 1595 75 102
AUDI A4 B6 (8E2) 2.5 TDI 2000 – 2005 2496 114 155
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 74 101
AUDI A4 B6 (8E2) 2.4 2000 – 2005 2393 125 170
AUDI A4 B6 (8E2) 2.0 FSI 2000 – 2005 1984 110 150
AUDI A4 B6 (8E2) 1.9 TDI quattro 2000 – 2005 1896 96 130
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 120 163
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 120 163
AUDI A4 B6 (8E2) 2.5 TDI 2000 – 2005 2496 120 163
AUDI A4 B6 (8E2) 2.4 2000 – 2005 2393 120 163
AUDI A4 B6 (8E2) S4 quattro 2000 – 2005 4163 253 344
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 140 190
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 140 190
AUDI A4 B6 (8E2) 1.9 TDI 2000 – 2005 1896 85 116
AUDI A4 B6 (8E2) 1.8 T 2000 – 2005 1781 125 170
AUDI A4 B6 (8E2) 1.8 T quattro 2000 – 2005 1781 125 170
AUDI A4 B6 (8E2) 3.0 2000 – 2005 2976 160 218
AUDI A4 B6 (8E2) 3.0 quattro 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 1.6 2000 – 2005 1595 75 102
AUDI A4 B6 Avant (8E5) 2.0 2000 – 2005 1984 96 130
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 110 150
AUDI A4 B6 Avant (8E5) 3.0 2000 – 2005 2976 162 220
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 96 130
AUDI A4 B6 Avant (8E5) 2.4 2000 – 2005 2393 125 170
AUDI A4 B6 Avant (8E5) 2.5 TDI quattro 2000 – 2005 2496 132 180
AUDI A4 B6 Avant (8E5) 2.5 TDI 2000 – 2005 2496 114 155
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 110 150
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 162 220
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 74 101
AUDI A4 B6 Avant (8E5) 1.9 TDI quattro 2000 – 2005 1896 96 130
AUDI A4 B6 Avant (8E5) 2.0 FSI 2000 – 2005 1984 110 150
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 120 163
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 120 163
AUDI A4 B6 Avant (8E5) 2.5 TDI 2000 – 2005 2496 120 163
AUDI A4 B6 Avant (8E5) 2.4 2000 – 2005 2393 120 163
AUDI A4 B6 Avant (8E5) 1.8 T 2000 – 2005 1781 140 190
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 140 190
AUDI A4 B6 Avant (8E5) S4 quattro 2000 – 2005 4163 253 344
AUDI A4 B6 Avant (8E5) 1.9 TDI 2000 – 2005 1896 85 116
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 125 170
AUDI A4 B6 Avant (8E5) 3.0 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 160 218
AUDI A4 B6 Avant (8E5) 1.8 T quattro 2000 – 2005 1781 127 173
AUDI A4 B6 Avant (8E5) 2.7 S4 quattro 2000 – 2005 2671 187 254
AUDI A4 B6 Avant (8E5) 3.0 quattro 2000 – 2005 2976 164 223
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 120 163
AUDI A4 B7 (8EC) 1.8 T 2004 – 2009 1781 125 170
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 93 126
AUDI A4 B7 (8EC) 2.0 FSI 2004 – 2009 1984 110 150
AUDI A4 B7 (8EC) 2.7 TDI 2004 – 2009 2698 120 163
AUDI A4 B7 (8EC) 3.2 FSI 2004 – 2009 3123 190 258
AUDI A4 B7 (8EC) 3.0 quattro 2004 – 2009 2976 160 218
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 120 163
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 89 121
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 149 203
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 147 200
AUDI A4 B7 (8EC) 2.0 TFSI quattro 2004 – 2009 1984 147 200
AUDI A4 B7 (8EC) 3.2 FSI 2004 – 2009 3123 188 255
AUDI A4 B7 (8EC) 3.2 FSI quattro 2004 – 2009 3123 188 255
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 100 136
AUDI A4 B7 (8EC) 2.0 TDI 16V 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 3.0 TDI quattro 2004 – 2009 2967 150 204
AUDI A4 B7 (8EC) 1.8 T 2004 – 2009 1781 120 163
AUDI A4 B7 (8EC) 1.8 T quattro 2004 – 2009 1781 120 163
AUDI A4 B7 (8EC) 2.0 2004 – 2009 1984 96 130
AUDI A4 B7 (8EC) 1.6 2004 – 2009 1595 75 102
AUDI A4 B7 (8EC) 1.9 TDI 2004 – 2009 1896 85 116
AUDI A4 B7 (8EC) 2.5 TDI 2004 – 2009 2496 120 163
AUDI A4 B7 (8EC) RS4 quattro 2004 – 2009 4163 309 420
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 162 220
AUDI A4 B7 (8EC) 2.0 TFSI quattro 2004 – 2009 1984 162 220
AUDI A4 B7 (8EC) S4 quattro 2004 – 2009 4163 253 344
AUDI A4 B7 (8EC) 3.0 2004 – 2009 2976 160 218
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 125 170
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 125 170
AUDI A4 B7 (8EC) 2.7 TDI 2004 – 2009 2698 132 180
AUDI A4 B7 (8EC) 3.0 TDI quattro 2004 – 2009 2967 171 233
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 125 170
AUDI A4 B7 Avant (8ED) 1.6 2004 – 2008 1595 75 102
AUDI A4 B7 Avant (8ED) 2.0 2004 – 2008 1984 96 130
AUDI A4 B7 Avant (8ED) 1.8 T 2004 – 2008 1781 120 163
AUDI A4 B7 Avant (8ED) 1.8 T quattro 2004 – 2008 1781 120 163
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 147 200
AUDI A4 B7 Avant (8ED) 2.0 TFSI quattro 2004 – 2008 1984 147 200
AUDI A4 B7 Avant (8ED) 3.2 FSI 2004 – 2008 3123 188 255
AUDI A4 B7 Avant (8ED) 3.2 FSI quattro 2004 – 2008 3123 188 255
AUDI A4 B7 Avant (8ED) 1.9 TDI 2004 – 2008 1896 85 116
AUDI A4 B7 Avant (8ED) 2.0 TDI 16V 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.5 TDI 2004 – 2008 2496 120 163
AUDI A4 B7 Avant (8ED) 3.0 TDI quattro 2004 – 2008 2967 150 204
AUDI A4 B7 Avant (8ED) RS4 quattro 2004 – 2008 4163 309 420
AUDI A4 B7 Avant (8ED) S4 quattro 2004 – 2008 4163 253 344
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 162 220
AUDI A4 B7 Avant (8ED) 2.0 TFSI quattro 2004 – 2008 1984 162 220
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 125 170
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 125 170
AUDI A4 B7 Avant (8ED) 2.7 TDI 2004 – 2008 2698 132 180
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 100 136
AUDI A4 B7 Avant (8ED) 3.0 TDI quattro 2004 – 2008 2967 171 233
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 125 170
AUDI A4 B7 Avant (8ED) 3.0 quattro 2004 – 2008 2976 160 218
AUDI A4 B7 Avant (8ED) 3.0 2004 – 2008 2976 160 218
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 89 121
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 93 126
AUDI A4 B7 Avant (8ED) 2.7 TDi 2004 – 2008 2698 120 163
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 120 163
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 120 163
AUDI A4 B7 Convertible (8HE) 2.0 TDI 2002 – 2010 1968 100 136
AUDI A4 B7 Convertible (8HE) 2.0 TFSI quattro 2002 – 2010 1984 147 200
AUDI A4 B7 Convertible (8HE) 1.8 T 2002 – 2010 1781 120 163
AUDI A4 B7 Convertible (8HE) S4 quattro 2002 – 2010 4163 253 344
AUDI A4 B7 Convertible (8HE) 3.2 FSI 2002 – 2010 3123 188 255
AUDI A4 B7 Convertible (8HE) 3.2 FSI quattro 2002 – 2010 3123 188 255
AUDI A4 B7 Convertible (8HE) 2.0 TDI 2002 – 2010 1968 103 140
AUDI A4 B7 Convertible (8HE) 3.0 TDI quattro 2002 – 2010 2967 171 233
AUDI A4 B7 Convertible (8HE) 2.0 TFSI 16V 2002 – 2010 1984 147 200
AUDI A4 B7 Convertible (8HE) 2.7 TDI 2002 – 2010 2698 132 180
AUDI A4 B7 Convertible (8HE) RS4 quattro 2002 – 2010 4163 309 420
AUDI A4 B7 Convertible (8HE) 3.0 TDI quattro 2002 – 2010 2967 150 204
