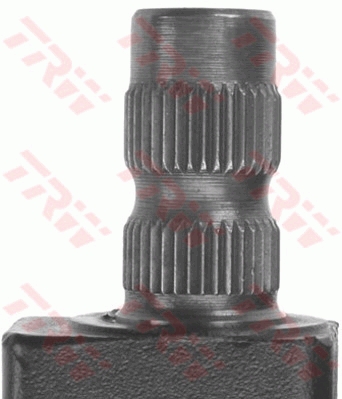

Steering Gear
Part No.
JRM442
·
SKU
JRM442-TRW
Price on request
Currently out of stock
Get notified when this part is back in stock:
Genuine & OEM parts
Nationwide delivery
Easy returns
Specifications
| Axle Joint Length (mm) | 250 |
| Axle Joint Thread Size M16x1,5 |
| Connector Length (mm) | 38 |
| Connector type verzahnt |
| External Thread 1 (mm) | M15 x 1.5 |
| Input Shaft Diameter (mm) | 15.5 |
| Left-/right-hand drive vehicles for left-hand drive vehicles |
| Number of Teeth on input shaft 36 |
| Observe technical data |
| Operating Mode Mechanical |
| Outer Length (mm) | 250 |
| Overall Length (mm) | 1475 |
Axle Joint Length [mm] 250, Axle Joint Thread Size M16x1,5, Connector Length [mm] 38, Connector type verzahnt, External Thread 1 [mm] M15 x 1.5, Input Shaft Diameter [mm] 15,5, Left-/right-hand drive vehicles for left-hand drive vehicles, Number of Teeth on input shaft 36, Observe technical data , Operating Mode Mechanical, Outer Length [mm] 250, Overall Length [mm] 1475
Interchangeable Part Numbers
LIZARTE02.39.3100
QUINTON HAZELLQSR294
OE Numbers — IVECO
37502067
93808352
