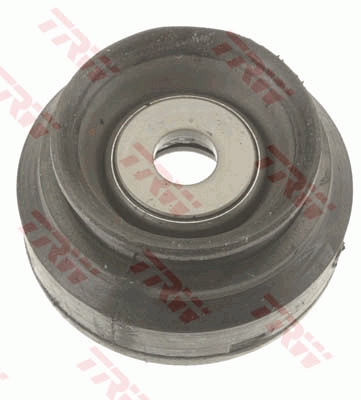

Suspension Strut Support Mount
Wheel Suspension

Suspension Strut Support Mount

Part No. JSB530 · SKU JSB530-TRW
Front Axle
₱3,100.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Bolt Hole Circle Ø (mm)62.15
Fitting Position Front Axle, for OE number 811 412 323 C, for OE number 811 412 323 CS, for OE number 811 412 323 D, for OE number 811 412 323, for OE number 8A0 412 323 S, for OE number 8A0 412 323 S1, for OE number 8A0 412 323
Height (mm)42.5
Inner Diameter (mm)14.2
Material Rubber/Metal
Outer Diameter (mm)76.4
Required quantity 2
Supplementary Article/Info 2 with ball bearing
Bolt Hole Circle Ø [mm] 62,15, Fitting Position Front Axle, for OE number 811 412 323 C, for OE number 811 412 323 CS, for OE number 811 412 323 D, for OE number 811 412 323, for OE number 8A0 412 323 S, for OE number 8A0 412 323 S1, for OE number 8A0 412 323, Height [mm] 42,5, Inner Diameter [mm] 14,2, Material Rubber/Metal, Outer Diameter [mm] 76,4, Required quantity 2, Supplementary Article/Info 2 with ball bearing
Fits: AUDI

Supplier Cross-References

TRWJSB530 LEMFÖRDER1007602 VW811412323D MEYLE1004120004HD FEBI BILSTEIN2429 VAICOV101199

Interchangeable Part Numbers

BORG & BECKBSM5010 FEBI BILSTEIN10446 GABRIELGK530 RUVILLE825415

OE Numbers — AUDI

811 412 323 CS 811 412 323 C 811 412 323 8A0 412 323 S1 8A0 412 323 S 8A0 412 323
MakeModelType / Engine YearsCCkWHP
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 40 55
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1297 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 54 73
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 63 85
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 GLE 1978 – 1987 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 65 88
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 D 1978 – 1987 1588 40 54
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 TD 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 CC quattro (85Q) 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 quattro (85Q) 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro (85Q) 1978 – 1987 2144 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.9 CD-5S 1978 – 1987 1921 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2144 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2144 96 131
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2226 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 61 83
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.7 1978 – 1987 1715 58 79
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1780 76 103
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 88 120
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 89 121
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 81 110
AUDI 90 B2 (813, 814, 853) 2.0 1984 – 1988 1994 85 115
AUDI 90 B2 (813, 814, 853) 2.2 1984 – 1988 2226 85 115
AUDI 90 B2 (813, 814, 853) 2.2 1984 – 1988 2226 100 136
AUDI 90 B2 (813, 814, 853) 2.2 E quattro 1984 – 1988 2226 100 136
AUDI 90 B2 (813, 814, 853) 2.2 E quattro 1984 – 1988 2226 88 120
AUDI 90 B2 (813, 814, 853) 2.0 1984 – 1988 1994 83 113
AUDI 90 B2 (813, 814, 853) 1.6 TD 1984 – 1988 1588 51 70
AUDI 90 B2 (813, 814, 853) 2.0 quattro 1984 – 1988 1994 85 116
AUDI 90 B3 (893, 894, 8A2) 2.0 1987 – 1991 1994 85 115
AUDI 90 B3 (893, 894, 8A2) 2.3 E 1987 – 1991 2309 100 136
AUDI 90 B3 (893, 894, 8A2) 2.3 E 1987 – 1991 2309 98 133
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V 1987 – 1991 2309 123 167
AUDI 90 B3 (893, 894, 8A2) 2.3 E quattro 1987 – 1991 2309 100 136
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V quattro 1987 – 1991 2309 125 170
AUDI 90 B3 (893, 894, 8A2) 2.3 E quattro 1987 – 1991 2309 98 133
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V quattro 1987 – 1991 2309 123 167
AUDI 90 B3 (893, 894, 8A2) 2.2 E 1987 – 1991 2226 100 136
AUDI 90 B3 (893, 894, 8A2) 2.2 E quattro 1987 – 1991 2226 100 136
AUDI 90 B3 (893, 894, 8A2) 2.3 E 20V 1987 – 1991 2309 125 170
AUDI 90 B3 (893, 894, 8A2) 1.6 TD 1987 – 1991 1588 59 80
AUDI 90 B3 (893, 894, 8A2) 2.0 20 V 1987 – 1991 1994 118 160
AUDI 90 B3 (893, 894, 8A2) 2.0 20 V quattro 1987 – 1991 1994 118 160
AUDI 90 B3 (893, 894, 8A2) 2.0 quattro 1987 – 1991 1984 101 137
AUDI 90 B3 (893, 894, 8A2) 2.0 1987 – 1991 1983 80 109
AUDI 90 B3 (893, 894, 8A2) 2.0 E 1987 – 1991 1984 83 113
AUDI 90 B3 (893, 894, 8A2) 1.8 E 1987 – 1991 1781 82 111
AUDI COUPE B2 (81, 855, 856) 1.8 1980 – 1988 1781 55 75
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 65 88
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 66 90
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 79 107
AUDI COUPE B2 (81, 855, 856) 1.9 1980 – 1988 1921 85 115
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 85 115
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 96 131
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 85 115
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 100 136
AUDI COUPE B2 (81, 855, 856) 2.2 quattro 1980 – 1988 2226 88 120
AUDI COUPE B2 (81, 855, 856) 1.8 GT 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 2.3 1980 – 1988 2309 98 133
AUDI COUPE B2 (81, 855, 856) 2.3 quattro 1980 – 1988 2309 98 133
AUDI COUPE B2 (81, 855, 856) 2.0 1980 – 1988 1994 83 113
AUDI COUPE B2 (81, 855, 856) 1.6 1980 – 1988 1588 55 75
AUDI COUPE B2 (81, 855, 856) 2.1 GT 1980 – 1988 2144 79 107
AUDI COUPE B2 (81, 855, 856) 1.8 GT quattro 1980 – 1988 1781 82 112
AUDI COUPE B2 (81, 855, 856) 2.2 GT 1980 – 1988 2226 88 120
AUDI COUPE B3 (89, 8B3) 2.3 1988 – 1996 2309 100 136
AUDI COUPE B3 (89, 8B3) 2.0 1988 – 1996 1984 85 115
AUDI COUPE B3 (89, 8B3) 2.0 16 V 1988 – 1996 1984 103 140
AUDI COUPE B3 (89, 8B3) 2.3 1988 – 1996 2309 98 133
AUDI COUPE B3 (89, 8B3) 2.3 20V 1988 – 1996 2309 123 167
AUDI COUPE B3 (89, 8B3) 2.6 1988 – 1996 2598 110 150
AUDI COUPE B3 (89, 8B3) 2.8 1988 – 1996 2771 128 174
AUDI COUPE B3 (89, 8B3) 2.3 quattro 1988 – 1996 2309 100 136
AUDI COUPE B3 (89, 8B3) 2.3 20V quattro 1988 – 1996 2309 125 170
AUDI COUPE B3 (89, 8B3) S2 quattro 1988 – 1996 2226 162 220
AUDI COUPE B3 (89, 8B3) S2 quattro 1988 – 1996 2226 169 230
AUDI COUPE B3 (89, 8B3) 2.3 quattro 1988 – 1996 2309 98 134
AUDI COUPE B3 (89, 8B3) 2.3 20V quattro 1988 – 1996 2309 123 167
AUDI COUPE B3 (89, 8B3) 2.6 quattro 1988 – 1996 2598 110 150
AUDI COUPE B3 (89, 8B3) 2.8 quattro 1988 – 1996 2771 128 174
AUDI COUPE B3 (89, 8B3) 2.3 20V 1988 – 1996 2309 125 170
AUDI COUPE B3 (89, 8B3) 1.8 1988 – 1996 1781 82 112
AUDI COUPE B3 (89, 8B3) 2.2 quattro 1988 – 1996 2226 100 136
AUDI COUPE B3 (89, 8B3) 2.0 16 V 1988 – 1996 1984 101 137
AUDI COUPE B3 (89, 8B3) 2.0 20 V quattro 1988 – 1996 1994 118 160
AUDI COUPE B3 (89, 8B3) 2.0 20 V 1988 – 1996 1994 118 160
AUDI COUPE B3 (89, 8B3) 2.0 1988 – 1996 1984 82 112
AUDI COUPE B3 (89, 8B3) 2.0 1988 – 1996 1984 83 113
AUDI COUPE B3 (89, 8B3) 2.3 1988 – 1996 2309 97 132
AUDI COUPE B3 (89, 8B3) 2.2 1988 – 1996 2226 100 136
