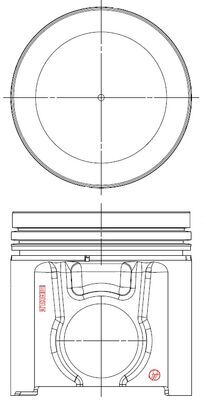

Specifications
| Bolt Head Diameter (mm) | 65.0 |
| Bolt Length (mm) | 119.0 |
| Compression Height (mm) | 113.0 |
| Cylinder Bore (mm) | 159 |
| Length (mm) | 160.9 |
| Production Number I5505 | |
| Recess Depth 1 (mm) | 21.4 |
| Recess Diameter (mm) | 133.0 |
| Supplementary Article/Info 2 with cooling duct | |
| Supplementary Article/Supplementary Info with piston pin | |
Bolt Head Diameter [mm] 65,0, Bolt Length [mm] 119,0, Compression Height [mm] 113,0, Cylinder Bore [mm] 159, Length [mm] 160,9, Production Number I5505, Recess Depth 1 [mm] 21,4, Recess Diameter [mm] 133,0, Supplementary Article/Info 2 with cooling duct, Supplementary Article/Supplementary Info with piston pin
