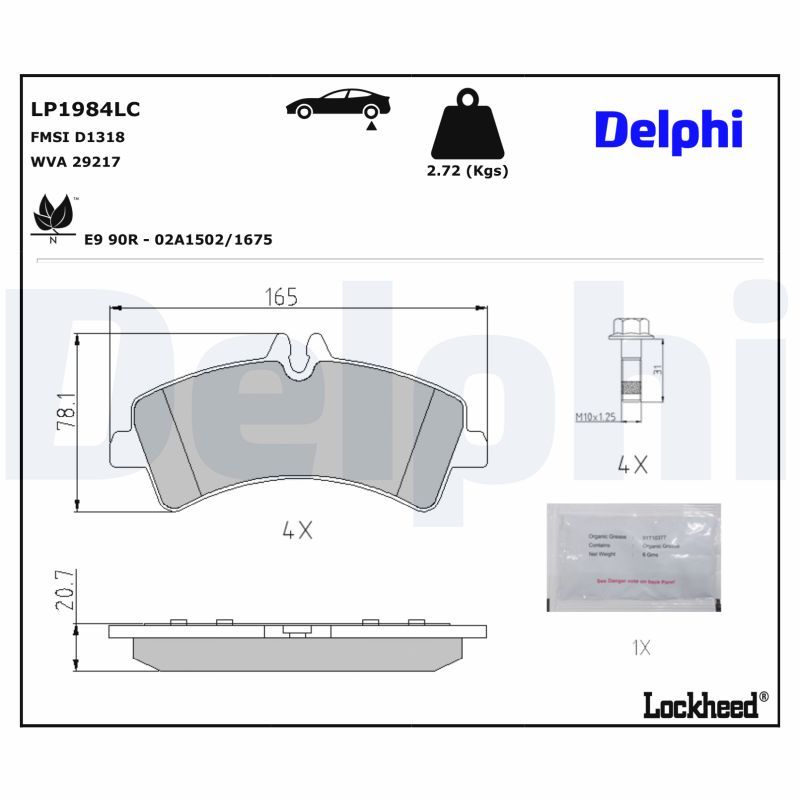

Specifications
| Brake System Bosch | |
| FMSI Code D1318 | |
| Height 1 (mm) | 78.1 |
| Height 2 (mm) | 78.1 |
| Supplementary Article/Info 2 with anti-squeak plate | |
| Supplementary Article/Supplementary Info with accessories | |
| Test Mark E9 90R-02A1502/1675 | |
| Thickness 1 (mm) | 20.5 |
| Thickness 2 (mm) | 20.5 |
| Wear Warning Contact prepared for wear warning indicator | |
| Width 1 (mm) | 165 |
| Width 2 (mm) | 165 |
| WVA Number 29217 | |
Brake System Bosch, FMSI Code D1318, Height 1 [mm] 78,1, Height 2 [mm] 78,1, Supplementary Article/Info 2 with anti-squeak plate, Supplementary Article/Supplementary Info with accessories, Test Mark E9 90R-02A1502/1675, Thickness 1 [mm] 20,5, Thickness 2 [mm] 20,5, Wear Warning Contact prepared for wear warning indicator, Width 1 [mm] 165, Width 2 [mm] 165, WVA Number 29217
Fits: MERCEDES-BENZ, VW
Fits: MERCEDES-BENZ, VW
OE Numbers — MERCEDES-BENZ
OE Numbers — VW
| Make | Model | Type / Engine | Years | CC | kW | HP |
|---|---|---|---|---|---|---|
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 314 CDI 4x4 (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2143 | 105 | 143 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 311 CDI 4x4 (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2148 | 80 | 109 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 315 CDI 4x4 (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2148 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 318 CDI 4x4 (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2987 | 135 | 184 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 316 CDI 4x4 (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2143 | 120 | 163 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 316 NGT (906.633, 906.635) | 2006 – 2020 | 1796 | 115 | 156 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 316 LGT (906.633, 906.635) | 2006 – 2020 | 1796 | 115 | 156 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 319 CDI / BlueTEC (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2987 | 140 | 190 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 316 CDI (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2143 | 120 | 163 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 314 CDI (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2143 | 105 | 143 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 311 CDI (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2143 | 84 | 114 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 316 (906.635, 906.633) | 2006 – 2020 | 1796 | 115 | 156 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 313 CDI (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2148 | 95 | 129 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 310 CDI (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2143 | 70 | 95 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 315 CDI (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2148 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 319 CDI / BlueTEC 4x4 (906.631, 906.633, 906.635,... | 2006 – 2020 | 2987 | 140 | 190 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 313 CDI (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2143 | 95 | 129 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 313 CDI 4x4 (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2143 | 95 | 129 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 324 (906.633, 906.635, 906.637) | 2006 – 2020 | 3498 | 190 | 258 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 311 CDI (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2148 | 80 | 109 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 309 CDI (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2148 | 65 | 88 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 318 CDI (906.631, 906.633, 906.635, 906.637) | 2006 – 2020 | 2987 | 135 | 184 |
| MERCEDES-BENZ | SPRINTER 3,5-t Van (B906) | 315 CDI (906.633, 906.637) | 2006 – 2020 | 2143 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 4,6-t Platform/Chassis (B906) | 411 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2143 | 84 | 114 |
| MERCEDES-BENZ | SPRINTER 4,6-t Platform/Chassis (B906) | 419 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2987 | 140 | 190 |
| MERCEDES-BENZ | SPRINTER 4,6-t Platform/Chassis (B906) | 416 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2143 | 120 | 163 |
| MERCEDES-BENZ | SPRINTER 4,6-t Platform/Chassis (B906) | 424 (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 3498 | 190 | 258 |
| MERCEDES-BENZ | SPRINTER 4,6-t Platform/Chassis (B906) | 414 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2143 | 105 | 143 |
| MERCEDES-BENZ | SPRINTER 4,6-t Platform/Chassis (B906) | 415 CDI (906.155) | 2006 – 2020 | 2143 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 4,6-t Platform/Chassis (B906) | 411 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2148 | 80 | 109 |
| MERCEDES-BENZ | SPRINTER 4,6-t Platform/Chassis (B906) | 413 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2143 | 95 | 129 |
| MERCEDES-BENZ | SPRINTER 4,6-t Platform/Chassis (B906) | 418 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2987 | 135 | 184 |
| MERCEDES-BENZ | SPRINTER 4,6-t Platform/Chassis (B906) | 415 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2148 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 4,6-t Van (B906) | 415 CDI (906.631, 906.633, 906.635, 906.655) | 2006 – 2020 | 2143 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 4,6-t Van (B906) | 414 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2143 | 105 | 143 |
| MERCEDES-BENZ | SPRINTER 4,6-t Van (B906) | 416 CDI 4x4 (906.655, 906.657) | 2006 – 2020 | 2143 | 120 | 163 |
| MERCEDES-BENZ | SPRINTER 4,6-t Van (B906) | 411 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2148 | 80 | 109 |
| MERCEDES-BENZ | SPRINTER 4,6-t Van (B906) | 414 CDI 4x4 (906.653, 906.655, 906.657) | 2006 – 2020 | 2143 | 105 | 143 |
| MERCEDES-BENZ | SPRINTER 4,6-t Van (B906) | 415 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2148 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 4,6-t Van (B906) | 418 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2987 | 135 | 184 |
| MERCEDES-BENZ | SPRINTER 4,6-t Van (B906) | 413 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2143 | 95 | 129 |
| MERCEDES-BENZ | SPRINTER 4,6-t Van (B906) | 411 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2143 | 84 | 114 |
| MERCEDES-BENZ | SPRINTER 4,6-t Van (B906) | 416 CDI (906.653, 906.655, 906.657, 906.633, 906.635,... | 2006 – 2020 | 2143 | 120 | 163 |
| MERCEDES-BENZ | SPRINTER 4,6-t Van (B906) | 424 (906.655, 906.657, 906.653) | 2006 – 2020 | 3498 | 190 | 258 |
| MERCEDES-BENZ | SPRINTER 4,6-t Van (B906) | 419 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2987 | 140 | 190 |
| MERCEDES-BENZ | SPRINTER 5-t Bus (B906) | 516 CDI (906.655, 906.657) | 2006 – 2020 | 2143 | 120 | 163 |
| MERCEDES-BENZ | SPRINTER 5-t Bus (B906) | 513 CDI (906.655, 906.657) | 2006 – 2020 | 2143 | 95 | 129 |
| MERCEDES-BENZ | SPRINTER 5-t Bus (B906) | 519 CDI (906.655, 906.657) | 2006 – 2020 | 2987 | 140 | 190 |
| MERCEDES-BENZ | SPRINTER 5-t Bus (B906) | 515 CDI (906.655, 906.657) | 2006 – 2020 | 2143 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 516 (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 1796 | 115 | 156 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 513 CDI 4x4 (906.155, 906.253, 906.255, 906.153) | 2006 – 2020 | 2143 | 95 | 129 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 516 CDI 4x4 (906.153, 906.155, 906.255, 906.253) | 2006 – 2020 | 2143 | 120 | 163 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 509 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2148 | 65 | 88 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 511 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2148 | 80 | 109 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 515 CDI (906.155) | 2006 – 2020 | 2143 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 515 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2148 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 518 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2987 | 135 | 184 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 514 CDI 4x4 (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2143 | 105 | 143 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 514 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2143 | 105 | 143 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 511 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2143 | 84 | 114 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 516 NGT (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 1796 | 115 | 156 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 524 (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 3498 | 190 | 258 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 519 CDI / BlueTEC (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2987 | 140 | 190 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 513 CDI (906.155, 906.253, 906.255) | 2006 – 2020 | 2148 | 95 | 129 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 511 CDI 4x4 (906.155, 906.253, 906.255) | 2006 – 2020 | 2148 | 80 | 109 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 515 CDI 4x4 (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2148 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 518 CDI 4x4 (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2987 | 135 | 184 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 519 CDI / BlueTEC 4x4 (906.153, 906.155, 906.253,... | 2006 – 2020 | 2987 | 140 | 190 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 513 CDI (906.155, 906.253, 906.255, 906.153) | 2006 – 2020 | 2143 | 95 | 129 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 516 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2143 | 120 | 163 |
| MERCEDES-BENZ | SPRINTER 5-t Platform/Chassis (B906) | 510 CDI (906.153, 906.155, 906.253, 906.255) | 2006 – 2020 | 2143 | 70 | 95 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 518 CDI 4x4 (906.653, 906.655, 906.657) | 2006 – 2020 | 2987 | 135 | 184 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 513 CDI 4x4 (906.653, 906.655, 906.657) | 2006 – 2020 | 2143 | 95 | 129 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 516 NGT (906.655) | 2006 – 2020 | 1796 | 115 | 156 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 515 CDI 4x4 (906.653, 906.655, 906.657) | 2006 – 2020 | 2148 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 509 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2148 | 65 | 88 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 519 CDI / BlueTEC 4x4 (906.653, 906.655, 906.657) | 2006 – 2020 | 2987 | 140 | 190 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 516 | 2006 – 2020 | 1796 | 115 | 156 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 515 CDI (906.655, 906.653, 906.957, 906.657) | 2006 – 2020 | 2143 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 511 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2148 | 80 | 109 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 519 CDI / BlueTEC (906.653, 906.655, 906.657) | 2006 – 2020 | 2987 | 140 | 190 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 515 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2148 | 110 | 150 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 516 CDI 4x4 (906.653, 906.655, 906.657) | 2006 – 2020 | 2143 | 120 | 163 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 518 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2987 | 135 | 184 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 513 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2148 | 95 | 129 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 510 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2143 | 70 | 95 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 513 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2143 | 95 | 129 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 516 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2143 | 120 | 163 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 514 CDI 4x4 (906.653, 906.655, 906.657) | 2006 – 2020 | 2143 | 105 | 143 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 514 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2143 | 105 | 143 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 511 CDI (906.653, 906.655, 906.657) | 2006 – 2020 | 2143 | 84 | 114 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 524 (906.653, 906.655, 906.657) | 2006 – 2020 | 3498 | 190 | 258 |
| MERCEDES-BENZ | SPRINTER 5-t Van (B906) | 511 CDI 4x4 (906.653, 906.655, 906.657) | 2006 – 2020 | 2148 | 80 | 109 |
