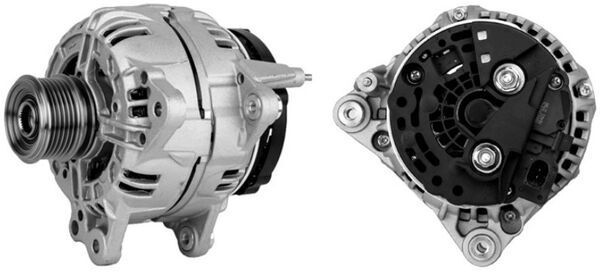

Alternator
Alternator 1 Alternator 2 Alternator 3
Alternator

Alternator

Part No. MG 1089 · SKU MG 1089-MAHLE
₱28,400.00
In stock — available to order
Genuine & OEM parts Nationwide delivery Easy returns

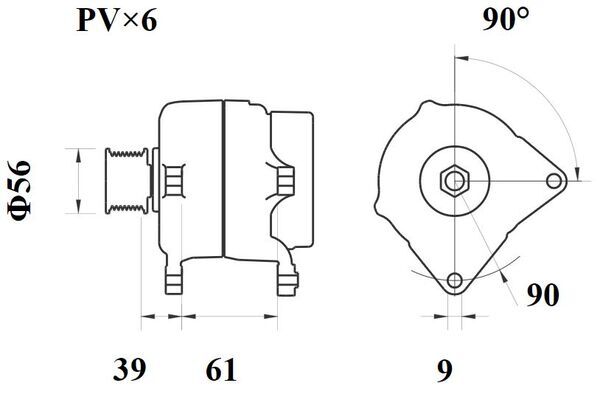

Specifications

Alternator Charging Current (A)140
Alternator Type Multi-function
Belt Pulley Ø (mm)56
Bore Diameter (mm)9
Compact Alternator
Distance from belt pulley to alternator (mm)39
Distance of mounting bores (mm)61
Mounting Angle (degrees)90
Mounting points diameter (mm)90
Net Weight (g)6810
Number of ribs 6
Packaging height (cm)17.50
Packaging length (cm)24.8
Packaging width (cm)18.60
Pulleys with freewheel belt pulley
Rotation Direction Clockwise rotation
Alternator Charging Current [A] 140, Alternator Type Multi-function, Belt Pulley Ø [mm] 56, Bore Diameter [mm] 9, Compact Alternator , Distance from belt pulley to alternator [mm] 39, Distance of mounting bores [mm] 61, Mounting Angle [degrees] 90, Mounting points diameter [mm] 90, Net Weight [g] 6810, Number of ribs 6, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with freewheel belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
Fits: AUDI, MITSUBISHI, SEAT, SKODA, VW

Supplier Cross-References

MAHLEMG1089 CONTINENTAL CTAMAP9001 FRIESEN9045340 DENSODAN3001 VW03I903023F INA535001210

Interchangeable Part Numbers

BOSCH 0 124 525039 BOSCH0124525039 BOSCH 0 124 525539 BOSCH0124525539 BOSCH0124525525 BOSCH0986045340 BOSCH 1 986 A00902 BOSCH1986A00902 BOSCH124525091 BOSCH124525092 CASCOCAL10420AS VALEO442030 WAI11134N

OE Numbers — AUDI

03L903023F 06F903023A 06F903023C 06F903023F 06F903023H 06F903023HX 06F903023J

OE Numbers — VW

06F903023AX 06F903023CX 06F903023FX 38522326F
MakeModelType / Engine YearsCCkWHP
AUDI A1 (8X1, 8XK) 1.4 TDI 2010 – 2019 1422 66 90
AUDI A1 (8X1, 8XK) S1 quattro 2010 – 2019 1984 170 231
AUDI A1 (8X1, 8XK) 2.0 TFSI quattro 2010 – 2019 1984 188 256
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 92 125
AUDI A1 (8X1, 8XK) 1.4 TSI 2010 – 2019 1395 110 150
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 85 115
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 90 122
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 77 105
AUDI A1 (8X1, 8XK) 1.2 TFSI 2010 – 2019 1197 63 86
AUDI A1 (8X1, 8XK) 1.8 TFSI 2010 – 2019 1798 141 192
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 70 95
AUDI A1 (8X1, 8XK) 1.0 TFSI 2010 – 2019 999 60 82
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1390 136 185
AUDI A1 (8X1, 8XK) 1.6 TDI 2010 – 2019 1598 66 90
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 105 143
AUDI A1 (8X1, 8XK) 1.4 TFSI 2010 – 2019 1395 103 140
AUDI A1 (8X1, 8XK) 2.0 TDI 2010 – 2019 1968 100 136
AUDI A1 Sportback (8XA, 8XF) 1.2 TFSI 2011 – 2019 1197 63 86
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 90 122
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 103 140
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1390 136 185
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 66 90
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 77 105
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 100 136
AUDI A1 Sportback (8XA, 8XF) 1.6 TDI 2011 – 2019 1598 85 115
AUDI A1 Sportback (8XA, 8XF) 1.4 30 TFSI 2011 – 2019 1395 92 125
AUDI A1 Sportback (8XA, 8XF) S1 quattro 2011 – 2019 1984 170 231
AUDI A1 Sportback (8XA, 8XF) 1.4 TFSI 2011 – 2019 1395 92 125
AUDI A1 Sportback (8XA, 8XF) 1.4 TSI 2011 – 2019 1395 110 150
AUDI A1 Sportback (8XA, 8XF) 1.8 TFSI 2011 – 2019 1798 141 192
AUDI A1 Sportback (8XA, 8XF) 2.0 TDI 2011 – 2019 1968 105 143
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 60 82
AUDI A1 Sportback (8XA, 8XF) 1.4 TDI 2011 – 2019 1422 66 90
AUDI A1 Sportback (8XA, 8XF) 1.0 TFSI 2011 – 2019 999 70 95
AUDI A3 (8P1) 1.2 TSI 2003 – 2013 1197 77 105
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 188 256
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 120 163
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 66 90
AUDI A3 (8P1) 1.8 TFSI quattro 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.6 TDI 2003 – 2013 1598 77 105
AUDI A3 (8P1) 1.4 TFSI 2003 – 2013 1390 92 125
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.8 TFSI 2003 – 2013 1798 118 160
AUDI A3 (8P1) 1.8 T 2003 – 2013 1781 110 150
AUDI A3 (8P1) 1.6 E-Power 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 FSI 2003 – 2013 1984 110 150
AUDI A3 (8P1) 1.6 2003 – 2013 1595 75 102
AUDI A3 (8P1) 2.0 TDI 16V 2003 – 2013 1968 103 140
AUDI A3 (8P1) 1.9 TDI 2003 – 2013 1896 77 105
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 100 136
AUDI A3 (8P1) 3.2 V6 quattro 2003 – 2013 3189 184 250
AUDI A3 (8P1) 1.6 FSI 2003 – 2013 1598 85 115
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 100 136
AUDI A3 (8P1) 2.0 TFSI 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TFSI quattro 2003 – 2013 1984 147 200
AUDI A3 (8P1) 2.0 TDI 16V quattro 2003 – 2013 1968 103 140
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 125 170
AUDI A3 (8P1) 2.0 TDI quattro 2003 – 2013 1968 125 170
AUDI A3 (8P1) S3 quattro 2003 – 2013 1984 195 265
AUDI A3 (8P1) 2.0 TDI 2003 – 2013 1968 103 140
AUDI A3 Convertible (8P7) 1.4 TFSI 2008 – 2013 1390 92 125
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 103 140
AUDI A3 Convertible (8P7) 1.6 2008 – 2013 1595 75 102
AUDI A3 Convertible (8P7) 1.6 TDI 2008 – 2013 1598 77 105
AUDI A3 Convertible (8P7) 2.0 TDI 2008 – 2013 1968 100 136
AUDI A3 Convertible (8P7) 1.8 TFSI 2008 – 2013 1798 118 160
AUDI A3 Convertible (8P7) 2.0 TFSI 2008 – 2013 1984 147 200
AUDI A3 Convertible (8P7) 1.9 TDI 2008 – 2013 1896 77 105
AUDI A3 Convertible (8P7) 1.2 TFSI 2008 – 2013 1197 77 105
AUDI A3 Sportback (8PA) 1.2 TSI 2004 – 2015 1197 77 105
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 120 163
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 104 141
AUDI A3 Sportback (8PA) 1.8 FSI 2004 – 2015 1781 110 150
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 77 105
AUDI A3 Sportback (8PA) 1.6 TDI 2004 – 2015 1598 66 90
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 188 256
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 1.8 TFSI quattro 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 1.8 TFSI 2004 – 2015 1798 118 160
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 1.4 TFSI 2004 – 2015 1390 92 125
AUDI A3 Sportback (8PA) S3 quattro 2004 – 2015 1984 195 265
AUDI A3 Sportback (8PA) 1.6 E-Power 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) RS3 quattro 2004 – 2015 2480 250 340
AUDI A3 Sportback (8PA) 1.6 2004 – 2015 1595 75 102
AUDI A3 Sportback (8PA) 1.9 TDI 2004 – 2015 1896 77 105
AUDI A3 Sportback (8PA) 1.6 FSI 2004 – 2015 1598 85 115
AUDI A3 Sportback (8PA) 2.0 FSI 2004 – 2015 1984 110 150
AUDI A3 Sportback (8PA) 3.2 V6 quattro 2004 – 2015 3189 184 250
AUDI A3 Sportback (8PA) 2.0 TDI 16V 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TFSI 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TFSI quattro 2004 – 2015 1984 147 200
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 100 136
AUDI A3 Sportback (8PA) 2.0 TDI 16V quattro 2004 – 2015 1968 103 140
AUDI A3 Sportback (8PA) 2.0 TDI 2004 – 2015 1968 125 170
AUDI A3 Sportback (8PA) 2.0 TDI quattro 2004 – 2015 1968 125 170
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 147 200
AUDI A4 B7 (8EC) 2.0 TFSI quattro 2004 – 2009 1984 147 200
AUDI A4 B7 (8EC) 3.2 FSI 2004 – 2009 3123 188 255
AUDI A4 B7 (8EC) 3.2 FSI quattro 2004 – 2009 3123 188 255
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 100 136
AUDI A4 B7 (8EC) 2.0 TDI 16V 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 3.0 TDI quattro 2004 – 2009 2967 150 204
AUDI A4 B7 (8EC) 1.8 T 2004 – 2009 1781 120 163
AUDI A4 B7 (8EC) 1.8 T quattro 2004 – 2009 1781 120 163
AUDI A4 B7 (8EC) 2.0 2004 – 2009 1984 96 130
AUDI A4 B7 (8EC) 1.6 2004 – 2009 1595 75 102
AUDI A4 B7 (8EC) 1.9 TDI 2004 – 2009 1896 85 116
AUDI A4 B7 (8EC) 2.5 TDI 2004 – 2009 2496 120 163
AUDI A4 B7 (8EC) RS4 quattro 2004 – 2009 4163 309 420
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 162 220
AUDI A4 B7 (8EC) 2.0 TFSI quattro 2004 – 2009 1984 162 220
AUDI A4 B7 (8EC) S4 quattro 2004 – 2009 4163 253 344
AUDI A4 B7 (8EC) 3.0 2004 – 2009 2976 160 218
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 125 170
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 125 170
AUDI A4 B7 (8EC) 2.7 TDI 2004 – 2009 2698 132 180
AUDI A4 B7 (8EC) 3.0 TDI quattro 2004 – 2009 2967 171 233
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 103 140
AUDI A4 B7 (8EC) 2.0 TDI quattro 2004 – 2009 1968 120 163
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 120 163
AUDI A4 B7 (8EC) 3.0 quattro 2004 – 2009 2976 160 218
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 93 126
AUDI A4 B7 (8EC) 2.7 TDI 2004 – 2009 2698 120 163
AUDI A4 B7 (8EC) 3.2 FSI 2004 – 2009 3123 190 258
AUDI A4 B7 (8EC) 2.0 FSI 2004 – 2009 1984 110 150
AUDI A4 B7 (8EC) 1.8 T 2004 – 2009 1781 125 170
AUDI A4 B7 (8EC) 2.0 TDI 2004 – 2009 1968 89 121
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 125 170
AUDI A4 B7 (8EC) 2.0 TFSI 2004 – 2009 1984 149 203
AUDI A4 B7 Avant (8ED) 3.0 quattro 2004 – 2008 2976 160 218
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 89 121
AUDI A4 B7 Avant (8ED) 3.0 2004 – 2008 2976 160 218
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 120 163
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 120 163
AUDI A4 B7 Avant (8ED) 2.7 TDi 2004 – 2008 2698 120 163
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 93 126
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 125 170
AUDI A4 B7 Avant (8ED) 1.6 2004 – 2008 1595 75 102
AUDI A4 B7 Avant (8ED) 2.0 2004 – 2008 1984 96 130
AUDI A4 B7 Avant (8ED) 1.8 T 2004 – 2008 1781 120 163
AUDI A4 B7 Avant (8ED) 1.8 T quattro 2004 – 2008 1781 120 163
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 147 200
AUDI A4 B7 Avant (8ED) 2.0 TFSI quattro 2004 – 2008 1984 147 200
AUDI A4 B7 Avant (8ED) 3.2 FSI 2004 – 2008 3123 188 255
AUDI A4 B7 Avant (8ED) 3.2 FSI quattro 2004 – 2008 3123 188 255
AUDI A4 B7 Avant (8ED) 1.9 TDI 2004 – 2008 1896 85 116
AUDI A4 B7 Avant (8ED) 2.0 TDI 16V 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.5 TDI 2004 – 2008 2496 120 163
AUDI A4 B7 Avant (8ED) 3.0 TDI quattro 2004 – 2008 2967 150 204
AUDI A4 B7 Avant (8ED) RS4 quattro 2004 – 2008 4163 309 420
AUDI A4 B7 Avant (8ED) S4 quattro 2004 – 2008 4163 253 344
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 103 140
AUDI A4 B7 Avant (8ED) 2.0 TFSI 2004 – 2008 1984 162 220
AUDI A4 B7 Avant (8ED) 2.0 TFSI quattro 2004 – 2008 1984 162 220
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 125 170
AUDI A4 B7 Avant (8ED) 2.0 TDI quattro 2004 – 2008 1968 125 170
AUDI A4 B7 Avant (8ED) 2.7 TDI 2004 – 2008 2698 132 180
AUDI A4 B7 Avant (8ED) 2.0 TDI 2004 – 2008 1968 100 136
AUDI A4 B7 Avant (8ED) 3.0 TDI quattro 2004 – 2008 2967 171 233
AUDI A4 B7 Convertible (8HE) 3.2 FSI 2002 – 2010 3123 188 255
AUDI A4 B7 Convertible (8HE) 3.2 FSI quattro 2002 – 2010 3123 188 255
AUDI A4 B7 Convertible (8HE) 2.0 TDI 2002 – 2010 1968 103 140
AUDI A4 B7 Convertible (8HE) 3.0 TDI quattro 2002 – 2010 2967 171 233
AUDI A4 B7 Convertible (8HE) 2.0 TFSI 16V 2002 – 2010 1984 147 200
AUDI A4 B7 Convertible (8HE) 2.7 TDI 2002 – 2010 2698 132 180
AUDI A4 B7 Convertible (8HE) RS4 quattro 2002 – 2010 4163 309 420
AUDI A4 B7 Convertible (8HE) 3.0 TDI quattro 2002 – 2010 2967 150 204
AUDI A4 B7 Convertible (8HE) 2.0 TFSI quattro 2002 – 2010 1984 147 200
AUDI A4 B7 Convertible (8HE) 1.8 T 2002 – 2010 1781 120 163
AUDI A4 B7 Convertible (8HE) S4 quattro 2002 – 2010 4163 253 344
AUDI A4 B7 Convertible (8HE) 2.0 TDI 2002 – 2010 1968 100 136
AUDI TT (8J3) 2.0 TFSI 2006 – 2015 1984 149 203
AUDI TT (8J3) 45 TFSI quattro 2006 – 2015 1984 155 211
AUDI TT (8J3) 45 TFSI 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.0 TFSI quattro 2006 – 2015 1984 147 200
AUDI TT (8J3) 2.0 TTS quattro 2006 – 2015 1984 200 272
AUDI TT (8J3) 1.8 TFSI 2006 – 2015 1798 118 160
AUDI TT (8J3) 2.0 TDI quattro 2006 – 2015 1968 125 170
AUDI TT (8J3) 2.0 TTS quattro 2006 – 2015 1984 195 265
AUDI TT (8J3) 2.5 RS quattro 2006 – 2015 2480 250 340
AUDI TT (8J3) 2.0 TFSI 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.0 TFSI quattro 2006 – 2015 1984 155 211
AUDI TT (8J3) 2.5 RS quattro 2006 – 2015 2480 265 360
AUDI TT (8J3) 2.0 TFSI 2006 – 2015 1984 147 200
AUDI TT (8J3) 3.2 V6 quattro 2006 – 2015 3189 184 250
AUDI TT Roadster (8J9) 2.0 TFSI 2007 – 2014 1984 155 211
AUDI TT Roadster (8J9) 2.0 TFSI quattro 2007 – 2014 1984 155 211
AUDI TT Roadster (8J9) 2.5 RS quattro 2007 – 2014 2480 265 360
AUDI TT Roadster (8J9) 2.0 TFSI 2007 – 2014 1984 147 200
AUDI TT Roadster (8J9) 3.2 V6 quattro 2007 – 2014 3189 184 250
AUDI TT Roadster (8J9) 2.0 TTS quattro 2007 – 2014 1984 200 272
AUDI TT Roadster (8J9) 1.8 TFSI 2007 – 2014 1798 118 160
AUDI TT Roadster (8J9) 2.0 TDI quattro 2007 – 2014 1968 125 170
AUDI TT Roadster (8J9) 2.0 TTS quattro 2007 – 2014 1984 195 265
AUDI TT Roadster (8J9) 2.5 RS quattro 2007 – 2014 2480 250 340
AUDI TT Roadster (8J9) 2.0 TFSI quattro 2007 – 2014 1984 147 200
Talk to Expert
