Specifications
| Alternator Charging Current (A) | 250 |
| Alternator Type Multi-function | |

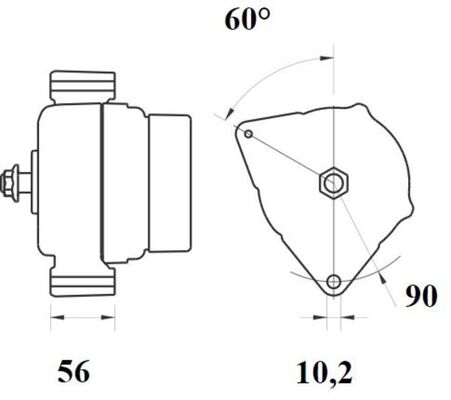

| Bore Diameter (mm) | 10.2 |
| Compact Alternator | |
| Distance of mounting bores (mm) | 56 |
| Dust Cover with dust cover | |
| Mounting points diameter (mm) | 90 |
| Net Weight (g) | 7259 |
| Packaging height (cm) | 17.50 |
| Packaging length (cm) | 24.8 |
| Packaging width (cm) | 18.60 |
| Pulleys without belt pulley | |
| Rotation Direction Clockwise rotation | |
| Voltage (V) | 14 |
Alternator Charging Current [A] 250, Alternator Type Multi-function, Bore Diameter [mm] 10,2, Compact Alternator , Distance of mounting bores [mm] 56, Dust Cover with dust cover, Mounting points diameter [mm] 90, Net Weight [g] 7259, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys without belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
