Specifications
| Alternator Charging Current (A) | 100 |
| Alternator Type Multi-function | |

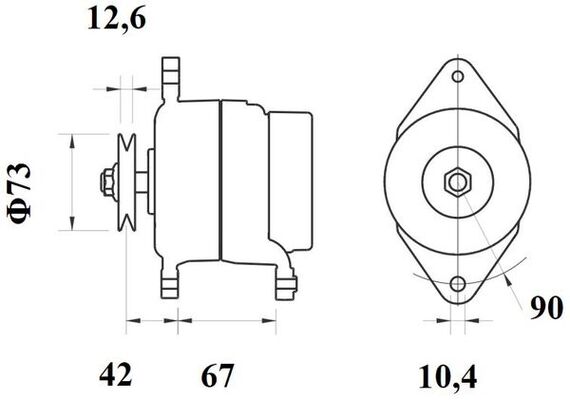

| Belt Pulley Ø (mm) | 73 |
| Bore Diameter (mm) | 10.4 |
| Compact Alternator | |
| Distance from belt pulley to alternator (mm) | 42.0 |
| Distance of mounting bores (mm) | 67.0 |
| Mounting points diameter (mm) | 90.0 |
| Net Weight (g) | 5040 |
| Packaging height (cm) | 17.50 |
| Packaging length (cm) | 24.8 |
| Packaging width (cm) | 18.60 |
| Pulleys with belt pulley | |
| Rotation Direction Clockwise rotation | |
| Voltage (V) | 14 |
Alternator Charging Current [A] 100, Alternator Type Multi-function, Belt Pulley Ø [mm] 73, Bore Diameter [mm] 10,4, Compact Alternator , Distance from belt pulley to alternator [mm] 42,0, Distance of mounting bores [mm] 67,0, Mounting points diameter [mm] 90,0, Net Weight [g] 5040, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
