Specifications
| Alternator Charging Current (A) | 60 |
| Alternator Type Multi-function | |

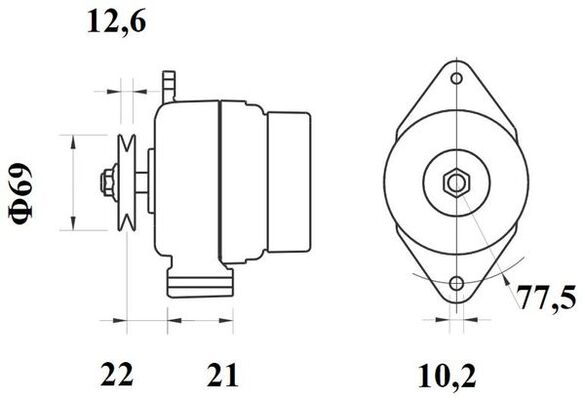

| Belt Pulley Ø (mm) | 69 |
| Bore Diameter (mm) | 10.2 |
| Compact Alternator | |
| Distance from belt pulley to alternator (mm) | 22.0 |
| Distance of mounting bores (mm) | 21.0 |
| Mounting points diameter (mm) | 77.5 |
| Net Weight (g) | 3200 |
| Packaging height (cm) | 15.50 |
| Packaging length (cm) | 20.8 |
| Packaging width (cm) | 17.60 |
| Pulleys with belt pulley | |
| Rotation Direction Clockwise rotation | |
| Voltage (V) | 14 |
Alternator Charging Current [A] 60, Alternator Type Multi-function, Belt Pulley Ø [mm] 69, Bore Diameter [mm] 10,2, Compact Alternator , Distance from belt pulley to alternator [mm] 22,0, Distance of mounting bores [mm] 21,0, Mounting points diameter [mm] 77,5, Net Weight [g] 3200, Packaging height [cm] 15,50, Packaging length [cm] 20,8, Packaging width [cm] 17,60, Pulleys with belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
