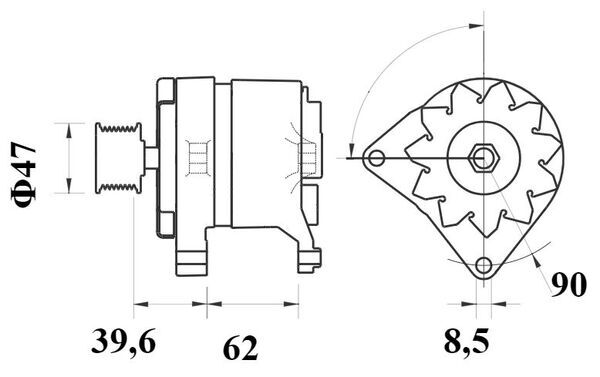

Specifications
| Alternator Charging Current (A) | 145 |
| Alternator Type Multi-function | |
| Belt Pulley Ø (mm) | 47 |
| Bore Diameter (mm) | 8.5 |
| Distance from belt pulley to alternator (mm) | 39.6 |
| Distance of mounting bores (mm) | 62.0 |
| Dust Cover with dust cover | |
| Mounting Angle (degrees) | 90 |
| Mounting points diameter (mm) | 90.0 |
| Net Weight (g) | 5482 |
| Number of ribs 8 | |
| Packaging height (cm) | 17.50 |
| Packaging length (cm) | 24.8 |
| Packaging width (cm) | 18.60 |
| Pulleys with V-ribbed belt pulley | |
| Rotation Direction Clockwise rotation | |
Alternator Charging Current [A] 145, Alternator Type Multi-function, Belt Pulley Ø [mm] 47, Bore Diameter [mm] 8,5, Distance from belt pulley to alternator [mm] 39,6, Distance of mounting bores [mm] 62,0, Dust Cover with dust cover, Mounting Angle [degrees] 90, Mounting points diameter [mm] 90,0, Net Weight [g] 5482, Number of ribs 8, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with V-ribbed belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
