Specifications
| Alternator Charging Current (A) | 150 |

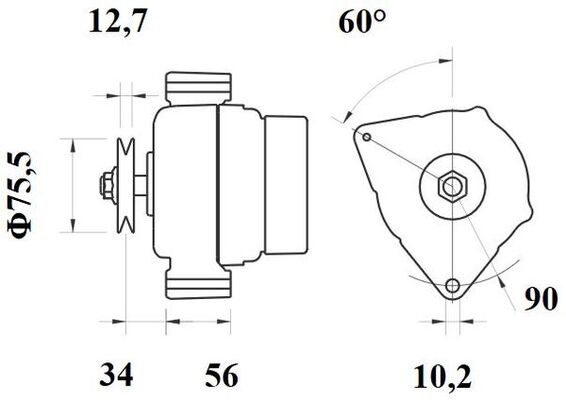

| Belt Pulley Ø (mm) | 76 |
| Bore Diameter (mm) | 10.2 |
| Compact Alternator | |
| Connector/Clamp W | |
| Distance from belt pulley to alternator (mm) | 34.0 |
| Distance of mounting bores (mm) | 56.0 |
| Mounting points diameter (mm) | 90.0 |
| Net Weight (g) | 7797 |
| Number of mounting bores 2 | |
| Number of ribs 1 | |
| Packaging height (cm) | 17.50 |
| Packaging length (cm) | 24.8 |
| Packaging width (cm) | 18.60 |
| Pulleys with belt pulley | |
| Rotation Direction Clockwise rotation | |
Alternator Charging Current [A] 150, Belt Pulley Ø [mm] 76, Bore Diameter [mm] 10,2, Compact Alternator , Connector/Clamp W, Distance from belt pulley to alternator [mm] 34,0, Distance of mounting bores [mm] 56,0, Mounting points diameter [mm] 90,0, Net Weight [g] 7797, Number of mounting bores 2, Number of ribs 1, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
