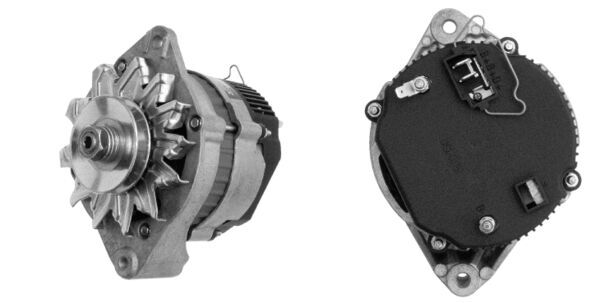

Alternator
Alternator 1 Alternator 2 Alternator 3
Alternator

Alternator

Part No. MG 187 · SKU MG 187-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

Specifications

Alternator Charging Current (A)55
Belt Pulley Ø (mm)68
Bore Diameter (mm)8.2
Distance from belt pulley to alternator (mm)21.0
Distance of mounting bores (mm)56.0
Mounting Angle (degrees)15.0
Mounting points diameter (mm)86.0
Net Weight (g)4501
Number of belts 1
Number of ribs 1
Packaging height (cm)15.50
Packaging length (cm)20.8
Packaging width (cm)17.60
Pulleys with belt pulley
Rotation Direction Clockwise rotation
Voltage (V)14
Alternator Charging Current [A] 55, Belt Pulley Ø [mm] 68, Bore Diameter [mm] 8,2, Distance from belt pulley to alternator [mm] 21,0, Distance of mounting bores [mm] 56,0, Mounting Angle [degrees] 15,0, Mounting points diameter [mm] 86,0, Net Weight [g] 4501, Number of belts 1, Number of ribs 1, Packaging height [cm] 15,50, Packaging length [cm] 20,8, Packaging width [cm] 17,60, Pulleys with belt pulley, Rotation Direction Clockwise rotation, Voltage [V] 14
Fits: AUDI, FIAT, SEAT, VW

Interchangeable Part Numbers

BOSCH0120489076 BOSCH0120489260 BOSCH0120489261 BOSCH0120489557 BOSCH0120489558 BOSCH0120489559 BOSCH0120489560 BOSCH0120489746 BOSCH0120489861 BOSCH0120489862 BOSCH0120489964 BOSCH0120489965 BOSCH0986030740 BOSCH0986030741 BOSCH0986030748 BOSCH0986031100 BOSCH0986031101 BOSCH0986031110 BOSCH0986031111 BOSCH0986031118 DELCO REMYDRA0740 DELCO REMYDRA1100 ELECTROSTARTAN201 LUCAS ELECTRICALLRA00134 LUCAS ELECTRICALLRA00292 LUCAS ELECTRICALLRA00890 MAGNETI MARELLI9433 560 19 MAGNETI MARELLI9433 564 45 MAGNETI MARELLI MAR472 MAGNETI MARELLIMAR472 MAGNETI MARELLI MAR473 MAGNETI MARELLIMAR473 MOTOROLA10-763 MOTOROLA510-201 MOTOROLA510-211 MOTOROLA510-23 MOTOROLA510-330 MOTOROLA510-522 MOTOROLA9 AR 2517 K MOTOROLA9 AR 2518 F MOTOROLA9 AR 2527 K MOTOROLA9 AR 2636 G MOTOROLA9 AR 2726 G MOTOROLA9 AR 2883 G MOTOROLA9 AR 2896 G MOTOROLA9 AR 5044 K MOTOROLA9 AR 5044 L MOTOROLA9 AR 5100 G MOTOROLA9 BB 2KA2 A VALEO432 859 VALEO436 194 VALEO436 195 VALEO436 196 VALEO NA128 VALEONA128 VALEO NA129 VALEONA129 VALEO VA123 VALEOVA123 VALEO VA151 VALEOVA151

OE Numbers — AUDI

036903017A 036903017AX 036903023A 036903023AX 036903023B 036903023C 036903023F 036903023J 036903023L 036903023N 036903023NX 036903023X 036903025D 036903025F 052903015 052903015A 052903017A 052903017AX 052903017X 055903023A
MakeModelType / Engine YearsCCkWHP
AUDI 50 (863) 1.1 1974 – 1978 1093 44 60
AUDI 50 (863) 1.3 1974 – 1978 1272 44 60
AUDI 50 (863) 1.1 1974 – 1978 1093 37 50
AUDI 50 (863) 0.8 1974 – 1978 771 25 34
AUDI 50 (863) 1.3 1974 – 1978 1272 43 58
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2144 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2144 96 131
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro 1978 – 1987 2226 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 61 83
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.7 1978 – 1987 1715 58 79
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1780 76 103
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 88 120
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 1978 – 1987 2226 89 121
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1272 40 55
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.3 1978 – 1987 1297 44 60
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 54 73
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1595 55 75
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 1978 – 1987 1588 63 85
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 GLE 1978 – 1987 1588 81 110
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 65 88
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.9 CD-5S 1978 – 1987 1921 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 D 1978 – 1987 1588 40 54
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.6 TD 1978 – 1987 1588 51 70
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 CC quattro (85Q) 1978 – 1987 1781 66 90
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 82 112
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.0 quattro (85Q) 1978 – 1987 1994 85 115
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 2.2 quattro (85Q) 1978 – 1987 2144 100 136
AUDI 80 B2 Saloon (811, 813, 814, 819, 853) 1.8 GTE quattro (85Q) 1978 – 1987 1781 81 110
