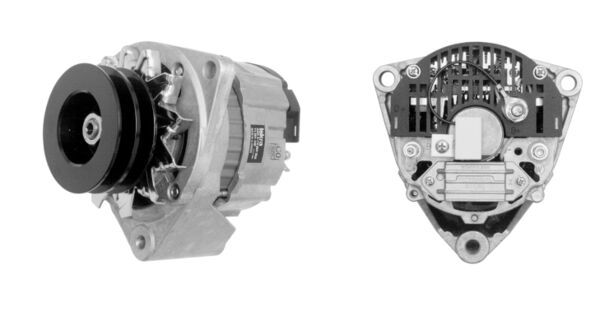

Alternator
Alternator 1 Alternator 2 Alternator 3
Alternator

Alternator

Part No. MG 206 · SKU MG 206-MAHLE
Price on request
Currently out of stock

Get notified when this part is back in stock:

Genuine & OEM parts Nationwide delivery Easy returns

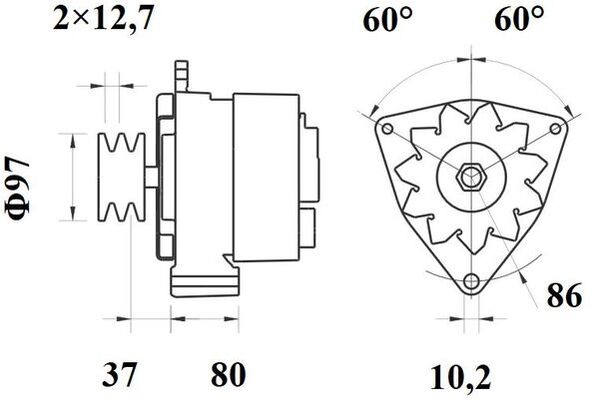

Specifications

Alternator Charging Current (A)35
Belt Pulley Ø (mm)97
Bore Diameter (mm)10.2
Connector/Clamp W
Distance from belt pulley to alternator (mm)37.0
Distance of mounting bores (mm)80.0
Mounting Angle (degrees)60.0
Mounting points diameter (mm)86.0
Net Weight (g)6464
Number of belts 2
Number of ribs 2
Packaging height (cm)17.50
Packaging length (cm)24.8
Packaging width (cm)18.60
Pulleys with double pulley
Rotation Direction Clockwise rotation
Alternator Charging Current [A] 35, Belt Pulley Ø [mm] 97, Bore Diameter [mm] 10,2, Connector/Clamp W, Distance from belt pulley to alternator [mm] 37,0, Distance of mounting bores [mm] 80,0, Mounting Angle [degrees] 60,0, Mounting points diameter [mm] 86,0, Net Weight [g] 6464, Number of belts 2, Number of ribs 2, Packaging height [cm] 17,50, Packaging length [cm] 24,8, Packaging width [cm] 18,60, Pulleys with double pulley, Rotation Direction Clockwise rotation, Voltage [V] 28
Fits: MERCEDES-BENZ

Interchangeable Part Numbers

BOSCH0120489727 BOSCH0120489728 DELCO REMYDRA1310
MakeModelType / Engine YearsCCkWHP
MERCEDES-BENZ LP LPK 1013 1963 – 1990 5675 96 130
MERCEDES-BENZ LP LPS 913 1963 – 1990 5675 96 130
MERCEDES-BENZ LP LPK 913 1963 – 1990 5675 96 130
MERCEDES-BENZ LP LPO 811 1963 – 1990 5675 81 110
MERCEDES-BENZ LP LPO 813 1963 – 1990 5675 96 130
MERCEDES-BENZ LP LP 1013, LPL 1013 1963 – 1990 5675 96 130
MERCEDES-BENZ LP LP 1013 1963 – 1990 5675 124 168
MERCEDES-BENZ LP LP 1113, LPL 1113 1963 – 1990 5675 96 130
MERCEDES-BENZ LP LPKO 608 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LPKO 709 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LPO 808, LPO 809 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LP 913, LPL 913 1963 – 1990 5675 96 130
MERCEDES-BENZ LP LPK 811 1963 – 1990 5675 81 110
MERCEDES-BENZ LP LPK 1113 1963 – 1990 5675 96 130
MERCEDES-BENZ LP LP 1520 1963 – 1990 10810 114 155
MERCEDES-BENZ LP LPS 1520 1963 – 1990 10810 114 155
MERCEDES-BENZ LP LPK 1520 1963 – 1990 10810 114 155
MERCEDES-BENZ LP L 708 E 1963 – 1990 3784 60 82
MERCEDES-BENZ LP L 608 D 1963 – 1990 3780 63 85
MERCEDES-BENZ LP L 608 E 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LP 1113 1963 – 1990 5675 96 131
MERCEDES-BENZ LP LPO 1113 1963 – 1990 5675 96 131
MERCEDES-BENZ LP LPK 808 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LPKF 608 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LPS 608, LPLS 608 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LPO 608 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LPK 608 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LP 709, LPL 709 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LPS 709, LPLS 709 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LPKF 709 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LPO 709 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LPK 709 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LP 808, LPL 808 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LP 608, LPL 608 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LPKF 808, LPKF 809 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LP 809, LPL 808, LPL 809 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LPK 809 1963 – 1990 3780 63 85
MERCEDES-BENZ LP LP 811 1963 – 1990 5675 81 110
MERCEDES-BENZ LP LPS 811 1963 – 1990 5675 81 110
MERCEDES-BENZ LP LP 813, LPL 813 1963 – 1990 5675 96 130
MERCEDES-BENZ LP LPS 813, LPLS 813 1963 – 1990 5675 96 130
MERCEDES-BENZ LP LPK 813 1963 – 1990 5675 96 130
MERCEDES-BENZ LP LP 911 B 1963 – 1990 5675 81 110
MERCEDES-BENZ LP LPS 911 B 1963 – 1990 5675 81 110
